Product Details
More Capacity, Lower Cost per kWh
Although the rated capacity is 628Ah, measured capacity can reach up to 680Ah depending on the batch and test conditions.
Compared with using two 314Ah or 334Ah cells, one MB56 can provide a similar total capacity at a lower overall cell cost.
This means you can achieve the same energy storage target with fewer cells, while also simplifying pack design, reducing connections, and lowering the total system cost.
Why it matters:
- Up to 680Ah measured capacity
- Similar capacity to 2 × 314Ah / 334Ah cells
- Lower cost than purchasing two smaller cells
- Fewer cells, busbars and connection points
- Simpler battery pack assembly
Typical Applications
Designed for High-Capacity Energy Storage
- Residential energy storage
- Large off-grid battery systems
- Commercial energy storage
- Solar energy storage
- Backup power systems
- Battery integration projects
- High-capacity DIY battery systems

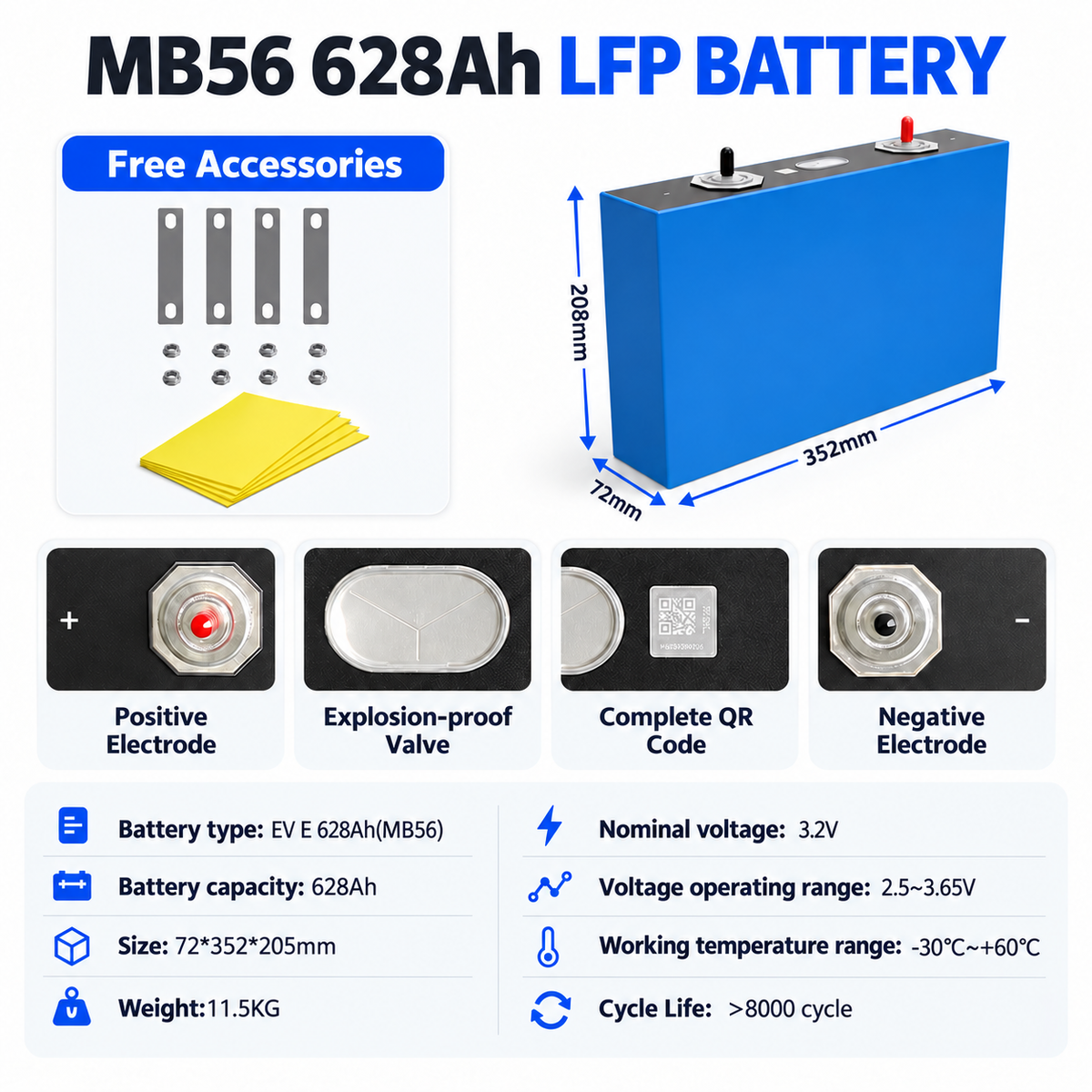

Technical Specifications (Parameters)
| Parameter | Specification |
| Brand / Model | EVE LF628 (MB56) |
| Nominal Capacity | 628Ah |
| Nominal Voltage | 3.2V |
| Total Energy Per Cell | 2,009.6 Wh (approx. 2 kWh) |
| Cell Condition | Brand New, Grade A, Matched & Balanced |
| Cycle Life | ≥ 8,000 Cycles @ 80% DoD |
| Standard Charge/Discharge | 0.5C / 0.5C |
| Max Continuous Discharge | 1C (628A) |
| Weight Per Cell | Approx. 11.8 kg (26.0 lbs) |
| Dimensions (LWH) | 353×72×207mm |
Checked Before Shipment

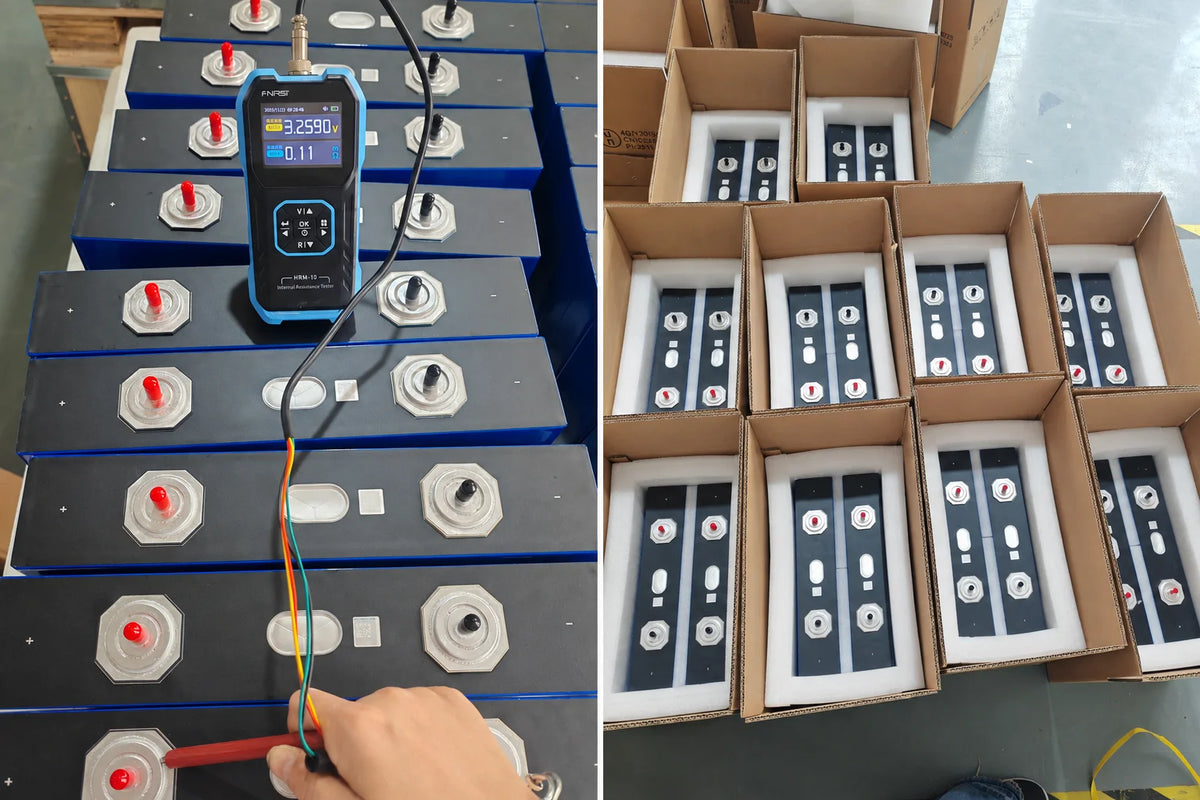

Voltage Check — OCV consistency
IR Check — Internal resistance consistency

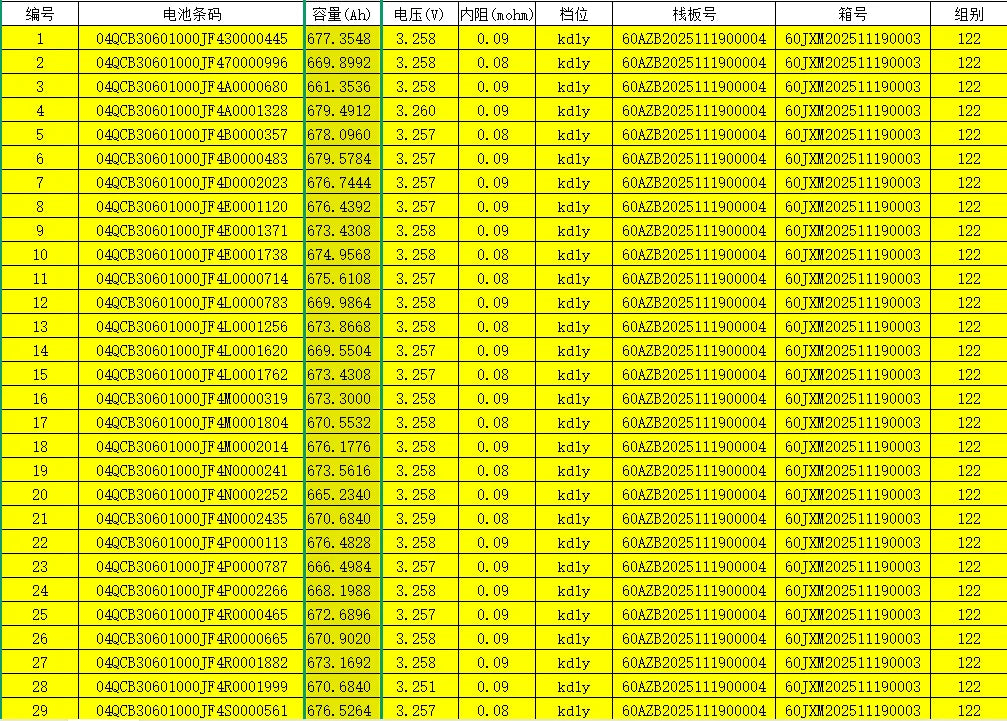

Capacity Test — Available for matched sets

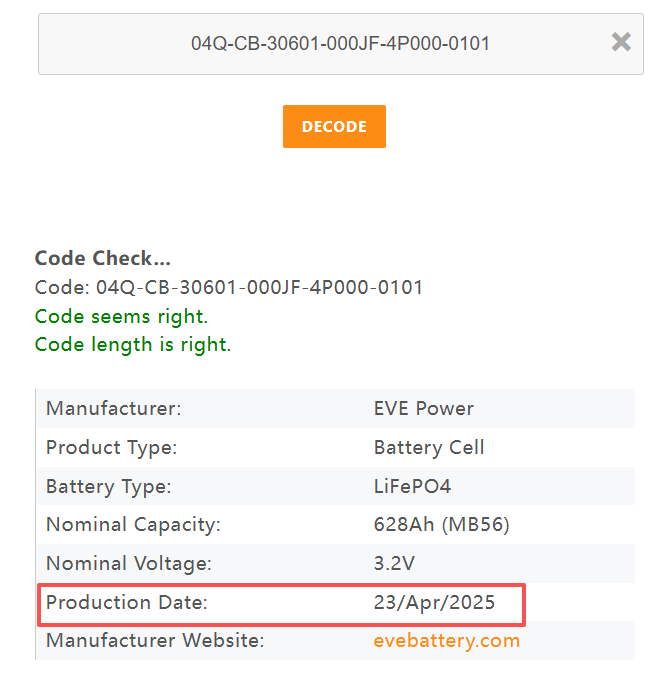

Visual Check — Casing, terminals & QR codes
Packing Check — Protection before dispatch
Capacity testing available for matched sets and project orders.
What's Included in Your Package?
We don't just ship bare cells. AmpBird provides a complete installation-ready package:
1. 4 / 8 / 16 x Brand New EVE 628Ah LiFePO4 Cells (Depending on your order)
2. Copper Busbars & Screws & Washers
3. Epoxy Fiberglass Insulating Sheets
Shipping Information
Poland Warehouse
Available for EU customers only. Customers outside the EU should select shipping from China.
DDP Shipping from China
For battery cells and DIY battery kits, we normally use DDP door-to-door shipping, including freight and customs clearance.
DDP service is currently confirmed for:
United States, Canada, United Kingdom, EU countries, Australia, Thailand, and Ukraine.
For other countries, please contact us before ordering to confirm shipping availability and customs arrangements.
Estimated Delivery Time from China
1. Order preparation: ~1 week
2. Waiting for vessel departure: ~1 week
3. Sea transit: ~4–5 weeks
4. Customs clearance & final delivery: ~2 weeks
Total estimated delivery time: approximately 8–9 weeks.
Tracking information will be provided during transit. Actual delivery time may vary depending on vessel schedules, customs clearance, and local delivery conditions.
Warranty & Technical Support
5-Year Limited Warranty
Covered by AmpBird’s 5-year limited warranty with responsive after-sales support.
After-Sales Support
If you receive damaged or abnormal cells, contact us with photos and test results. Our team will review the issue and provide an appropriate solution.
Technical Specifications
Check the specification applicable to your supplied batch and confirm available test reports.
| Parameter | Value |
|---|---|
| Capacity | 628Ah |
| Nominal Voltage | 3.2V |
| Energy | 2009.6Wh |
| Dimensions | 352.3 × 71.7 × 207.2 mm |
| Weight | 11.5kg |
| Chemistry | LiFePO4 |
| Brand | EVE |
| Condition | Grade A, Brand New |
| Initial Internal Resistance | 0.10mΩ ±0.05mΩ |
| Cycle Life | 8000 Cycles |
| Operating Temperature | Charge: 0°C to 60°C | Discharge: -30°C to 60°C |
| Recommended Applications | Large Home ESS, Commercial ESS, Off-Grid Solar, Marine, Industrial Energy Storage |
| Warranty | 5 Years |
