CALB 314Ah 3.2V LiFePO4 Battery Cell For Solar Storage System

1 / 5

LiFePO4 Cell | LiFePO4 Battery Cell

CALB 314Ah 3.2V LiFePO4 Battery Cell For Solar Storage System

$358.10 USD

Sale Sold out

Shipping calculated at checkout.

Rated Capacity 314Ah

Rated Voltage 3.2V

Rated Energy 1004Wh

Cycle Life ≥9000 Cycles @ 80% SOH

Download Datasheet (PDF)

Quantity 4 Cells 8 Cells 16 Cells

Ship from China( 45 - 65 Days)

EU Warehouse: Poland warehouse shipping is available for EU destinations only. For non-EU destinations, please select China.

Grade A Cells

Factory Tested

Global Shipping

5-Years Warranty

View full details

Product Details

CALB 314Ah 3.2V LiFePO4 prismatic cells are designed for builders, installers and energy-storage projects that need a large-format rechargeable LFP cell. Typical applications include solar storage, off-grid batteries, RV and marine systems, and custom DIY battery packs.

Key Features

3.2V nominal LiFePO4 chemistry
314Ah nominal capacity and approximately 1004.8Wh per cell
Prismatic format for compact high-capacity battery assemblies
Suitable for series configurations when cells are properly matched and managed by a compatible BMS
Batch information and pre-shipment inspection can be confirmed for project orders

Technical Overview

Reference internal resistance: ≤0.3 mΩ. Reference dimensions: 207 × 174.4 × 71.4 mm. Reference weight: 5.42 ± 0.16 kg. Cycle-life reference: ≥9000 @ 80% SOH. Specifications can vary by production batch; confirm the current datasheet and order specification before finalizing a project.

Applications

Solar and home energy storage
Off-grid battery banks
DIY 12.8V / 25.6V / 51.2V LiFePO4 packs
RV and marine auxiliary power
Commercial and custom energy-storage projects

Cell Matching & Inspection

For multi-cell battery packs, consistency matters. AmpBird can coordinate pre-shipment checks for open-circuit voltage, internal resistance, physical condition and batch consistency according to the agreed order requirements. Capacity testing or additional inspection should be confirmed before ordering when required.

Before Ordering

Please confirm the current batch, terminal configuration, included accessories, required quantity, inspection scope, lead time and shipping method. Lithium battery transport requirements vary by destination and shipping channel.

Shipping Information

We Offer DDP Shipping from China
For battery cells and DIY battery kits, we normally use DDP door-to-door shipping, including freight and customs clearance.

DDP service is currently confirmed for:
United States, Canada, United Kingdom, EU countries, Australia, Thailand, and Ukraine.

For other countries, please contact us before ordering to confirm shipping availability and customs arrangements.

Estimated Delivery Time from China

1. Order preparation: ~1 week

2. Waiting for vessel departure: ~1 week

3. Sea transit: ~4–5 weeks

4. Customs clearance & final delivery: ~2 weeks

Total estimated delivery time: approximately 8–9 weeks.

Tracking information will be provided during transit. Actual delivery time may vary depending on vessel schedules, customs clearance, and local delivery conditions.

Warranty & Technical Support

5-Year Limited Warranty
Covered by AmpBird’s 5-year limited warranty with responsive after-sales support.

After-Sales Support
If you receive damaged or abnormal cells, contact us with photos and test results. Our team will review the issue and provide an appropriate solution.

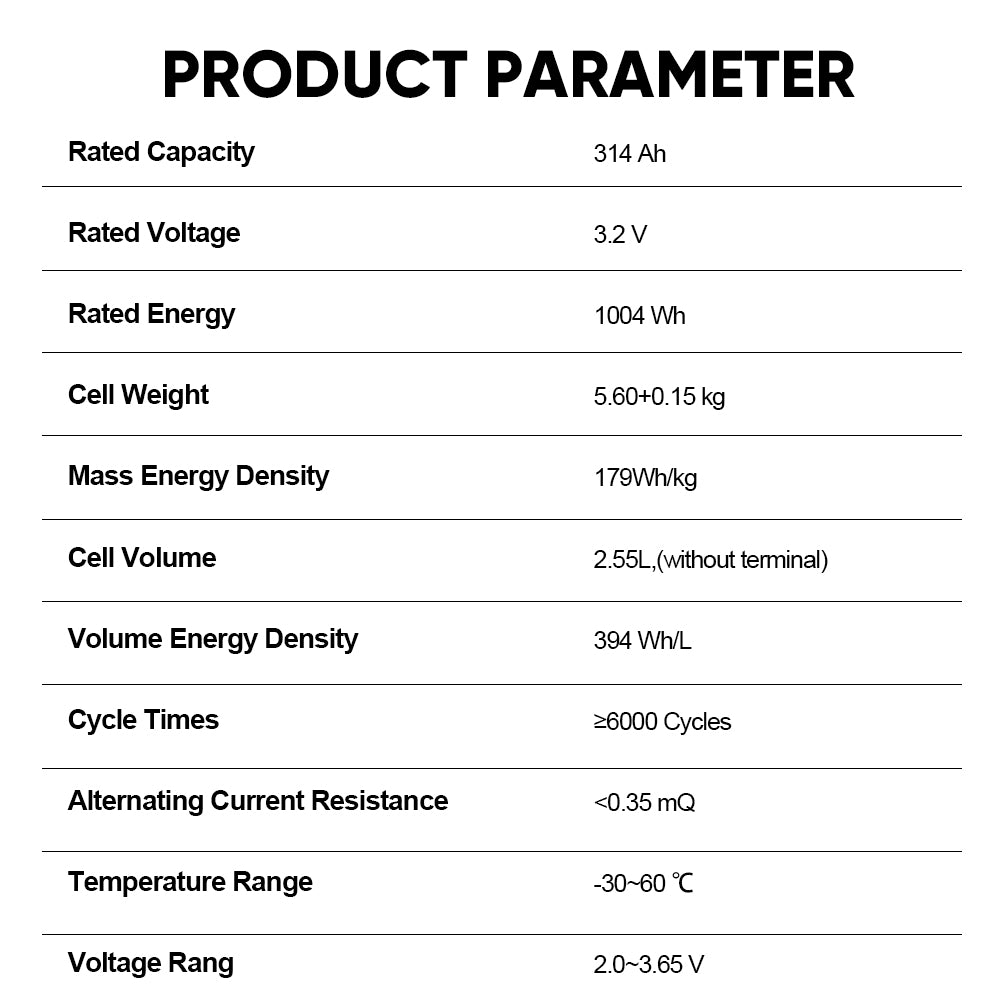

Technical Specifications

Check the specification applicable to your supplied batch and confirm available test reports.

Parameter	Value
Model	CALB L173F314A
Rated Capacity	314Ah
Rated Voltage	3.2V
Rated Energy	1004Wh
Operating Voltage Range	2.5–3.65V above 0°C; 2.0–3.65V at -30°C to 0°C
Recommended Charge Current	0.5P (157A)
Recommended Discharge Current	0.5P (157A)
AC Resistance	≤0.35mΩ at 40% SOC, room temperature, 1000Hz
Cycle Life	≥9000 cycles @ 80% SOH under specified test conditions
Charging Temperature	0°C to 55°C
Discharging Temperature	-30°C to 55°C
Dimensions	174.4 × 71.4 × 207.0mm (W × T × H, including terminals)
Weight	5.60±0.15kg
Mass Energy Density	179Wh/kg
Volumetric Energy Density	394Wh/L

What does the ≥9000-cycle specification actually mean?

CALB specifies ≥9000 cycles to 80% SOH under defined test conditions at 25°C, using 0.5P charge and 0.5P discharge with specified voltage limits and rest periods. Actual service life will vary with operating temperature, SOC range, charge/discharge rate and pack operating conditions. We therefore present this as the manufacturer's test result rather than a guaranteed cycle count for every application.

How can I confirm whether the CALB 314Ah cell is suitable for my project?

If you already have a battery design, send us the system voltage, series/parallel configuration, expected charge/discharge current and application. We can check the key cell specifications against your requirements before ordering. For an existing system, you can also send us the current cell model or basic pack information so we can help compare the specifications.

Can the CALB 314Ah cell be used in cold-climate applications?

Yes, but charging and discharging have different temperature limits. CALB specifies 0°C to 55°C for charging and -30°C to 55°C for discharging. This is particularly important for outdoor energy storage, vehicles and other installations exposed to winter temperatures. If the cell temperature may fall below 0°C, the battery system should prevent charging or use an appropriately controlled heating solution.

Can you supply cells from the same batch for a battery pack or project order?

For pack assembly and larger project orders, please tell us the required quantity and any batch-consistency requirements when requesting a quotation. We can check the current available batch, production information, terminal configuration and available test information before shipment. If you have specific requirements for cell matching or inspection data, please confirm them with us before ordering.

How does DDP shipping work for lithium battery orders?

With DDP shipping, we arrange the lithium-battery transport, import customs clearance, applicable duties and taxes, and final delivery to your confirmed address. This is useful if you prefer not to arrange a separate freight forwarder or customs broker. Send us your postcode and order quantity, and we will confirm the available route, total DDP shipping cost and estimated transit time for your shipment.

How are CALB 314Ah cells packed and shipped internationally?

Lithium cells require suitable protective packaging and dedicated transport arrangements. We select the packing and shipping method according to the order quantity and route, with particular attention to protecting the terminals and cells from short circuit, movement and mechanical damage during transport. For larger B2B orders, we can also coordinate EXW or FOB shipments with your nominated freight forwarder.

What should I check when the cells arrive?

Before assembly, check the outer packaging and cells for visible transport damage, and verify basic cell condition such as voltage and terminal condition. If anything appears abnormal, keep the affected cell uninstalled and contact us with photos, video and measurement data. This gives us a clear record of the condition on arrival and allows the issue to be checked before the cell is put into a battery pack.

What after-sales support does AmpBird provide if I have a problem with the cells?

If you encounter a problem during inspection, assembly or use, send us the order information together with photos, video and relevant measurement data. We will first help identify whether the issue is related to the cell, transport, electrical connection or system operation. When manufacturer-level technical confirmation is required, we can coordinate with the upstream technical team and continue following the case according to the confirmed cause and applicable warranty terms.
