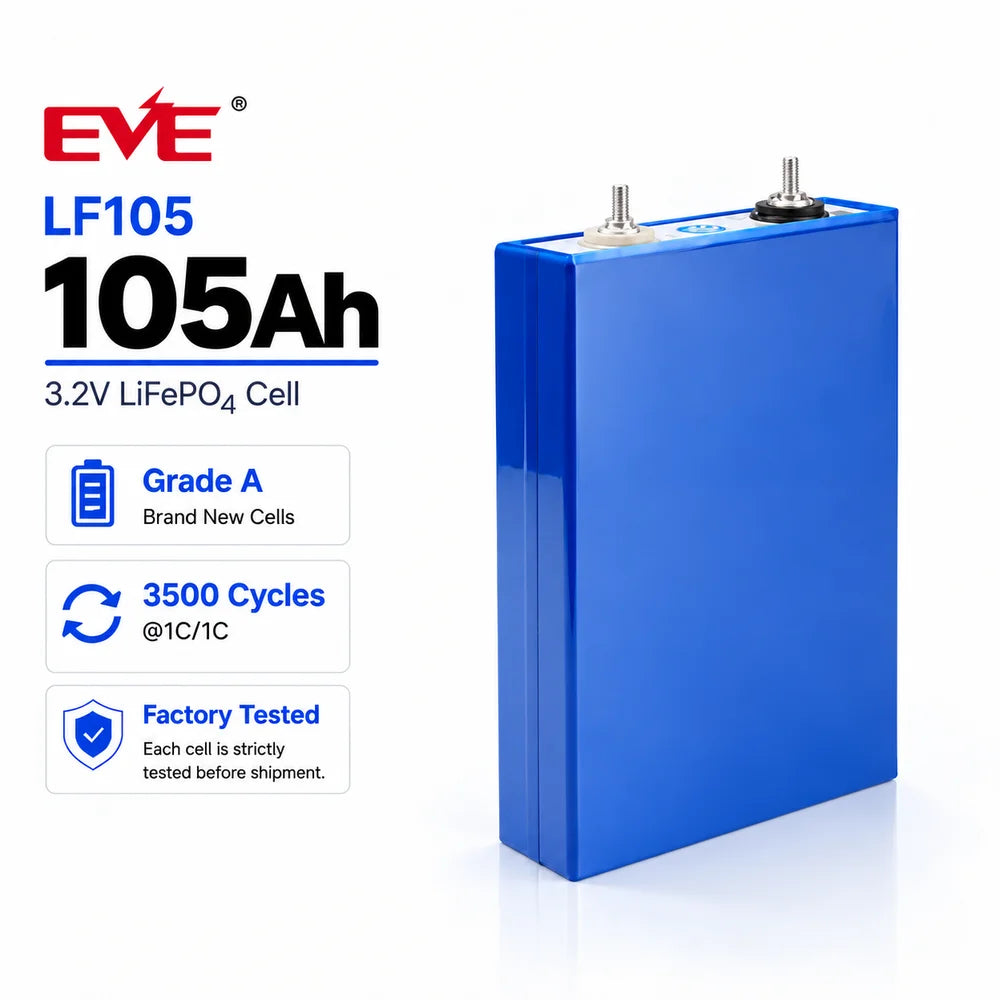

EVE LF105 105Ah LiFePO4 cells for DIY battery packs
Build a compact LiFePO4 battery pack with EVE LF105 prismatic cells. Each cell has a nominal capacity of 105Ah and a nominal voltage of 3.2V, equivalent to 336Wh of nominal energy. Choose a 4, 8 or 16-cell set for your project and select a shipping origin that serves your destination.
Battery pack configurations
| Cells in series | Nominal voltage | Capacity | Nominal energy |
|---|---|---|---|
| 4S | 12.8V | 105Ah | 1.344kWh |
| 8S | 25.6V | 105Ah | 2.688kWh |
| 16S | 51.2V | 105Ah | 5.376kWh |
These are nominal calculations for one series string. Usable energy depends on the operating window, system losses and application. Select a compatible LiFePO4 BMS, protection devices and enclosure for your system requirements.
Specifications and datasheet
The Technical Specifications section lists the confirmed nominal values. The linked reference datasheet is LF105-73103, Version F, dated 2019-12-02. Check its revision before designing your pack. For dimensions, terminal configuration, assembly requirements and operating limits applicable to your order, request the specification for the supplied batch.
Ordering your cell set
Select the number of cells per set and the shipping origin before adding the product to your cart. The cart quantity counts sets: quantity 1 means one set containing the selected 4, 8 or 16 cells.
For project orders, contact AmpBird with your required cell quantity, destination and battery configuration. Confirm batch documentation, matching requirements, test coverage, included connection hardware and delivery terms before ordering.
Compare EVE LF280K 280Ah cells or CATL 314Ah cells if your project requires a different nominal capacity. Check dimensions, operating limits and equipment compatibility for each model.

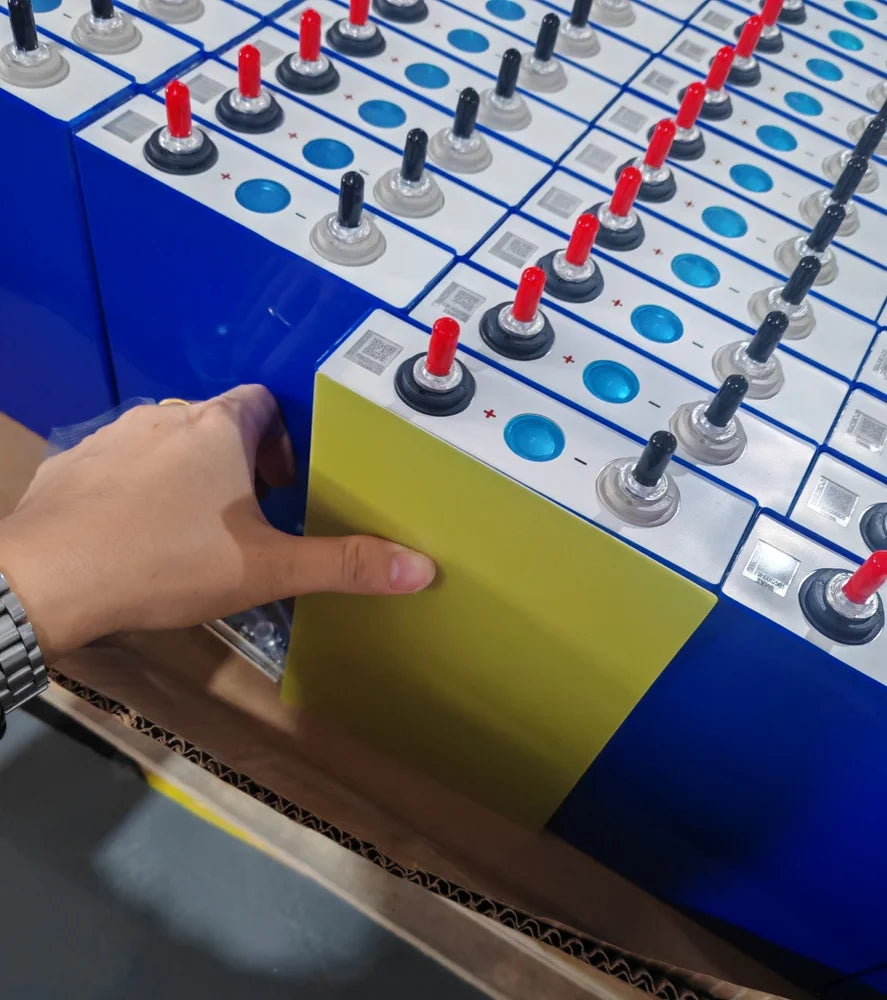

Product and connection hardware photos
Confirm the included hardware and terminal configuration for your selected set before ordering.
Shipping Information

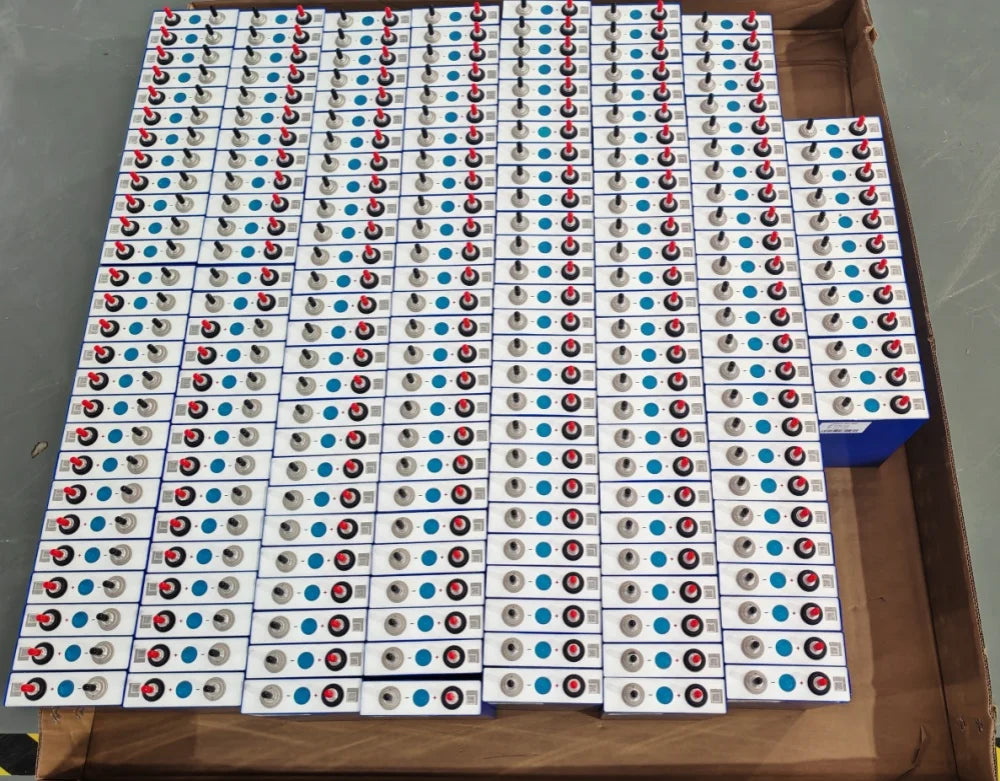

Poland Warehouse
Available for EU customers only. Customers outside the EU should select shipping from China.
DDP Shipping from China
For battery cells and DIY battery kits, we normally use DDP door-to-door shipping, including freight and customs clearance.
DDP service is currently confirmed for:
United States, Canada, United Kingdom, EU countries, Australia, Thailand, and Ukraine.
For other countries, please contact us before ordering to confirm shipping availability and customs arrangements.
Estimated Transit Time from China
Estimated transit time from China is 45–65 days. Order preparation time is additional. Contact AmpBird before ordering to confirm preparation time and whether the quoted transit estimate includes customs clearance and final delivery to your destination.
Tracking information will be provided during transit. Actual delivery time may vary depending on vessel schedules, customs clearance, and local delivery conditions.
Warranty & Technical Support
5-Year Limited Warranty
Covered by AmpBird’s 5-year limited warranty with responsive after-sales support.
After-Sales Support
If you receive damaged or abnormal cells, contact us with photos and test results. Our team will review the issue and provide an appropriate solution.
Technical Specifications

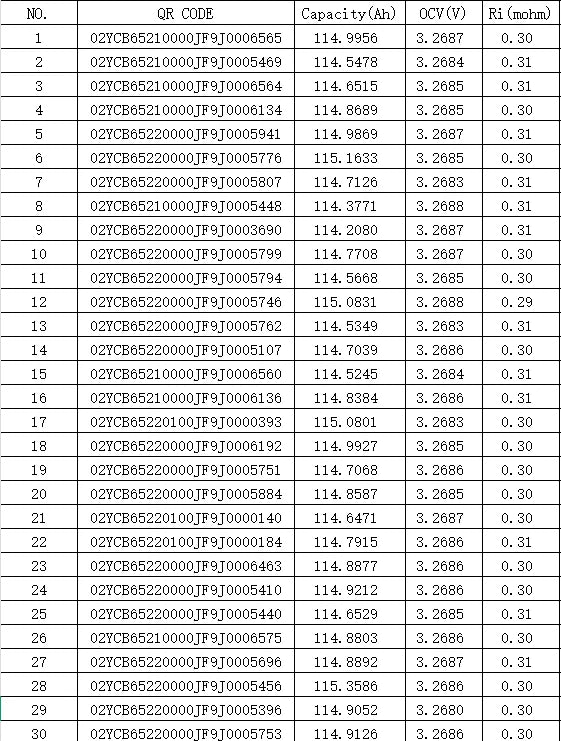

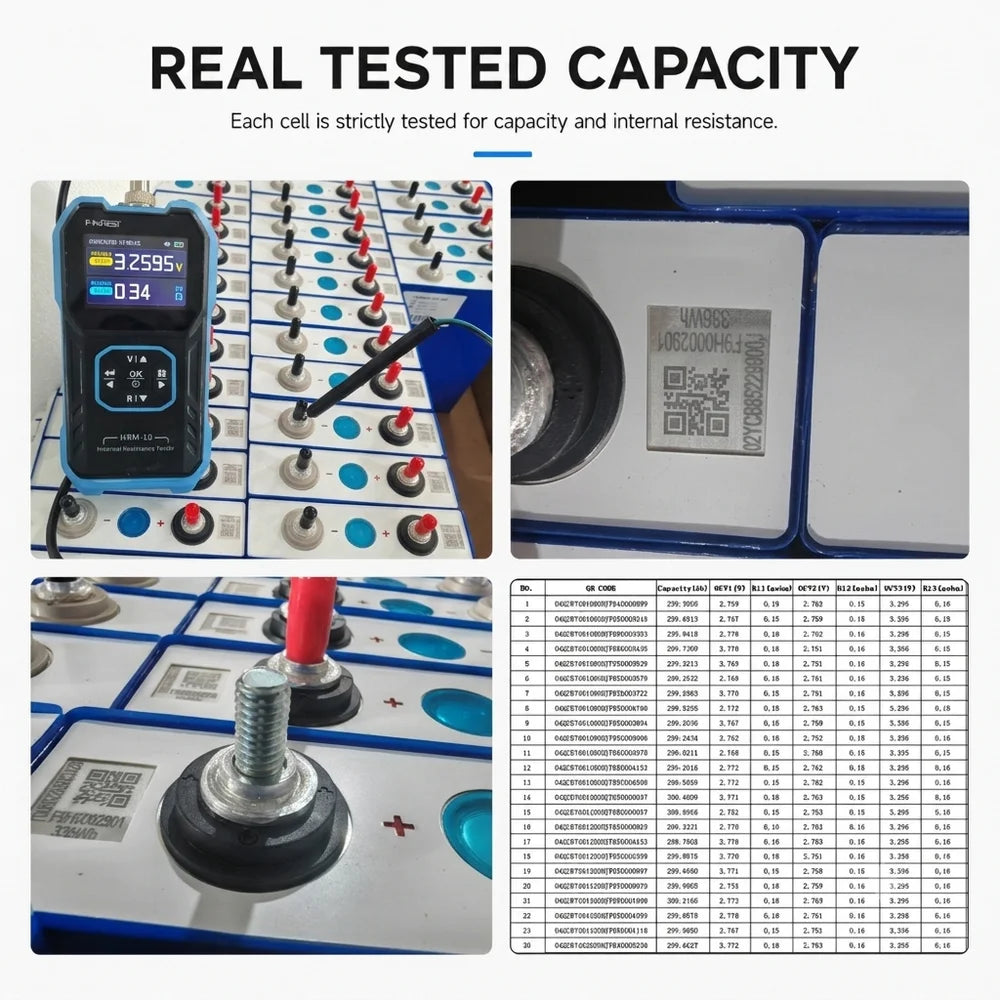

Check the specification applicable to your supplied batch and confirm available test reports.
| Parameter | Value |
|---|---|
| Manufacturer / Model | EVE / LF105 |
| Cell Type | Prismatic LiFePO4 |
| Nominal Capacity | 105Ah |
| Nominal Voltage | 3.2V |
| Calculated Nominal Energy | 336Wh per cell |
| Reference Datasheet | LF105-73103, Version F, 2019-12-02; confirm batch applicability |
| Design Limits | Request dimensions, terminal configuration and operating limits for the supplied batch |
