Product Details
Reliable 314Ah Cells for 16kWh-Class Energy Storage

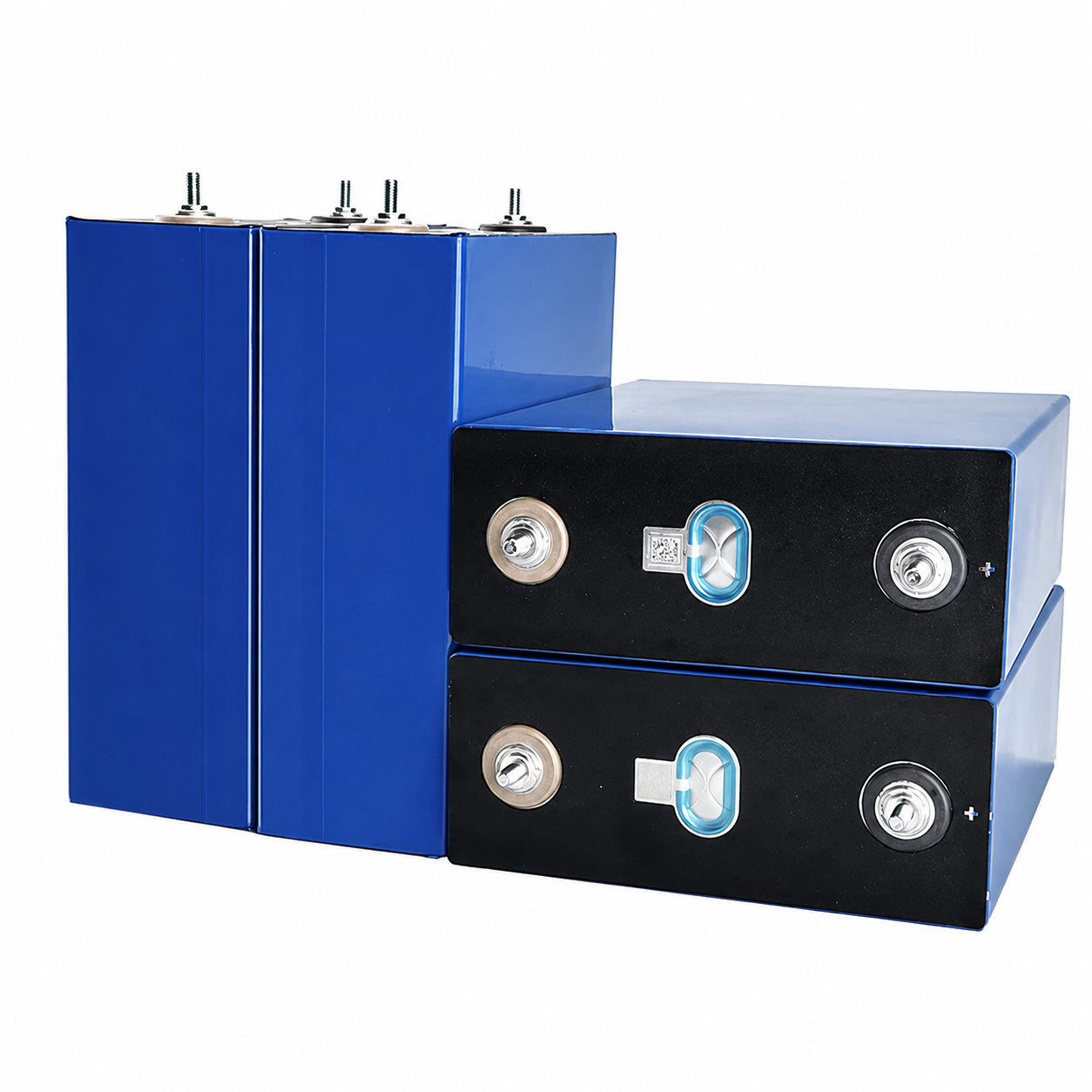

The CATL 314Ah LiFePO4 cell is designed for energy storage applications, combining 314Ah capacity, 3.2V nominal voltage and 1004.8Wh nominal energy per cell.
With 16 cells in series, you can build a 51.2V 314Ah battery with approximately 16.08kWh of nominal energy — a practical capacity for home solar storage, off-grid systems and larger DIY LiFePO4 battery projects.
Key Features
1. Certified Grade A Quality: 100% brand new, genuine prismatic LiFePO4 cells. No recycled, no refurbished, and no salvaged components.
2. Capacity Freedom: Choose between the industry-standard 280Ah or the high-density 314Ah to perfectly match your power requirements.
3. Industry-Leading Cycle Life: Achieve 7000+ deep charge/discharge cycles at 80% DOD. Build it once and rely on it for years.
4. Superior Efficiency: Ultra-low internal resistance ensures consistent power output, faster charging, and less thermal buildup.
5. Perfectly Matched: Every order is batch-matched for capacity (Ah) and internal resistance (mΩ) to ensure your pack stays balanced right out of the box.
6. DIY & Professional Ready: Standard terminal dimensions make these compatible with all common 4S, 8S, and 16S BMS configurations.

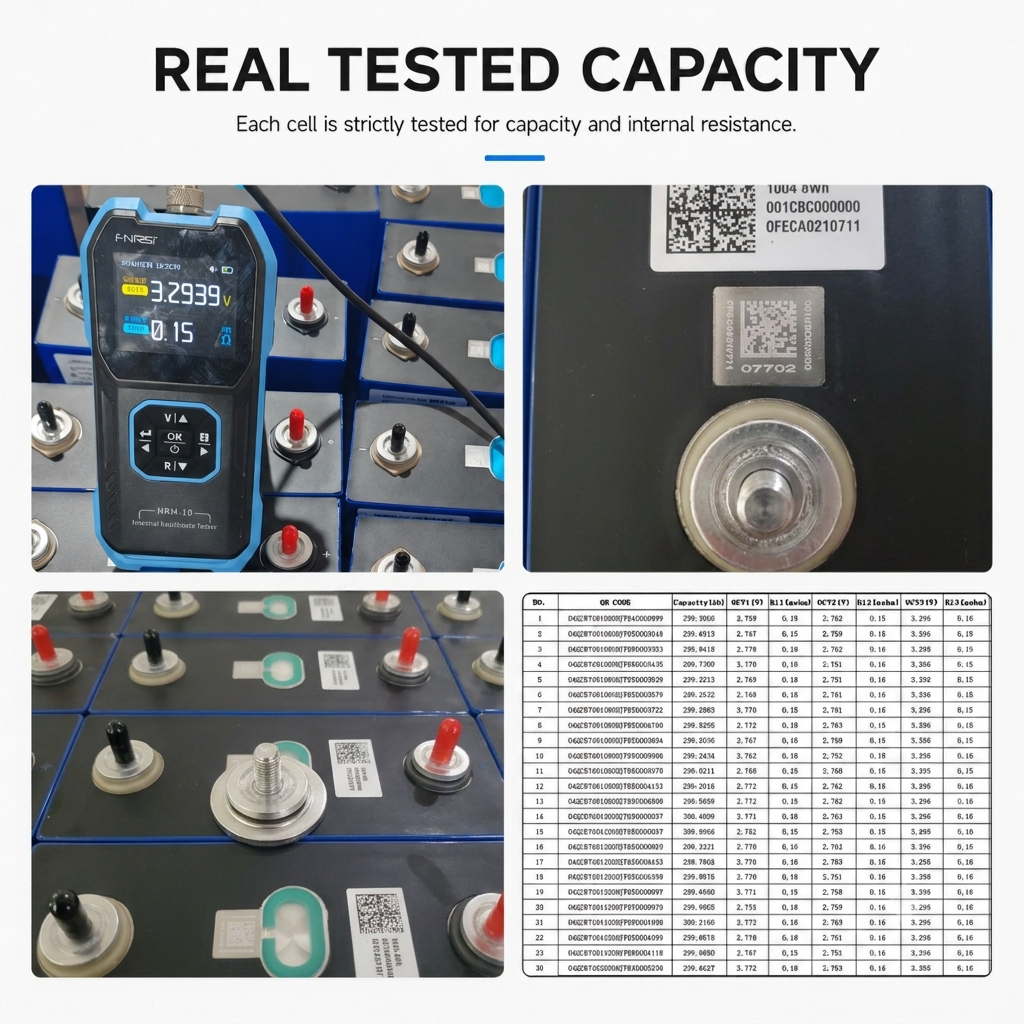

Checked Before Shipment
Voltage Check — OCV consistency
IR Check — Internal resistance consistency
Capacity Test — Available for matched sets

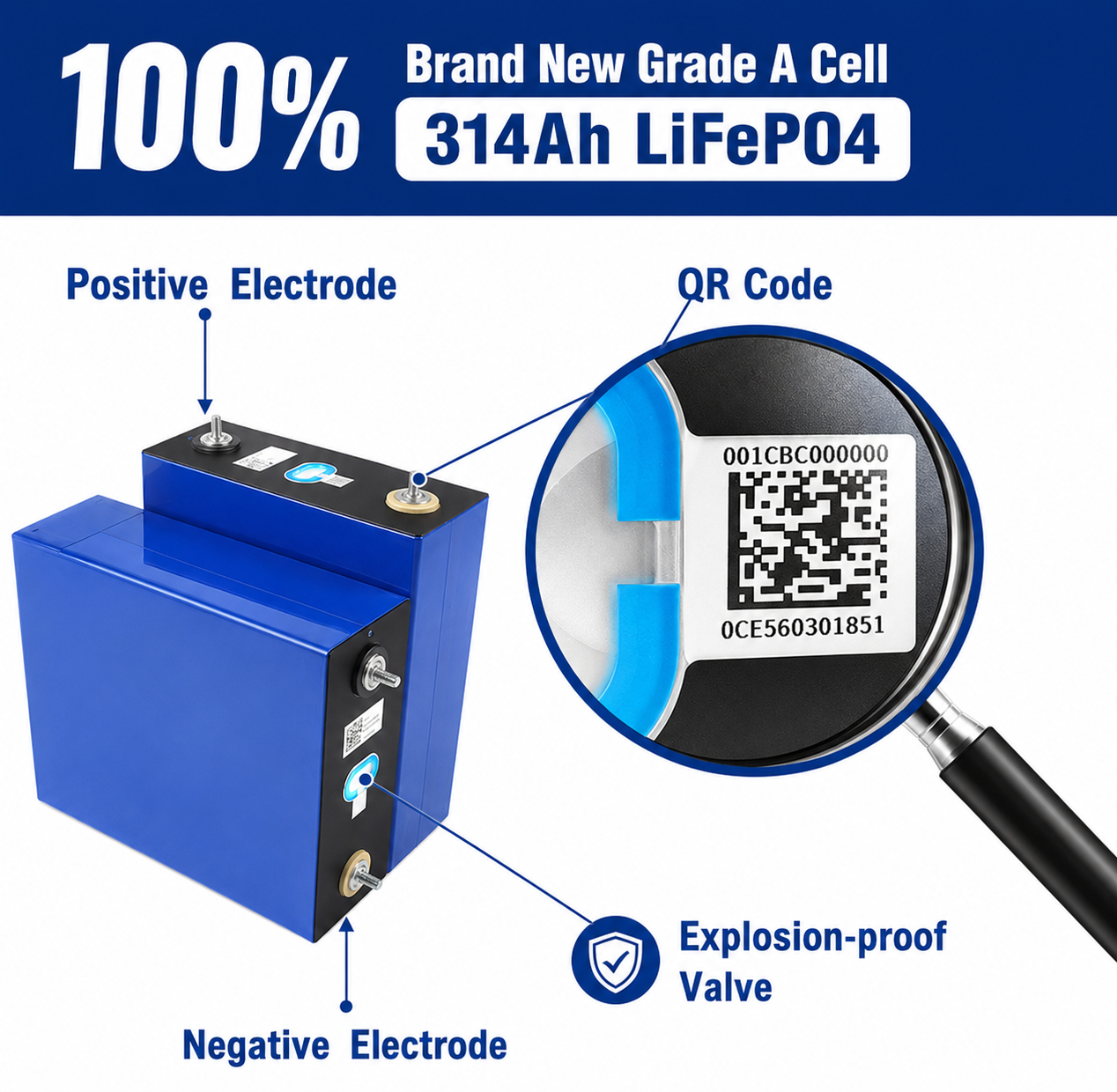

Visual Check — Casing, terminals & QR codes
Packing Check — Protection before dispatch
Capacity testing available for matched sets and project orders.

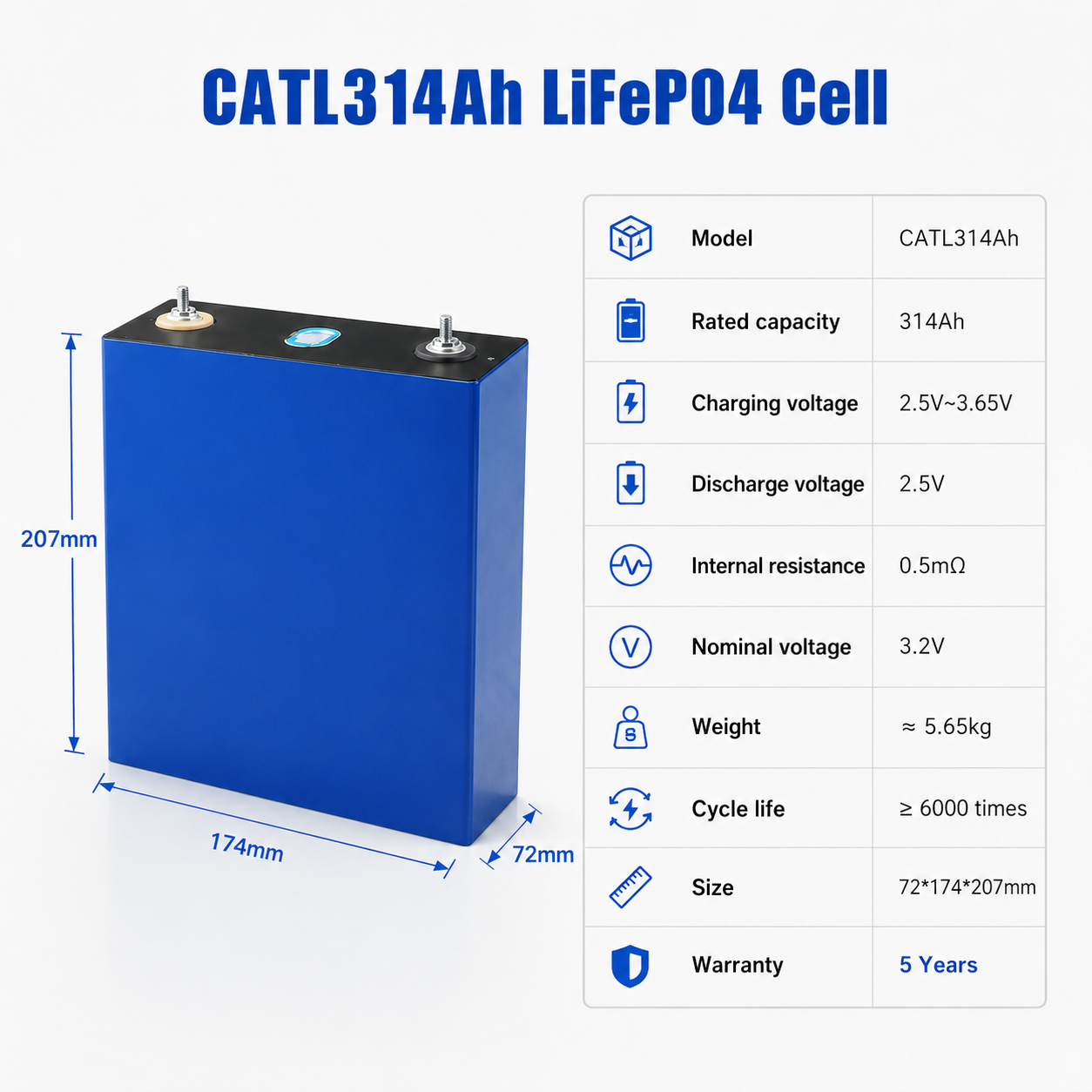

Key Specifications
| Specification | CATL 314Ah |
|---|---|
| Manufacturer | CATL |
| Cell Model | CBC00 |
| Chemistry | LiFePO4 / LFP |
| Nominal Capacity | 314Ah |
| Nominal Voltage | 3.2V |
| Nominal Energy | 1004.8Wh |
| Operating Voltage | 2.5–3.65V at T > 0°C |
| AC Impedance | 0.17 ± 0.05mΩ at ~30% SOC |
| Standard Charge Power | 0.5P |
| Standard Discharge Power | 0.5P |
| Maximum Continuous Discharge Power | 0.5P |
| Charge Temperature | 0°C to 60°C |
| Discharge Temperature | -20°C to 60°C |
| Weight | 5.49 ± 0.30kg |
| Dimensions | Approx. 174.26 × 71.65 × 204.41mm |
| Cycle Performance | 7000 cycles @ 70% SOH* |
Build Your Custom Pack
Easily scale your system to meet any power demand:
| Configuration | Total Voltage | 280Ah | 314Ah |
| 4S (12V) | 12.8V | 3.58 kWh | 4.02 kWh |
| 8S (24V) | 25.6V | 7.17 kWh | 8.04 kWh |
| 16S (48V) | 51.2V | 14.34 kWh | 16.08 kWh |
Recommended BMS Pairing
We highly recommend using a Daly Smart BMS to monitor cell health and protect your investment:
12V Systems (4S): Daly Smart BMS 4S 12V 200A
24V Systems (8S): Daly Smart BMS 8S 24V 200A
48V Systems (16S): Daly Smart BMS 16S 48V 200A
What’s in the Box?
To make your DIY journey seamless, every single cell purchased comes fully equipped with premium accessories:
1 x CATL314Ah LiFePO4 Battery Cell
1 x Copper Busbar
2 x Nuts/Bolts
1 x Custom-Cut Epoxy Insulation Sheet/ Epoxy Board(Complimentary upon request; may also be included with selected orders）
Important Safety Notice
Top-Balance: We strongly recommend top-balancing all cells before series/parallel assembly.
Safety First: Always use a compatible BMS and an appropriately rated fuse.
Care: Do not short circuit, puncture, crush, or expose to temperatures above 60°C. Assembly should only be performed by qualified personnel.
Shipping and Delivery
DDP Door-to-Door
EU · US · AU · CA · UK · Ukraine · Thailand, Customs Clearance & Taxes Included
Remote/island addresses and other destinations: please contact us to confirm service availability.
Have your own freight forwarder? We’re happy to work with them and provide the required shipping documents.
Warranty & Technical Support
5-Year Limited Warranty
Covered by AmpBird’s 5-year limited warranty with responsive after-sales support.
After-Sales Support
If you receive damaged or abnormal cells, contact us with photos and test results. Our team will review the issue and provide an appropriate solution.
Free Technical Support
Support for BMS compatibility, battery configuration and basic troubleshooting.
Solution Advice
Tell us your application and requirements, and we’ll help recommend a suitable battery solution.
Why Choose AmpBird Cells
The foundation of every great battery build.
LiFePO4 Chemistry
Thermal stable, non-flammable, 3,000-8,000 cycle lifespan. The only safe choice for home energy storage.
Grade A Cells Only
Every cell batch-tested for capacity, internal resistance, and voltage before shipping. No B-grade, no surprises.
Deep Cycle Ready
Designed for 80% DoD daily discharge. Solar cycling, off-grid loads, and backup power -- built for real use.
-20℃ to 60℃ Operating
Wide temperature tolerance. Reliable in unheated garages, outdoor cabinets, and marine environments.
Compact Prismatic Form
Prismatic cells stack efficiently with minimal wasted space. Higher energy density than cylindrical cells.
Low Self-Discharge
< 3% monthly self-discharge rate. Store seasonally and come back to a full charge.
