Product Details

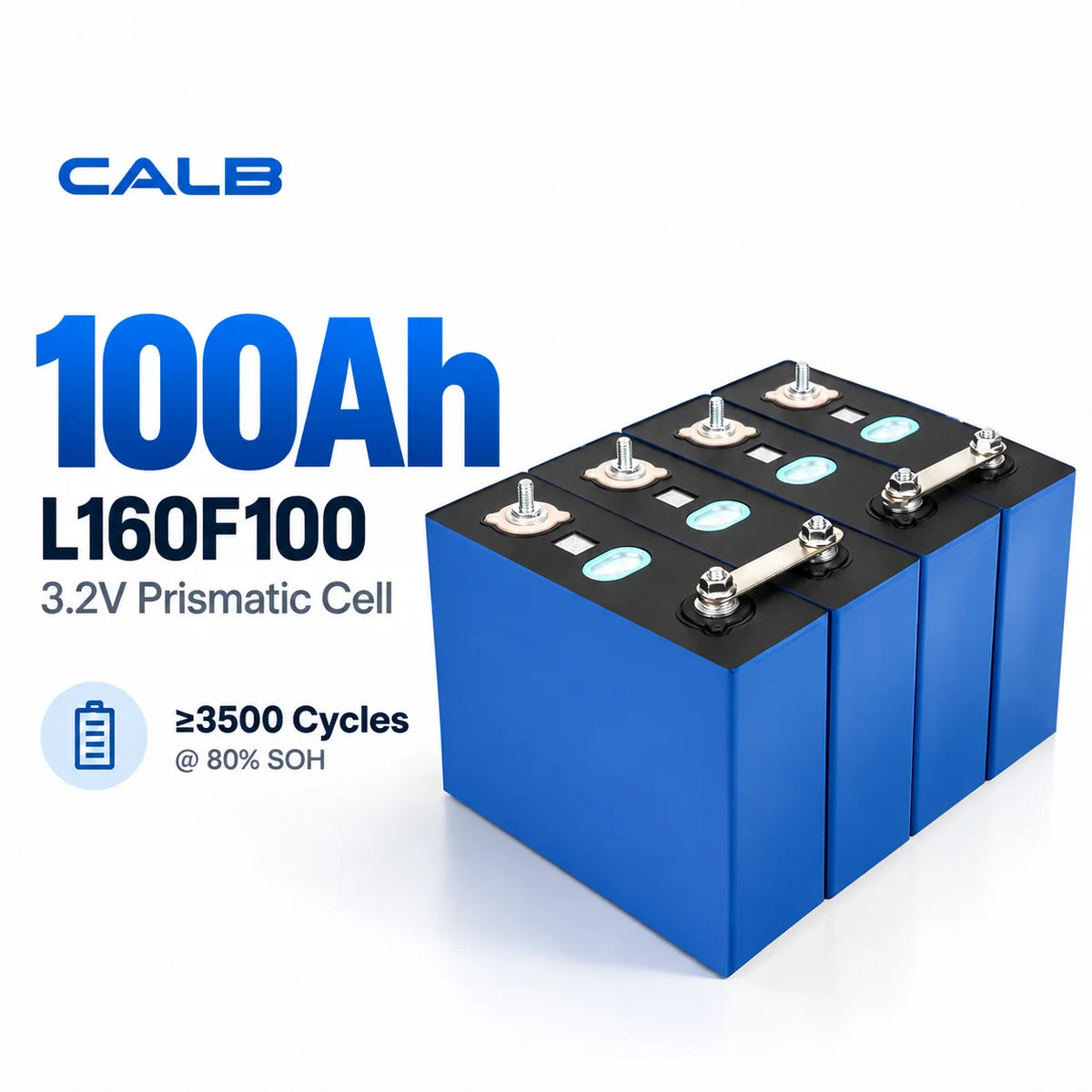

CALB 100Ah 3.2V LiFePO4 prismatic cells are designed for builders, installers and energy-storage projects that need a large-format rechargeable LFP cell. Typical applications include solar storage, off-grid batteries, RV and marine systems, and custom DIY battery packs.
Key Features
- 3.2V nominal LiFePO4 chemistry
- 100Ah nominal capacity and approximately 320Wh per cell
- Prismatic format for compact high-capacity battery assemblies
- Suitable for series configurations when cells are properly matched and managed by a compatible BMS
- Batch information and pre-shipment inspection can be confirmed for project orders
Technical Overview
| Specification | Value |
|---|---|
| Brand | CALB |
| Model | CALB 3.2V 100Ah |
| Battery Chemistry | LiFePO4 (LFP) |
| Cell Type | Prismatic LiFePO4 Battery Cell |
| Nominal Capacity | 100Ah |
| Nominal Voltage | 3.2V |
| Nominal Energy | 320Wh |
| Internal Resistance (1kHz) | ≤ 0.5mΩ |
| Charge Cut-off Voltage | 3.65V |
| Discharge Cut-off Voltage | 2.5V |
| Standard Charge Rate | 0.5C |
| Maximum Continuous Charge Rate | 1C |
| Standard Discharge Rate | 0.5C |
| Maximum Continuous Discharge Rate | 1C |
| Maximum Pulse Discharge — Long Pulse | 2C |
| Maximum Pulse Discharge — Short Pulse | 3C |
| Charging Temperature Range | 0°C to 60°C |
| Discharging Temperature Range | -20°C to 60°C |
| Monthly Self-Discharge Rate | ≤ 3.5% |
| Dimensions (L × W × H) | 160 × 49.9 × 118.5 mm |
| Approx. Cell Weight | 2.0 ± 0.1 kg |
| Cycle Life | ≥ 3,500 cycles |
Applications
- Solar and home energy storage
- Off-grid battery banks
- DIY 12.8V / 25.6V / 51.2V LiFePO4 packs
- RV and marine auxiliary power
- Commercial and custom energy-storage projects
Cell Matching & Inspection
For multi-cell battery packs, consistency matters. AmpBird can coordinate pre-shipment checks for open-circuit voltage, internal resistance, physical condition and batch consistency according to the agreed order requirements. Capacity testing or additional inspection should be confirmed before ordering when required.
Packing List
Each 4-cell set includes:
- 4 × CALB 100Ah LiFePO4 Cells — with welded threaded studs
- 4 × Busbars — for cell-to-cell connections
- Epoxy Insulation Sheets — available as a complimentary accessory upon request
Need additional accessories? Please contact us before ordering if you need extra busbars, terminal hardware, insulation sheets, BMS or other components for your battery build.
Why Choose AmpBird Cells
The foundation of every great battery build.
LiFePO4 Chemistry
Thermal stable, non-flammable, 3,000-8,000 cycle lifespan. The only safe choice for home energy storage.
Grade A Cells Only
Every cell batch-tested for capacity, internal resistance, and voltage before shipping. No B-grade, no surprises.
Deep Cycle Ready
Designed for 80% DoD daily discharge. Solar cycling, off-grid loads, and backup power -- built for real use.
-20℃ to 60℃ Operating
Wide temperature tolerance. Reliable in unheated garages, outdoor cabinets, and marine environments.
Compact Prismatic Form
Prismatic cells stack efficiently with minimal wasted space. Higher energy density than cylindrical cells.
Low Self-Discharge
< 3% monthly self-discharge rate. Store seasonally and come back to a full charge.
