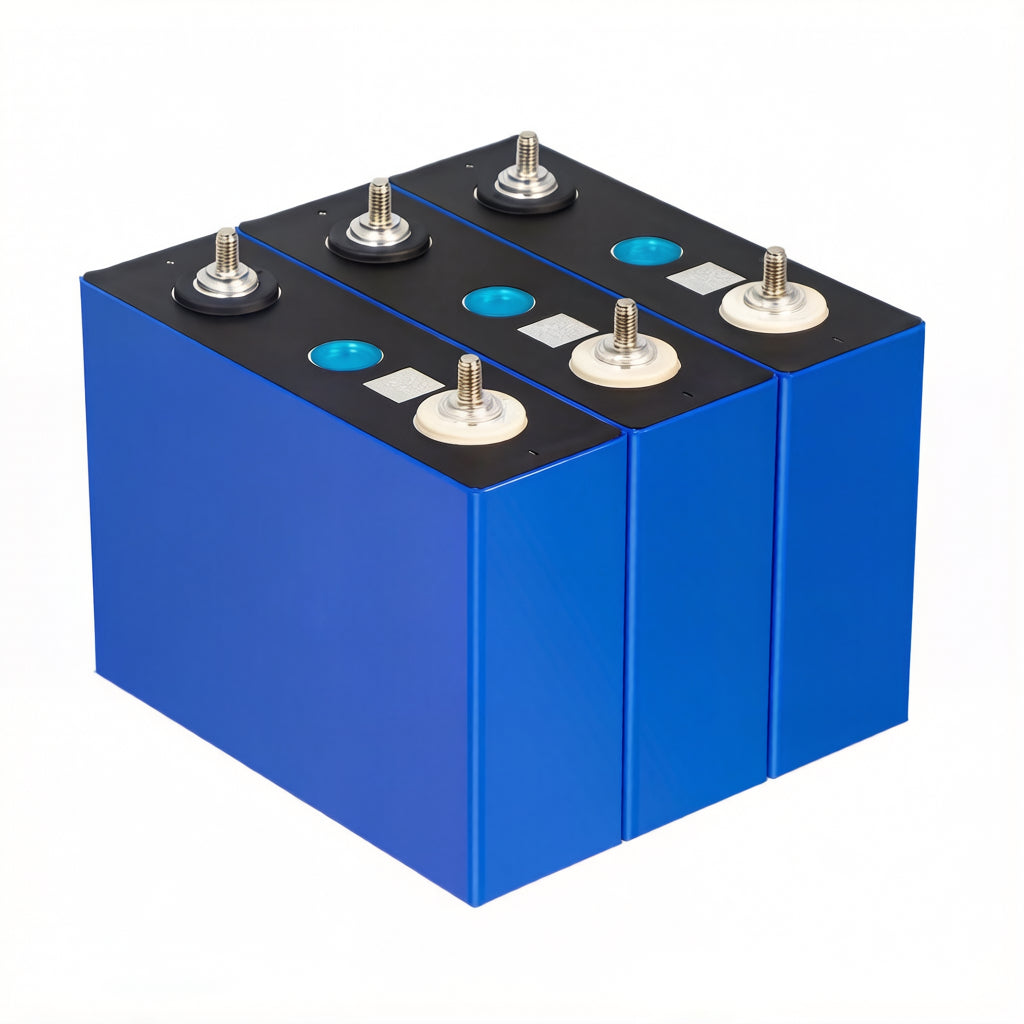

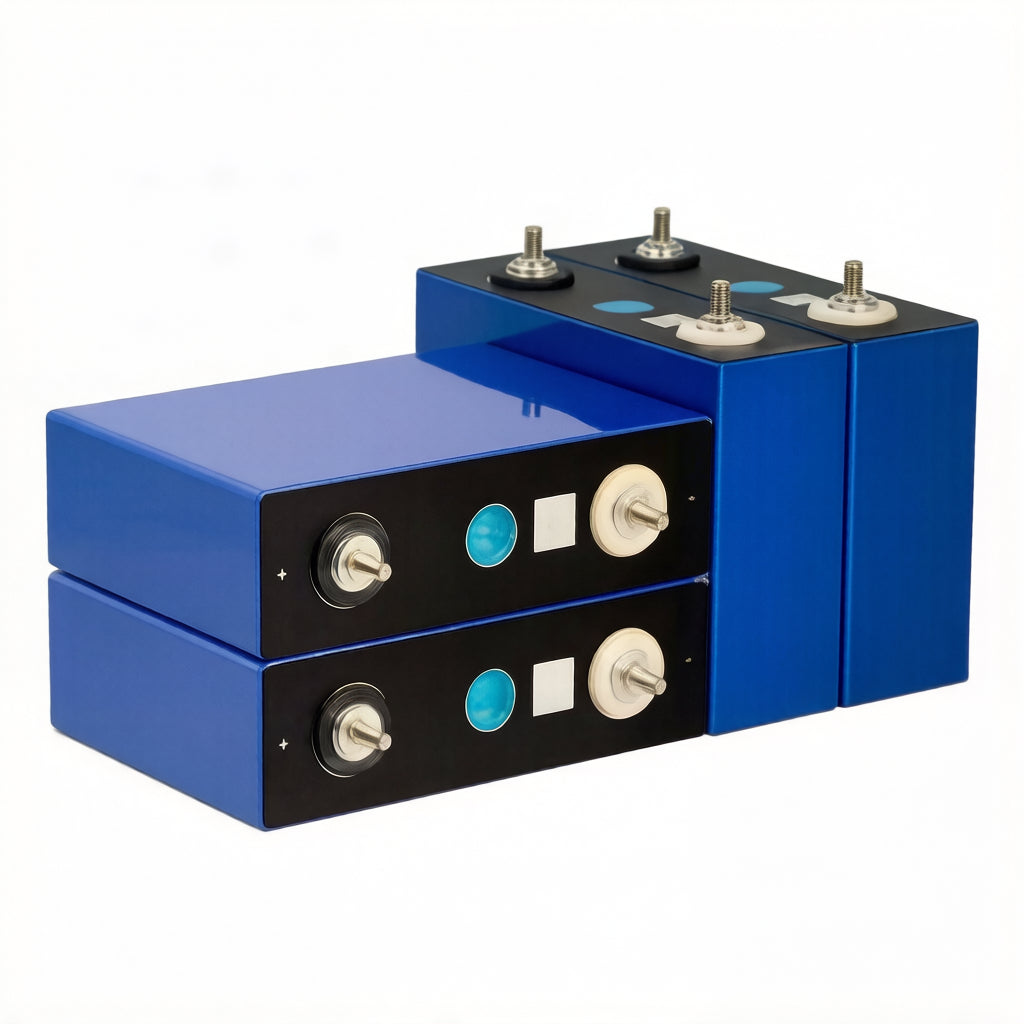

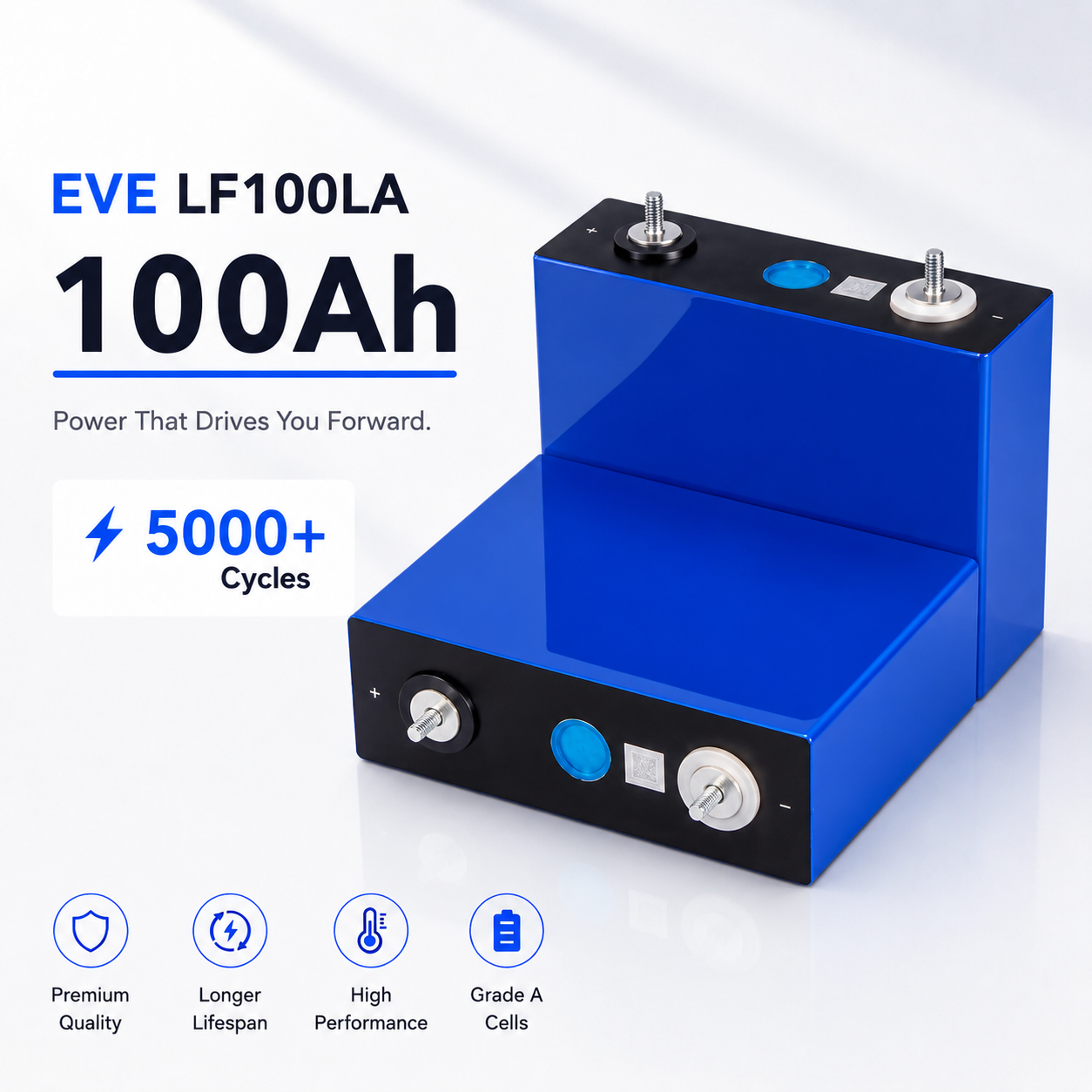

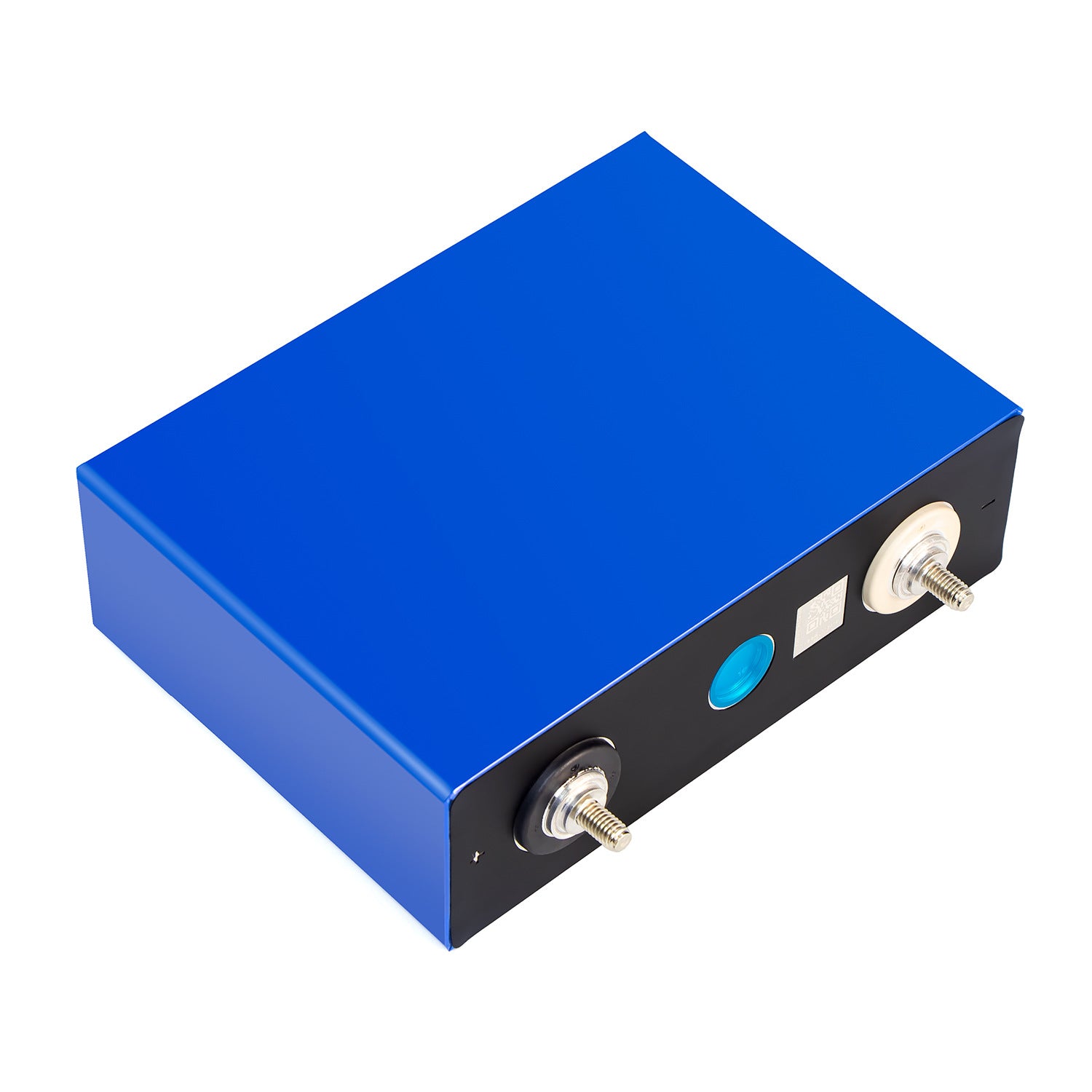

Build Compact, High-Performance Packs with EVE LF100LA (102Ah)
Looking for the perfect balance of compact sizing and extreme lifespan? The EVE LF100LA Prismatic LiFePO4 Cell is the ultimate choice for your next DIY energy project. Originally designated as a 100Ah cell, EVE's optimized formulation guarantees a calibrated minimum capacity of 102Ah (326.4Wh). It’s highly favored for custom 12V, 24V, and 48V battery banks in applications where space and weight are at a premium, such as smaller RV builds, overland rigs, marine electronics, and compact solar setups.
Technical Specifications (From Original EVE Datasheet)
| Parameter | Specification |
| Manufacturer & Model | EVE LF100LA |
| Chemistry | Lithium Iron Phosphate (LiFePO4 / LFP) |
| Nominal/Calibrated Capacity | 102Ah (Minimum Guaranteed) |
| Nominal Voltage | 3.2V |
| Rated Energy Capacity | 326.4 Wh (Per Cell) |
| Internal Resistance (ACR) | < 0.5 mΩ (Extremely Low IR) |
| Cycle Life | ≥ 5000 Cycles @ 25°C, 0.5C/0.5C (80% DoD) |
| Standard Charge/Discharge | 0.2C (20.4A) |
| Maximum Charge Current | 1.0C (102A) @ 25°C |
| Charge Temperature Range | 0°C ~ 65°C |
| Discharge Temperature Range | -20°C ~ 65°C (Excellent cold weather retention) |
| Dimensions (L x W x H) | 160.0 x 50.1 x 118.5 mm (Standard footprint) |
| Weight | ~1.98 kg (4.37 lbs) per cell |
Tailored for Your Specific Application Scenarios
1. Overland Rigs & Compact RV Battery Banks
-
The Pain Point: Standard 280Ah cells are too heavy and bulky for small vans, truck campers, or under-seat installations.
-
The EVE 100Ah Solution: At just 1.98 kg per cell, you can configure a lightweight 12V 100Ah pack under 8 kg (17.6 lbs). Its ultra-compact footprint allows you to slide robust LiFePO4 power into tight storage bays, cabinets, or nose boxes without sacrificing valuable living space.
2. Marine Electronics & Trolling Motors
-
The Pain Point: Heavy lead-acid batteries weigh down your boat's stern, strip your speed, and sag in voltage under load.
-
The EVE 100Ah Solution: Experience stable voltage tracking even at 0.5C/1C discharge rates. Perfect for 24V or 36V kayak and bass boat trolling motors. Its premium laser-welded M6 studs handle rough, pounding marine vibrations without backing off or losing contact.
3. Solar Off-Grid Tiny Homes & DIY Ham Radio
-
The Pain Point: Inconsistent sun or emergencies require stable, low-resistance storage that can accept fast charging when the generator or sun is up.
-
The EVE 100Ah Solution: With an incredibly low internal resistance (<0.5 mΩ), these cells boast an energy efficiency rating ≥ 93%. They charge faster and waste less energy as heat, ensuring your critical communication and lighting gear stay powered through the night.
The Guarantee for DIYers
Building your own battery pack can be daunting. We eliminate the guesswork and risk with our standard testing protocol before any cell leaves our facility:
-
Strict 3-Way Precision Matching: We don't just throw cells in a box. We top-balance, capacity-test, and group your cells so that the Internal Resistance variance is <0.05mΩ and Voltage variance is <2mV. Your pack arrives beautifully balanced and ready for assembly.
-
Advanced Anti-Strip Welded M6 Studs: No more worrying about stripping delicate internal aluminum threads. Our premium laser-welded M6 stainless steel studs allow you to torque down your busbars confidently to factory specifications for a vibration-proof connection.
-
Comprehensive Hardware Kit Included: Stop hunting for random parts. Every 4 cells come with customized flexible copper busbars, flanged anti-slip nuts, and FR4 epoxy insulation sheets to serve as professional cell-to-cell barriers.
What's in the Box? (Free Accessories Pack)
We include high-quality connector accessories with every cell to ensure your installation is plug-and-play and completely safe:
-
1 x Genuine EVE LF100LA 102Ah LiFePO4 Battery Cell
-
1 x Custom Copper Busbar (Pre-sized for perfect spacing)
-
2 x Stainless Steel Flanged Nuts/Bolts
-
1 x Custom-Cut FR4 Epoxy Insulation Board (For safe cell-to-cell barrier)
