Product Details

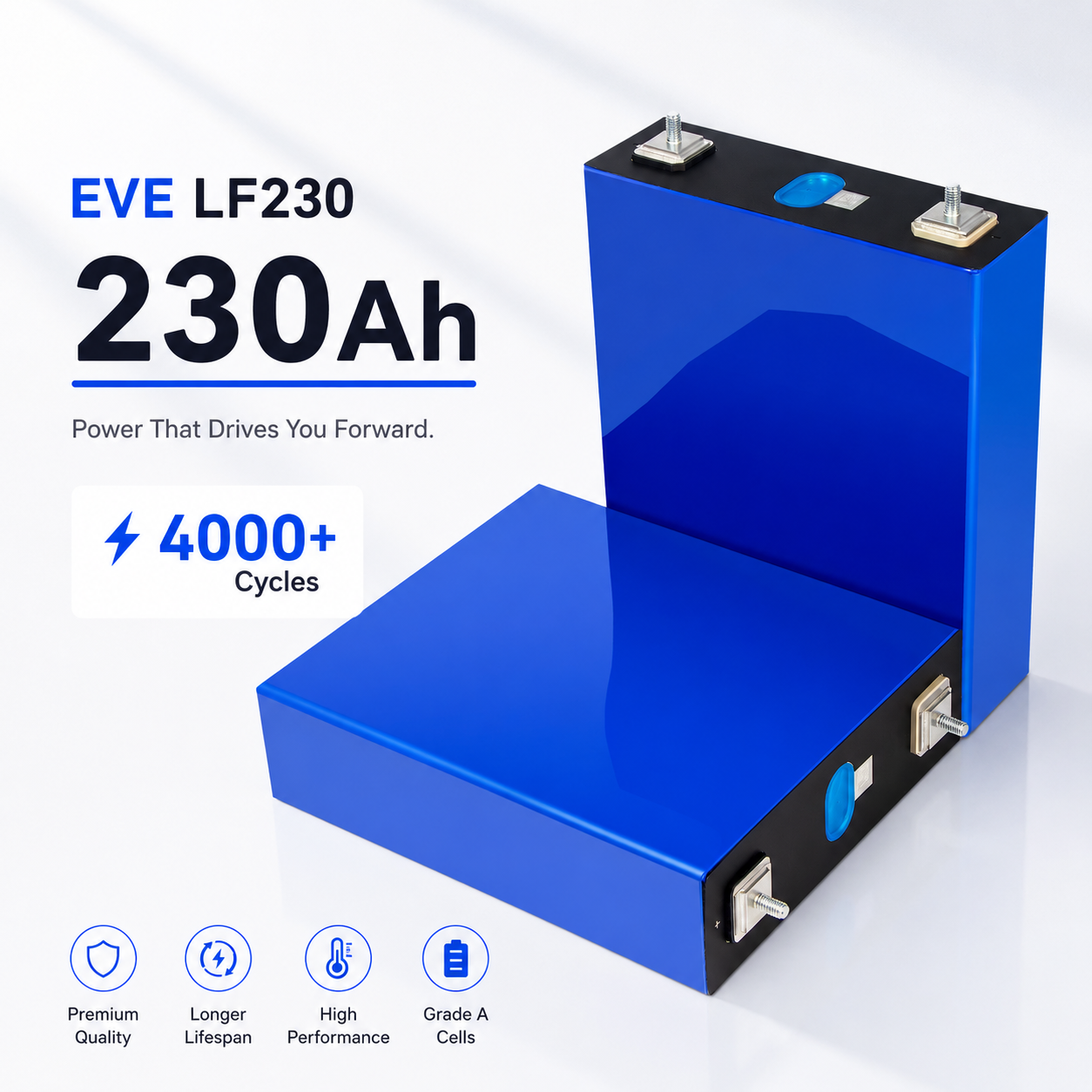

EVE LF230 230Ah — Flexible Capacity for Energy Storage
The EVE 230Ah is a 3.2V LiFePO4 prismatic cell offering a practical balance between capacity and flexible battery system design. Each cell provides approximately 736Wh of nominal energy, making it suitable for compact energy storage, backup power and custom LiFePO4 battery systems.
Battery Specifications
| Specification | EVE LF230 |
|---|---|
| Model | LF230 |
| Chemistry | LiFePO4 (LFP) |
| Cell Type | Prismatic |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 230Ah |
| Nominal Energy | 736Wh |
| Standard Charge Current | 115A / 0.5C |
| Standard Discharge Current | 115A / 0.5C |
| Max. Continuous Discharge | 230A / 1C |
| Max. Instantaneous Charge | 2C / 30s* |
| Max. Instantaneous Discharge | 3C / 30s* |
| Charge Cut-off Voltage | 3.65V |
| Discharge Cut-off Voltage | 2.5V (>0°C) |
| Initial AC Resistance | 0.20 ± 0.05mΩ |
| DCR | ≤1.2mΩ |
| Cycle Life | 4000 cycles to 80% SOH @25°C* |
| Charge Temperature | -10°C to 65°C |
| Discharge Temperature | -35°C to 65°C |
| Weight | 4.14 ± 0.124kg |

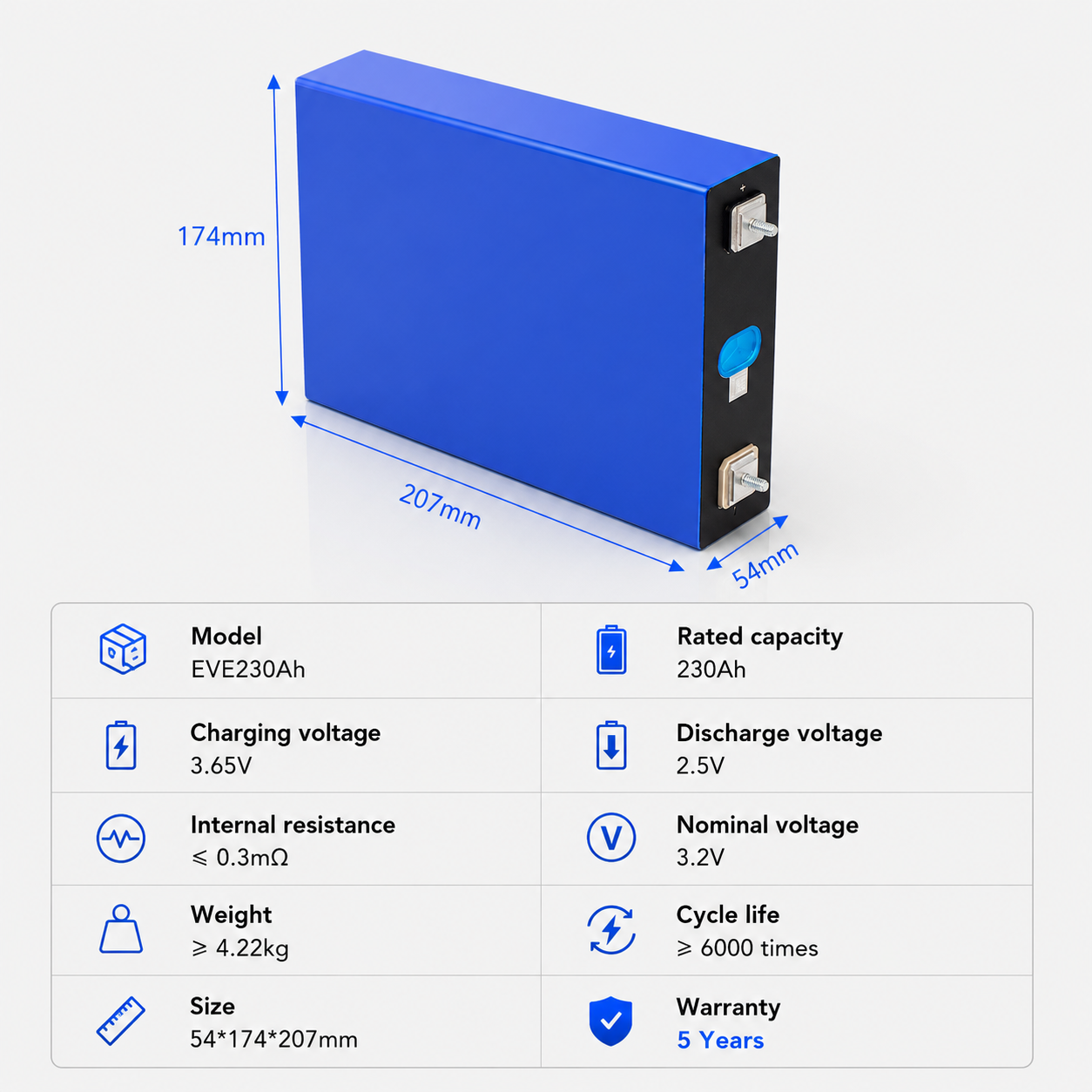

| Dimensions | 173.93 × 53.85 × 207.20mm* |
Why Choose EVE 230Ah?
Balanced Capacity
736Wh per cell provides useful energy capacity without moving into the larger 280Ah–628Ah cell range.
Flexible System Design
Suitable for different series configurations, including compact 12V, 24V and 48V-class LiFePO4 battery systems.
11.78kWh with 16 Cells
A standard 16S configuration provides 51.2V, 230Ah and approximately 11.78kWh of nominal energy.
Checked Before Shipment
We understand that cell consistency matters when building a LiFePO4 battery pack. Before dispatch, cells are checked to help reduce avoidable problems during assembly.
| Check | What We Check |
|---|---|
| Voltage Check | Open-circuit voltage consistency |
| IR Check | Internal resistance consistency |
| Capacity Test | Available for matched sets and project orders |
| Visual Check | Cell casing, terminals and QR codes |
| Packing Check | Protection before dispatch |
Capacity testing is available for matched sets and project orders.
If you have specific matching or testing requirements, please contact us before placing your order.
What’s in the Box?
To make your DIY journey seamless, every single cell purchased comes fully equipped with premium accessories:
1 x EVE LF230 230Ah LiFePO4 Battery Cell
1 x Copper Busbar
2 x Nuts/Bolts
1 x Custom-Cut Epoxy Insulation Sheet/ Epoxy Board(Complimentary upon request; may also be included with selected orders）
Important Safety Notice
Top-Balance: Essential to top-balance cells before series connection.
BMS Required: A LiFePO4-specific BMS is mandatory to ensure safety and longevity.
Assembly: Only qualified technicians should assemble battery packs. Please ensure all connections are properly torqued.
Shipping and Delivery
DDP Door-to-Door
EU · US · AU · CA · UK · Ukraine · Thailand, Customs Clearance & Taxes Included
Remote/island addresses and other destinations: please contact us to confirm service availability.
Have your own freight forwarder? We’re happy to work with them and provide the required shipping documents.
Warranty & Technical Support
5-Year Limited Warranty
Covered by AmpBird’s 5-year limited warranty with responsive after-sales support.
After-Sales Support
If you receive damaged or abnormal cells, contact us with photos and test results. Our team will review the issue and provide an appropriate solution.
Free Technical Support
Support for BMS compatibility, battery configuration and basic troubleshooting.
Solution Advice
Tell us your application and requirements, and we’ll help recommend a suitable battery solution.
Why Choose AmpBird Cells
The foundation of every great battery build.
LiFePO4 Chemistry
Thermal stable, non-flammable, 3,000-8,000 cycle lifespan. The only safe choice for home energy storage.
Grade A Cells Only
Every cell batch-tested for capacity, internal resistance, and voltage before shipping. No B-grade, no surprises.
Deep Cycle Ready
Designed for 80% DoD daily discharge. Solar cycling, off-grid loads, and backup power -- built for real use.
-20℃ to 60℃ Operating
Wide temperature tolerance. Reliable in unheated garages, outdoor cabinets, and marine environments.
Compact Prismatic Form
Prismatic cells stack efficiently with minimal wasted space. Higher energy density than cylindrical cells.
Low Self-Discharge
< 3% monthly self-discharge rate. Store seasonally and come back to a full charge.
