Product Details

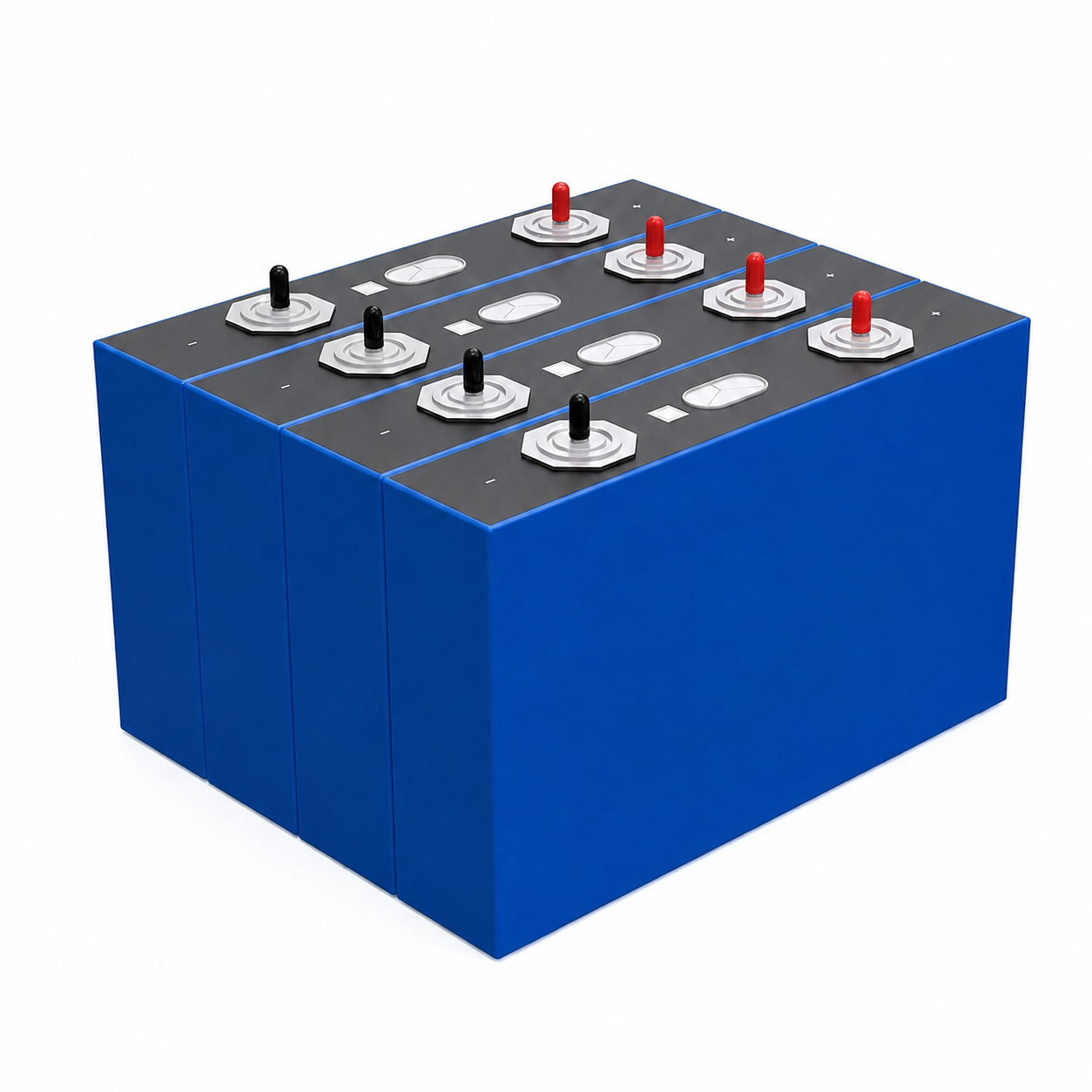

EVE MB56 628Ah — More Energy with Fewer Cells
The EVE MB56 628Ah is an ultra-high-capacity 3.2V LiFePO4 prismatic cell designed for large battery packs and stationary energy storage systems.
With approximately 2.01kWh of nominal energy per cell, only 16 MB56 cells are required to build a 51.2V 628Ah battery with approximately 32.15kWh of nominal energy.
Compared with building the same capacity from smaller cells, the MB56 allows system designers to achieve high energy capacity with fewer cells and fewer parallel connections, helping simplify large battery pack architecture.
Why Choose EVE MB56 628Ah?
2.01kWh Energy per Cell
Each 3.2V 628Ah MB56 cell provides approximately 2009.6Wh (2.01kWh) of nominal energy, making it suitable for high-capacity battery systems.
32.15kWh with Only 16 Cells
A 16S configuration provides 51.2V, 628Ah and approximately 32.15kWh, without requiring parallel cell groups to reach this capacity.
Simplified Large-Capacity Pack Design
Higher capacity per cell can reduce the number of cells and parallel connections required for large battery systems, simplifying pack architecture, wiring and assembly.
Typical Applications
Designed for High-Capacity Energy Storage
- Residential energy storage
- Large off-grid battery systems
- Commercial energy storage
- Solar energy storage
- Backup power systems
- Battery integration projects
- High-capacity DIY battery systems

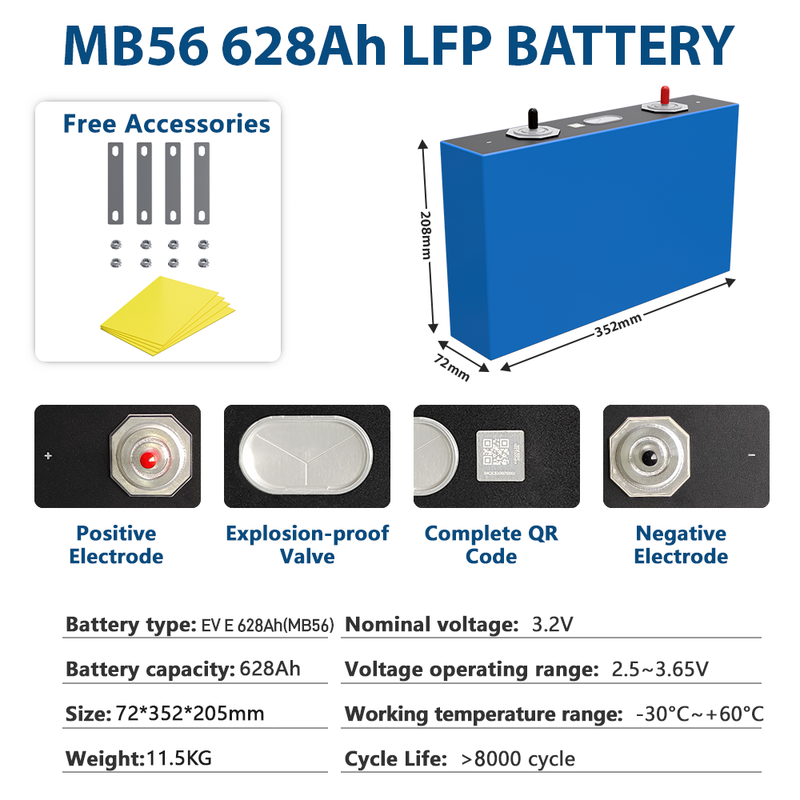

Technical Specifications (Parameters)
| Parameter | Specification |
| Brand / Model | EVE LF628 (MB56) |
| Nominal Capacity | 628Ah |
| Nominal Voltage | 3.2V |
| Total Energy Per Cell | 2,009.6 Wh (approx. 2 kWh) |
| Cell Condition | Brand New, Grade A, Matched & Balanced |
| Cycle Life | ≥ 8,000 Cycles @ 80% DoD |
| Standard Charge/Discharge | 0.5C / 0.5C |
| Max Continuous Discharge | 1C (628A) |
| Weight Per Cell | Approx. 11.8 kg (26.0 lbs) |
| Dimensions (LWH) | 353×72×207mm |

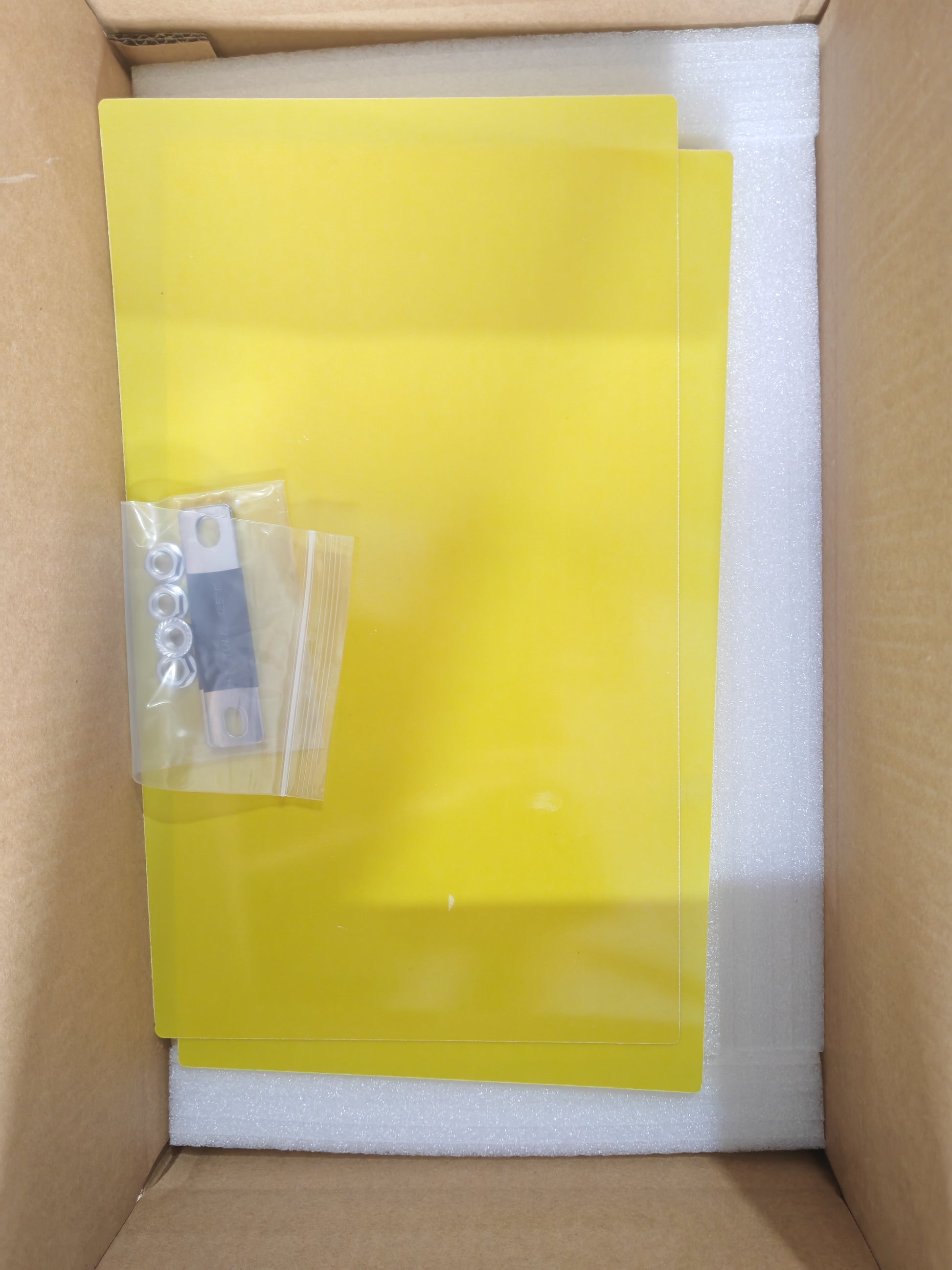

What's Included in Your Package?
We don't just ship bare cells. AmpBird provides a complete installation-ready package:
1. 4 / 8 / 16 x Brand New EVE 628Ah LiFePO4 Cells (Depending on your order)
2. Copper Busbars & Screws & Washers
3. Epoxy Fiberglass Insulating Sheets
Checked Before Shipment
Voltage Check — OCV consistency
IR Check — Internal resistance consistency

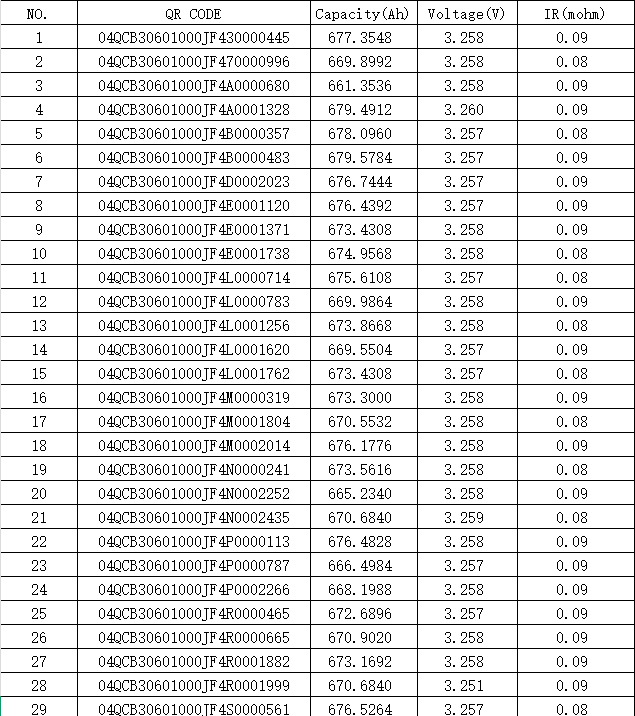

Capacity Test — Available for matched sets
Visual Check — Casing, terminals & QR codes
Packing Check — Protection before dispatch
Capacity testing available for matched sets and project orders.
Shipping and Delivery
DDP Door-to-Door
EU · US · AU · CA · UK · Ukraine · Thailand, Customs Clearance & Taxes Included
Remote/island addresses and other destinations: please contact us to confirm service availability.
Have your own freight forwarder? We’re happy to work with them and provide the required shipping documents.
Warranty & Technical Support
5-Year Limited Warranty
Covered by AmpBird’s 5-year limited warranty with responsive after-sales support.
After-Sales Support
If you receive damaged or abnormal cells, contact us with photos and test results. Our team will review the issue and provide an appropriate solution.
Free Technical Support
Support for BMS compatibility, battery configuration and basic troubleshooting.
Solution Advice
Tell us your application and requirements, and we’ll help recommend a suitable battery solution.
Why Choose AmpBird Cells
The foundation of every great battery build.
LiFePO4 Chemistry
Thermal stable, non-flammable, 3,000-8,000 cycle lifespan. The only safe choice for home energy storage.
Grade A Cells Only
Every cell batch-tested for capacity, internal resistance, and voltage before shipping. No B-grade, no surprises.
Deep Cycle Ready
Designed for 80% DoD daily discharge. Solar cycling, off-grid loads, and backup power -- built for real use.
-20℃ to 60℃ Operating
Wide temperature tolerance. Reliable in unheated garages, outdoor cabinets, and marine environments.
Compact Prismatic Form
Prismatic cells stack efficiently with minimal wasted space. Higher energy density than cylindrical cells.
Low Self-Discharge
< 3% monthly self-discharge rate. Store seasonally and come back to a full charge.
