CALB L300F170A 170Ah LiFePO4 Cell
The CALB L300F170A 170Ah is a 3.2V prismatic LiFePO4 battery cell designed for high-capacity battery systems. With 544Wh nominal energy per cell, it is well suited for DIY 12V, 24V and 48V battery packs, solar energy storage, RV power systems and other applications where a compact, high-capacity LFP cell is required.
The CALB specification lists a standard tested capacity of 177Ah at 25°C under 1/3C discharge conditions, providing useful performance headroom over the 170Ah model designation.
For multi-cell projects, AmpBird can also help confirm cell quantity, BMS configuration, matching requirements and shipping options before you order.
Build Your Battery Pack
Combine CALB 170Ah cells in series to build common 12V, 24V and 48V LiFePO4 battery systems.
| Configuration | Nominal Voltage | Capacity | Nominal Energy |
|---|---|---|---|
| 4S / 4 Cells | 12.8V | 170Ah | 2.18kWh |
| 8S / 8 Cells | 25.6V | 170Ah | 4.35kWh |
| 16S / 16 Cells | 51.2V | 170Ah | 8.70kWh |
Not sure which configuration you need? Tell us your system voltage, inverter power and required runtime. AmpBird can help check the cell quantity and BMS configuration before ordering.
Why Choose the CALB L300F170A?
Built for Real Battery Pack Design
170Ah-class capacity in a slim prismatic format

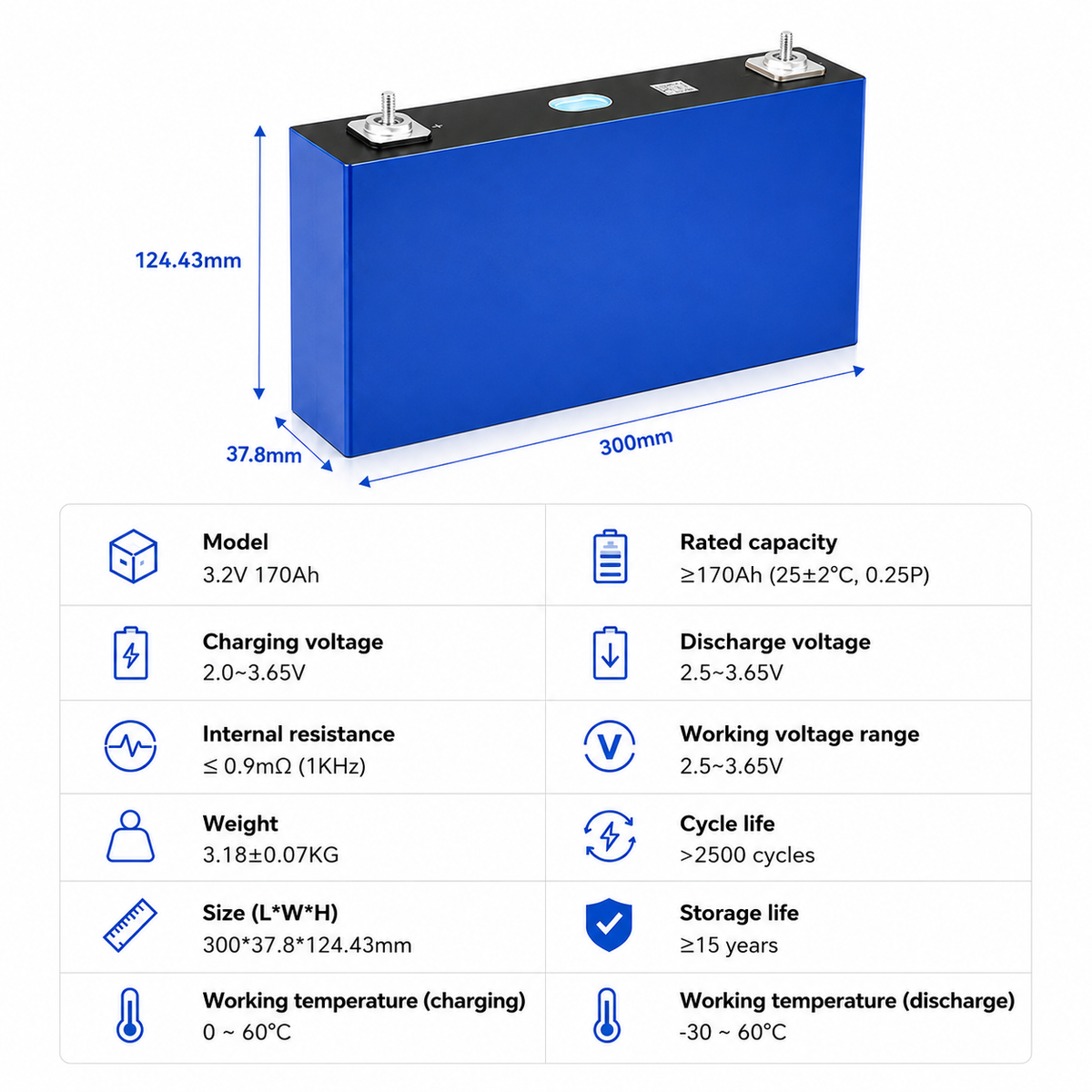

The L300F170A measures only 37.8mm in thickness while providing 544Wh nominal energy per cell, making it useful for battery packs where enclosure space and cell arrangement matter.
Strong current capability
According to CALB's operating limits, continuous discharge can reach 170A between 10°C and 45°C, while peak discharge can reach 256A for 30 seconds across much of the normal operating temperature range. Current capability decreases outside this range, so system design should follow the manufacturer's temperature-dependent limits.
Manufacturer-defined cycle performance
CALB specifies more than 2,500 cycles at 25°C under its stated test conditions rather than an undefined marketing cycle claim.
Detailed manufacturer engineering data available
The original L300F170A specification includes voltage limits, current limits, DC internal resistance, physical dimensions, terminal loading, compression and safety information for pack designers.
Cell Quality & Matching
Building a reliable multi-cell battery starts with cell consistency.
For multi-cell orders, AmpBird can check open-circuit voltage, internal resistance, QR code condition, terminal condition, physical appearance and batch consistency before shipment.
If your project requires capacity testing or a specific matching tolerance, tell us your requirements before ordering so the appropriate inspection scope can be confirmed.
What's Included

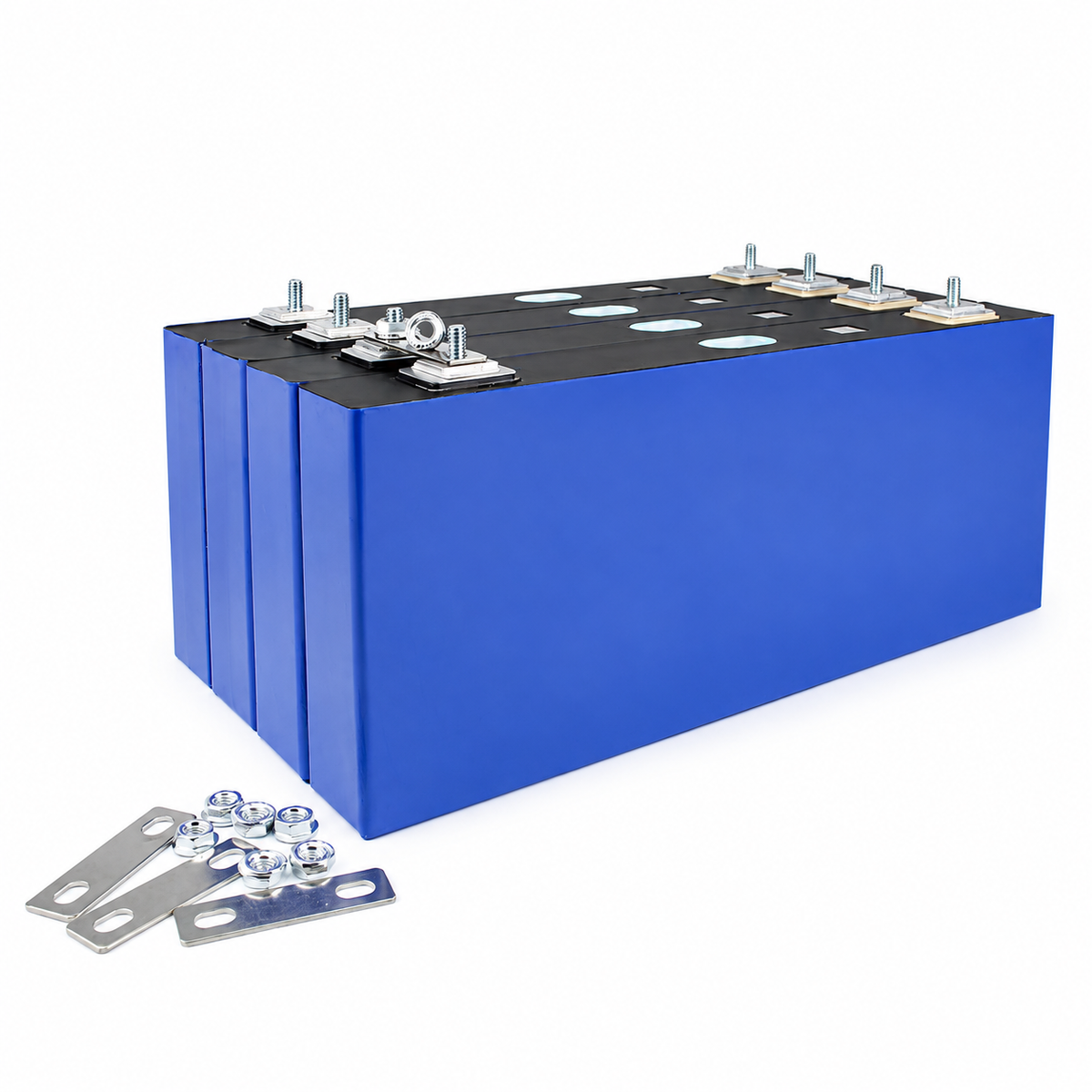

For a 4-Cell Set
4 × CALB L300F170A 170Ah LiFePO4 Cells
with welded threaded studs
4 × Busbars
for cell-to-cell connections
Epoxy Insulation Sheets
available as a complimentary accessory upon request
For other quantity options, the supplied cell and busbar quantities correspond to the selected configuration.
Choosing a BMS
Your BMS must match both the number of cells in series and the maximum current required by your system.
| Battery Configuration | BMS Type |
|---|---|
| 4S / 12.8V | 4S LiFePO4 BMS |
| 8S / 25.6V | 8S LiFePO4 BMS |
| 16S / 51.2V | 16S LiFePO4 BMS |
Do not select a BMS based on the 170Ah capacity alone. Inverter power, charger current, expected continuous load, peak load and operating temperature should also be considered.
Need help choosing a BMS? Send us your system voltage and inverter power and we can help check compatibility.
DDP Door-to-Door Shipping
DDP shipping is available to eligible destinations. Customs clearance, import duties and applicable taxes are included when DDP service is confirmed, so no additional import charges are required upon delivery.
Contact us with your country, postal code and required quantity to confirm availability and delivery time.
Why Choose AmpBird Cells
The foundation of every great battery build.
LiFePO4 Chemistry
Thermal stable, non-flammable, 3,000-8,000 cycle lifespan. The only safe choice for home energy storage.
Grade A Cells Only
Every cell batch-tested for capacity, internal resistance, and voltage before shipping. No B-grade, no surprises.
Deep Cycle Ready
Designed for 80% DoD daily discharge. Solar cycling, off-grid loads, and backup power -- built for real use.
-20℃ to 60℃ Operating
Wide temperature tolerance. Reliable in unheated garages, outdoor cabinets, and marine environments.
Compact Prismatic Form
Prismatic cells stack efficiently with minimal wasted space. Higher energy density than cylindrical cells.
Low Self-Discharge
< 3% monthly self-discharge rate. Store seasonally and come back to a full charge.
