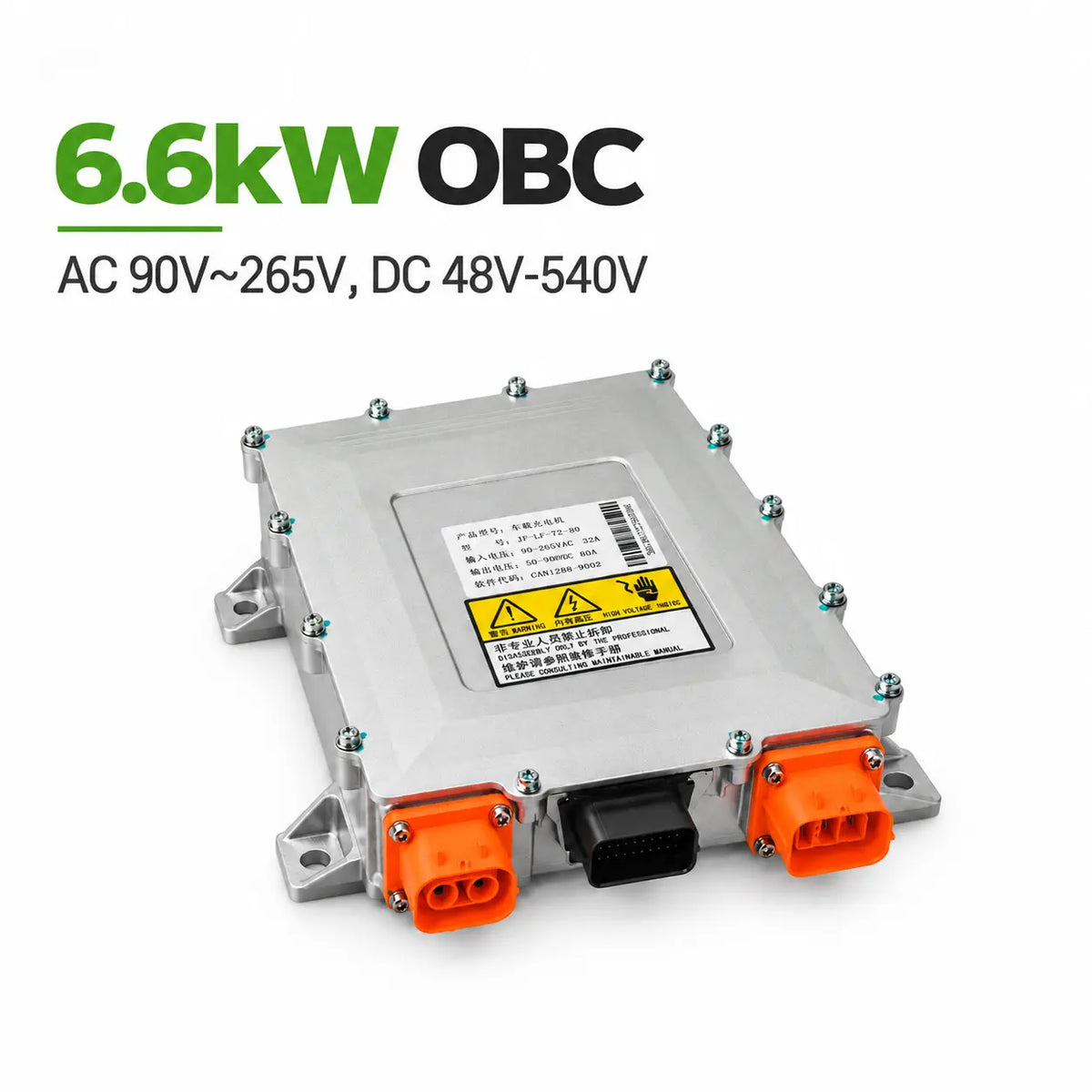

6.6kW On-Board Charger for EV & Battery System Integration
Choosing an on-board charger is not just about matching the rated power. The charger must also match your battery voltage range, maximum charging current, BMS communication and available AC input.

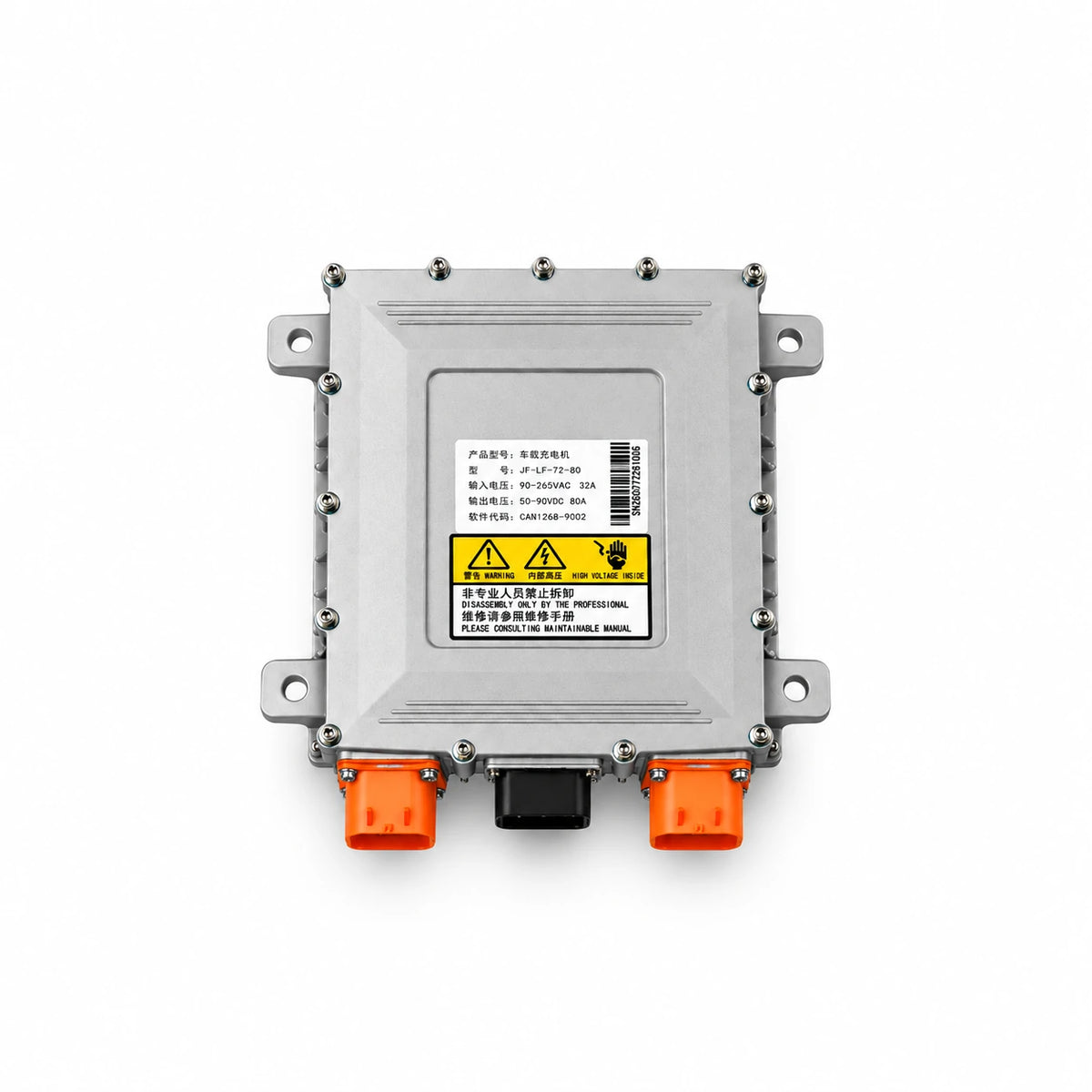

The AmpBird 6.6kW On-Board Charger is designed to make that integration more flexible.
With six voltage platforms covering 72V to 540V battery systems, a 90–265VAC wide input range, and CAN or Enable control options, it can be configured for a wide range of electric vehicle and battery charging projects.
Before You Order
Send us the following details to confirm your charger configuration:
- Battery chemistry: Li-ion or LifePO4?
- Series No. of the battery:
- Max. charging voltage:
- Control method: CAN or Enable?
- Baud rate:
- AC input voltage:
For a replacement on-board charger, also include the original charger’s nameplate and connector photos.

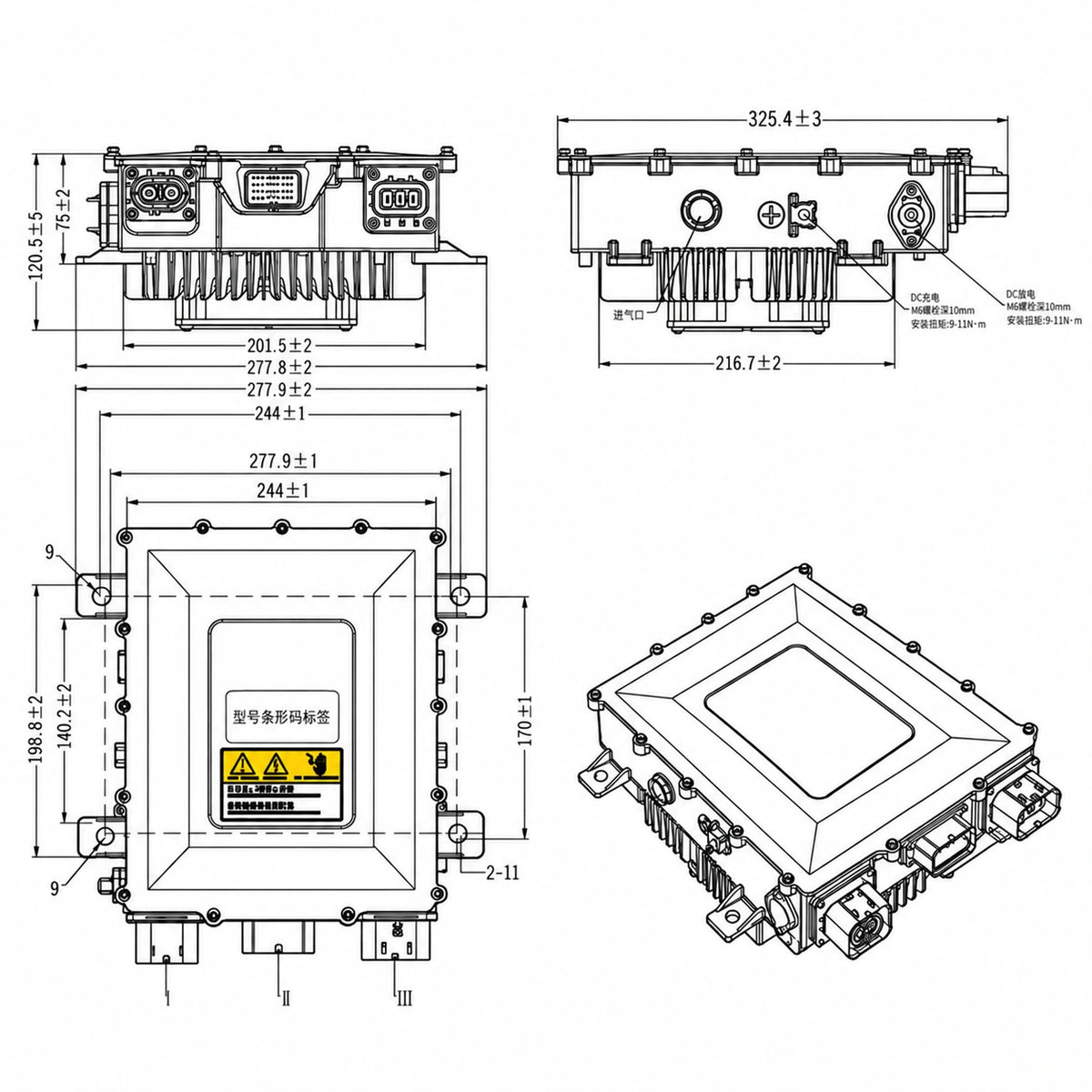

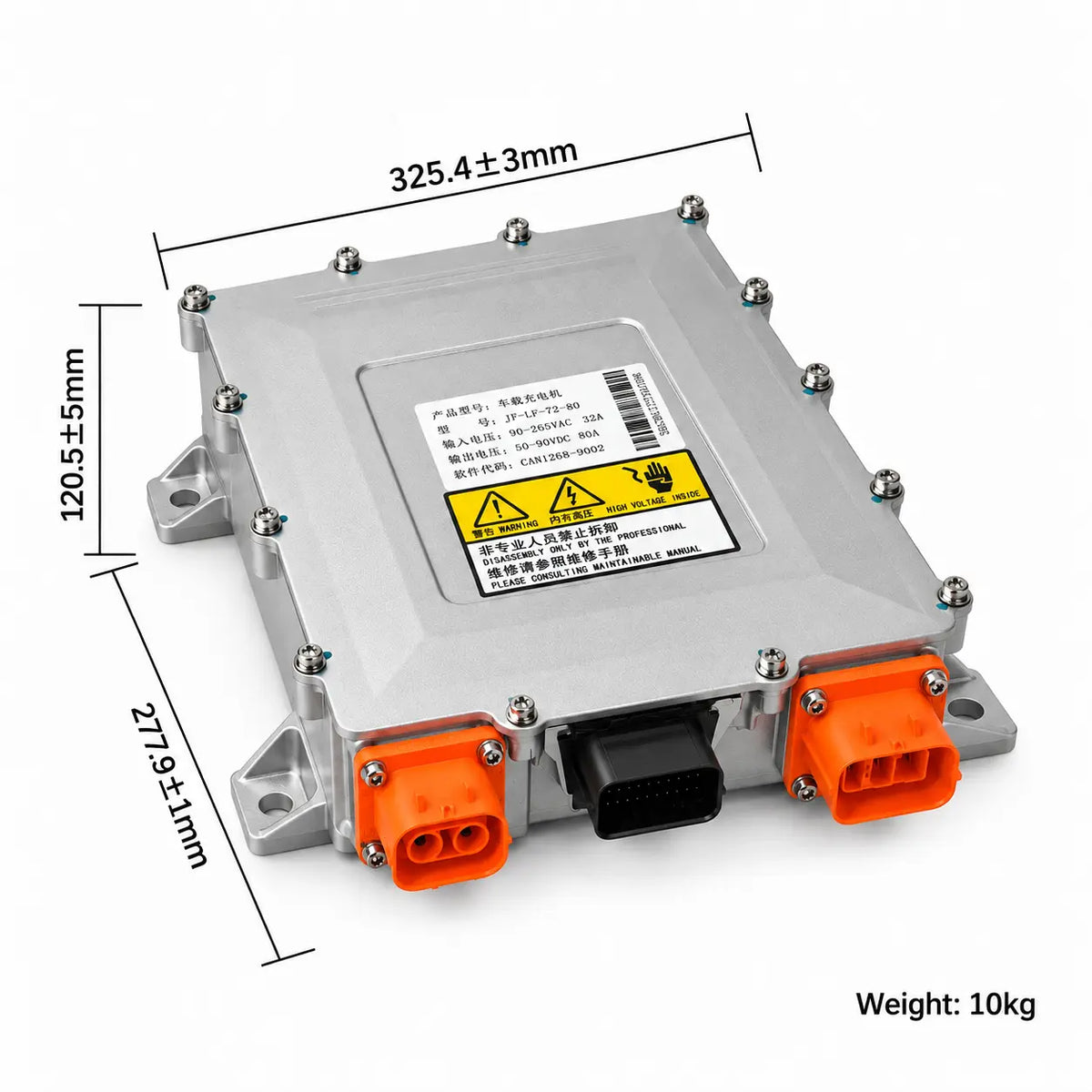

6.6kW OBC Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Power | 6.6kW |
| AC Input Voltage Range | 90–265VAC |
| Input Frequency | 45–65Hz |
| Maximum Input Current | 32A |
| Power Factor | ≥0.98 |
| Full-Load Efficiency | >93% |
| Light-Load Efficiency | >89% |
| Output Voltage Accuracy | <1% |
| Output Current Accuracy | <3% |
| Ripple Voltage | <5% |
| Startup Method | Soft start, no inrush current |
| Charging Control | CAN / Enable |
| Cooling Method | Forced-air / fan cooling |
| Protection Rating | IP67 |
| Operating Temperature | -40°C to +55°C |
| Storage Temperature | -40°C to +100°C |
| Relative Humidity | 5%–95%, non-condensing |
| Vibration Standard | GB/T 28046 |
| Installation | Maintain clear air inlet and hot-air outlet |
CAN or Enable Control
For systems requiring communication between the charger and battery management system, a CAN-controlled configuration is available.
An Enable-controlled configuration is also available for applications where CAN communication is not required.
Important: Please confirm your required control method and BMS parameters before ordering.
CAN is especially relevant to professional EV projects because CAN communication can allow the OBC and vehicle/battery control systems to exchange charging requirements and operating information.

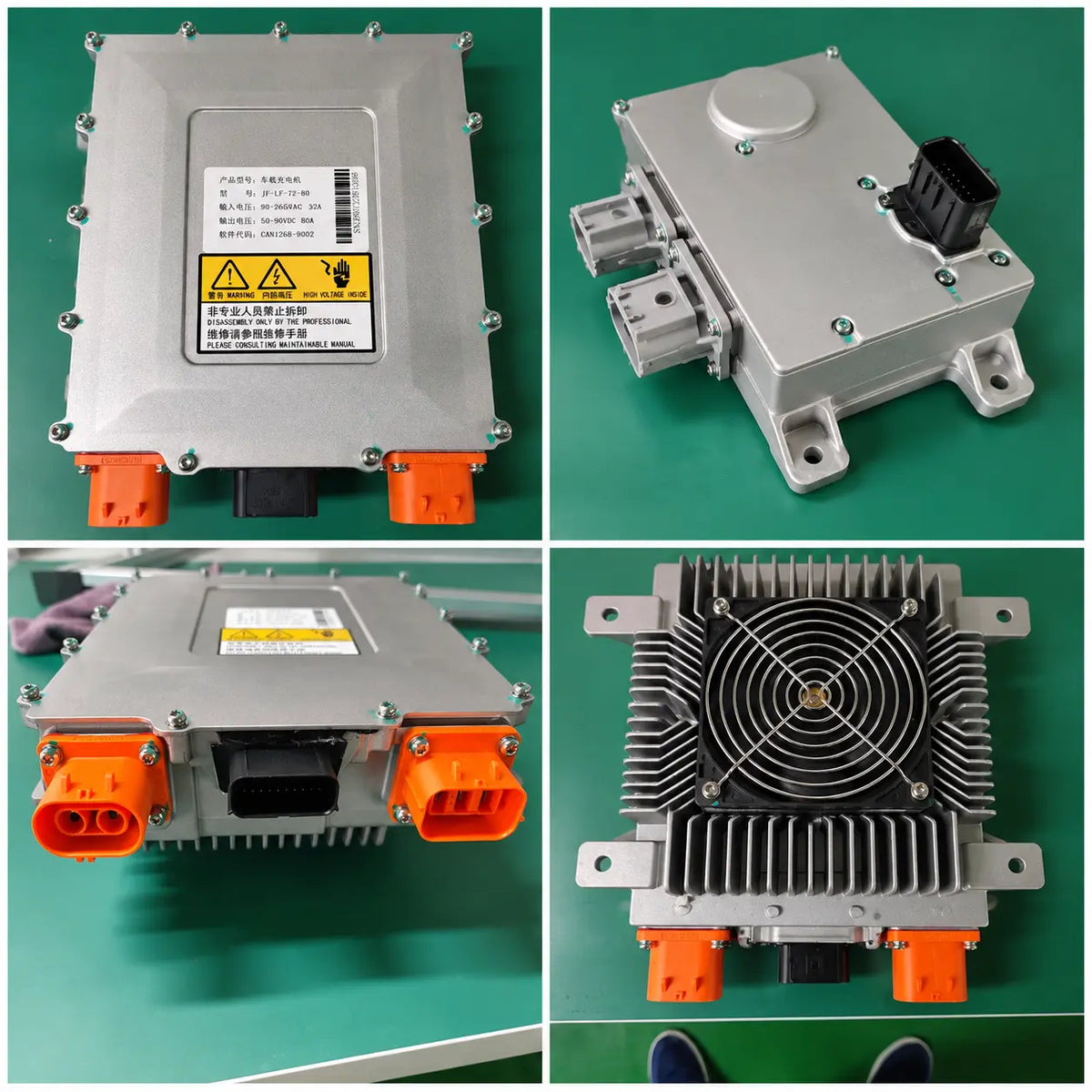

IP67 Protection for Vehicle Installation
The charger features an IP67-rated enclosure designed to protect the internal electronics from dust and water ingress.
The internal structure is partially potted, while the unpotted surfaces are protected with conformal coating. The sealed construction also helps improve moisture and vibration resistance.
Which 6.6kW OBC Do I Need?
Start with your battery pack's normal operating voltage, maximum charging voltage and allowable charging current.

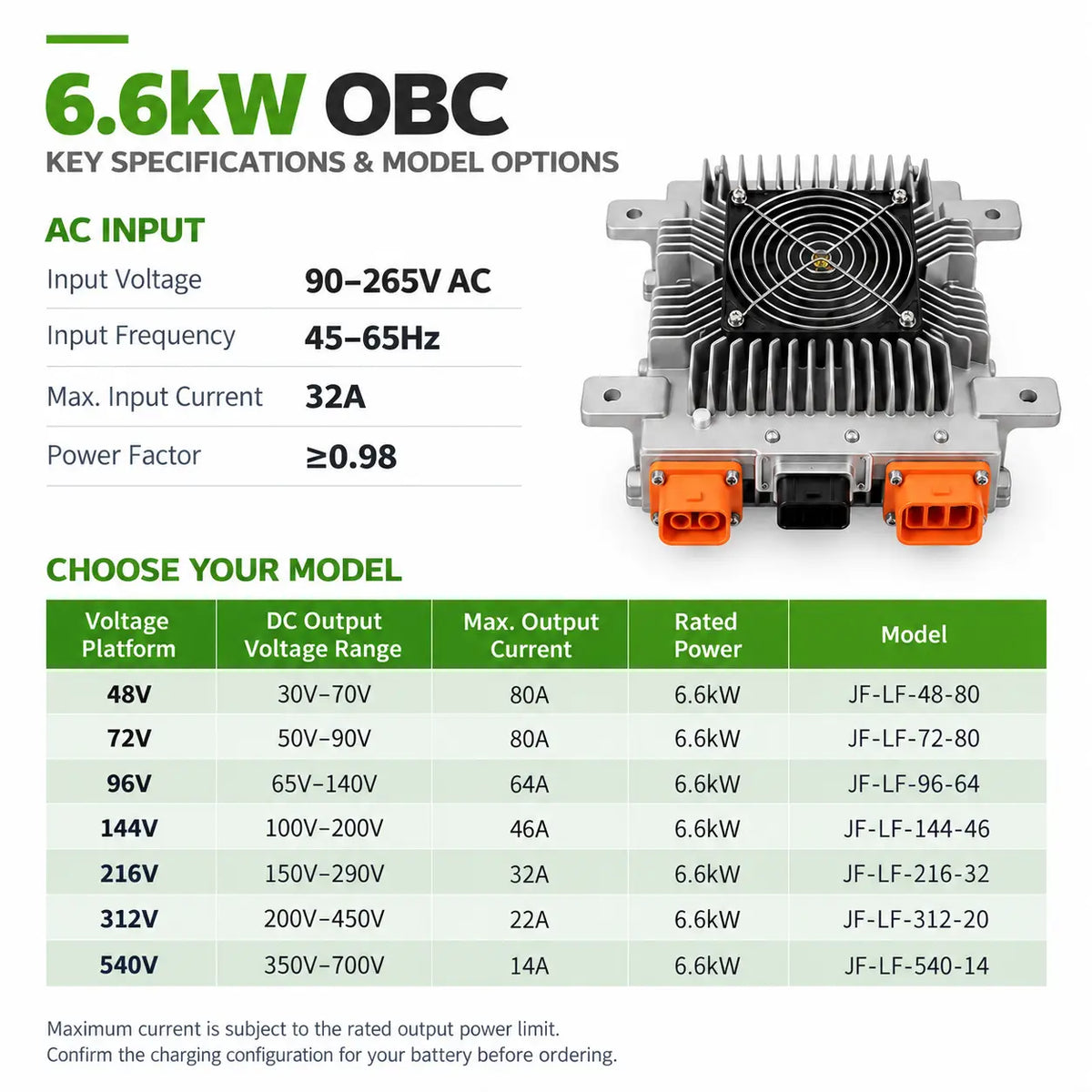

| Voltage Platform | DC Output Range | Max. Output Current | Rated Power | Model |
|---|---|---|---|---|
| 72V | 50–90VDC | 80A | 6.6kW | JF-LF-72-80 |
| 96V | 65–140VDC | 64A | 6.6kW | JF-LF-96-64 |
| 144V | 100–200VDC | 46A | 6.6kW | JF-LF-144-46 |
| 216V | 150–290VDC | 32A | 6.6kW | JF-LF-216-32 |
| 312V | 200–450VDC | 22A | 6.6kW | JF-LF-312-20 |
| 540V | 350–700VDC | 14A | 6.6kW | JF-LF-540-14 |
Package Contents & Wiring
The charger comes with matching mating connectors only. Cables, wiring harnesses, AC mains plugs and DC battery-side plugs are not included. Customers must provide and wire suitable cables and plugs for their installation.
Need a custom wiring harness or plug configuration? Contact AmpBird before ordering for assistance.
Designed for EV & Electrification Projects
The 6.6kW OBC is suitable for battery-powered vehicle projects requiring an integrated AC-to-DC charging solution, including:
EV conversions · Electric utility vehicles · Electric commercial vehicles · Special-purpose electric vehicles · Battery-powered mobile equipment · OEM electrification projects
Shipping: Ships from China by express air. Estimated Delivery Time: 7–10 days. Import duties and taxes are not included.
Warranty: 1-Year Limited Warranty
