Choosing LiFePO4 Cells for a 51.2V Home Battery: CATL, EVE and CALB
In this article
For a 51.2V home battery, start with the nominal energy target and the limits of the complete system. A single 16S string of 280Ah cells provides 14.336kWh; a 314Ah string provides 16.077kWh. The difference is about 12.1% in nominal cell energy. Check enclosure fit, operating limits and equipment compatibility before selecting either option.
This guide focuses on capacity and system fit. For a general comparison of CATL, EVE and CALB documentation and purchasing checks, read the cell buyer checklist.
Plan the complete home battery
- Define the energy target and expected loads.
- Check the inverter battery-voltage range and communication requirements.
- Confirm the cell set, enclosure, terminals and assembly requirements.
- Select a compatible BMS and protection devices.
- Confirm batch specifications, inspection scope and delivery terms.
280Ah vs 314Ah in a 16S battery
| Cell capacity | Cells in series | Nominal voltage | Nominal energy |
|---|---|---|---|
| 280Ah | 16 | 51.2V | 14.336kWh |
| 314Ah | 16 | 51.2V | 16.077kWh |
Nominal energy equals series cell count × 3.2V × Ah ÷ 1,000. This table does not predict usable energy or runtime. Check the operating window, system losses and load profile separately. Increasing Ah does not by itself confirm higher current capability or enclosure compatibility.
Use the home battery capacity guide to relate storage requirements to your consumption.
Check the cell set before selecting a kit
Confirm delivered cell dimensions, terminal layout, assembly requirements and the applicable datasheet revision. Match the BMS to series count, chemistry and system current requirements. Review the inverter battery-voltage range and any required communication interface at system level.
For a 280Ah option, review the EVE LF280K specification. For 314Ah options, compare CATL 314Ah cells and EVE MB31 cells. Confirm supplied batch documentation before deciding.
Should You Choose a Cell Based on Advertised Cycle Life?
Cycle life is one of the most frequently misunderstood specifications in the battery market.
A seller may advertise 6,000, 8,000, 10,000, or even 15,000 cycles, but these figures cannot be compared fairly unless the test conditions are known.
Cycle-life results can be affected by:
- Depth of discharge
- Charge and discharge rate
- Operating temperature
- Charge-voltage limits
- Discharge-voltage limits
- Cell compression
- Rest periods
- The remaining-capacity threshold used to define end of life
For example, a cell tested at moderate temperature, low current, and limited depth of discharge may complete substantially more cycles than the same cell operated at high current, high temperature, and close to its full voltage range.
Cycle-life figures should therefore be treated as manufacturer test results under specified conditions—not as a guaranteed number of years in every home battery installation.
Why “Grade A” Is Not Enough
The term “Grade A” is widely used in the LiFePO4 cell market, but it is not always applied consistently by independent sellers.
Some suppliers use terms such as:
- Grade A
- Grade A+
- Automotive Grade
- Energy Storage Grade
- Brand New Grade A
These labels should not replace physical inspection and electrical testing.
A trustworthy cell set should be evaluated according to:
- Manufacturer and model identification
- Traceable production information
- Physical condition
- Open-circuit voltage
- Internal-resistance consistency
- Measured capacity where applicable
- Self-discharge behaviour
- Batch consistency
- Terminal condition
A well-matched set of genuine, unused cells with transparent test information is more valuable than an unsupported “A+” label.
What Matters More Than the Brand Name?
1. Authenticity and Traceability
The seller should be able to identify the manufacturer, model, and available production information. Altered identification, inconsistent markings, or unexplained re-labelling should be treated cautiously.
2. Cell Matching
Cells connected in series should have closely matched capacity, internal resistance, age, and state of charge. The weakest cell limits the performance of the full battery.
3. Storage History
Even unused cells may be affected by poor storage conditions, excessive temperature, very low state of charge, or long storage periods without proper maintenance.
4. Battery-Box Compatibility
Confirm the exact cell dimensions, terminal spacing, busbar layout, insulation requirements, and compression method before ordering a battery enclosure.
5. BMS and Inverter Compatibility
The BMS should match the cell count, battery chemistry, expected continuous current, peak current, communication requirements, and inverter configuration.
6. Supplier Support
Technical support, clear warranty terms, shipping protection, and a documented damage-claim process can be more valuable than a small difference in the advertised cell price.

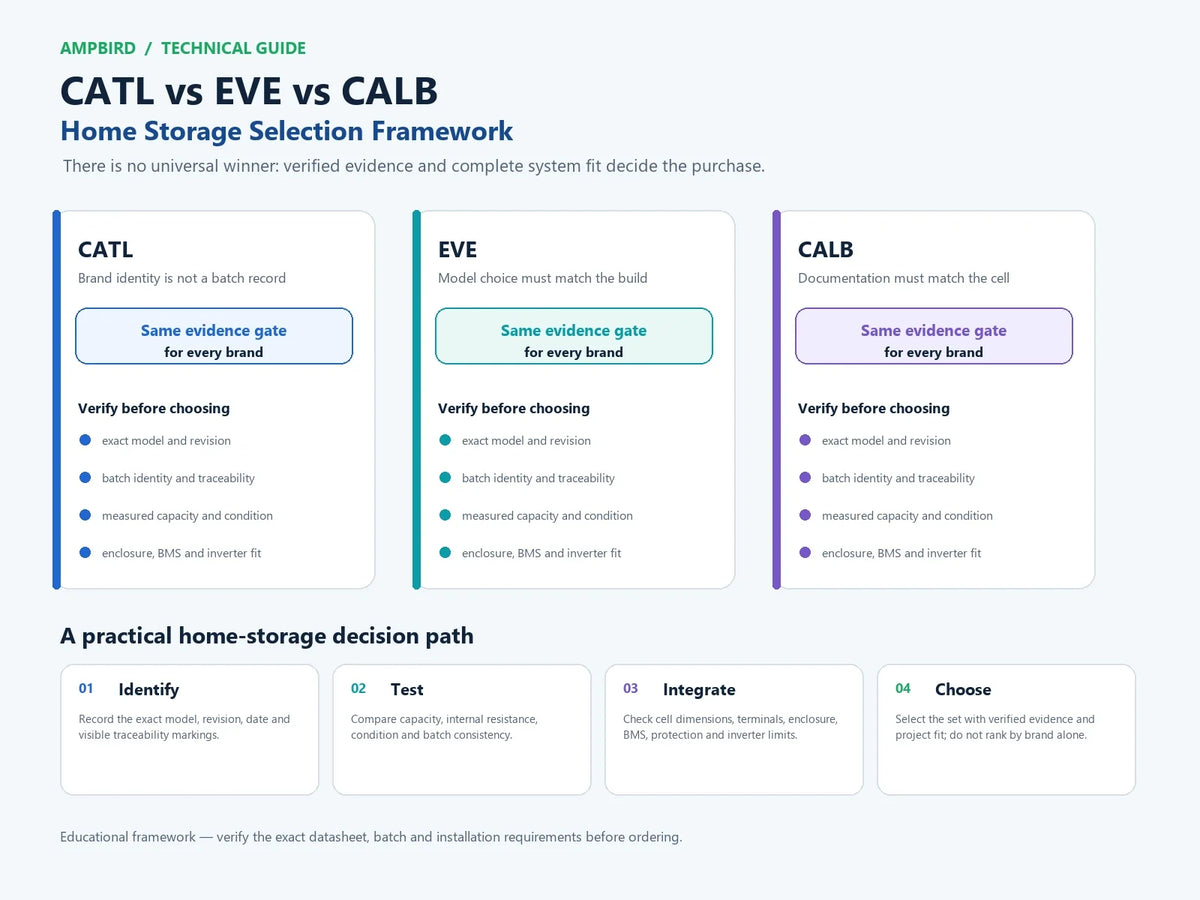

Practical decision framework
Choose a verified 280Ah set when it meets your energy target and fits the intended enclosure and system. Consider 314Ah when you need more nominal energy in one 16S string and have verified the complete mechanical and electrical design. Apply the same checks to CATL, EVE and CALB models.
Confirm inspection scope, test methods and report availability for the supplied batch with AmpBird. Check hardware, packing, warranty and delivery terms for your quantity and destination. The supplier selection guide provides further purchasing checks.
Frequently asked questions
Is a 51.2V battery the same as a 48V-class system?
Sixteen nominal 3.2V cells in series provide 51.2V nominal voltage. Verify the complete operating-voltage range against the inverter and BMS specifications before using the pack in a 48V-class system.
Does 314Ah always fit a 280Ah enclosure?
No. Confirm the exact dimensions, terminal spacing, busbar layout, insulation and compression requirements for the supplied model.
Does 16.077kWh mean I can use that much energy?
It is nominal cell energy. The operating window, system losses, temperature and load profile affect usable energy and runtime.
Which brand is best for this home battery?
Compare exact models and batch evidence against your energy, enclosure and system requirements. Brand identity does not replace those checks.
What should I ask before ordering?
Confirm the model, quantity, specification revision, production and storage information, inspection scope, hardware, warranty and destination-specific delivery terms.
Select cells for your project
Browse LiFePO4 battery cells and compare DIY battery kits after checking compatibility. Contact AmpBird with your required voltage, capacity, inverter model, destination and expected energy use.
