280Ah vs 314Ah LiFePO4 Cells: Which Is Better for Your DIY Battery Build?

For a 48V-class DIY LiFePO4 battery, 280Ah and 314Ah prismatic cells are two of the most practical capacity options available.

Both can be used to build a 16-cell, 51.2V nominal battery. The main difference is straightforward: a 314Ah cell stores approximately 12% more energy than a 280Ah cell at the same nominal voltage.

However, capacity is not the only factor that matters.

The correct choice also depends on the exact cell model, physical dimensions, terminal layout, battery-box compatibility, BMS rating, charging current, available space, total landed cost and the authenticity and consistency of the cells supplied.

This guide compares 280Ah and 314Ah LiFePO4 cells from a practical DIY-system perspective and explains when the larger capacity is worth paying for—and when 280Ah remains the better choice.

Quick Verdict

Choose 280Ah cells when approximately 14.3kWh of nominal energy is sufficient, the purchase budget is limited or you already own a battery box designed for a specific 280Ah cell model.

Choose 314Ah cells when you want the maximum practical energy from one 16S battery, have confirmed enclosure compatibility and the price premium is reasonable relative to the additional capacity.

For a completely new home-storage build, 314Ah is often attractive because the battery requires the same number of cells, one BMS and a similar set of supporting components while providing approximately 1.74kWh more nominal energy.

That does not make every 314Ah cell automatically better than every 280Ah cell. A genuine, well-matched 280Ah cell from a traceable batch is a better purchase than an unknown, poorly matched or misrepresented 314Ah cell.

280Ah vs 314Ah: Main Comparison

Important: The figures above compare nominal capacity only. Actual usable energy depends on the configured voltage range, depth of discharge, BMS settings, inverter efficiency, temperature, cell condition and the reserve maintained by the user.

How Much More Energy Does 314Ah Provide?

The nominal energy of a battery is calculated by multiplying voltage by capacity:

Battery Energy (Wh) = Nominal Voltage (V) × Capacity (Ah)

280Ah Cell

3.2V × 280Ah = 896Wh per cell

For a 16S battery:

51.2V × 280Ah = 14,336Wh, or approximately 14.34kWh

314Ah Cell

3.2V × 314Ah = 1,004.8Wh per cell

For a 16S battery:

51.2V × 314Ah = 16,076.8Wh, or approximately 16.08kWh

The difference is approximately:

16.08kWh − 14.34kWh = 1.74kWh

This means a 314Ah battery stores approximately 12.1% more nominal energy than a 280Ah battery.

Whether that additional 1.74kWh is valuable depends on the application. It may be meaningful for overnight backup, solar self-consumption or running a larger household load. It may be unnecessary for a small cabin or backup system that rarely uses the full capacity of a 280Ah battery.

What Can the Additional 1.74kWh Run?

The extra nominal energy available from a 314Ah pack can provide useful operating time, but actual runtime depends on inverter losses, battery limits and appliance behaviour.

These examples are for comparison only. They should not be treated as guaranteed appliance runtimes. Inverter efficiency, standby consumption, battery reserve and changing appliance demand must be included in a real system calculation.

Do 280Ah and 314Ah Cells Have the Same Dimensions?

Not always.

Some popular 280Ah and 314Ah prismatic cells have similar external dimensions, which is one reason 314Ah cells are attractive for high-capacity energy-storage systems. However, “280Ah” and “314Ah” describe capacity classes—not one universal mechanical standard.

Dimensions may vary by:

• Manufacturer
• Cell model
• Production generation
• Terminal type
• Terminal spacing
• Vent design
• Case and lid construction

Even a difference of a few millimetres can affect:

• Battery-box fit
• Compression plate position
• Threaded-rod length
• Busbar alignment
• Terminal insulation covers
• Internal cable clearance
• BMS mounting space

Never order a battery box based only on the stated cell capacity.

Before purchasing, confirm the exact:

• Cell width
• Cell thickness
• Cell height
• Total height including terminals
• Terminal spacing
• Terminal thread specification
• Recommended compression arrangement

Can They Use the Same Battery Box?

Possibly—but compatibility must be confirmed for the exact models.

A battery enclosure designed around one specific 280Ah cell may also fit a similarly sized 314Ah model. However, a box that physically closes is not necessarily fully compatible.

The enclosure must also provide:

• Correct cell compression
• Clearance around terminals
• Safe spacing from conductive surfaces
• Room for insulation panels
• Correct busbar alignment
• Space for the BMS and current sensor
• A secure method of restraining cell movement
• Appropriate cable bending radius

When purchasing a DIY battery box, ask the supplier to identify the compatible cell models rather than accepting a general statement such as “fits all 280Ah and 314Ah cells.”

Can 280Ah and 314Ah Cells Use the Same Busbars?

Not automatically.

Busbar compatibility depends on:

• Terminal centre-to-centre spacing
• Terminal type and thread
• Busbar hole diameter
• Busbar length and flexibility
• Maximum operating current
• Required surface contact area

A rigid busbar designed for one cell model may place mechanical stress on the terminals of another model if the spacing is slightly different.

Flexible laminated or multi-layer busbars can accommodate limited movement more effectively, but they still must match the terminal layout and current requirement.

Busbars should never be forced into position by pulling the cell terminals together.

Can They Use the Same BMS?

Both 280Ah and 314Ah 16S LiFePO4 batteries use the same basic BMS topology: a 16S BMS designed for LiFePO4 chemistry.

However, the BMS should not be selected from capacity alone.

The required BMS rating depends on:

• Maximum inverter power
• Battery voltage under load
• Inverter efficiency
• Continuous DC loads
• Surge current
• Maximum charging current
• Cell manufacturer current limits
• Busbar and cable ratings
• Temperature conditions

For example, a 5,000W inverter operating from a 51.2V nominal battery may draw around 98A before inverter losses and voltage reduction are considered. Real battery current can be higher.

A properly rated 150A or 200A BMS may be suitable for many home-storage builds, but the final selection should be based on the complete electrical design—not simply whether the cells are 280Ah or 314Ah.

The BMS capacity setting and state-of-charge configuration should also be updated to match the actual battery capacity.

Does 314Ah Mean More Output Power?

Not necessarily.

A 314Ah cell stores more energy, but maximum charge and discharge power depends on the permitted current in the manufacturer’s datasheet.

The capacity number alone does not tell you:

• Maximum continuous discharge current
• Maximum pulse current
• Recommended charging current
• Operating temperature limits
• Cycle-life test conditions

Two cells with the same 314Ah capacity can have different current limits. Likewise, a specific 280Ah model may support a higher permitted current than another 314Ah model.

System power is ultimately limited by the lowest-rated relevant component, which may be the:

• Cell
• BMS
• Fuse
• Busbar
• Cable
• Connector
• Inverter
• Thermal environment

Cost Comparison: Total Price vs Cost per kWh

It is tempting to compare cells using a fixed price table, but battery-cell pricing changes with supply, region, shipping method, order quantity, production date and market conditions.

A more reliable comparison is to calculate the delivered cost per kilowatt-hour for the actual quotations you receive.

Cell Cost per kWh = Total Cost of Cells ÷ Nominal Battery Energy

For a 16S battery:

• 280Ah nominal energy: approximately 14.34kWh
• 314Ah nominal energy: approximately 16.08kWh

Suppose the 314Ah cell set costs 10% more than the 280Ah set while providing approximately 12.1% more nominal energy. In that example, the 314Ah option would have a slightly lower cell cost per kWh.

However, the complete comparison should include:

• Cell purchase price
• International or local shipping
• Customs duty and taxes
• Battery box
• BMS
• Busbars and hardware
• Compression components
• Fuse and disconnect
• Cables and connectors
• Replacement or warranty support

The lowest advertised cell price is not always the lowest completed-system cost.

Who Should Choose 280Ah Cells?

280Ah cells remain an excellent option for many DIY projects.

Choose 280Ah when:

• Approximately 14.3kWh is sufficient for the intended application.
• The lower total purchase cost is more important than maximum capacity.
• You already own a compatible 280Ah enclosure.
• You are replacing cells in an existing 280Ah system.
• The exact 280Ah model has strong documentation and traceability.
• You prefer a mature, familiar design with proven component compatibility.
• The 314Ah price premium is greater than the added capacity justifies.

A 14.3kWh nominal battery is already substantial for many homes, cabins and backup applications. Purchasing additional capacity that is rarely used may not improve the overall system value.

Who Should Choose 314Ah Cells?

314Ah cells are attractive for users building a new system and trying to maximise the energy available from one 16S battery.

Choose 314Ah when:

• You want approximately 16.1kWh from one 51.2V battery.
• Space is limited and the exact 314Ah model fits the selected enclosure.
• The additional 1.74kWh provides useful backup or overnight runtime.
• The total price premium is reasonable.
• You want to reduce the need to add a second battery later.
• The cells are authentic, traceable and well matched.
• Your BMS, charging equipment and mechanical design are compatible.

The main economic advantage is that the additional energy may require little change to the supporting architecture. You still use 16 cells, one enclosure and one BMS.

Does the Inverter Care Whether the Battery Is 280Ah or 314Ah?

Most compatible inverters are concerned primarily with:

• Battery voltage range
• Maximum charge current
• Maximum discharge current
• BMS communication protocol
• Low- and high-voltage protection settings
• Total number of parallel batteries supported

An inverter does not normally reject a battery simply because it contains 16.08kWh instead of 14.34kWh.

A larger-capacity battery generally takes longer to charge at the same charging power. For example, if both batteries receive the same charging current, the 314Ah battery will require more time to move through the same percentage of its state of charge.

Before installation, confirm that the inverter and BMS can communicate correctly or that the inverter can be safely configured for voltage-based operation.

Parallel Expansion: One Large Pack or Multiple Packs?

A single 314Ah battery is not always better than multiple smaller batteries.

Multiple battery packs can offer:

• Modular expansion
• Redundancy
• Easier handling
• Separate isolation for maintenance
• More flexible installation

However, parallel batteries also require careful design:

• Equal cable resistance
• Appropriate busbars
• Individual battery protection
• Compatible BMS communication
• Matched battery voltage before connection
• Balanced charging and discharging

If approximately 16kWh is enough, one 314Ah pack may be simpler. If future expansion to 30kWh or more is expected, the enclosure, busbar and communication design should support parallel operation from the beginning.

Cell Authenticity and Matching Matter More Than 34Ah

The capacity difference between 280Ah and 314Ah is important, but it should not distract from cell quality.

Before buying either capacity, verify:

• Manufacturer and exact model
• New or previously used condition
• Production and batch information
• QR-code condition and traceability
• Open-circuit voltage consistency
• Internal-resistance consistency
• Terminal condition
• Case swelling, dents or corrosion
• Supplier testing procedure
• Warranty and damage-claim process

A battery string is affected by its weakest cell. Poor matching can cause one cell to reach the upper or lower voltage limit before the others, forcing the BMS to stop charging or discharging early.

This can reduce the usable capacity of the entire pack, even when the cells have a high advertised capacity.

Compression and Mechanical Installation

Large prismatic LiFePO4 cells should be installed according to the mechanical requirements of the actual manufacturer and cell model.

A suitable structure may include:

• Rigid end plates
• Insulation between conductive surfaces
• Controlled compression
• Protection against cell movement
• Clearance around the safety vent
• Correct terminal torque

Do not assume that one compression force or one enclosure design applies to every 280Ah and 314Ah cell.

Excessive force may damage a cell, while inadequate restraint can allow movement and swelling. Follow the latest technical documentation for the exact model whenever available.

Common Selection Mistakes

Assuming All Cells in One Capacity Class Are Identical

Capacity does not define dimensions, terminals, current rating or lifecycle performance.

Buying the Battery Box Before Confirming the Cell Model

The enclosure should be selected around verified cell dimensions and terminal spacing.

Comparing Only the Price per Cell

A 314Ah cell naturally contains more energy. Compare total delivered cost and cost per kWh.

Assuming More Capacity Means More Power

Maximum power must be confirmed from the datasheet and the complete system design.

Selecting the BMS Only from the Ah Rating

The BMS current rating should be based on inverter power, charging current, surge demand and system voltage.

Ignoring Cell Matching

A poorly matched 314Ah set may provide less practical usable capacity than a consistent 280Ah set.

Mixing 280Ah and 314Ah Cells in One Series String

Different capacities should not be mixed in one series battery. The lower-capacity cells will reach their limits first and restrict the whole pack.

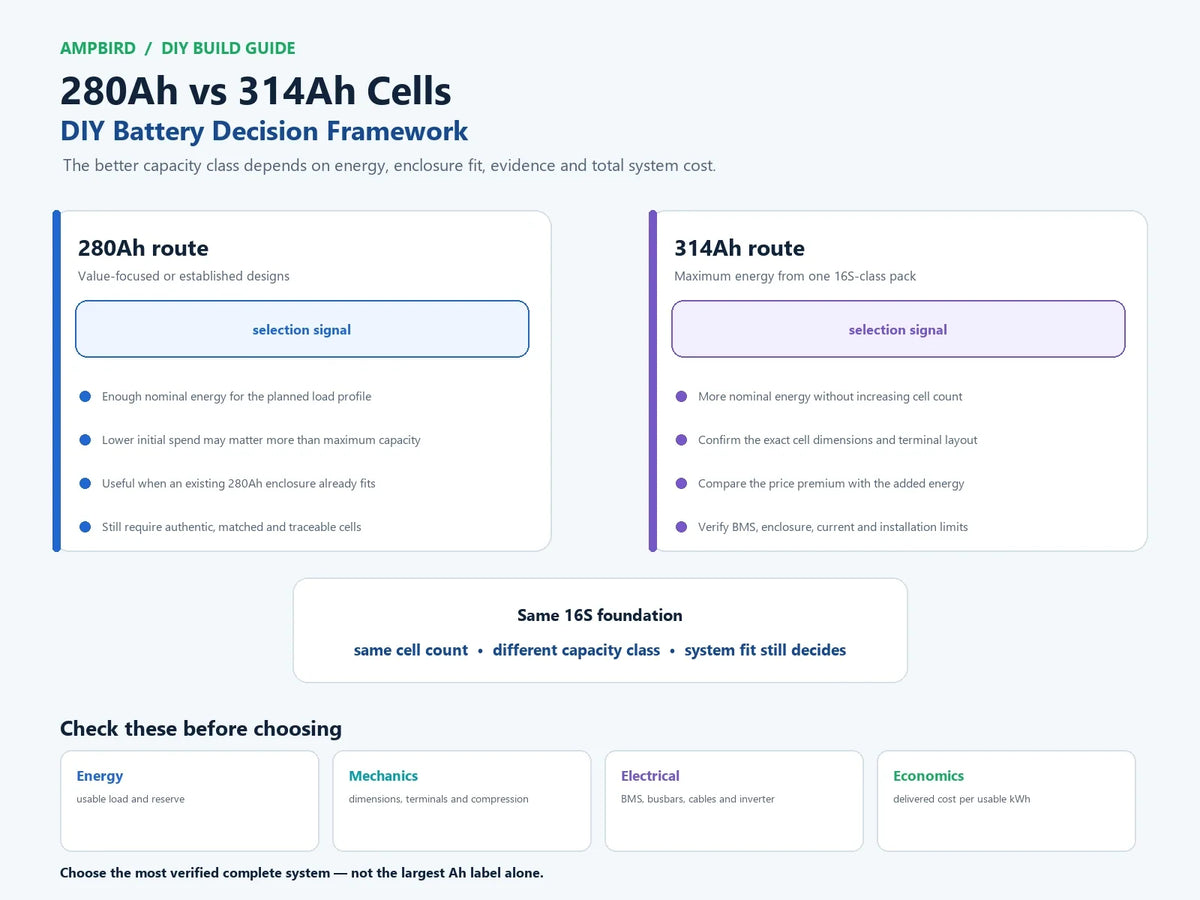

Decision Table

AmpBird Expert Tips

Before ordering 280Ah or 314Ah cells, AmpBird recommends confirming the following:

• The exact cell manufacturer and model
• The nominal and actual tested capacity
• The cell dimensions and terminal spacing
• The compatible battery-box model
• The required BMS current and communication protocol
• The inverter and charger voltage range
• The busbar and cable current rating
• The compression and insulation design
• The intended usable state-of-charge range
• The complete delivered cost

AmpBird also recommends purchasing all cells for one battery from the same model and matched batch whenever possible.

Our inspection process may include checking product identity, appearance, open-circuit voltage, internal resistance and batch consistency before shipment. The exact documentation and test information available should be confirmed for the selected product and order.

Frequently Asked Questions

Is a 314Ah battery always better than a 280Ah battery?

No. A 314Ah battery stores more energy, but the better choice depends on price, authenticity, cell matching, enclosure compatibility and actual energy requirements.

How much energy does a 16S 280Ah battery store?

A 51.2V 280Ah battery stores approximately 14.34kWh of nominal energy.

How much energy does a 16S 314Ah battery store?

A 51.2V 314Ah battery stores approximately 16.08kWh of nominal energy.

Can I install 314Ah cells in a battery box designed for 280Ah cells?

Only after confirming the dimensions, terminal spacing, compression arrangement and internal clearances for the exact cell models.

Can the same 16S BMS be used for both capacities?

Potentially. Both use a 16S LiFePO4 BMS, but the current rating, capacity configuration, balancing and communication requirements must match the complete system.

Can I mix 280Ah and 314Ah cells in one battery?

No. Different capacities should not be mixed in one series string. The lower-capacity cells will reach their voltage limits first and restrict the pack.

Does a 314Ah battery require a larger inverter?

No. Battery capacity and inverter power are different specifications. A larger-capacity battery can be used with the same compatible inverter, although charging time and available runtime will change.

Which option has the better cost per kWh?

It depends on current cell prices, shipping, taxes and supporting-component costs. Divide the delivered cell cost by 14.34kWh for the 280Ah set and by 16.08kWh for the 314Ah set.

Final Recommendation

For buyers starting a new 51.2V DIY home-storage build, 314Ah cells often provide a strong balance of capacity and component efficiency. They deliver approximately 1.74kWh more nominal energy than 280Ah cells without increasing the number of cells or requiring a second BMS.

However, 280Ah cells remain highly practical. They may offer a lower total purchase cost, easier compatibility with an existing enclosure and more than enough energy for many applications.

The final decision should not be based on capacity alone.

Choose the option that provides:

• Verified cell authenticity
• Consistent batch quality
• Correct enclosure compatibility
• Suitable current capability
• Reliable documentation
• The best total delivered value

A genuine, well-matched and correctly installed 280Ah battery is better than an uncertain 314Ah battery. When both options offer comparable quality and the 314Ah price premium is lower than or close to its approximately 12% capacity advantage, the 314Ah option is usually the stronger choice for a new high-capacity build.

AmpBird supplies Grade A LiFePO4 cells, compatible DIY battery kits, smart BMS solutions and battery components for 48V home-energy-storage projects. Contact AmpBird with your inverter model, required capacity, battery-box design and destination for product-selection and compatibility support.
