How Do You Design a 48V LiFePO4 Battery System for an Off-Grid Cabin?

Quick Answer: Design the Cabin Around a 48V Power Architecture, Not a Battery Number

A 48V LiFePO4 system can be a strong starting architecture for a fixed off-grid cabin when the inverter is relatively powerful, the battery-to-inverter cable run is not trivial, or the project may expand later. Higher voltage means lower current for the same power. That can make the DC path easier to manage than an equivalent 12V or 24V system.

But “48V” does not answer the complete design question. A dependable cabin system still has to pass six separate checks:

• the daily energy required by the loads that must remain available;
• the running and starting power that the inverter must deliver;
• the battery's usable energy and operating-voltage window;
• the BMS, battery, inverter and communication boundaries;
• the complete protected current path, including cables, fuses, disconnects and connections; and
• the PV and alternate-source path that can recover the battery after poor production.

The right order is therefore loads → power → energy → equipment compatibility → protection → recovery. A 48V label can simplify one part of that chain, but it cannot select a battery capacity, cable size, fuse rating or inverter by itself.

Why a Fixed Off-Grid Cabin May Need a Different Answer from an RV

An RV or small boat often starts with an existing 12V or 24V distribution system and a limited set of DC loads. A fixed cabin is more likely to have an AC refrigerator, water pump, communications equipment, lighting circuits, tools, a well pump or future expansion. The inverter may also be several metres from the battery, and the equipment may be expected to operate through a difficult weather period without a convenient grid connection.

That does not make 48V automatically better. It changes the questions that should be asked before choosing the nominal voltage.

| Project characteristic | What it usually makes important | Voltage-design implication |

|---|---|---|

| Mostly small DC loads and short cable runs | Simple distribution and existing appliance compatibility | 12V or 24V may be reasonable if every device is supported |

| Several-kilowatt AC inverter | Battery-side current, voltage drop, protection and heat | A 48V-class bus can reduce current compared with the same power at 12V or 24V |

| Battery and inverter separated by a longer run | Cable resistance and voltage drop under load | Higher voltage can help, but cable length, cross-section and terminations still need calculation |

| A 12V auxiliary rail is required | Correct voltage conversion and isolation | Use a properly rated DC-DC converter or a separately designed rail; never use a series midpoint as a 12V supply |

| Future batteries or larger loads may be added | Parallel architecture, current sharing, BMS and protection | Plan the expansion path before buying the first battery |

The existing 12V vs 24V LiFePO4 guide owns the broad mobile and lower-voltage comparison. This article narrows the question to the architecture of a fixed cabin where 48V-class storage is being considered.

Step 1: Convert Cabin Habits into a Load Register

Start with the cabin, not the battery catalogue. Make a load register for at least one representative operating period and identify which loads are essential. A nameplate list is useful, but it does not always reveal actual daily energy, compressor cycling, pump starts or simultaneous use.

Record these fields for each load:

• appliance or circuit name;
• AC or DC input;
• rated power and expected running power;
• starting, inrush or locked-rotor behavior if a motor or compressor is involved;
• operating hours or measured daily energy;
• critical, deferrable or optional status;
• time-of-day pattern;
• seasonal changes;
• whether the load can be shed, delayed or supplied from another source; and
• what should happen if it stops or restarts.

| Load-register field | Why it matters to the 48V design |

|---|---|

| Daily Wh or kWh | Determines the energy that must be stored and recovered, after conversion losses |

| Continuous W | Determines the inverter's sustained AC output and the battery-side operating current |

| Starting or surge W | Determines whether the inverter and battery path can start the load without an overload or low-voltage event |

| Criticality | Determines which circuits should remain protected when energy or power is limited |

| AC/DC location | Determines whether the load is served by the inverter, a DC-DC converter or a separate rail |

| Cable route and length | Determines voltage drop, heat, installation cost and service access |

Energy and power are different design inputs

Energy answers “how much work must the system provide over time?” Power answers “how much must it provide at one moment?” A refrigerator may use modest energy over a day but still demand a starting surge. A water pump may run for a short time but determine the inverter's surge requirement. A battery with sufficient kWh can still fail to start the pump if the inverter, BMS or DC path cannot deliver the required power.

The U.S. Department of Energy describes storage using both energy capacity and power capacity. Keep the two fields in the design worksheet instead of reducing the system to amp-hours or a product title. The home battery storage sizing guide is the better destination for the broad kWh question; here, the same energy number is only one input to a fixed-site system design.

Step 2: Use the 48V Advantage as a Current Check

For an AC load supplied by an inverter, a useful first estimate of battery-side current is:

Battery current ≈ AC power ÷ (actual battery voltage × inverter efficiency)

For a simple illustration, a 3,000W AC load at an assumed 51.2V battery voltage and 92% inverter efficiency would be approximately:

3,000W ÷ (51.2V × 0.92) ≈ 63.7A

At an assumed 24V battery voltage using the same illustrative efficiency, the estimate would be:

3,000W ÷ (24V × 0.92) ≈ 135.9A

These are calculation examples, not cable or fuse recommendations. Actual current changes with battery voltage, inverter efficiency, surge duration, temperature, state of charge, cable losses and the other loads operating at the same time. A maximum-current design should use the manufacturer's limits and the lowest relevant operating voltage, not just the nominal label.

Victron's Wiring Unlimited theory chapter explains the same relationship: for the same power, higher voltage produces lower current, while cable resistance creates voltage drop and heat. Its DC wiring guidance also treats 48V as a useful direction for larger inverter systems, while emphasizing that the correct cable can only be selected after the current is known. This is an engineering relationship, not a universal rule that every cabin should use 48V.

Do not calculate from “48V” alone

A 48V-class LiFePO4 battery is not held at exactly 48.0V throughout operation. A common 16-cell series arrangement is nominally 51.2V when each cell is nominally 3.2V, but the actual operating range depends on the cell chemistry, series count, BMS settings, inverter limits and the manufacturer's documentation. Current at the low end of that range can be higher than the current calculated from 51.2V.

The design worksheet should therefore include:

• nominal voltage and the documented minimum/maximum operating voltage;
• maximum continuous discharge and charge current for the selected battery and BMS;
• inverter low-voltage, high-voltage, continuous-power and surge limits;
• expected cable length for the complete positive and negative path;
• the voltage-drop objective used by the installer; and
• the effect of temperature and low state of charge on the operating boundary.

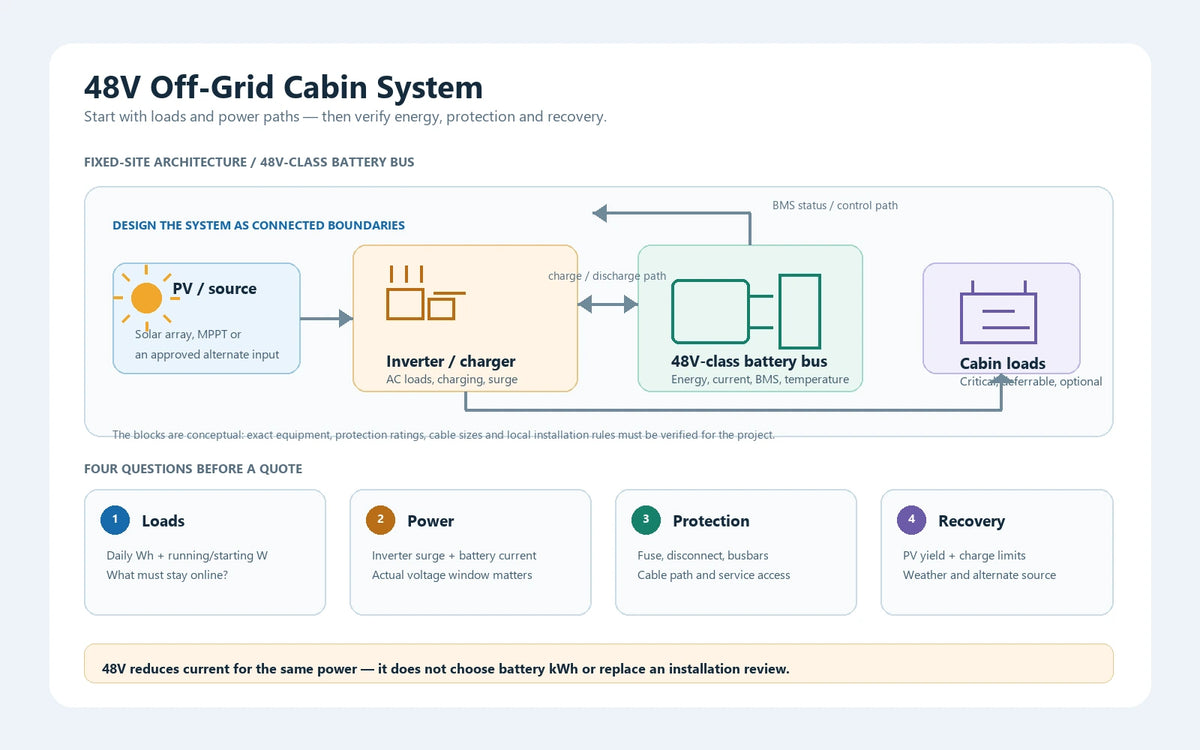

Step 3: Draw the Cabin as Connected System Blocks

Before choosing a model, draw a one-line block diagram. It should show where energy enters, where it is stored, where DC is protected and converted, and which circuits are allowed to operate when energy is limited.

| Block | What it does | What must be verified |

|---|---|---|

| PV array and MPPT or hybrid inverter input | Produces and controls charging energy | PV voltage range, maximum input current, array configuration, shading and seasonal yield |

| 48V-class LiFePO4 battery bank | Stores DC energy and supplies the inverter | Usable energy, voltage range, continuous/surge current, temperature boundary and expansion method |

| BMS | Monitors cells and controls protection or charge/discharge permission | Cell count, current limits, temperature sensors, communication protocol, firmware and fault behavior |

| Inverter/charger | Supplies AC loads and may charge the battery from an approved source | Battery-voltage range, continuous output, surge, charger current, PV/AC input and local grid or generator rules |

| DC protection and distribution | Limits fault energy and creates a serviceable current path | External fusing, disconnect rating, busbar capacity, cable rating, short-circuit conditions and enclosure layout |

| AC distribution | Separates and protects cabin circuits | Critical-load panel, breakers, grounding, transfer behavior and local electrical requirements |

| Monitoring and records | Makes the design and faults observable | Battery voltage, current, SOC basis, alarms, temperature and commissioning records |

The live AmpBird 48V LiFePO4 battery build guide is the relevant companion for cell count, assembly and pack-level decisions. It does not replace the inverter, protection, installation or local-code review for a cabin.

Step 4: Check the Battery at Four Boundaries

1. Energy boundary: usable kWh, not the headline number

Battery energy should be stated with its basis. Ask whether the number is nominal energy, usable energy, an upper variant value, or an estimate before conversion and reserve limits. Then compare it with the protected cabin load, the chosen operating window, inverter losses and the required recovery policy.

Do not infer a fixed runtime from a title such as “16kWh.” The 16kWh LiFePO4 runtime guide handles the separate question of how load power and usable energy relate to runtime. A cabin system must additionally check whether the inverter can deliver the load and whether PV can restore the energy after use.

2. Power boundary: continuous and starting demand

Compare the highest simultaneous running load and the largest starting event with:

• inverter continuous AC output;
• inverter surge duration and surge power;
• battery continuous discharge current;
• BMS discharge permission and temperature limits;
• cable, fuse, disconnect and busbar ratings; and
• the voltage at the inverter terminals during the event.

The LiFePO4 battery size guide for 5kW, 8kW and 10kW inverters is a useful internal reference for separating inverter output from battery-side current. It should not be treated as a universal selection table for an unknown cabin load profile.

3. Compatibility boundary: 51.2V, inverter settings and BMS

The inverter must support the battery's actual voltage window, not merely display “48V” in a product name. Confirm the battery series count, charge and discharge limits, low-voltage behavior, restart behavior and the exact inverter model.

Communication adds another layer. CAN or RS485 printed on a BMS does not prove that a particular inverter, cable, pinout, protocol profile or firmware version will exchange the required charge and discharge permissions. Use the JK BMS CAN/RS485 compatibility check to frame the verification, then confirm the exact model documents.

4. Product boundary: use the current page as a route, not a universal specification

AmpBird's 51.2V 314Ah DIY LiFePO4 battery kit is a concrete product route for a 16S / 51.2V-class DIY architecture. The live page describes a battery enclosure, smart BMS, display, busbars, wiring and protective components, with cells sold separately. It also describes off-grid and backup applications.

Before ordering, confirm the exact variant and current documentation with AmpBird. The page currently contains different capacity and cell-compatibility wording in different sections, so this article does not normalize those fields into one universal promise. Do not treat the product page's BMS current, capacity label, communication listing or inverter-brand list as proof that every cabin system has the same limits. Match the exact cells, pack configuration, BMS settings, inverter model and installation plan.

Step 5: Size the Inverter, PV and Recovery Path Together

The inverter is not just an AC outlet. In an off-grid cabin it may be the point that coordinates PV, battery discharge, AC charging, critical-load backup and an alternate source. Its specification review should include:

• battery voltage range and low-voltage cut-off;
• continuous output power;
• surge power and surge duration;
• idle consumption;
• charger current and configurable charge limits;
• PV input voltage, current and maximum power if the inverter includes an MPPT;
• AC input and transfer behavior if grid, generator or shore power is part of the design;
• BMS communication options and approved profiles; and
• local certification, grounding and anti-islanding requirements where applicable.

The home-battery PV sizing guide owns the broader panel-sizing question. The solar charge-time guide covers the energy-gap and recharge-time calculation. For a cabin, use those calculations with site-specific solar data rather than a generic “sun hours” number.

The U.S. Department of Energy's Solar Integration: Solar Energy and Storage Basics notes that solar production is affected by season, time of day, clouds, dust, haze, shadows, rain, snow and dirt, and that storage is not 100% efficient. The system therefore needs a recovery check: after the battery supplies the protected loads through a low-production period, can the PV path restore the reserve while still serving daytime loads? A larger battery without enough PV or another source can extend the shortage rather than solve it.

Victron's ESS system-design guidance makes a related distinction: battery size in a backup system is tied to required autonomy, while inverter/charger size is tied to expected loads. Those are separate decisions and should stay separate in the cabin worksheet.

Step 6: Protect the Complete Current Path

The battery label is not the protection design. Draw the positive and negative paths from the battery terminals to the inverter, busbars, shunt, disconnects, fuses and any parallel batteries. Mark every connection, terminal, enclosure entry and cable length.

Check at least:

• the maximum possible current in each branch;
• the voltage rating and interrupting capability of each protective device;
• cable ampacity under the actual installation conditions;
• voltage drop during the highest sustained and starting loads;
• battery, busbar, fuse, disconnect and inverter terminal ratings;
• short-circuit and fault-current assumptions;
• torque, lug crimping, insulation and strain relief;
• separation from moisture, heat and physical damage; and
• service access without loosening a live connection.

Do not choose a cable or fuse from the BMS headline current alone. The 48V battery wiring, fuse and isolation guide covers the wiring and protection question in more detail. Victron's BMS system-design guidance also states that a BMS warning is not automatically the system fuse and that external fusing and cabling must be rated for the maximum currents in the connected circuits.

For a permanent cabin, have the final AC and DC installation checked by a qualified installer who understands the applicable electrical and fire requirements. This article is a planning and purchasing framework, not a substitute for local code or an electrical design approval.

Step 7: Treat BMS Communication as a Verified Interface

There are two different questions:

1. Can the BMS protect the cells locally if a voltage or temperature limit is reached?

2. Can the BMS and inverter exchange the correct information and permissions for the intended operating mode?

The second question requires exact evidence. Record the BMS model, firmware, cell count, communication port, cable pinout, inverter model, protocol profile, charge/discharge permission behavior and the response to a communication failure. A cable that physically fits a CAN or RS485 port is not enough.

If the system does not use managed communication, the inverter's voltage-based settings still need to be compatible with the battery maker's documentation. Do not copy settings from another battery, cell chemistry or pack configuration. The charge and discharge limits are a property of the selected system and its operating conditions.

A Worked Planning Example — Useful for a Quote, Not a Product Recommendation

Assume a cabin worksheet records:

• 2,400W maximum expected simultaneous AC running load;
• 4,500W possible starting event from a pump or compressor;
• 5.2kWh/day of measured or carefully estimated protected energy;
• a 48V-class battery with a nominal calculation voltage of 51.2V; and
• an illustrative 92% inverter efficiency.

The first-pass battery current estimates would be:

Running event: 2,400W ÷ (51.2V × 0.92) ≈ 51.0A
Starting event: 4,500W ÷ (51.2V × 0.92) ≈ 95.5A

The result does not mean that a 100A BMS, a particular cable or a particular fuse is acceptable. It only tells the designer what to compare with the inverter surge curve, the battery's actual current limits, the lowest operating voltage, the cable path and the protective devices. The 5.2kWh/day figure also does not select the battery capacity until the usable-energy window, reserve policy, temperature and solar-recovery plan are defined.

This worksheet is valuable because it gives a supplier or installer something specific to review: loads, power events, energy, voltage, current and recovery inputs. It is more useful than asking for “a 48V battery for a cabin” without describing the cabin.

When Is 48V a Better Fit Than 24V?

Use this decision sequence:

| Question | If the answer is yes | Design direction |

|---|---|---|

| Will the cabin run several-kilowatt AC loads or motor starts? | Battery-side current is likely to be substantial | Compare 48V-class options first, then verify inverter and protection |

| Is the battery-to-inverter route long or difficult to keep cool and serviceable? | Voltage drop and cable heating matter more | Higher voltage may help, but calculate the complete path |

| Are most appliances already 12V or 24V DC? | Conversion and distribution may dominate the design | A lower-voltage system or a dedicated DC-DC architecture may be simpler |

| Is the cabin small, seasonal and lightly loaded? | A 48V system may add unnecessary complexity | Compare the complete installed system, not only current reduction |

| Will the system expand to more inverter power or storage later? | Future current and parallel-bank design matter | Plan the 48V architecture, BMS and protection before the first purchase |

The goal is not to win a 48V-versus-24V argument. The goal is to choose the voltage that leaves a verifiable, serviceable path for the cabin's actual loads. If a 48V bank must supply 12V loads, use a correctly rated converter or a separate approved rail. Never tap a series midpoint to run a lower-voltage appliance.

Ten Details to Send Before Requesting a Cabin-Battery Quote

Send a concise project brief rather than only a desired amp-hour number:

1. installation country and approximate climate or seasonal operating pattern;

2. full-time, seasonal or occasional occupancy;

3. a load register with daily Wh/kWh;

4. maximum simultaneous running power;

5. motor, compressor or pump starting information;

6. critical circuits and the required backup/autonomy objective;

7. PV array details, shading and expected recovery window;

8. inverter/charger model or target AC output;

9. battery-room location, temperature, cable route and approximate one-way distance; and

10. preferred cell, pack, BMS, monitoring, generator or alternate-source constraints.

If any field is unknown, label it “to be verified.” An honest unknown is safer than a confident but wrong battery specification. The Home Battery Systems collection can help you compare system routes after the design brief is clear, while the DIY Battery Kits collection is more relevant when you have accepted the assembly, cell-matching and commissioning responsibilities.

Common 48V Off-Grid Cabin Design Mistakes

Mistake 1: Treating “48V” as an exact operating voltage

Nominal voltage is a naming and calculation reference. The inverter and BMS must be checked against the actual operating range.

Mistake 2: Selecting by amp-hours alone

Amp-hours without voltage, usable operating window and load profile do not define usable energy or runtime. Compare Wh/kWh and power separately.

Mistake 3: Sizing the inverter from battery kWh

A large battery can still be connected to an inverter that cannot start a pump or supply the desired simultaneous load. Check running power, surge and battery-side current.

Mistake 4: Using the BMS headline current as a cable or fuse value

The protection device and cable must be selected for the circuit, fault conditions, installation and equipment limits. A BMS rating is not a universal branch-protection instruction.

Mistake 5: Assuming CAN or RS485 means plug-and-play compatibility

Communication requires matching protocol, pinout, firmware and behavior. Verify the exact BMS and inverter pairing.

Mistake 6: Connecting a 12V load to part of a 48V series string

A midpoint tap unbalances the string and creates an unsafe design. Use a suitable DC-DC converter or a separate battery rail.

Mistake 7: Ignoring the recovery path

Battery energy is only one part of an off-grid system. Confirm how PV, an alternate source and load shedding restore the battery after poor solar production.

Mistake 8: Treating a product page as a project drawing

Product pages describe a route and available fields; they do not know your cable run, motor surge, local code, room conditions or inverter firmware. Confirm the exact variant before payment.

How AmpBird Can Help with the Next Design Step

AmpBird can review a project brief around the actual cabin loads, target voltage, inverter, cell or battery route, BMS communication, cable path and solar recovery requirements. Send the load register and equipment details through Contact AmpBird. The aim is to identify what can be confirmed, what still needs a datasheet and what should be checked by the local installer before an order.

Commercial recommendations should follow the design evidence. A 48V-class DIY kit, a pre-assembled battery or a different storage architecture may each be reasonable in a different cabin; the correct choice depends on the complete system boundary.

Frequently Asked Questions

Is a 48V LiFePO4 battery really 48V?

“48V” is commonly used as a system class. A typical 16-cell series LiFePO4 arrangement has a nominal value of 16 × 3.2V = 51.2V, while its actual operating voltage varies with cell state and the documented limits. Use the exact battery and inverter voltage ranges rather than the short label.

Why is 48V often considered for an off-grid cabin?

For the same power, a higher DC voltage reduces current. That can reduce voltage-drop and cable-heating pressure compared with an equivalent 12V or 24V path. It does not remove the need to calculate current, choose protection or verify the inverter.

How do I calculate the battery current for a cabin inverter?

Use a first-pass estimate of AC power divided by actual battery voltage and inverter efficiency. Then check continuous and surge power, the lowest operating voltage, other simultaneous loads, cable losses, BMS limits and protective-device ratings. The formula is a planning tool, not a final cable-size calculation.

Is a 16kWh battery enough for an off-grid cabin?

There is no universal answer. Compare the protected daily load, usable—not only nominal—energy, desired operating reserve, power and surge requirements, temperature, inverter limits and the ability of PV or another source to recover the energy. A kWh label alone cannot prove the runtime.

Can I use 12V appliances with a 48V battery system?

Yes, when the system includes a correctly rated DC-DC converter or a separately designed 12V rail. Do not connect a 12V appliance to a midpoint of a 48V series string; that unbalances the cells and is not a substitute for conversion.

Does every 48V inverter work with every 51.2V battery?

No. Check the inverter's minimum and maximum battery voltage, charge/discharge current, surge behavior, connector and protection requirements, and the BMS communication profile if managed operation is intended. “48V compatible” is a starting filter, not proof of a complete pairing.

Do CAN and RS485 guarantee BMS-to-inverter compatibility?

No. They describe communication interfaces, not one universal message language. The exact protocol, cable pinout, firmware, device profile and response to lost communication must match the selected BMS and inverter.

How many 48V batteries should a cabin use?

Choose the number only after the energy, power, expansion, current-sharing, BMS and protection design is known. Parallel batteries must be supported by the product documentation and installed with an appropriate current path; more units do not automatically fix an undersized inverter, PV array or cable.

Does a 48V battery determine the solar-panel size?

No. PV size depends on the protected energy requirement, solar resource, shading, season, desired recovery time, charge-controller limits and battery charge limits. Use the cabin load profile and site-specific production assumptions rather than converting voltage directly into panel watts.

Can the AmpBird 51.2V DIY kit be used for an off-grid cabin?

The live product page describes that kit for solar storage, off-grid and backup applications and identifies a 16S / 51.2V-class architecture with an enclosure, BMS and assembly components; cells are sold separately. Before purchase, confirm the exact cell model, capacity wording, BMS settings, inverter pairing, current path, variant availability and installation plan with AmpBird.

Should the battery be installed inside the cabin?

The location must be assessed against the battery documentation, temperature range, ventilation or enclosure requirements, moisture, fire separation, service access and applicable local rules. A blog checklist cannot approve a particular room. Have the final location and AC/DC installation reviewed by a qualified local professional.

What should I send AmpBird for a useful system review?

Send the installation location, occupancy pattern, load register, running and starting power, critical circuits, desired reserve or autonomy objective, PV details, inverter model, cable distance, room conditions and any BMS or cell preference. Mark unknown items clearly so they can be verified before a quote.
