How to Build a 48V LiFePO4 Battery Pack: Complete Beginner’s Guide

Building a 48V LiFePO4 battery can be a rewarding way to create a repairable and customizable energy-storage system. It can also be a serious electrical project involving high short-circuit current, heavy components and equipment that must work together correctly.

A successful DIY battery is not simply sixteen cells connected with busbars. It is a complete system that includes correctly matched cells, a suitable battery management system, mechanical restraint, insulation, overcurrent protection, correctly sized conductors, an enclosure, temperature monitoring and compatible inverter settings.

This guide explains the full planning and assembly workflow for a typical 16S LiFePO4 battery. It is intended to help beginners understand the decisions, inspections and safety controls involved before starting a build. It does not replace the instructions supplied by the cell, BMS, enclosure, inverter or protection-device manufacturers.

Important safety notice: Large-format LiFePO4 cells can deliver extremely high fault current. A dropped tool, reversed conductor or incorrectly connected BMS harness can cause severe equipment damage, burns or fire. Work should be completed or reviewed by a qualified person familiar with DC battery systems. Follow all applicable electrical, fire, building and installation requirements in your location.

Project Overview

Quick Answer

A typical “48V” LiFePO4 battery uses sixteen 3.2V cells connected in series. This produces a nominal voltage of 51.2V while the capacity in amp-hours remains the same as one cell.

For example:

• 16 × 3.2V 100Ah cells provide approximately 5.12kWh of nominal energy.
• 16 × 3.2V 280Ah cells provide approximately 14.34kWh.
• 16 × 3.2V 314Ah cells provide approximately 16.08kWh.

The core steps are to define the inverter and load requirements, select a compatible cell and enclosure combination, size the BMS and protection devices, inspect and match the cells, assemble the mechanical structure, install the electrical components according to their manuals, verify every connection and commission the system with conservative settings.

At a Glance: The Correct Build Order

Why Build Your Own 48V LiFePO4 Battery?

A DIY battery gives the builder control over the cells, BMS, enclosure, protection devices and serviceability. This can be valuable when a standard finished battery does not match the required capacity, physical layout or inverter configuration.

Potential Advantages

• Component transparency: You know which cells, BMS and protection devices are installed.
• Repairability: Individual components may be inspected or replaced instead of discarding the complete battery.
• Customization: Capacity, enclosure style, current rating and communication can be selected for the application.
• Learning: A careful build provides a deeper understanding of battery behavior and system maintenance.
• Expandable design: Additional matched battery modules may be added later when the inverter and installation support parallel operation.

Potential Disadvantages

• You are responsible for system-level integration and workmanship.
• Component warranties may not equal a complete system warranty.
• Testing equipment, tools and protective components add cost.
• Local installation rules may require professional design, inspection or certification.
• A serious assembly error can damage expensive components or create a safety hazard.

DIY Battery vs Pre-Built Battery

DIY is not automatically better or cheaper. The correct comparison includes the enclosure, BMS, fuse, breaker, cables, tools, testing, shipping, installation time and the value of system-level warranty support.

Before You Buy Anything

Many beginners start by purchasing cells because they appear to be the largest and most important component. A better process starts with the complete electrical system.

1. Confirm the Inverter

Check the inverter manufacturer’s battery-voltage range, maximum charge and discharge current, communication options and supported battery protocols. Some inverters can operate with voltage-based settings, while others are designed for closed-loop communication with a compatible BMS.

2. Estimate Your Energy Requirement

List the loads you want the battery to support and estimate daily energy consumption. Separate high-power loads from long-duration loads. A battery may provide enough energy for one day while still being unable to supply a short high-power surge if the BMS, cables or inverter are undersized.

3. Define the Installation Environment

Consider indoor or outdoor placement, temperature range, ventilation, access, floor loading, moisture, dust, fire separation and service clearance. LiFePO4 cells should not be charged below the minimum temperature specified by the cell manufacturer unless the system includes a properly controlled heating strategy.

4. Decide Whether Communication Is Required

Closed-loop CAN or RS485 communication can allow the BMS to share limits and state information with the inverter. Compatibility must be confirmed for the specific BMS model, firmware, cable pinout and inverter protocol. A communication port alone does not guarantee compatibility.

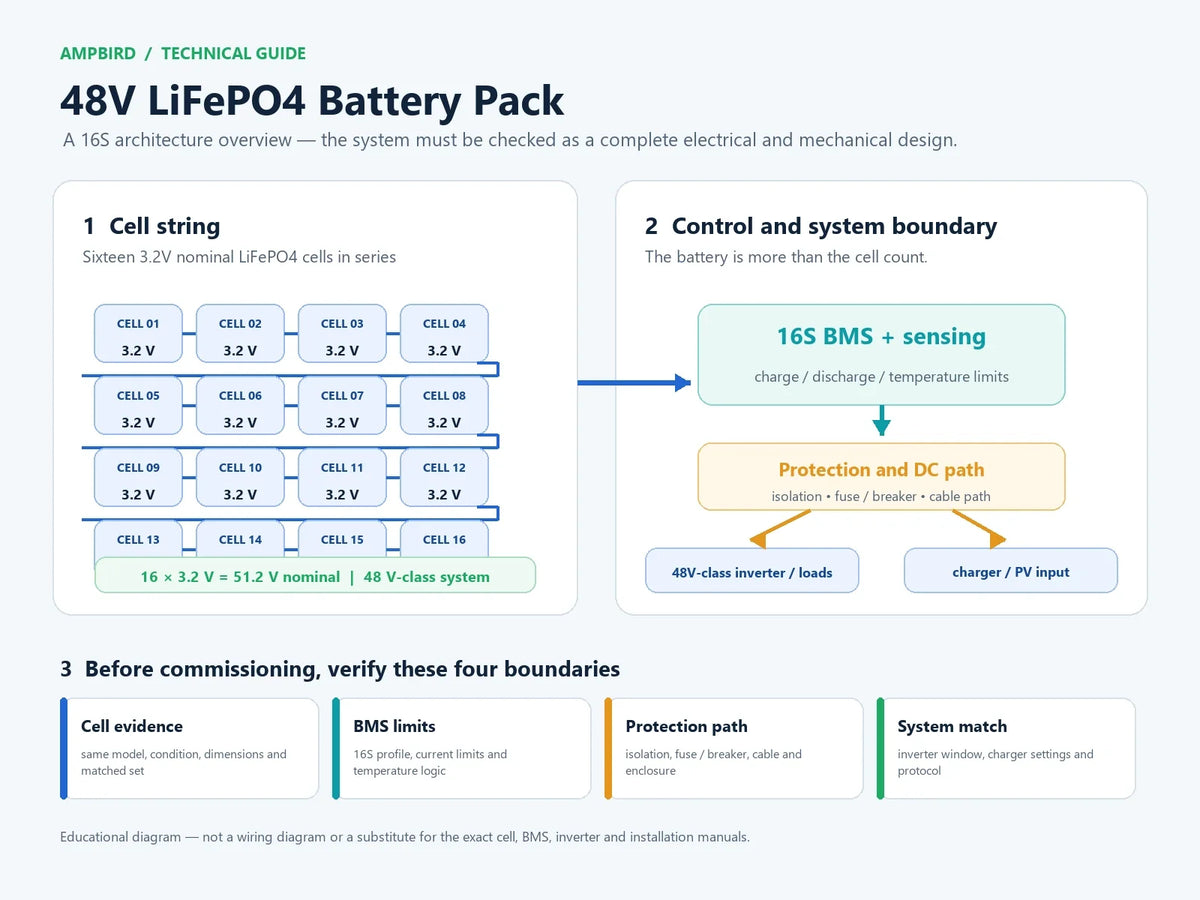

How a 16S LiFePO4 Battery Works

Connecting cells in series increases voltage while keeping the amp-hour capacity equal to one cell. In a 16S pack, the positive terminal of one cell is connected to the negative terminal of the next until all sixteen cells form one series string.

The battery management system monitors each cell group. It should stop or limit operation when an individual cell reaches a protection threshold, when pack current exceeds its design limit or when temperatures move outside the configured range.

The BMS is an important protective device, but it is not a substitute for a correctly selected fuse, disconnect, conductor size, enclosure or installation method.

Why 48V and 51.2V Both Appear on LiFePO4 Product Pages

For LiFePO4 home-storage systems, “48V” and “51.2V” usually describe the same 16-cell system class from two different naming conventions. “48V” is the familiar equipment and search term; “51.2V” is the nominal calculation for sixteen 3.2V cells connected in series.

The current AmpBird EVE MB31 listing illustrates the calculation: four, eight and sixteen cells correspond to nominal 12.8V, 25.6V and 51.2V configurations. Its 16S option is therefore a 48V-class battery, not a contradiction in the product description.

Can a 48V inverter work with a 51.2V battery?

Sometimes, but the label alone is not enough. Check the inverter’s documented battery-voltage window, lithium charge settings, maximum charge and discharge current, low-voltage cutoff and BMS communication requirements. The complete 16S battery must remain inside those limits throughout its operating range.

Also confirm the BMS is configured for 16S LiFePO4 and that its current, temperature and communication limits match the inverter. A CAN or RS485 socket does not by itself prove protocol or pinout compatibility.

What should be checked before ordering?

1. Use the exact cell series count to calculate nominal voltage; do not size from the “48V” label alone.
2. Compare the battery’s permitted voltage range with the inverter and charger documentation.
3. Confirm the BMS series count, continuous current, temperature inputs and communication profile.
4. Check the enclosure, busbars, fuse, disconnect and cable path for the selected cell format and current.
5. For a kit, confirm the exact variant and packing list. AmpBird’s 51.2V 314Ah DIY kit is a 16S-class route, but the selected package and included cells must still be verified before payment.

Use the nominal value for energy calculations, and use the current cell, BMS, charger and inverter documents for operating limits. That distinction prevents a familiar “48V” search term from becoming an unsafe compatibility assumption.

Parts Checklist

Choosing the Right LiFePO4 Cells

The cells determine the pack’s energy, dimensions, weight and practical current capability. Do not choose solely by amp-hour rating or price.

Cell Selection Criteria

• Exact manufacturer and model number
• New and unused condition
• Consistent production or matched supply batch
• Correct terminal style and hardware
• Dimensions compatible with the enclosure
• Appropriate continuous-current capability
• Available technical documentation
• Clear warranty and transit-damage process

100Ah, 280Ah, 314Ah or 334Ah?

Cells with similar capacity are not necessarily the same size. Always compare the dimensional drawing of the exact model with the usable internal space of the battery box.

What Does “Matched Cells” Mean?

A matched set should behave consistently as a pack. Incoming inspection may include:

• Visual inspection for swelling, dents, corrosion and terminal damage
• Verification of model markings and available traceability information
• Open-circuit-voltage measurement after an appropriate rest period
• Internal-resistance comparison using the same instrument and conditions
• Capacity testing where included in the supplier’s inspection process

Do not compare internal-resistance readings taken with different instruments or at different temperatures as though they were directly equivalent. Consistency under one controlled test method is more useful than chasing an isolated marketing number.

Choosing the BMS

The BMS must be designed for 16-series LiFePO4 cells and sized for the expected continuous and surge current. Selecting a BMS by inverter power alone can be misleading because actual DC current depends on voltage, efficiency and operating conditions.

BMS Selection Checklist

• Chemistry and series count: Confirm 16S LiFePO4 support.
• Continuous current: Size for the expected load with an appropriate design margin.
• Peak current: Confirm that short surges are within the BMS specification.
• Balancing: Understand whether it uses passive or active balancing and at what conditions balancing operates.
• Temperature sensing: Use enough correctly positioned sensors for the installation.
• Low-temperature charging protection: Essential for systems exposed to cold environments.
• Communication: Verify protocol, firmware and cable pinout with the inverter.
• Contactor or MOSFET architecture: Understand how current is switched and what pre-charge arrangement is required.
• Configuration access: Ensure you can review and safely configure the settings.

A higher current number is not automatically better. The BMS, fuse, breaker, cable and inverter settings should be engineered as one coordinated system.

Choosing the Battery Box

The enclosure should protect the cells, keep them correctly restrained, isolate conductive parts and provide secure mounting for the BMS, breaker, fuse, busbars, display and connectors.

Battery Box Compatibility Checklist

• Exact cell height, width and thickness
• Terminal height and spacing
• Room for insulation and compression plates
• Safety-vent clearance
• Busbar alignment
• BMS mounting space and cooling requirements
• Cable bend radius and strain relief
• Fuse and breaker mounting positions
• Service access for inspection
• Total loaded weight and floor or wall support

Do not assume that an enclosure marketed for “280–334Ah cells” fits every cell in that capacity range. Ask for a compatibility list or dimensional drawing and compare it with the exact cells being purchased.

Tools and Test Equipment

• Properly rated digital multimeter
• Insulated hand tools
• Calibrated torque tool suitable for the specified terminal range
• Protective covers for exposed terminals
• Wire cutters, strippers and a suitable lug crimper
• Heat-shrink equipment and cable-labeling materials
• Internal-resistance tester where cell matching will be verified
• Insulation-resistance or other test equipment where required by the design
• Eye protection and appropriate electrical PPE
• A clean, dry, non-conductive work surface

Remove jewelry and keep loose metal objects away from the work area. Use only tools and meters rated for the task.

Safety Before You Start

Create a Controlled Work Area

Work in a clean, dry and well-lit space. Prevent unauthorized access. Keep cell terminals covered except when actively working on them. Do not place loose fasteners, tools or conductive materials on top of the cells.

Verify Polarity Every Time

Do not rely only on terminal color or the intended layout. Verify polarity with a meter before installing busbars, connecting the BMS harness or attaching main cables.

Keep the Pack De-Energized Where Possible

Plan the sequence so that major conductors and protective devices can be installed without exposing workers to an energized output. Use the manufacturer’s recommended startup and pre-charge procedure.

Use Proper Overcurrent Protection

The main fuse should be selected for the battery voltage, prospective fault current, conductor protection and system design. A DC breaker must be specifically rated for the applicable DC voltage and current. Do not substitute an AC-only device.

Never Work Alone on an Unfamiliar High-Energy System

Have a clear emergency plan and arrange professional supervision when you do not have previous battery-system experience.

Step 1: Inspect and Record Every Component

Before assembly, confirm the model, quantity and condition of every component. Photograph the cells and record serial or batch information where available. Check for transit damage, case deformation, contamination, damaged threads or evidence of previous installation.

Measure each cell’s open-circuit voltage under consistent conditions. Investigate any clear outlier before placing the cell into the pack. Do not attempt to “hide” an outlier through balancing.

Step 2: Confirm the Mechanical Layout

Dry-fit the cells, insulation, compression plates, BMS, fuse, breaker and cables before making electrical connections. Confirm that:

• The cells sit flat and cannot move unexpectedly.
• The safety vents remain unobstructed.
• Conductive cell cases or terminals cannot contact the enclosure.
• Busbars align without being forced.
• Cables can be routed without sharp bends or abrasion.
• The enclosure can close without contacting terminals or wiring.

This dry-fit stage often reveals compatibility problems before the pack becomes electrically live.

Step 3: Equalize the Cells Using a Documented Method

Cells should begin service at a reasonably consistent state of charge. Builders commonly use either a controlled top-balance process or a conservative initial series charge with BMS monitoring, depending on the cell supplier’s guidance, available equipment and experience.

Top balancing can involve connecting cells in parallel and charging them with a controlled low-voltage power supply. This process can create extremely high equalization current if cells at different voltages are connected directly. It should not be attempted without appropriate current control, protection and understanding of the risks.

For many beginners, purchasing a professionally matched set and following a documented commissioning procedure under qualified supervision is safer than improvising a balancing process.

Step 4: Install Cell Restraint and Insulation

Install cell separators, base insulation, side insulation and compression components according to the enclosure and cell instructions. Mechanical restraint should keep the cells aligned without applying an unverified or excessive force.

Do not copy compression values from a different cell model. The correct fixture design and force depend on the specific cell and its manufacturer’s guidance.

Step 5: Arrange and Verify the 16S Sequence

Arrange the cells so that adjacent terminals can be connected in the intended series sequence. Before fitting busbars, create a cell-number map from 1 to 16 and mark the positive and negative ends of the final pack.

Use a meter to confirm that each planned connection joins one cell’s positive terminal to the next cell’s negative terminal. A single orientation error can create a direct short when a busbar is installed.

Step 6: Install Busbars and Terminal Hardware

Clean and inspect the contact surfaces. Fit the busbars without forcing them sideways or bending them to compensate for incorrect cell spacing.

Use the terminal hardware and tightening torque specified for the exact cell model. “Tight by feel” is not an acceptable method. Excessive torque can strip threads or damage terminals; insufficient torque can increase resistance and heat.

After installation, use terminal covers or temporary insulation to prevent dropped tools from bridging adjacent terminals.

Step 7: Install the BMS and Sense Harness

Mount the BMS in the location intended by the enclosure manufacturer, allowing required clearance and thermal management. Route sense wires away from sharp edges and high-current conductors where practical.

The sense harness must be connected in the exact order specified by the BMS manufacturer. Do not assume that all 16S BMS products use the same connector sequence or startup procedure.

Before plugging the harness into the BMS, qualified installers commonly verify the incremental voltage at each harness position against the manufacturer’s procedure. This helps identify reversed or misplaced sense leads before they can damage the BMS.

Step 8: Install the Main Protection and Conductors

Install the fuse, disconnect or breaker, pre-charge components, shunt and main cables according to the system design. Confirm:

• Correct DC voltage and interrupt ratings
• Correct conductor size and temperature rating
• Secure lug crimps and protected cable entry points
• Minimum practical cable length
• Clear separation between protected and unprotected conductors
• Correct placement of the current shunt if used
• Accessible means of isolation

The positive and negative battery cables should have similar routing and resistance when batteries will operate in parallel.

Step 9: Perform Pre-Power Checks

Do not close the enclosure or connect the inverter until the assembly has been independently checked.

Pre-Power Checklist

• All cells face the correct direction.
• Every series connection has been verified.
• Terminal torque has been applied and recorded.
• There are no loose washers, nuts or tools inside the enclosure.
• All high-current conductors are protected against abrasion.
• The fuse and disconnect are correctly installed.
• BMS sense-wire order has been verified.
• Temperature sensors are secured in suitable locations.
• Pack voltage is consistent with the measured cell voltages.
• Polarity at the output connector is correct.
• The enclosure provides no unintended electrical path.

Step 10: Configure the BMS

Use the official BMS documentation and the cell manufacturer’s recommended limits. Do not copy settings from a social-media post without confirming that they apply to the same cell model and system.

Review at least:

• Cell overvoltage and undervoltage protection
• Pack overvoltage and undervoltage protection
• Charge and discharge current limits
• High- and low-temperature protection
• Balancing start conditions
• Short-circuit and overcurrent behavior
• Recovery conditions
• Communication protocol

Protection thresholds should not be used as normal operating targets. The inverter’s everyday charge and discharge limits should generally remain inside the BMS protection boundaries.

Step 11: Connect the Inverter Safely

Large inverter capacitors can draw a high inrush current when first connected. Use the inverter or battery manufacturer’s specified pre-charge procedure. Do not repeatedly create a spark at the battery terminal as a normal connection method.

Before enabling charge or discharge:

• Verify battery polarity at the inverter.
• Confirm the inverter battery-voltage range.
• Set conservative charge and discharge current limits.
• Confirm BMS-to-inverter communication where used.
• Check that the inverter recognizes the intended battery mode.

Step 12: Complete the First Charge and Commissioning

Commission the battery at a controlled current while monitoring individual cell voltages, pack current, BMS temperature and terminal temperature.

Stop and investigate if:

• One cell voltage rises or falls much faster than the others.
• A terminal, cable or busbar becomes unexpectedly warm.
• The BMS reports an incorrect cell count or impossible voltage.
• Communication repeatedly drops out.
• The enclosure, cells or cables show movement or deformation.

After initial operation, allow the system to rest and recheck critical connections according to the component manufacturer’s instructions. Do not retorque energized terminals.

Common Beginner Mistakes

Cost Breakdown: What to Include

Because cell, shipping and hardware prices vary by country and date, a fixed total can quickly become misleading. Use a complete project budget instead.

Compare the complete delivered and commissioned cost with a pre-built system offering equivalent usable energy, inverter compatibility, warranty and protection—not only the advertised battery capacity.

Who Should Build a DIY 48V Battery?

A DIY Build May Be Suitable If:

• You understand basic DC electrical principles and safe working practices.
• You can read electrical diagrams and manufacturer manuals.
• You have suitable meters, insulated tools and torque equipment.
• You are willing to document, test and troubleshoot the system.
• Your local rules permit the intended installation.
• A qualified person can review or complete safety-critical work.

A Pre-Built Battery May Be Better If:

• You need a certified, installer-supported system.
• You want one system-level warranty.
• You are uncomfortable working around high-current DC systems.
• Your insurer, utility or local authority requires approved equipment.
• You do not have time to verify component compatibility and commissioning.

Builder Checklist

• ☐ Inverter voltage and current requirements confirmed
• ☐ Required usable energy calculated
• ☐ Exact cell model selected
• ☐ Sixteen cells confirmed as one compatible set
• ☐ Enclosure dimensions verified
• ☐ BMS current and communication confirmed
• ☐ Fuse and DC disconnect correctly rated
• ☐ Cable size and length calculated
• ☐ Insulation and mechanical restraint planned
• ☐ Correct tools and PPE available
• ☐ Cell inspection records prepared
• ☐ BMS wiring sequence verified
• ☐ Inverter startup and pre-charge procedure available
• ☐ Commissioning settings documented
• ☐ Local installation and inspection requirements checked

Frequently Asked Questions

1. Is a 48V LiFePO4 battery actually 51.2V?

Yes. “48V” is the system class commonly used for sixteen 3.2V LiFePO4 cells connected in series. The nominal voltage is 51.2V, while the operating voltage changes with state of charge, load and the limits selected by the manufacturer.

2. How many LiFePO4 cells are required for a 48V battery?

A typical low-voltage home-storage battery uses sixteen LiFePO4 cells in series. Do not substitute a different series count unless the inverter, BMS and complete system are designed for it.

3. Can I mix 280Ah and 314Ah cells?

No. A series string should use cells of the same model, capacity, age and similar condition. The usable pack capacity is constrained by the weakest cell, and mixed cells can create persistent imbalance.

4. Do I need to top balance new cells?

The cells should begin service at a consistent state of charge, but the appropriate method depends on the supplier’s preparation, cell condition, equipment and commissioning procedure. Directly paralleling cells at different voltages can create dangerous equalization current. Beginners should use a documented method with suitable current control or obtain professional support.

5. What size BMS do I need?

The BMS must support 16S LiFePO4 and the expected continuous and peak DC current. It should be coordinated with the inverter, fuse, cable and anticipated load rather than selected only by battery capacity.

6. Can I use any 48V inverter?

No. A 48V-labeled inverter may be compatible with a 51.2V nominal 16S LiFePO4 battery only when its documented battery-voltage window, charge profile, current limits and communication requirements cover the complete battery. A BMS and inverter may both have CAN ports while still using incompatible protocols or pinouts.

7. Does the BMS replace the main fuse?

No. The BMS and fuse perform different protective functions. The battery system normally requires a correctly selected DC fuse and means of isolation in addition to BMS protection.

8. Can I install a DIY battery inside my home?

This depends on the enclosure, system design, local building and fire requirements, insurer rules and the installation location. Obtain professional guidance before installing a custom high-energy battery in an occupied building.

AmpBird’s Recommendation

A successful 48V DIY battery begins with compatibility—not assembly. Select the inverter first, then confirm the exact cells, BMS, enclosure, protection devices and communication method as one complete system.

For many residential projects, a purpose-built 16S kit can reduce uncertainty because the enclosure, busbars, compression components, BMS mounting and accessory layout have already been designed around a defined cell format. However, “compatible with 280–334Ah” should still be verified against the exact cell model.

We recommend using new, traceable LiFePO4 cells supplied as a consistent set; documenting incoming voltage and physical condition; using model-specific torque and mechanical guidance; and commissioning the pack conservatively under qualified supervision.

The best DIY battery is not the one assembled fastest or built from the cheapest parts. It is the one that can be inspected, isolated, maintained and operated safely for years.

Key Takeaways

• A typical 48V LiFePO4 battery uses sixteen cells in series for a nominal 51.2V.
• Choose the inverter and system requirements before purchasing the cells.
• Confirm exact cell dimensions, terminal design and enclosure compatibility.
• Use a BMS, fuse, disconnect and cable system that is coordinated for the expected current.
• Never mix different cell models, capacities, ages or unknown batches in one series string.
• Follow official cell, BMS, inverter and enclosure instructions instead of copying generic settings.
• Use professional review or installation where experience, regulation or insurance requirements demand it.

Start Your 48V DIY Battery Project with AmpBird

AmpBird supplies Grade A LiFePO4 cells, 16S DIY battery enclosures, smart BMS solutions and complete home energy-storage systems. Our team has worked in the lithium battery and energy-storage industry since 2018, focusing on transparent specifications, practical compatibility, cell consistency and responsive technical support.

Explore AmpBird’s LiFePO4 battery cells, review our DIY battery kits, or contact AmpBird with your inverter model, required capacity, cell preference and installation location. We can help you identify the components and compatibility questions that should be resolved before ordering.

This article is educational and does not constitute a project-specific electrical design. Always follow the official manuals and applicable local requirements.
