12V vs 24V LiFePO4 Batteries: How to Choose the Right System for RVs, Boats and Off-Grid Cabins

Choosing between a 12V and 24V LiFePO4 battery system is not simply a matter of selecting the larger number.

The correct system voltage affects current, cable size, inverter selection, charging equipment, installation complexity and future expansion. A 12V system may be the most practical option for a camper van or small fishing boat, while a 24V system may be better suited to a large RV, sailboat, workshop or off-grid cabin with higher power requirements.

The battery voltage must also match the wider electrical system. Before replacing a lead-acid battery or building a new LiFePO4 battery bank, you should consider your daily energy use, maximum load, charging sources, cable length, climate and expansion plans.

This guide explains how 12V and 24V LiFePO4 systems differ, how to calculate the battery capacity you need and what to check before upgrading an RV, boat or off-grid power system.

Quick Answer

A 12V LiFePO4 system is usually the simplest choice when most existing appliances operate at 12V, cable runs are short and inverter loads are relatively modest. It is commonly used in camper vans, travel trailers, small RVs, fishing boats and compact solar systems.

A 24V LiFePO4 system becomes more attractive as power demand, inverter size or cable length increases. For the same power output, a 24V system draws approximately half the current of a 12V system. This can reduce voltage drop, cable heating and the need for extremely large conductors.

However, 24V is not automatically better. A 24V battery bank may require DC converters for existing 12V loads and must be matched with a compatible inverter, charger, alternator-charging system and solar controller.

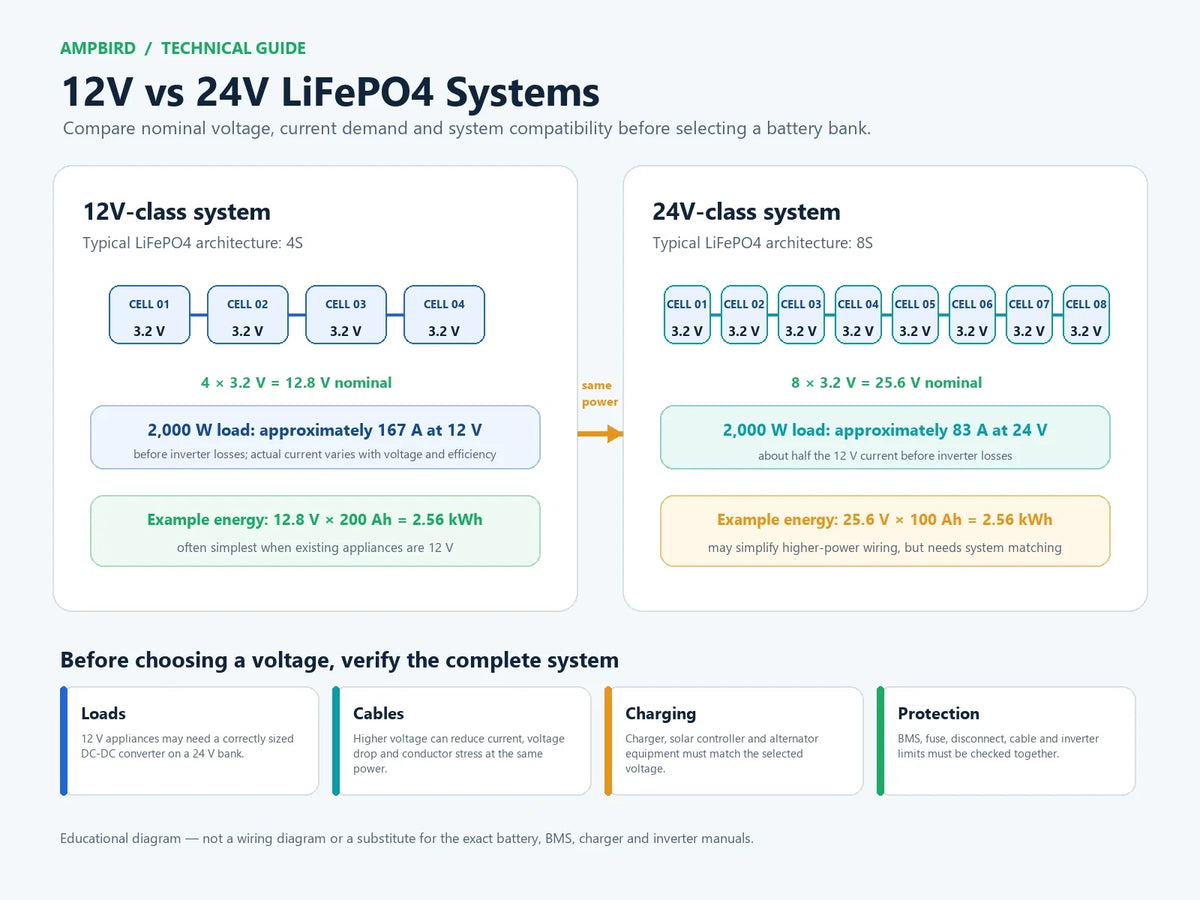

Understanding 12V and 24V LiFePO4 Battery Systems

A typical 12V-class LiFePO4 battery has a nominal voltage of approximately 12.8V and normally uses four 3.2V cells connected in series. This is commonly described as a 4S configuration.

A typical 24V-class LiFePO4 battery has a nominal voltage of approximately 25.6V and normally uses eight 3.2V cells connected in series. This is commonly described as an 8S configuration.

The amp-hour rating alone does not show the total energy stored in the battery. Energy should be compared in watt-hours:

Battery Energy (Wh) = Nominal Voltage (V) × Capacity (Ah)

For example:

• A 12.8V 200Ah battery stores approximately 2,560Wh.
• A 25.6V 100Ah battery also stores approximately 2,560Wh.

These two battery banks have approximately the same nominal energy, even though one is rated at 200Ah and the other at 100Ah.

This is why comparing battery systems by amp-hours alone can be misleading. A 24V 200Ah battery contains approximately twice the energy of a 12V 200Ah battery.

12V vs 24V LiFePO4 Comparison

Why System Voltage Matters

Electrical power is determined by voltage and current:

Power (W) = Voltage (V) × Current (A)

When voltage increases, less current is required to deliver the same power.

For a simplified comparison, a 2,000W inverter operating at full output may draw approximately:

• 167A from a 12V source before accounting for losses.
• 83A from a 24V source before accounting for losses.

Actual current will be higher because an inverter is not 100% efficient and battery voltage changes during operation.

High current affects several parts of the system:

• Cable cross-sectional area
• Voltage drop
• Fuse and circuit-breaker rating
• Busbar capacity
• Battery-terminal loading
• BMS continuous-current rating
• Heat generated at connections

A 12V system can still support a powerful inverter, but cable, protection and connection requirements become more demanding as current increases.

This is one reason many larger mobile and off-grid systems use 24V or 48V architectures.

When a 12V LiFePO4 System Makes Sense

A 12V system is usually the easiest solution when the vehicle or vessel already contains a large number of 12V devices.

Common 12V loads include:

• LED lighting
• Water pumps
• Ventilation fans
• Refrigerators
• USB chargers
• Diesel heaters
• Navigation electronics
• Communication equipment

Staying with 12V may reduce the need for converters and make fault diagnosis easier. Replacement components are also widely available in the RV and marine markets.

A 12V LiFePO4 system is often suitable for:

• Camper vans
• Weekend travel trailers
• Truck campers
• Small motorhomes
• Fishing boats
• Small sailing boats
• Compact solar backup systems

The main limitation appears when large AC appliances are added. Air conditioners, electric cooktops, water heaters and large power tools can create very high current on the DC side of a 12V inverter.

In those cases, a higher-voltage system may be easier to design safely.

When a 24V LiFePO4 System Makes Sense

A 24V system is often more practical when the installation requires a larger inverter, longer cable runs or more stored energy.

Typical applications include:

• Large motorhomes
• Expedition vehicles
• Sailboats and houseboats
• Off-grid cabins
• Remote workshops
• Telecommunications systems
• Medium-sized solar energy systems

The reduced current can make the battery-to-inverter connection easier to manage. It may also improve system expansion because additional power can be delivered without increasing current as quickly as it would in a 12V system.

However, a 24V system may require additional components when the application still uses 12V appliances. A properly sized DC-DC converter can supply a 12V distribution panel from a 24V battery bank.

The converter must be selected according to the combined continuous and peak current of the 12V loads. Critical devices should not depend on an undersized converter.

LiFePO4 vs Lead-Acid: Key Differences

LiFePO4 batteries are increasingly used to replace flooded lead-acid, AGM and gel batteries in mobile and off-grid applications. However, the comparison should not be reduced to the claim that one chemistry is always better in every situation.

LiFePO4 batteries can provide substantially more cycles than many lead-acid batteries when operated within suitable temperature, voltage, current and depth-of-discharge limits.

Published cycle-life figures should still be interpreted carefully. The result depends on the test temperature, charge and discharge rate, depth of discharge, compression, end-of-life definition and cell quality.

Can a LiFePO4 Battery Directly Replace Lead-Acid?

Many LiFePO4 batteries are manufactured in cases that resemble common lead-acid battery sizes. This may allow a physical replacement, but it does not guarantee full electrical compatibility.

Before replacing a lead-acid battery, verify:

• AC charger compatibility
• Solar charge-controller settings
• Alternator-charging arrangement
• BMS continuous and surge-current ratings
• Inverter low-voltage settings
• Cable and fuse ratings
• Low-temperature charging protection
• Battery-monitor compatibility
• Required system grounding and isolation

Lead-acid chargers may use long absorption stages, high equalisation voltages or float behaviour that is not suitable for LiFePO4 batteries. Some chargers can be reconfigured, while others should be replaced.

A safe upgrade should treat the battery as one component within a complete electrical system rather than as an isolated box.

How to Calculate Daily Energy Consumption

Battery sizing should begin with a load audit.

For each appliance, record:

• Power consumption in watts
• Estimated operating time per day
• Whether the load operates continuously or intermittently
• Starting or surge power
• Whether it is powered directly by DC or through an inverter

Daily energy consumption can be estimated using:

Daily Energy (Wh) = Appliance Power (W) × Daily Runtime (hours)

Real consumption can vary, especially for refrigerators, pumps, heating systems and air conditioners. Measuring actual energy use with a power meter is more reliable than relying only on nameplate wattage.

How to Calculate Required Battery Capacity

After estimating daily consumption, decide how many days the system should operate without meaningful charging.

A practical sizing formula is:

Required Battery Energy = Daily Consumption × Days of Autonomy ÷ Usable Fraction ÷ System Efficiency

Suppose the system consumes 2,000Wh per day, needs two days of autonomy, uses an 80% target usable fraction and assumes 90% overall efficiency:

2,000 × 2 ÷ 0.8 ÷ 0.9 = approximately 5,556Wh

Convert watt-hours to amp-hours by dividing by nominal voltage:

• At 12.8V: 5,556Wh ÷ 12.8V = approximately 434Ah.
• At 25.6V: 5,556Wh ÷ 25.6V = approximately 217Ah.

The stored energy is similar. The amp-hour number changes because the system voltage is different.

Additional capacity may be needed when:

• Winter solar production is limited
• The battery will operate in cold conditions
• Loads may increase in the future
• High-power appliances are used frequently
• Charging opportunities are irregular
• A conservative state-of-charge reserve is required

RV Charging: Shore Power, Solar and Alternator

An RV battery may receive energy from several different charging sources. Each source must be compatible with the battery bank.

Shore-Power Charger

The shore charger or converter should provide a charging profile suitable for LiFePO4. Confirm the charging voltage, absorption behaviour, float settings and maximum output current against the battery manufacturer’s requirements.

A charger that worked with lead-acid batteries should not automatically be assumed suitable for LiFePO4.

Solar Charge Controller

The solar controller should support programmable settings or a verified LiFePO4 profile. The controller must also be matched to:

• Battery voltage
• Solar-array voltage
• Maximum charging current
• Operating temperature
• Battery BMS limits

Alternator Charging

A LiFePO4 battery can accept substantial charging current because of its low internal resistance. Connecting a large lithium bank directly to an alternator may overload the alternator or wiring in some vehicles.

A properly selected DC-DC charger can:

• Limit charging current
• Provide an appropriate charging profile
• Separate the starter and house batteries
• Support vehicles with smart alternators
• Reduce the risk of uncontrolled alternator loading

Whether a DC-DC charger is required depends on the vehicle, alternator, wiring, battery capacity and charging design. The system should be reviewed as a complete installation.

Marine Applications: House Battery vs Starting Battery

LiFePO4 is well suited to many marine house-bank applications, where the battery supplies lighting, refrigeration, pumps, navigation equipment, communication devices and inverter loads.

However, a deep-cycle LiFePO4 house battery should not automatically be used as an engine-starting battery.

A starting application requires:

• Sufficient peak current
• A BMS that can tolerate the starting surge
• Manufacturer approval for starting use
• Compatibility with the engine and charging system
• A suitable emergency-starting strategy

Marine installations also require special attention to:

• Moisture and salt exposure
• Battery restraint
• Terminal protection
• Main battery fusing
• Battery isolation switches
• Ventilation and compartment temperature
• Protection of critical navigation loads
• Safe behaviour if the BMS disconnects

A BMS may disconnect the battery to protect it from overvoltage, undervoltage, overcurrent or temperature extremes. On a boat, the electrical design should consider what happens to navigation equipment, pumps and other essential loads during such a disconnect.

Off-Grid Cabin System Design

A small cabin with LED lighting, device charging, a water pump and a compact refrigerator may operate successfully on 12V.

As the system grows to include a larger inverter, power tools, a washing machine, kitchen appliances or a larger solar array, 24V may become more practical.

A cabin expected to expand significantly may even justify considering 48V from the beginning.

Important off-grid design questions include:

• What is the worst-case daily energy consumption?
• How many low-sun days must the battery cover?
• Will a generator be available?
• What is the largest simultaneous AC load?
• How far is the battery from the inverter?
• Will the battery be installed in a heated space?
• How will the system be expanded later?

A larger battery cannot compensate for an undersized solar array indefinitely. Battery capacity, charging capacity and energy consumption should be designed together.

Drop-In Battery vs DIY Prismatic Cell Build

Buyers can choose between a complete integrated battery and a DIY battery assembled from prismatic cells.

Integrated or Drop-In Battery

A complete battery normally includes:

• Cells
• Internal BMS
• Enclosure
• Terminals
• Internal wiring
• Product documentation

This option is usually easier to install and may be more suitable for buyers who do not want to design the internal battery structure.

DIY Prismatic Cell Battery

A DIY build offers greater control over capacity, cell selection, BMS configuration, enclosure design and serviceability.

However, the builder becomes responsible for:

• Cell authenticity and matching
• Cell compression and mechanical restraint
• Busbar and connection design
• Insulation
• BMS selection and programming
• Fuse and disconnect selection
• Enclosure protection
• Testing and commissioning

A DIY battery should only be built by someone who understands high-current DC systems and can verify every protective component.

Choosing the Right BMS

The BMS protects the battery against operating conditions that may damage the cells or create unsafe behaviour.

The BMS should match:

• Cell chemistry
• Number of cells in series
• Maximum continuous load current
• Expected surge current
• Maximum charging current
• Temperature requirements
• Balancing requirements
• Communication requirements

A 12V-class LiFePO4 battery normally requires a 4S LiFePO4 BMS. A 24V-class LiFePO4 battery normally requires an 8S LiFePO4 BMS.

The BMS rating should not be selected from inverter output alone. Inverter efficiency, DC voltage under load, surge demand and other simultaneous DC loads must also be considered.

For example, a 2,000W inverter on a 12V system may require much more than 167A from the battery after efficiency and low-voltage conditions are considered. A 200A BMS may leave little operating margin depending on the complete system.

Fuse, Cable and Disconnect Requirements

The BMS is not a replacement for a properly designed fuse.

A main fuse should normally be installed close to the battery positive terminal to protect the cable against short-circuit current.

Protection devices should be selected according to:

• Maximum expected current
• Cable current-carrying capacity
• Battery fault current
• DC voltage rating
• Interrupt rating
• Environmental conditions

Cable size depends on more than current alone. It also depends on cable length, conductor material, insulation temperature rating, installation method and acceptable voltage drop.

All connections should be tightened to the specified torque and protected against movement, corrosion and accidental short circuits.

Low-Temperature Charging

Cold-weather operation is one of the most important considerations for RVs, boats and off-grid cabins.

Many LiFePO4 cells must not be charged below the minimum charging temperature stated by the manufacturer. Charging outside the specified range can permanently damage the cells.

Cold-climate systems may use:

• BMS low-temperature charging cut-off
• Internal battery heating
• External heating pads
• Insulated battery compartments
• Temperature-controlled charging
• Installation inside a conditioned space

Low-temperature discharge and low-temperature charging are not the same. A battery may still be able to supply power at a temperature where charging is restricted.

Always follow the temperature limits in the actual cell or battery datasheet instead of applying one universal limit to every LiFePO4 product.

Common LiFePO4 Upgrade Mistakes

Choosing Capacity Only by Amp-Hours

Amp-hours cannot be compared across different system voltages without converting them to watt-hours.

Keeping an Incompatible Lead-Acid Charger

An unsuitable charging profile may prevent full charging or expose the battery to incorrect voltage behaviour.

Connecting a Large Battery Directly to the Alternator

This may place excessive demand on the alternator or wiring in some vehicles.

Using an Undersized BMS

The BMS may disconnect during inverter startup or sustained high-power operation.

Installing Undersized Cables

Excessive voltage drop and heat can reduce performance and create a safety risk.

Relying Only on the BMS for Protection

The system still requires correctly selected fuses, disconnects and cable protection.

Ignoring Low-Temperature Charging

A battery installed in an unheated compartment may need controlled heating or charging lockout.

Connecting Unmatched Batteries in Series

Series-connected batteries should be approved for series use and should be closely matched in model, capacity, age, state of charge and operating condition.

Using a House Battery for Engine Starting

Starting suitability must be confirmed from the battery and BMS specifications.

Decision Table

AmpBird Expert Tips

Before selecting a battery, AmpBird recommends confirming the complete system rather than focusing only on capacity.

• Calculate daily energy use in watt-hours.
• Identify the largest continuous and surge loads.
• Confirm the inverter input voltage.
• Check shore-power, solar and alternator charging compatibility.
• Select the BMS according to real current demand.
• Calculate cable size and voltage drop.
• Use appropriate fuses, disconnects and busbars.
• Plan for low-temperature charging protection.
• Confirm the available installation space and weight limit.
• Consider how the system may be expanded later.

For DIY battery projects, cell authenticity and consistency are also critical. Cells in the same series string should be closely matched in capacity, voltage, internal resistance and state of charge.

A well-designed battery system depends on the relationship between the cells, BMS, wiring, charging equipment, inverter and protection devices.

Frequently Asked Questions

Is 24V always better than 12V?

No. A 24V system reduces current for the same power, but it may add complexity when most appliances are 12V. The best voltage depends on the existing system, power demand, cable length and expansion plan.

Can I replace my lead-acid battery with LiFePO4?

Often, but not without checking the complete system. The charger, alternator, solar controller, inverter, cables, fuses, BMS and low-temperature protection must all be suitable for LiFePO4.

How many amp-hours do I need for an RV?

There is no universal answer. Calculate daily consumption in watt-hours, decide how many days of autonomy you need and then convert the required energy into amp-hours at your chosen system voltage.

Can I charge a LiFePO4 battery from a vehicle alternator?

It may be possible, but a large LiFePO4 battery can draw high current. Many systems use a DC-DC charger to regulate charging current and provide the appropriate charging profile.

Can a LiFePO4 battery start a boat engine?

Only when the battery and BMS are specifically suitable for engine starting. A normal deep-cycle house battery should not automatically be used as a starting battery.

Can I connect two 12V LiFePO4 batteries in series to make 24V?

Only when the battery manufacturer allows series connection. The batteries should be the same model, capacity, age and state of charge. Each battery’s BMS must also behave correctly in a series system.

Is LiFePO4 suitable for winter use?

Yes, when the system is designed for the climate. Low-temperature charging may require BMS cut-off protection, controlled heating or installation in a warmer compartment.

Should I choose a complete battery or build my own?

A complete battery is normally easier to install. A DIY build offers more flexibility but requires knowledge of cell matching, BMS configuration, compression, insulation, wiring, fusing and commissioning.

Final Recommendation

For many camper vans, travel trailers and small boats, a 12V LiFePO4 system remains the simplest and most compatible choice.

For larger RVs, sailboats, houseboats, off-grid cabins and systems with substantial inverter loads, 24V may reduce current and make high-power wiring easier to manage.

The final decision should be based on:

• Daily energy consumption
• Maximum continuous and surge power
• Existing appliance voltage
• Charging sources
• Cable length
• Low-temperature conditions
• Installation space
• Future expansion

Do not choose a battery system based only on the advertised amp-hour rating. Compare total energy in watt-hours and confirm that every major component is compatible with the selected voltage and expected current.

AmpBird supplies Grade A LiFePO4 cells, BMS solutions, battery components and DIY energy-storage products for customers building reliable mobile and off-grid power systems. Contact AmpBird with your system voltage, daily energy use, inverter size and application details for product-selection support.
