How to Size a DC-DC Charger for a LiFePO4 RV or Camper Van Battery

A DC-DC charger for a LiFePO4 RV or camper van battery is not sized from the house battery's amp-hour label alone. The useful output current must fit the recovery objective and the battery's charge limit, while the input side must fit the alternator, starter battery, vehicle loads and the charger's efficiency. Voltage conversion, temperature, wiring, fusing and BMS charge permission complete the decision.

The most important distinction is this:

A charger’s output current is not the same as the current it draws from the alternator side.

For a first screening estimate:

Input current ≈ output power ÷ (input voltage × efficiency)

That is why a charger that supplies a moderate current to a 24V or 48V-class house bank can still demand substantial power from a 12V vehicle source. The exact model manual, vehicle documentation and battery/BMS documentation must be checked before purchase or connection.

This guide answers one focused customer question: how do you choose the DC-DC charger size for a LiFePO4 RV or camper-van battery without overloading the source or exceeding the battery-side limits? It is a configuration-screening guide, not a universal charger recommendation or installation approval.

Quick Answer: Size Both Sides of the Charger

Start with the desired battery-side charging current, not the number printed on the battery case. Then convert that output into input power and input current at the lowest expected source voltage. Finally, verify the charge profile, BMS control, temperature behavior, cables, fuses and all other charging sources.

If one of these inputs is unknown, the right status is Hold for verification. Do not choose the largest available charger and assume the vehicle or BMS will correct an incomplete design.

What This Article Owns—and What It Does Not

AmpBird’s broader camper-van battery sizing guide covers the complete van brief: daily loads, inverter demand, battery capacity, solar recovery, alternator charging, temperature and physical fit. This article narrows the question to the DC-DC charging path after the system owner has identified the need for controlled charging.

The published 12V versus 24V LiFePO4 guide owns the broad mobile-system voltage choice. The 48V wiring, fuse and cable guide owns the separate current-path and protection boundary. The existing inverter-sizing guide owns the load-side power and battery-current question. None of those pages should be used to copy a charger rating, fuse value or battery setting into a different vehicle and battery configuration.

Step 1: Draw the Actual Charging Path

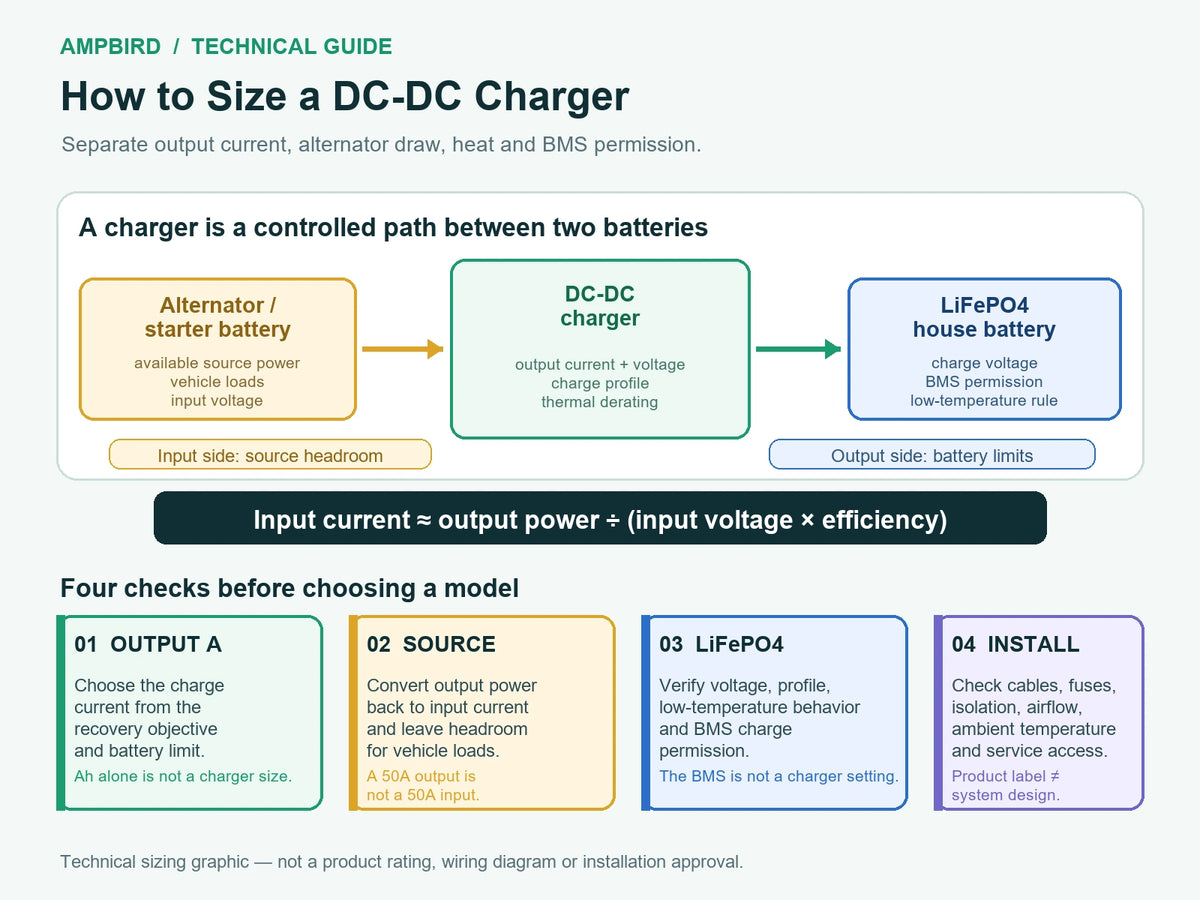

Before calculating amps, draw the path that the charger will control:

alternator → starter battery or vehicle distribution → DC-DC charger → house-battery protection → LiFePO4 battery/BMS

Also draw the loads that share the starter-battery side and the other chargers that can feed the house bank:

• vehicle electrical loads;
• a factory auxiliary-battery or split-charge system;
• shore-power charger or inverter/charger;
• roof solar and its MPPT controller;
• a generator-fed charger; and
• any second DC-DC or auxiliary charging path.

This drawing prevents a common error: treating the charger as if it receives the alternator’s full rating and sends the same current to the house battery. In practice, the source voltage changes, the charger has conversion losses, the vehicle consumes power and the controller may reduce output because of a current limit, temperature or low input voltage.

The starter battery and house battery are also different electrical boundaries. A controlled charger can limit and regulate the transfer between them. A BMS may permit or block charge current on the house-battery side, but it does not make an uncontrolled connection safe or correctly regulated.

Step 2: Confirm the Voltage Conversion and Isolation Requirement

Write the source and house-bank classes explicitly. Common design questions include:

• 12V-class vehicle source to 12V-class house battery;
• 12V-class vehicle source to 24V-class house battery;
• 24V-class vehicle source to 12V-class house battery;
• 24V-class vehicle source to 24V-class house battery; or
• a higher-voltage house bank supplied through a charger specifically designed for that input and output range.

The labels are only the starting point. Use the exact input and output voltage ranges from the charger manual and the battery documentation. A 12V-class charger cannot be assumed to charge a 24V-class or 48V-class bank, and a 12V alternator cannot be connected to a higher-voltage house bank merely because the amp-hour number looks suitable.

Also decide whether galvanic isolation is required. An isolated charger separates the input and output electrical domains; a non-isolated charger may share a negative or chassis reference according to its installation design. The correct choice depends on vehicle grounding, battery-bank arrangement, sensitive electronics, manufacturer instructions and the complete wiring diagram. “Isolated” is not automatically safer for every vehicle, and “non-isolated” is not automatically wrong.

The 24V DIY battery-kit route can be a useful product path when a mobile project is intentionally built around 24V, but a product page is not proof that a particular alternator, DC-DC charger or vehicle harness is compatible. Verify the exact variant and external charging requirements before treating any listing as a design input.

Step 3: Choose an Output Current from Recovery, Not from Ah Alone

The house battery’s amp-hour rating does not directly determine the correct DC-DC charger. It tells you part of the storage boundary. The charger must be sized from the energy you want to recover during the available driving window, the battery’s allowed charge current and the source power that can be spared.

A first estimate is:

Required average charging power ≈ energy to recover ÷ available charging time

Then convert that power into a battery-side current using the actual charging voltage:

Output current ≈ required charging power ÷ battery charging voltage

The result is an operating target, not permission to exceed the battery or BMS documentation. Charging efficiency, high state of charge, temperature, engine-idle operation and vehicle loads can all reduce the actual energy delivered.

For example, if a project wants to recover approximately 1.2 kWh during a four-hour driving day, the average battery-side charging power would be approximately 300W before allowing for losses and the difference between nominal and usable energy. A 12V-class bank charging near 14V would need roughly 21A for 300W; a 24V-class bank charging near 28V would need roughly 11A for the same power. The two systems need different output-current classes even though the recovered energy is the same.

Do not turn those illustrative values into a universal charge recommendation. The exact battery, BMS, charger, source and cable path still control the allowed result.

Step 4: Convert Output Power into Input Current

Once an output-current target is known, calculate the source-side demand. Use the output voltage at the charging setpoint, not the nominal label:

Output power = output voltage × output current

Input current ≈ output power ÷ (input voltage × efficiency)

Because the input voltage may fall while the engine is idling or while vehicle loads are active, run the screen at more than one input voltage. A simple worked comparison:

These numbers are arithmetic screens, not product ratings. They show why a 30A output charger can draw nearly 80A from a low-voltage source when charging a 24V-class bank, and why a high-voltage house bank can place a substantial demand on a 12V alternator even at a modest output current.

An actual charger may regulate input current, reduce output, shut down on low input voltage or use a different efficiency at different loads. Use the manufacturer’s maximum input-current and operating-range data for the final selection.

Step 5: Check Alternator and Starter-Battery Headroom

The alternator’s advertised maximum current is not the current available for the house battery in every condition. Obtain the vehicle’s alternator rating, but also record:

• the expected output at idle and at cruising speed;
• whether the alternator is ECU-controlled or “smart”;
• the vehicle’s normal electrical load while driving;
• engine-management, cooling and safety-related loads;
• the starter battery’s state and charging behavior;
• the manufacturer’s restrictions on auxiliary charging; and
• whether the charger’s input current can be limited or controlled.

Leave a source margin for the vehicle. A charger should not be sized by subtracting its nominal output from the alternator label and calling the remainder available. The input current is driven by output power, voltage and efficiency, and the source may produce less power at idle, high temperature or low state of charge.

Smart alternators can vary their voltage or reduce output when the vehicle does not request charging. A DC-DC charger with engine-running detection or a suitable enable signal may be necessary, but the exact control method is vehicle- and charger-specific. Do not assume that every smart alternator behaves the same way, and do not assume that every DC-DC charger detects engine state in the same manner.

The official Victron Orion XS manual describes controlled charging as a way to manage alternator loading in lithium systems and discusses the separation of starter and service batteries. That is a technical example of the boundary, not evidence that any particular AmpBird product or vehicle combination is approved.

Step 6: Verify the LiFePO4 Charge Profile and BMS Permission

A DC-DC charger is still a charger. It must be configured from the exact battery and BMS documentation rather than from a generic “lithium” preset.

Confirm:

1. the battery’s maximum charge voltage and operating window;

2. the recommended and maximum continuous charge current;

3. the BMS charge-current limit or allowed-to-charge signal;

4. the low-temperature charging rule;

5. the absorption, termination, float or storage behavior required by the battery maker;

6. whether equalization, reconditioning or other lead-acid behavior can be disabled; and

7. how the charger responds when the BMS removes charge permission.

Low-temperature protection deserves special attention in an RV or camper van. A battery may be inside an insulated compartment while the charger or temperature sensor is elsewhere. If the BMS blocks charging at low cell temperature, the DC-DC path must not keep trying to force current into a blocked battery. A BMS event is a signal to diagnose the system, not a setting to bypass.

The LiFePO4 winter and self-heating guide explains the broader temperature boundary. It does not provide a universal DC-DC charger temperature setting for every battery or vehicle.

Step 7: Account for Thermal Derating and Duty Cycle

The label on a charger usually describes a rating under specified conditions. An RV compartment, engine bay or enclosed electrical cabinet may be hotter than the test condition. Output can be reduced by:

• ambient temperature;
• installation orientation;
• restricted airflow;
• dust or insulation around the enclosure;
• long high-current cables;
• continuous high-output operation; and
• the charger’s own protection strategy.

Ask for the continuous output at the real installation temperature, not only the short-duration or headline current. A charger that reaches its thermal limit may reduce current, cycle on and off or shut down. That changes the recovery calculation and can create confusing symptoms that look like a battery or alternator fault.

The Orion-Tr Smart technical documentation is a useful example of why temperature and continuous output must be read together: its product family lists temperature limits and derating conditions alongside power ratings. Those values apply to that product family only; copy the method, not the number.

Use the charger’s installation clearances and airflow requirements. Do not hide a high-power converter behind insulation, place it next to a heat source without checking the manual or assume that a larger nominal rating solves a thermal problem.

Step 8: Design the Input and Output Current Paths

The charger’s current rating does not select the cable or fuse by itself. The final current path depends on conductor length, installation method, temperature, bundling, insulation, allowable voltage drop, short-circuit current and the protection device’s interrupt rating.

Check the input and output paths separately:

Use the published 48V wiring, fuse and cable guide for the broader current-path concepts, but do not copy a cable or fuse value from a 48V home-storage example into a 12V vehicle circuit. Voltage, current, length and fault conditions are different.

Step 9: Add the Other Charging Sources and Loads

The DC-DC charger is rarely the only device affecting the house battery. Add the charging current from solar, shore power, a generator or a second charger when checking the battery and BMS limits. Also account for house loads that operate while the vehicle is charging.

For example, if a DC-DC charger can deliver 30A and an MPPT can deliver another 20A into the same battery, the battery-side charge screen is not “30A when driving” or “20A when parked” if both can operate together. The battery and BMS must allow the combined condition, or the chargers must have a coordinated control strategy.

The same applies to energy recovery. A charger may produce its rated current while the house battery is low, then reduce current during absorption or near full charge. A load running at the same time can reduce the net energy stored. This is why a daily recovery plan should use measured or documented operating states rather than multiplying the charger label by driving hours.

Three Illustrative Sizing Screens

These examples show how the input and output sides interact. They do not approve a charger, vehicle, battery, cable or fuse.

Screen A: 12V-class vehicle to 12V-class house battery

Assume a target of 30A at an illustrative 14.0V battery charging voltage:

Output power = 14.0V × 30A = 420W

At an assumed 90% efficiency, the input is approximately 33.3A at 14.0V, or 38.9A at 12.0V. The source review must still subtract the vehicle’s active loads and preserve a reasonable starter-battery and alternator margin. The battery and BMS must also allow the target charge current.

Screen B: 12V-class vehicle to 24V-class house battery

Assume a target of 30A at an illustrative 28.0V charging voltage:

Output power = 28.0V × 30A = 840W

At 90% efficiency, the input is approximately 66.7A at 14.0V or 77.8A at 12.0V. A charger that looks modest on the 24V output side may therefore become a major load on a small 12V alternator. Reducing the output current or widening the driving window may be safer than selecting a larger source-side fuse and hoping the alternator can provide the power.

Screen C: 12V-class vehicle to a 48V-class house battery

Assume a target of 20A at an illustrative 56.0V charging voltage:

Output power = 56.0V × 20A = 1,120W

At 90% efficiency, the input is approximately 88.9A at 14.0V or 103.7A at 12.0V. This may be technically possible only with a charger and source architecture designed for that power. The calculation should trigger a complete alternator, cable, protection, heat and duty-cycle review—not a conclusion that a 20A output label is automatically small.

Go, Hold or Stop Before Ordering

What to Send for an AmpBird Configuration Review

If you want a product-specific or project-specific answer, send a configuration brief instead of only “I need a 50A charger.” Include:

1. vehicle make, model, model year and system voltage;

2. alternator rating and any documented idle or smart-alternator behavior;

3. starter-battery type and the vehicle loads that remain active while driving;

4. exact LiFePO4 house-battery model, variant, nominal voltage and maximum charge voltage;

5. recommended and maximum charge current, BMS model and charge-permission behavior;

6. low-temperature charging rule and any self-heating or temperature-sensor arrangement;

7. desired recovery energy, typical driving time and expected daily use;

8. DC-DC input and output voltage target, isolation requirement and preferred mounting location;

9. cable lengths, conductor plan, fuses, disconnects, return path and service access; and

10. solar, shore, generator or second-charger paths that may operate at the same time.

For a project that may move from a mobile 12V/24V architecture toward a home-storage route, the AmpBird home battery systems and DIY battery kits pages are starting points for reviewing available product paths. They do not replace a selected battery’s current electrical documents. If the brief is incomplete, use the AmpBird contact page to request a configuration review rather than guessing from a product title.

Common DC-DC Charger Sizing Mistakes

Mistake 1: Choosing the charger from battery amp-hours only

A 100Ah battery can belong to different voltage classes, have different charge-current limits and serve a different recovery objective. Ah is a storage input, not a complete charger specification.

Mistake 2: Treating output amps as alternator amps

The charger converts power. At lower input voltage or higher output voltage, the source current can be much higher than the output current. Run the input-current calculation at the low-voltage condition.

Mistake 3: Using the alternator nameplate as spare capacity

The vehicle’s lights, fans, pumps, controls and battery-recovery behavior consume part of the alternator output. Idle, heat and ECU control can reduce the margin further.

Mistake 4: Connecting the house battery directly to the alternator

A LiFePO4 house battery should not be connected to a vehicle source merely because the nominal voltages look similar. The charge path must be regulated, protected and compatible with the battery and BMS.

Mistake 5: Assuming a BMS fixes a wrong charge profile

A BMS may disconnect or limit charging, but repeated BMS trips are not a correct charging strategy. The charger settings and BMS control path must agree.

Mistake 6: Ignoring the low-temperature boundary

The vehicle cabin, battery compartment, charger and sensor can be at different temperatures. Confirm where temperature is measured and what happens when the battery removes charge permission.

Mistake 7: Copying a fuse, cable or charger number from another vehicle

Cable length, routing, source voltage, fault current, ambient temperature and voltage conversion can all change the safe design. Use the exact installation manual and local requirements.

Mistake 8: Rating the charger from a short peak

The recovery plan normally depends on continuous output over a driving window. Check continuous output, thermal derating and the actual duty cycle.

Frequently Asked Questions

Do I need a DC-DC charger for a LiFePO4 RV battery?

There is no universal yes or no. The answer depends on the vehicle source, battery voltage, alternator control, wiring, battery/BMS limits and the required charge profile. A controlled DC-DC path is often considered when the alternator voltage is variable, the house bank has different charging requirements or the source current needs to be limited, but the exact vehicle and charger manuals still decide the design.

What size DC-DC charger do I need for a 100Ah LiFePO4 battery?

The 100Ah label is not enough. Record the battery’s nominal and charge voltage, maximum and recommended charge current, BMS limit, daily energy gap and driving window. Then check whether the corresponding output power can be supplied by the alternator after vehicle loads and conversion losses.

How many amps will a 30A DC-DC charger draw from a 12V alternator?

It depends on the output voltage and efficiency. A 30A output at an illustrative 14.0V is 420W. At 90% efficiency, that is about 33.3A at a 14.0V input or 38.9A at a 12.0V input. A 30A charger feeding a 24V-class battery can draw much more because its output power is higher. Use the exact model’s input-current limit for the final result.

Can a 12V alternator charge a 24V LiFePO4 house battery?

Only through a charger or converter whose input and output ranges explicitly support that conversion. The source must also provide the required power, and the battery/BMS must accept the output profile. Do not connect the two battery banks directly because their nominal labels appear related.

Do smart alternators always need a DC-DC charger?

Not every vehicle and system has the same requirement. A smart alternator may vary its voltage or stop charging under some conditions, while the house battery may need a controlled lithium profile and current limit. Check the vehicle charging architecture, the battery requirement and the selected charger’s engine-running or enable method rather than applying a universal rule.

Can I connect a LiFePO4 house battery directly to the alternator?

Do not assume that direct connection is acceptable. The current path must control voltage and current, protect both batteries and follow the battery/BMS and vehicle documentation. A battery’s BMS is not a replacement for a correctly designed charging interface.

Does the BMS replace a DC-DC charger?

No. The BMS protects or manages the battery within its defined boundaries; it does not automatically regulate an alternator’s voltage, provide the correct charge stages or control every independent charger. The charger and BMS must be compatible at the electrical and control interfaces.

Can solar and a DC-DC charger charge the same LiFePO4 battery?

It can be possible when both chargers are configured for the battery, the combined current remains within the battery/BMS limit and low-temperature or charge-permission control reaches every relevant source. Add the possible currents together and check the complete path; do not assume that alternating between “driving” and “solar” prevents simultaneous operation.

Should I choose an isolated or non-isolated DC-DC charger?

Choose from the vehicle grounding plan, house-bank architecture, sensitive loads, required electrical separation and the manufacturer’s installation instructions. Isolation can change how negative returns, monitoring and control signals are wired. It is a system decision, not a marketing preference.

How do I know if the DC-DC charger is undersized or overheating?

Record input voltage, input current, output voltage, output current, ambient temperature, charger temperature or derating indication and battery/BMS events under the same operating condition. A low input voltage, reduced output, repeated thermal protection or an alternator that cannot recover the starter battery may point to source, wiring, thermal or configuration limits rather than a battery-capacity problem.

Final Takeaway

The right DC-DC charger is the one that satisfies the complete charging path:

1. define the source and house-bank voltage classes;

2. choose an output-current target from the recovery objective and battery/BMS limit;

3. convert output power into input current at the lowest expected source voltage;

4. leave headroom for vehicle loads and alternator behavior;

5. verify the LiFePO4 voltage, charge profile, low-temperature rule and BMS permission;

6. check continuous output and thermal derating at the real mounting location; and

7. design the cables, fuses, isolation and other charging sources as one system.

The most useful inquiry says more than “I have a 100Ah battery.” It identifies the vehicle, alternator, voltage conversion, desired recovery, battery variant, BMS behavior and physical current path. That evidence lets AmpBird review a real RV or camper-van configuration without turning a nominal label into an unsupported compatibility promise.
