How to Read LiFePO4 BMS Alarm Logs: Find the First Fault Before Resetting the Battery

A LiFePO4 BMS alarm is not a diagnosis by itself. It is an event generated after a monitored value, communication state or protection condition crossed a defined boundary. The useful question is not only “what code appeared?” but:

1. what was the first trigger;

2. what protection action did the BMS take;

3. what condition must become normal before the battery can operate again; and

4. what evidence shows that the original cause has actually been removed?

The short answer is:

• save the alarm history and timestamps before resetting anything;
• record whether the battery was charging, discharging, idle or communicating when the event started;
• separate cell voltage, pack voltage, current, temperature, communication and configuration events;
• inspect the first abnormal cell or sensor, not only the final pack-voltage screen;
• follow the exact BMS and battery manual for clear conditions; and
• never bypass a BMS, force a charger or repeatedly reset an unexplained alarm just to make the display look normal.

This guide answers one customer question: how should an owner read a LiFePO4 BMS alarm log and decide what to check next? It is a structured troubleshooting and evidence workflow. It does not publish universal alarm thresholds, clear codes, current limits, temperature limits or repair instructions for every BMS model.

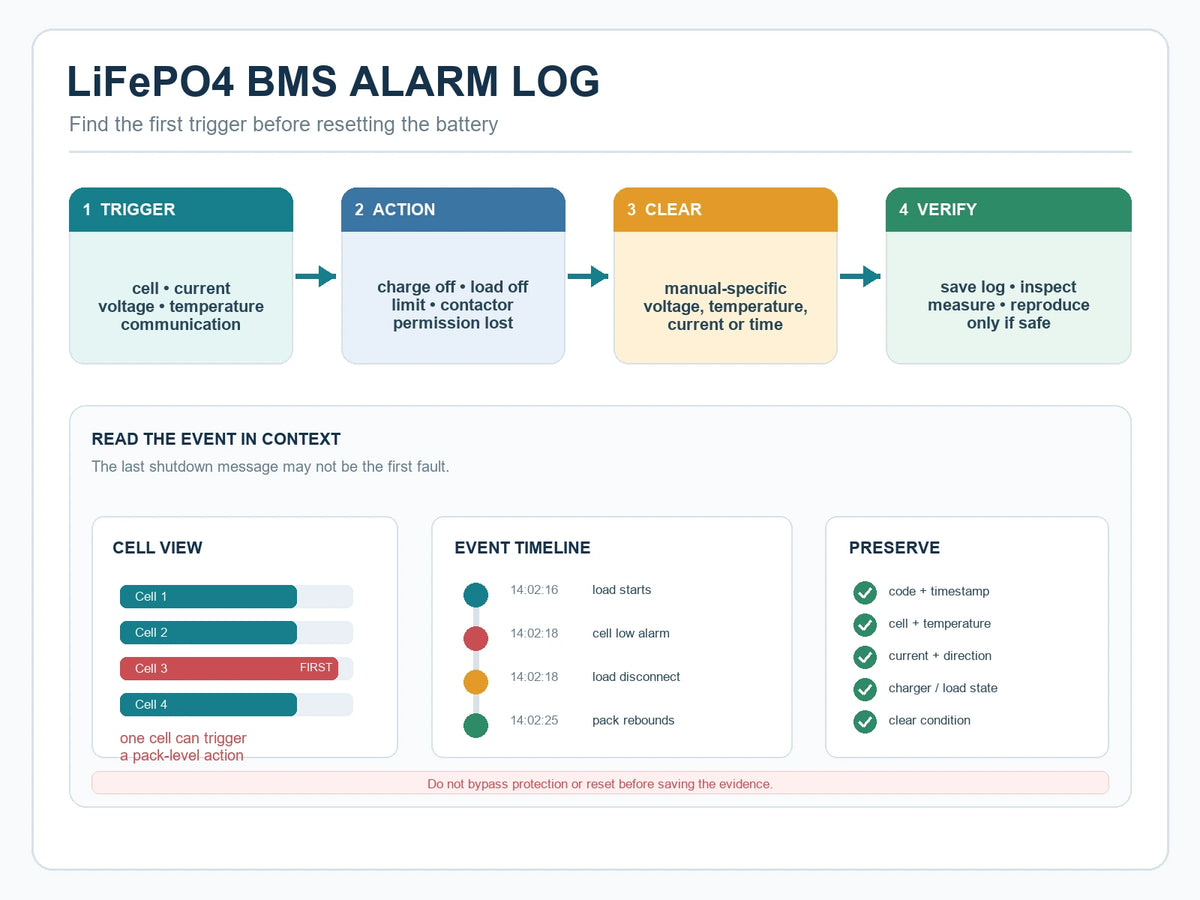

Quick Answer: Read the Alarm as a Sequence

Treat a BMS log as a sequence of four states:

If the app shows only a current alarm with no history, take screenshots, export the log if available and write down the event time. An alarm that disappears after a restart may still be important.

Alarm Categories and the Question Each One Answers

Different BMS brands use different labels. Use this category map before interpreting a code:

These categories are a reasoning framework, not a replacement for the exact BMS manual. A code named “battery low” can refer to pack voltage, one cell, SOC, communication or a system controller rule depending on the product.

Why the First Trigger Matters More Than the Final Shutdown

An alarm chain can look like this:

1. one series cell reaches a low-voltage boundary during an inverter load step;

2. the BMS disables the load;

3. the pack voltage rebounds;

4. the inverter reports a low-voltage shutdown;

5. the app shows a battery-offline or communication warning.

The final message may be “inverter low battery” or “BMS disconnected,” but the first trigger was a cell under-voltage event under load. Replacing the inverter or resetting the app would not address the weak cell, current path, voltage drop or load step.

The same pattern can occur while charging:

1. one cell rises faster than the rest;

2. the BMS disables charging;

3. the charger reports a stopped or disconnected battery;

4. the app shows a communication or charge-permission error.

The first high-cell-voltage event and the cell spread are more informative than the charger’s final message.

The official Victron Lithium Smart troubleshooting guidance illustrates this general logic: cell alarms can cause the BMS to disable loads or chargers, and a BMS alarm may remain relevant even when a later screen appears normal. The codes and thresholds on that page are Victron-specific examples, not AmpBird settings.

Step 1: Save the Log Before Clearing the Alarm

Before pressing reset, export or photograph:

• alarm name and exact code;
• first occurrence and most recent occurrence;
• cell or sensor number;
• pack voltage;
• all cell voltages;
• current and direction;
• temperature readings;
• charge and discharge permission;
• BMS operating mode;
• contactor or MOSFET state where shown;
• charger, inverter or load state;
• communication status;
• firmware and configuration revision; and
• the owner’s action immediately before the event.

Record whether the event was:

• at rest;
• during charging;
• when an inverter started;
• during a motor or compressor surge;
• after a long low-current standby period;
• after a cable, charger or BMS change; or
• after a firmware or configuration update.

Do not rely on a live screen after a restart. The values may have returned to normal while the event history is lost or shortened.

Step 2: Identify the Device That Generated the Event

In a complete system, several devices can create an “alarm”:

The AmpBird CAN/RS485 compatibility guide explains why communication compatibility must be checked separately from battery protection. A valid communication link does not prove that the charger profile, current path or cell condition is correct.

Step 3: Separate Cell Voltage from Pack Voltage

A series pack can show a plausible total voltage while one cell is near a protection boundary. Pack voltage is the sum of the series cells; it does not show how evenly the voltage is distributed.

When reading an under-voltage or over-voltage log, record:

• the highest cell;
• the lowest cell;
• the cell spread;
• the current at the event;
• the pack voltage at the BMS and at the terminals;
• the time since charging stopped or the load started; and
• whether the same cell repeatedly leads or lags.

At rest, a cell spread may look small. Under charge or load, one cell may move differently because of capacity, resistance, connection, sensor or temperature differences. That does not prove a cell is defective, but it identifies where the next controlled check should focus.

Do not copy a voltage threshold from another model. Series count, BMS design, charge profile, temperature and manufacturer settings all affect the meaning of a number.

The AmpBird Grade A cell guide helps separate cell evidence and test conditions from a finished-pack alarm interpretation. The product listing, datasheet, batch evidence and BMS record should agree before a buyer treats the event as a quality verdict.

Step 4: Check Whether the Event Happened While Charging or Discharging

The same voltage alarm can have different causes depending on current direction:

The AmpBird 48V wiring and fuse guide can help audit cable, protection, isolation and voltage-drop boundaries. It does not assign a universal BMS alarm threshold.

Step 5: Match the Alarm to the Protection Action

The action is part of the evidence:

• a charge disconnect points toward a condition that the BMS treats as unsafe for charging;
• a load disconnect points toward a condition that the BMS treats as unsafe for discharge;
• a current limit points toward a measured or configured current boundary;
• a contactor opening may be a system-level response rather than the first cell event;
• a communication warning may remove permission even when the cells are in range; and
• a warning or pre-alarm may be an opportunity to reduce load or start charging before a hard disconnect.

The exact action depends on the BMS architecture. Some BMS units switch MOSFETs, some drive external contactors, some send charge/load disconnect signals and some communicate permission to an inverter or charger.

The official Victron system-design and BMS-selection guide describes the general relationship between cell or temperature alarms and BMS actions such as turning loads or chargers off. Use it as a principle reference, not as a design approval for an AmpBird pack.

Step 6: Check Sensors, Sense Leads and Connections

When the displayed cell or temperature value is surprising, inspect the measurement path before replacing the battery:

• BMS sense-lead order and connector seating;
• damaged, pinched or loose balance leads;
• terminal and busbar condition;
• temperature-sensor attachment and identity;
• sensor cable routing and connector;
• BMS power supply;
• pack-positive and pack-negative sense points;
• current-sensor polarity;
• fuse and disconnect state; and
• moisture, contamination or mechanical movement.

Do not pull balance leads from an energized pack as a casual diagnostic. Follow the exact isolation sequence and service procedure.

A false-looking value still deserves evidence. A loose sense lead can create a real protection response even when the cells themselves are not the original problem.

Step 7: Check the Charger, Load and Current Path

After recording the event, compare the source and current path:

For a charge alarm

Check charger model, selected chemistry, target voltage, current, stage, other charging sources, temperature permission and whether the charger is controlled by the BMS.

For a discharge alarm

Check inverter or motor power, startup surge, battery-side current, cable length, terminals, fuses, disconnects, voltage drop and parallel branch sharing.

For an idle or standby alarm

Check displays, relays, monitoring devices, charger backfeed, heaters, DC-DC equipment and small loads that may remain connected.

The AmpBird LiFePO4 BMS selection guide is the right adjacent resource for protection-device selection. An alarm record should not be used to select a higher-current BMS without reviewing the cells, cables, fuses, charger, inverter and fault path together.

Common Alarm Patterns

One cell rises high during charging

Record the cell spread, current, charge stage, temperature and prior balance history. Possible boundaries include cell matching, capacity difference, resistance, sense wiring, charger configuration or balancing behavior. Do not immediately raise the charge limit or disable the BMS.

One cell falls low during an inverter start

Record the start current and voltage at the battery and inverter. Possible boundaries include current-path drop, a weak or mismatched cell, a high-resistance connection, an oversized surge or a BMS limit. This is not automatically proof that the entire pack has no capacity.

The battery will not charge after a low-temperature alarm

Confirm the sensor, battery temperature, charger permission and the exact clear condition. Do not force current into a battery whose BMS is intentionally blocking charge.

The BMS reports a communication fault but cell values look normal

Save the local battery log, then inspect cable, protocol, address, termination, power and firmware compatibility. A communication fault can remove charge or discharge permission even when the last cell readings were normal.

The alarm returns immediately after reset

Stop resetting and capture the full sequence. An immediate repeat suggests the trigger condition remains present, the clear condition was not met, the sensor path is wrong or the BMS has an internal/configuration issue.

The alarm clears but returns under the same load

Reproduce only under a safe, supervised and approved test condition. Record the exact load, current, temperature, voltage and first event. Repetition under the same condition is more useful than repeated resets at random loads.

What Not to Do After a BMS Alarm

Do not:

• bypass the BMS or bridge a charge/load-disconnect output;
• connect an unverified charger because the battery will not charge;
• increase a protection threshold just to prevent a shutdown;
• repeatedly power-cycle the system before saving the log;
• copy another battery’s firmware or settings;
• short a fuse or replace it with a higher value without design review;
• disconnect a parallel module while current is flowing;
• open a damaged or hot battery;
• call a communication error a cell failure without local evidence; or
• declare the battery healthy because the app returned to “normal.”

The AmpBird 48V DIY build guide is useful for preserving labels, settings, inspection notes and service history during a build. A clear record prevents the same unknown alarm from becoming a new troubleshooting case.

Build a Useful Alarm Record

Use one row per event:

Keep the original wording. Do not translate a model-specific code into a generic label and discard the code itself.

BMS Alarm Versus Product-Quality Evidence

An alarm is evidence of an operating event, not a complete quality verdict. Before a supplier or warranty conversation, collect:

• exact model, batch and serial;
• purchase and delivery record;
• installation and wiring diagram;
• charger and inverter models;
• firmware and settings;
• first occurrence and all repeats;
• cell and temperature evidence;
• current and voltage measurements;
• photographs of relevant connections; and
• the steps already taken.

The AmpBird supplier-verification guide explains why model identity, condition, test evidence and support scope should be established before a buyer makes a claim. A single app screenshot is rarely enough to separate a cell issue, wiring issue, BMS issue, charger issue or installation issue.

Product and Configuration Path

The right product decision follows the alarm evidence:

1. identify the protected battery and exact BMS architecture;

2. define the charge and discharge current path;

3. check the cells, BMS, charger, inverter, cables and protection together;

4. preserve the alarm history and measurement record;

5. decide whether the issue is configuration, wiring, component selection or service; and

6. request a documented configuration review when the first trigger is still unknown.

The battery-components collection, DIY battery kits collection and home battery systems collection are product-path references, not a promise that every variant uses the same BMS, communication protocol, charger, inverter or alarm behavior. Send the exact model, code, log, system voltage, series/parallel arrangement, charger/inverter, load and installation environment through AmpBird contact support.

Final Decision Rule

Do not ask “how do I clear this BMS alarm?” before asking:

1. What was the first trigger?

2. Which device generated the code?

3. Was the battery charging, discharging or idle?

4. Which cell or sensor changed first?

5. What protection action occurred?

6. What exact condition clears the event?

7. Could a cable, fuse, terminal, charger, load or communication path have caused it?

8. What evidence is needed before the next test?

If those answers are not recorded, reset is not resolution. Preserve the event, make the system safe and continue with the exact manual and a controlled evidence plan.

Frequently Asked Questions

What should I do first when a LiFePO4 BMS alarm appears?

Make the system safe, save the alarm code and history, record the charge/load state and capture cell, pack, current and temperature readings before resetting or changing settings.

Is a BMS alarm always a bad battery?

No. An alarm can come from a real cell condition, temperature, current, wiring, sensor, charger, inverter, communication link or configuration. The first trigger and repeatable evidence are needed before assigning the cause.

Why can the pack voltage look normal during a cell alarm?

A series pack voltage is the sum of its cells. One cell can approach a protection boundary while the total pack value remains plausible, especially during a load or charge transient.

Why does a BMS stop charging?

Common categories include one cell reaching a high-voltage boundary, temperature outside the charge range, charge current, communication or configuration permission. Check the exact code and the charger state rather than forcing current.

Why does a BMS stop discharging?

Possible causes include a low cell, pack voltage, discharge current, temperature, contactor or communication permission. Record the first event under the actual load before changing the inverter or BMS settings.

Can I clear a BMS alarm by restarting the battery?

A restart may clear the display while the cause remains. Save the log first, follow the exact manual and verify the clear condition under a safe observation.

Are CAN and RS485 communication alarms the same as cell alarms?

No. Communication alarms concern the data or permission path. They can still stop a charger or inverter, but they do not by themselves prove that a cell is over- or under-voltage.

What information does AmpBird need to review a BMS alarm?

Send the exact battery/cell model, BMS model and firmware, alarm code and time, all cell voltages, current, temperatures, charger/inverter/load, series/parallel layout, wiring photos and the actions already taken.

Should I raise the BMS voltage or current limit to stop nuisance alarms?

Not before the cause is known. A higher limit can remove the warning while increasing cell, cable, thermal or protection risk. Compare the exact cells, charger, inverter, fuse, cable and manufacturer settings.

What if the alarm returns only when an inverter starts?

Record battery-side current, voltage at the battery and inverter, startup demand, cable length, terminals, fuse and the first low cell. The event may be voltage drop or surge behavior rather than a simple resting-capacity problem.

What if all cell voltages look normal but the alarm remains?

Check the BMS cable, sensor, power supply, communication link, configuration, firmware and stored fault state according to the exact manual. Do not bypass the BMS to make the alarm disappear.

Can a battery monitor replace the BMS alarm log?

No. A monitor can add bank-level current and SOC evidence, but the BMS remains the device that sees its own cell and protection boundaries. The two records should be correlated rather than averaged.

Technical References

• Victron Lithium Smart troubleshooting and support — examples of alarm categories, BMS actions and troubleshooting evidence.
• Victron Lithium Smart system design and BMS selection — example relationship between cell/temperature alarms and charge/load actions.
• Victron Lithium Smart introduction — cell monitoring, balancing, temperature and alarm-signal concepts.
• Victron Lithium Smart installation — example of model-specific protection settings and why they should not be copied to another battery.

These references illustrate troubleshooting principles. They do not approve a particular AmpBird BMS, cell, battery, charger, inverter, communication protocol, threshold or repair action.
