How Much BMS Balancing Current Do You Need for a LiFePO4 Battery?

Learn what BMS balancing current actually controls, how to screen balancing time, and why cell drift, capacity, thresholds and the exact BMS model matter more than choosing a generic 1A or 2A setting.
AmpBird 14 min read
In this article

    Short answer: choose BMS balancing current from the exact BMS model, the cell capacity, the measured imbalance, the balancing threshold and the time available for correction. A larger number is not automatically better. A 1A or 2A label tells you about one balancing path; it does not tell you the battery's continuous discharge capability, inverter compatibility, cell health or the time needed to correct a real pack.

    For a quick screen, you can estimate:

    Ideal correction time (hours) ≈ imbalance capacity (Ah) ÷ balance current (A)

    That is only a first estimate. Real balancing can take longer because the BMS may balance only above a voltage or differential threshold, the current may not stay at its nameplate value, the cells may be at different states of charge, the charger may stop, and the underlying issue may be a weak cell or a measurement problem rather than a simple mismatch.

    This guide answers one specific question: what does BMS balancing current mean, and how should a buyer decide whether a 1A, 2A or another value fits the pack? It does not recommend a universal BMS setting and it does not replace the exact manufacturer's manual.

    BMS balancing current is not the battery's load current

    Battery listings often place several current values next to each other. They describe different paths and should never be added together or substituted for one another.

    Current value What it describes What it does not prove
    Continuous discharge current How much load current the BMS is specified to carry or interrupt under stated conditions How quickly cells can be balanced
    Charge current How much current the charger or BMS charge path can accept under stated conditions That the cells are matched or that balancing is active
    Balance current The nominal current of the balancing path that corrects a cell-to-cell difference Usable pack energy, cell health, inverter compatibility or fault protection
    Short-duration or peak current A time-limited current condition defined by the exact model A continuous balancing or discharge rating

    For example, a BMS can be rated for a high continuous discharge current while having a much smaller balancing current. That is normal: the BMS may carry the inverter load through a power path, while balancing uses a separate correction path between cell groups.

    The published BMS selection guide explains the broader choices around series count, current, protection, balancing method and communications. This article goes one level deeper into the balancing number itself.

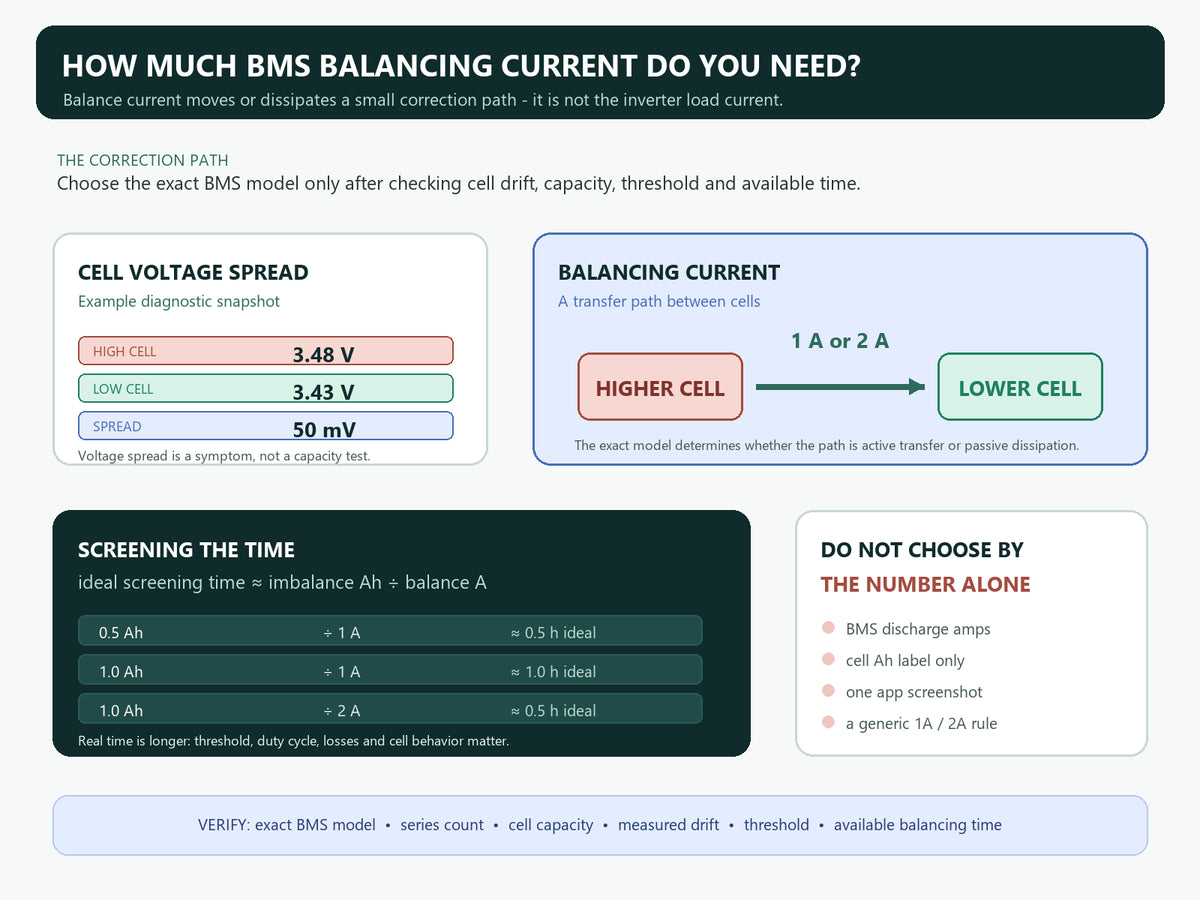

    What the balancing path is trying to correct

    In a series battery, the same pack current passes through each series cell or parallel cell group, but the cells do not necessarily remain at the same state of charge. Manufacturing variation, initial top-balance quality, temperature, connection resistance, self-discharge and aging can cause one group to reach a high or low voltage before the others.

    A balancing function tries to reduce that difference within the conditions defined by the BMS. Depending on the architecture, it may:

    • move energy from a higher-voltage cell or group to a lower-voltage cell or group; or
    • temporarily dissipate energy from a higher-voltage cell or group as heat.

    Those are different mechanisms. An active balancer can transfer energy between cell groups. A passive balancer normally removes a small amount of energy from the higher group. Neither mechanism can make a damaged cell healthy, repair a high-resistance connection or correct a wrong sense-wire order.

    A voltage difference is not the same as an Ah imbalance

    LiFePO4 cells have a relatively flat voltage region through much of their usable state-of-charge range. A small voltage difference can have several explanations, and a large-looking voltage difference near the top or bottom of the range does not directly tell you how many amp-hours must be moved.

    Before choosing a balancing current, record:

    • the exact series and parallel arrangement;
    • cell or group capacity and model;
    • individual cell voltages at a stated rest or charge condition;
    • the voltage spread under load and after rest;
    • the time and current used during the last charge;
    • the BMS balancing threshold and whether the function is actually enabled; and
    • any evidence of a weak cell, hot terminal, loose sense connection or repeated drift.

    Do not convert one app screenshot into a precise Ah mismatch. A screenshot is a starting observation, not a capacity test.

    How to estimate balancing time without overpromising

    The simple calculation is useful for screening a plan. If the estimated mismatch is 1Ah and the balancing path is 1A, the ideal arithmetic is one hour. If the mismatch is 1Ah and the path is 2A, the ideal arithmetic is half an hour.

    In a real battery, add margin because:

    • the balance current may be a maximum or nominal value rather than a constant measured value;
    • balancing may start only when a voltage or differential threshold is reached;
    • the charger or inverter may move the cell voltage while balancing is in progress;
    • active-transfer efficiency and passive heat dissipation are not 100%;
    • the BMS may use a duty cycle or reduce balancing under temperature or protection conditions; and
    • the cell may continue to drift while the correction is being made.
    Illustrative mismatch Balance current Ideal arithmetic Correct interpretation
    0.5Ah 1A 0.5 hours A lower-bound screen, not a guaranteed finish time
    1.0Ah 1A 1.0 hour Assumes the full 1A is available continuously
    1.0Ah 2A 0.5 hours Still depends on threshold, cell behavior and charger conditions
    3.14Ah 1A 3.14 hours Illustrative only; do not infer 3.14Ah from a voltage screenshot

    For a 314Ah cell, a 1A balancing path is only about 0.003C, while a 2A path is about 0.006C. That arithmetic helps explain why a balancing current that looks small compared with inverter current can still be useful for a small persistent mismatch. It does not prove that either value is appropriate for every 314Ah pack.

    Does a 1A or 2A balancer fit your cell capacity?

    Use four questions instead of choosing the larger label:

    1. How much mismatch is actually present? A 1A balancer may be adequate for a small drift if the pack has time to reach the balancing window.
    2. How often does the pack need correction? A new pack that drifts after every cycle needs diagnosis, not just a larger current setting.
    3. When is balancing allowed? If balancing occurs only near the top of charge, the available window may be much shorter than the calendar time.
    4. What does the exact BMS manual permit? Confirm the series count, chemistry setting, trigger threshold, temperature limits, maximum current and communication behavior.

    A 2A balancer can move an illustrative 1Ah correction faster than a 1A path, but it also does not give permission to raise a charge voltage, ignore the manufacturer's limit or use unmatched cells. A high balance-current label cannot compensate for a poor pack architecture.

    Cell capacity changes the meaning of the same current

    The same 1A balance path represents a different fractional correction rate for a 50Ah cell, a 100Ah cell and a 314Ah cell. That is why a BMS marketed as “1A active balance” does not answer the whole selection question.

    Use the current value together with:

    • cell capacity and chemistry;
    • series count and whether each series position contains a parallel group;
    • the manufacturer's balance threshold and allowed cell-voltage window;
    • expected charge schedule and how long the pack sits near the balancing window;
    • ambient and cell temperature; and
    • the cost of stopping to inspect a recurring drift.

    Active versus passive balancing: the current number means something different

    Question Active balancing Passive balancing
    Where does energy go? Transferred from a higher cell or group toward a lower one through the balancing circuit Removed from the higher cell or group and dissipated as heat
    How should the current be read? As a transfer-path rating under the exact operating conditions As a bleed-path current that also creates heat
    What can limit it? Threshold, temperature, firmware, efficiency, wiring and the exact transfer topology Threshold, resistor or MOSFET thermal limits, duty cycle and the exact BMS design
    What does it not repair? Weak cells, bad connections, wrong wiring, capacity loss or unsafe pack construction Weak cells, bad connections, wrong wiring, capacity loss or unsafe pack construction

    Do not compare active and passive products by the amp number alone. A 1A passive path and a 1A active path do not have the same energy-flow behavior, heat profile or usable correction result.

    What the official JK documents show—and what they do not show

    Exact model evidence is more useful than a generic BMS comparison table. For example, the official Jikong documentation for its JK-B2A24S active equalizer describes energy transfer from a higher-voltage cell to a lower-voltage cell, a model-specific 2A default/max value in the documented configuration, adjustable trigger conditions and the need to set basic battery parameters in the app. Those are instructions for that documented device family, not a universal LiFePO4 rule.

    The official JK-B2A24S product specification is useful for seeing how balance current, trigger differential, cell count and communication options appear together in a real manual. The Jikong technical-documentation page also lists model-specific PB BMS specification documents. Always open the document for the exact model number rather than assuming that all JK-PB or JK-BD variants have the same balancing current, ports or firmware behavior.

    AmpBird's current JK-PB Series BMS listing is a useful product-path reference, but the variant, current, balancing value, communication cable and firmware must be confirmed on the current listing before ordering. The family name alone is not enough for a technical fit check.

    When a larger balancing current is the wrong fix

    Stop increasing settings and investigate the pack when any of these patterns appears:

    Observed pattern More likely question Next evidence
    The same cell rises high every cycle Is that cell losing capacity, has higher resistance or is its terminal path different? Repeat measurements under the same SOC, load, rest and temperature conditions
    The low cell changes after moving a sense lead Is the measurement wiring, connector or crimp unreliable? Power down safely and inspect the wiring according to the BMS manual
    Voltage spread appears only under load Is current-path resistance or a terminal connection creating a drop? Compare cell and terminal measurements under a controlled load
    Balancing never starts Is the pack reaching the trigger threshold, or is balancing disabled by configuration? Check chemistry, series count, threshold, temperature and app status
    Balancing runs but the spread returns quickly Is there a continuing drift rather than a one-time mismatch? Record several cycles and compare the same cell position

    A balanced voltage display is not a health certificate. The BMS can report similar voltages while one cell has materially different capacity or resistance. A pack that repeatedly needs large correction should be evaluated before it is connected to a high-power inverter.

    A safe buyer checklist for selecting the balance-current specification

    Before ordering a BMS or changing a balancing value, write down the following:

    1. Exact BMS model, hardware revision and firmware or app version.
    2. Battery chemistry, series count and parallel arrangement.
    3. Cell manufacturer, model and nominal capacity.
    4. Continuous charge and discharge current required by the application.
    5. Individual cell voltages at a stated condition, not just total pack voltage.
    6. Measured spread under rest and under a controlled load or charge.
    7. Balancing method, nominal/max current and trigger condition from the manual.
    8. Temperature-sensor placement and any high/low-temperature lockout.
    9. Available time near the balancing window and expected cycling pattern.
    10. What evidence will cause you to stop and inspect rather than raise the setting.

    For the rest of the protection and current-path design, use the 48V LiFePO4 wiring, fuse and isolation guide. Balance current is only one small path in a battery system; it does not replace fuses, disconnects, cable sizing, BMS overcurrent protection or correct commissioning.

    How this fits AmpBird's DIY battery path

    A balanced BMS selection should follow the pack architecture rather than lead it. Start with the cell model and series count, then define the expected load, inverter communication, protection and enclosure. The 48V LiFePO4 battery build guide explains the pack boundary, while the JK BMS CAN/RS485 compatibility guide covers the communication boundary.

    If the project is based on a kit rather than loose cells, compare the DIY battery kit collection and review the exact contents, BMS variant and intended configuration. A kit title or a 51.2V label does not by itself identify the balancing current or prove inverter compatibility.

    Common mistakes

    Choosing the largest balance-current number

    A larger number can shorten an ideal correction calculation, but it does not prove better cell matching, safety or capacity. Confirm the exact BMS manual and the reason for the imbalance first.

    Comparing BMS discharge amps with balance amps

    These are different circuits with different functions. A 200A BMS is not a 200A balancer, and a 2A balancer does not mean a 2A battery.

    Treating voltage spread as an Ah measurement

    LiFePO4 voltage alone cannot reliably quantify the charge difference across the whole SOC range. Record the test condition and use capacity or controlled-charge evidence when the decision matters.

    Balancing a weak cell forever

    If one position repeatedly runs high or low, more balancing may hide the symptom while the underlying cell or connection continues to drift. Compare the same cell position over several controlled cycles.

    Changing thresholds without recording the original setting

    Keep a before-and-after record of chemistry, cell count, threshold, temperature limits and current settings. An app value that looks reasonable can still be wrong for the exact model.

    Balancing beside an uncontrolled high-current load

    Do not diagnose a small cell-to-cell difference while the pack is simultaneously feeding a large inverter load unless the test procedure accounts for the voltage drop. Load current and balancing current can make the display harder to interpret.

    Frequently asked questions

    What does BMS balancing current mean?

    It is the nominal current of the circuit used to reduce a difference between cell groups. It is not the BMS's continuous discharge rating, the battery charge current or the inverter's AC output.

    Is 2A balancing better than 1A balancing?

    Not automatically. Two amps can reduce the ideal correction time for the same mismatch, but the exact BMS, threshold, temperature, cell capacity, efficiency and pack condition decide whether that difference matters.

    How long does it take a BMS to balance LiFePO4 cells?

    Use imbalance Ah ÷ balance A only as a lower-bound screen. Actual time can be longer because balancing may run only above a threshold, may not hold its maximum current and may be interrupted by the charger, load or protection logic.

    Does a higher BMS current rating mean faster balancing?

    No. The continuous discharge current and balance current are separate specifications. Read both values from the exact BMS model document.

    Can a BMS balancing function repair a weak LiFePO4 cell?

    No. Balancing can reduce a cell-to-cell difference under its allowed conditions, but it cannot restore lost capacity, remove high internal resistance or fix a loose terminal or sense lead.

    Does active balancing move energy between cells?

    An active-balancing design is intended to transfer energy from a higher-voltage cell or group toward a lower-voltage one. Confirm the exact topology and operating limits from the manufacturer's manual; do not assume all products labelled “active” behave identically.

    What balancing current is right for 280Ah or 314Ah cells?

    There is no capacity-only answer. A 1A or 2A path represents a small fractional C-rate for a large cell, but whether it is adequate depends on the actual mismatch, charge schedule, threshold, BMS model and whether the cell is healthy.

    Can I increase balancing current in the BMS app?

    Only if the exact model's documentation permits it. Record the original setting, confirm the chemistry and series count, and do not exceed the manual's limits. A software field does not prove that every value is safe for the installed hardware.

    Why does the same cell keep drifting after balancing?

    Possible causes include capacity mismatch, resistance difference, temperature gradient, connection resistance, sense-wire error, a wrong threshold or a damaged cell. Repeated drift is a reason to measure and inspect, not simply to select a larger balance-current number.

    What information should I send AmpBird for a BMS balancing recommendation?

    Send the exact BMS model and revision, cell model and capacity, series/parallel arrangement, inverter or load, cell-voltage screenshot with test condition, measured spread under rest and load, current settings and the intended charge schedule. Use the <a href="https://www.ampbird.com/pages/contact">AmpBird contact page</a> for a technical fit check rather than asking only for a “high-current BMS.”

    Practical conclusion

    Choose balancing current as part of a measurement plan:

    1. Identify the exact BMS and its documented balance method.
    2. Measure the cell spread under a repeatable condition.
    3. Estimate the likely correction time from an Ah mismatch only when you have evidence for that mismatch.
    4. Check the threshold, temperature, charge window and expected duty cycle.
    5. Investigate recurring drift before increasing the current or connecting a high-power inverter.

    For current AmpBird options, use the JK-PB BMS listing as a starting product path, then verify the exact variant and communication requirements. For a complete DIY route, compare the DIY kit collection and send the full cell, BMS, inverter and load brief through the contact page.
