Can You Use a Lead-Acid Charger on a LiFePO4 Battery? Charge Profile Checks

Short answer: a lead-acid charger can only be considered for a LiFePO4 battery when its actual charging profile is explicitly suitable for the exact lithium battery. The charger must provide the correct system voltage and current, avoid incompatible equalization or desulfation behavior, respect the battery's temperature limits and work with the required BMS or charge-permission method. A charger labelled only “lead-acid,” “AGM,” “GEL” or “reconditioning” should not be assumed to be compatible.

The chemistry name on the charger is less important than what the charger actually does. A lithium mode or an adjustable profile may be suitable after the settings are checked; a fixed lead-acid profile may not be. The Victron Lithium Smart battery manual similarly tells users to match the charger algorithm to the lithium chemistry or use a custom profile that can be adjusted to the battery's documented parameters.

This guide answers one practical buying and configuration question: can an existing lead-acid charger be used with a LiFePO4 battery? It does not assign one universal charge voltage, current, float value or temperature limit to every AmpBird cell, kit or battery system.

The charger profile matters more than the charger label

Lead-acid and LiFePO4 batteries may both be described with a nominal system voltage, but that does not make their charging algorithms interchangeable. The charger is responsible for applying a controlled voltage and current over the stages defined for the battery. The battery and BMS then impose additional limits, permissions and protection behavior.

A charger that passes one row but fails another is not automatically suitable. Treat compatibility as a complete system check, not as a decision based on the connector, nominal voltage or current number alone.

When a lead-acid charger may be usable

There are three situations in which an existing charger may be worth evaluating:

1. It has a documented LiFePO4 or lithium profile for the correct system voltage.
2. It has a genuinely adjustable profile, and the manufacturer documents how to set the required voltage, current, absorption behavior, float or storage behavior and temperature functions.
3. It is part of a charger/BMS system designed to communicate or coordinate with the exact battery family.

In each case, the result is “potentially usable after verification,” not “safe because it charges batteries.” The battery manual takes priority over a generic setting name. The charger manual also matters because two products can use the same word—such as “lithium”—for different control behavior.

A real lithium mode is a starting point, not proof of compatibility

Some multi-chemistry chargers include a lithium preset. Confirm what that preset changes: output voltage, absorption duration, float, storage, temperature compensation, low-temperature cut-off, restart behavior and current limit. Record the exact model and firmware version if the charger is configurable.

Do not copy a voltage from a different 12V, 24V or 48V LiFePO4 battery. Even when two packs have the same nominal voltage, their cell limits, BMS rules, balancing strategy and warranty conditions may differ.

An adjustable charger still needs a documented target

“User-defined” does not mean “universally compatible.” Before using an adjustable charger, obtain the exact battery charge limits and determine which settings are allowed. If the battery maker does not provide the information needed to configure the charger, stop at the evidence gap rather than guessing.

Four charger behaviors that require a close check

1. Output voltage and system voltage

Match the charger to the complete battery system, not only to a marketing label. A 12.8V-class battery, a 25.6V-class battery and a 51.2V-class battery need different output ranges. The charger must also stay within the exact battery and BMS maximum charge voltage.

For a pack built from cells in series, the series count changes the pack voltage. The charge voltage is therefore a pack-level requirement. AmpBird's 12V versus 24V LiFePO4 system guide explains why voltage, load current, wiring and charging equipment must be considered together; it is not a substitute for the exact battery documentation.

2. Charge current and the lowest system limit

The charger's maximum current must be acceptable to the battery, BMS, cells, cable, fuse and the installation. A higher charger current is not automatically better. It can reduce charging time only when every relevant component permits it and the battery can safely accept it at the actual temperature and state of charge.

As an arithmetic screen, a 100Ah battery receiving 20A is being charged at 0.2C. That calculation does not prove that 20A is an approved limit. The exact product specification may set a lower continuous charge current, a temperature-dependent limit or a BMS-controlled limit. AmpBird's 48V battery wiring guide covers the related current path, conductor, protection and isolation checks.

3. Equalization, desulfation and reconditioning

Many lead-acid maintenance routines are designed to address sulfation or cell imbalance in lead-acid batteries. They should not be treated as harmless “extra charging” for lithium iron phosphate. Victron's BlueSolar configuration guidance warns that equalization can damage a battery that is not suitable for it and notes that lithium presets may not support equalization.

Before connecting a charger, look for buttons or modes named equalize, desulfate, repair, recondition, boost or engine start. A mode with an unfamiliar voltage, a timed over-voltage stage or a manual “repair” cycle should be disabled or treated as incompatible unless the exact battery manufacturer documents otherwise.

4. Float, storage and temperature behavior

Lithium batteries do not automatically need the same long-term float routine used by lead-acid batteries. Some systems permit a float or storage value; others specify a different behavior. The Victron Lithium Smart manual describes float and storage settings for its battery family and says temperature compensation should be disabled or set according to that battery's instructions. That is a model-specific example, not a universal AmpBird setting.

Low-temperature charging is another boundary. LiFePO4 cells may require charging to be limited or stopped below the exact documented temperature. A BMS may disconnect the charge path, but repeatedly making the BMS trip is not a substitute for a charger that respects the battery's operating window.

The BMS does not turn a lead-acid charger into a lithium charger

A BMS may monitor cell voltage and temperature, disconnect charging, balance cells or communicate with a compatible device. It does not automatically rewrite a charger's voltage curve, remove equalization, correct a fixed float routine or make a charger suitable for a different battery voltage.

For the separate question of selecting the BMS itself, see AmpBird's DIY LiFePO4 BMS selection guide. This article keeps the boundary narrower: even a suitable BMS does not replace a charger profile that matches the battery.

For a battery with a communication-controlled charger, verify the complete protocol path. Victron's Lithium Smart installation guidance describes a BMS-controlled charging workflow for that product family. The general lesson is useful, but the specific communication method, cable, firmware and charge-permission behavior remain product-specific.

What the BMS can protect

• Configured cell over-voltage, under-voltage and temperature conditions.
• Charge or discharge current limits when the exact hardware supports those protections.
• Charge permission or shutdown signals when the BMS and charger communicate correctly.
• Cell balancing or status reporting according to the BMS model and firmware.

What the BMS cannot guarantee

• That the charger output voltage is correct for the battery.
• That an equalization or desulfation routine will not run.
• That the charger will stop before a low-temperature charge boundary.
• That the cable, fuse, connector or charger output stage is rated for the fault and current conditions.

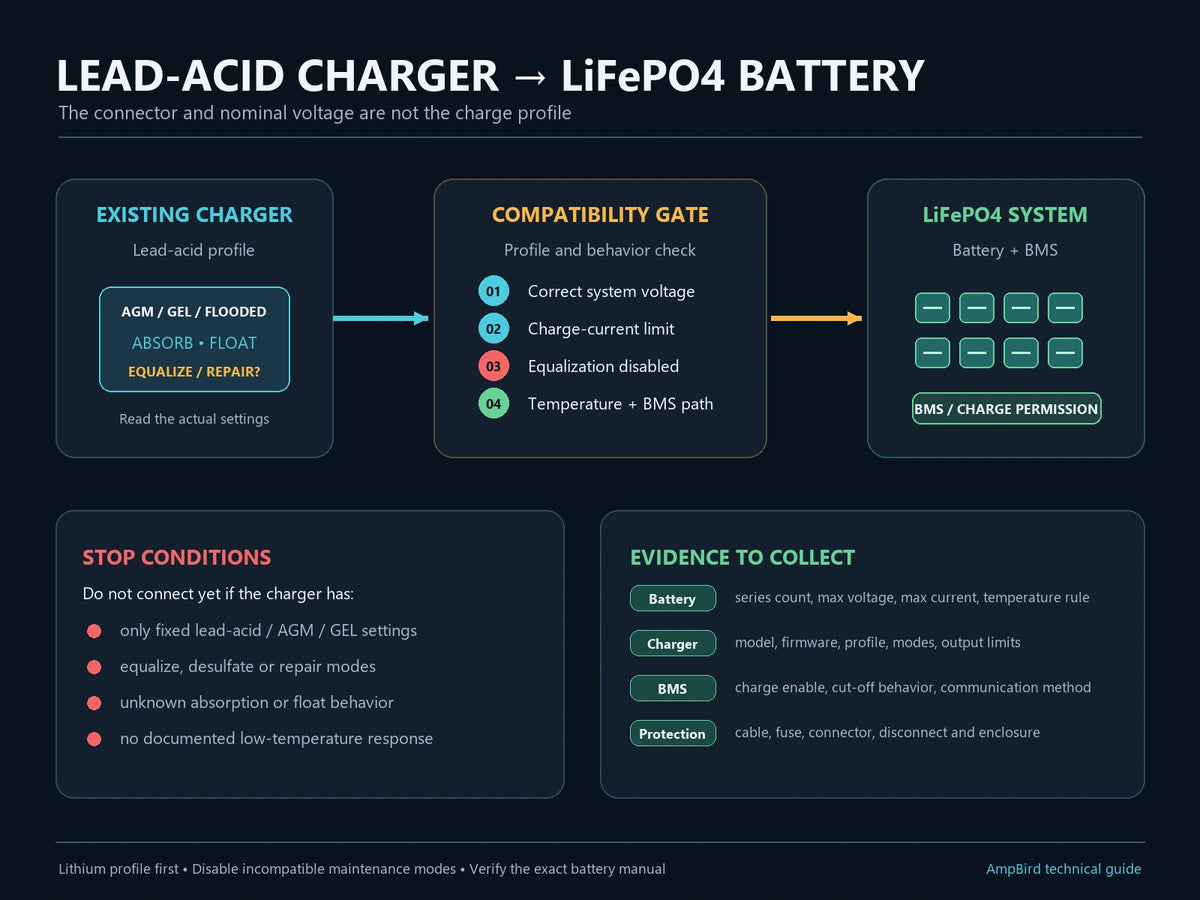

Quick decision table: is your existing charger worth checking?

“Normally unsuitable” is intentionally conservative. The final decision belongs to the exact battery and charger manuals, not to the appearance of the charger or a generic internet chart.

Check the complete charging path before connecting

A standalone AC charger is only one possible charging source. A home-storage system may also include a hybrid inverter, solar controller, DC-DC charger, generator input or shore-power charger. Each source needs the right chemistry profile and must coordinate with the same battery and BMS boundaries.

For a solar source, the panel array should use a suitable solar charger rather than being treated like an unregulated battery charger. AmpBird's home-battery solar-panel sizing guide provides the upstream PV planning context, while the 16kWh solar charging-time guide explains why usable energy, charging power, losses and the charging window all matter.

For a complete battery purchase or configuration review, the AmpBird home battery systems collection and DIY battery kits collection are starting points, not automatic compatibility recommendations. A product such as the 51.2V 314Ah DIY battery kit still requires its exact charge, BMS, inverter and installation limits to be checked before a charger is selected.

A safe pre-use checklist

1. Write down the exact battery, cell, BMS, charger and firmware model numbers.
2. Confirm the battery's nominal system class, maximum charge voltage, permitted charge current and temperature rule.
3. Read the charger manual for the selected profile, absorption/constant-voltage stage, float/storage behavior and restart logic.
4. Disable equalization, desulfation, repair and other maintenance modes unless the battery manufacturer explicitly approves them.
5. Confirm whether the charger uses temperature compensation and whether that behavior is allowed for the exact battery.
6. Check whether the BMS must communicate with the charger or provide a remote charge-enable signal.
7. Verify polarity, connector rating, cable size, fuse, disconnect and enclosure requirements.
8. Use the documented startup sequence and observe the first controlled charge; stop if the BMS repeatedly disconnects or any value is outside the manual.
9. Keep the charger manual, battery data sheet, settings record and first-charge observations together for future service.

Information to collect before asking for a recommendation

• Battery chemistry, nominal voltage, series count and usable capacity.
• Exact cell, pack, BMS and charger model numbers.
• Charger output voltage/current and a photograph or export of every available mode.
• Whether the charger has equalize, desulfate, repair, storage or temperature-compensation settings.
• Expected charging source, daily energy requirement, temperature range and installation type.
• Existing cable, fuse, disconnect, inverter, solar controller or DC-DC charger details.

Common mistakes when reusing a lead-acid charger

Matching only the nominal voltage

“12V charger” and “12V battery” are not enough information. Confirm the complete charging window, charge stages and maximum voltage for the exact battery.

Assuming the BMS will fix a wrong profile

A BMS trip is a protection event. It does not make an unsuitable charger suitable and repeated trips can hide a configuration problem.

Leaving repair or equalization enabled

Maintenance features designed for lead-acid batteries may intentionally change voltage or duration. Treat an unfamiliar mode as a stop condition until it is documented.

Using the charger current as the battery charge limit

The charger is only one limit. The battery, cells, BMS, wiring, fuse, connectors and temperature can each impose a lower limit.

Testing an unknown charger on an expensive pack

Do not use an actual battery as the experiment. Resolve the documentation gap first, then follow the exact manufacturer startup procedure and monitor the controlled first charge.

Frequently asked questions

Can a lead-acid charger charge a LiFePO4 battery?

Only if the charger has a documented lithium profile or an adjustable behavior that matches the exact battery's voltage, current, temperature and BMS requirements. A fixed lead-acid-only charger should not be assumed compatible.

What happens if I use an AGM charger on LiFePO4?

It may apply an unsuitable voltage, absorption duration, float routine or temperature behavior. Check the charger manual and battery documentation; do not decide from the connector or nominal voltage alone.

Can I leave equalization enabled for a LiFePO4 battery?

Do not leave it enabled unless the exact battery manufacturer explicitly approves that function. Equalization can damage a battery that is not designed for it.

Does a LiFePO4 BMS protect against the wrong charger?

It may disconnect the charge path when a configured limit is reached, but it does not replace a correct charger profile or guarantee that all electrical and thermal limits are respected.

Is a lithium mode on a charger always safe for every LiFePO4 battery?

No. Verify the actual output voltage, current, absorption behavior, float/storage behavior, temperature function and communication requirements for the exact battery.

Should a LiFePO4 battery be kept on float?

Follow the exact battery manual. Some lithium systems allow a defined float or storage value; others specify a different long-term behavior. Do not copy a lead-acid float setting.

Can I use a car battery charger on a LiFePO4 battery?

Do not assume so. Automotive chargers may include lead-acid-only profiles, engine-start functions, repair modes or behavior that is not intended for a lithium battery. Use it only when the manufacturer documents compatibility.

Can I use a lead-acid charger on a 51.2V LiFePO4 battery?

Only if it is a charger designed for the correct 48V-class system and its lithium settings match the exact battery. A nominal “48V” label does not prove that the output window or BMS control is correct.

What charge current should I use with LiFePO4?

Use the lowest applicable limit from the battery, cells, BMS, charger, cables, protection and temperature conditions. C-rate arithmetic is a screening tool, not a universal product specification.

What should I send AmpBird before asking about charger compatibility?

Send the exact battery and charger model, voltage, Ah capacity, BMS details, available charger modes, cable/protection information, temperature range and the intended charging source. This makes a configuration review more reliable than a nominal-voltage question alone.

A charger decision should end with evidence

If a charger has only a lead-acid label, the correct next step is not to connect it and wait for the BMS to intervene. Confirm the exact lithium profile, remove incompatible maintenance modes, check the complete current and protection path, and verify the BMS/temperature behavior. When the documentation cannot prove those points, select a charger designed for the battery chemistry or request a configuration review.

For help checking a battery, charger, BMS and inverter combination, send the information in the checklist above through Contact AmpBird. The purpose of the review is to identify the missing evidence and the correct system boundary, not to promise compatibility from a product name alone.

Technical references

• Victron Lithium Smart Battery manual — charger profile, voltage, float/storage, temperature-compensation and current guidance for that battery family.
• Victron BlueSolar configuration guidance — charge algorithm settings and equalization cautions.
• Victron Lithium Smart installation guidance — BMS-controlled charging and model-specific initial-charge workflow.
