Why Does a LiFePO4 Battery Shut Down Under Load? Voltage Sag and BMS Checks

If a LiFePO4 system cuts out as soon as an inverter, motor, compressor or other large load starts, the symptom is not yet a diagnosis. The shutdown may come from the inverter, the BMS, a single low cell, a fuse or cable connection, a thermal limit, a communication rule or the load’s start-up demand.

The first step is to stop repeatedly restarting the system. Record what turned off, capture the battery and inverter event information, and measure voltage at the battery terminals and at the inverter terminals during the same controlled load. That comparison often separates a battery-side protection event from a voltage drop in the current path.

This guide answers one question: why does a LiFePO4 battery or inverter cut out under load, and what should be checked before the system is used again? It does not assign a universal low-voltage threshold, BMS current, cable size or inverter setting to an unspecified battery.

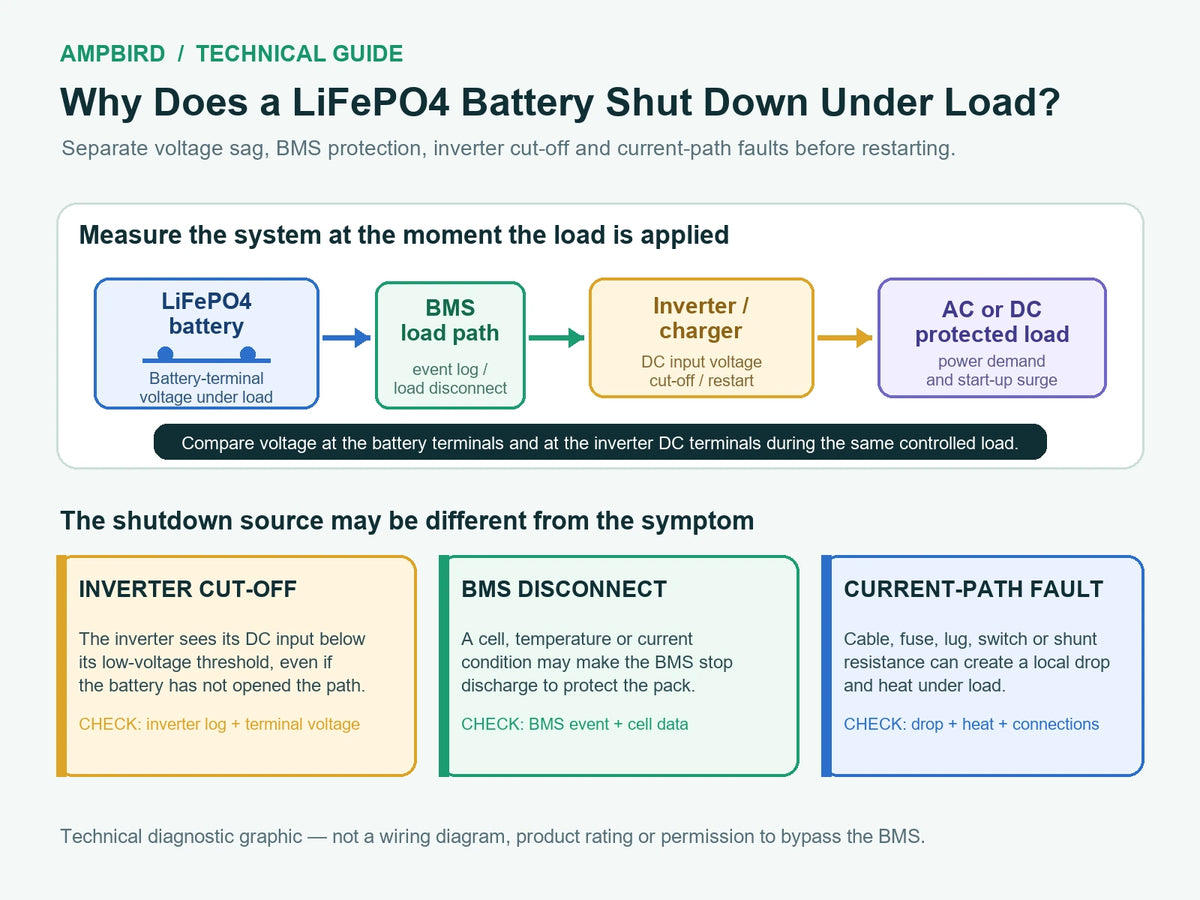

Quick Answer: The Five Most Common Boundaries

| What may be happening | What the system is protecting | First useful evidence |

|---|---|---|

| Inverter low-voltage cut-off | The inverter sees its DC input below its configured limit | Inverter log, DC voltage at inverter terminals and restart setting |

| BMS load disconnect | A cell, current or temperature condition has reached the BMS protection boundary | BMS event log, cell voltages, current and temperature at the failure time |

| Voltage drop in the current path | Cable, fuse, switch, shunt, lug or connection resistance pulls the inverter-side voltage down | Battery-terminal voltage versus inverter-terminal voltage under the same load |

| Inverter overload or start-up surge | The load demands more continuous or short-duration power than the inverter path can supply | Load nameplate, inverter overload code, surge history and battery-side current |

| Control, temperature or communication stop | The BMS or inverter refuses discharge because an operating or permission signal is not valid | Temperature channels, CAN/RS485 status, enable signals and exact model manual |

Important: a normal-looking pack voltage after the shutdown does not prove that the battery was healthy during the event. The voltage may recover after the load disappears, or the BMS may have disconnected a low cell before the total pack voltage looked abnormal.

Safety Boundary Before You Restart the System

Treat an unexpected load shutdown as a protection event until the cause is known.

Do not:

• bypass the BMS, main fuse, DC disconnect or inverter protection;
• keep resetting the system while a cable, terminal, fuse holder or switch is hot;
• continue testing after smoke, smell, swelling, visible damage, arcing or insulation damage;
• change a low-voltage or overcurrent threshold simply to stop the alarm; or
• place a charger on a battery after a serious event without checking the battery and the charger path.

Isolate the load and follow the exact battery, BMS, inverter and local electrical-safety instructions. If the fault involves heat, damaged conductors, a short circuit or an unknown high-energy DC path, use a qualified technician.

1. Identify Which Part Actually Shut Down

“The battery shut down” is often shorthand for several different observations. Write down the first visible change rather than assuming the battery was the source.

The goal of this first observation is to determine whether the battery, the inverter, the current path or the load was the first device to refuse operation.

2. Measure Battery-Terminal Voltage and Inverter-Terminal Voltage Together

An open-circuit reading after the event is useful context, but it is not enough. A battery can show a normal resting voltage and still reach a protection boundary when current flows.

Use the same controlled load and capture two readings as close together in time as possible:

1. measure across the battery’s external positive and negative terminals;

2. measure across the inverter’s DC positive and negative terminals;

3. record the load power or DC current at that instant;

4. note the temperature and the battery state of charge as evidence, not as a substitute for the loaded measurement; and

5. stop if a connection, fuse, cable or terminal heats, smells or changes appearance.

The simple path-drop screen is:

Voltage drop in the path ≈ battery-terminal voltage − inverter-terminal voltage

If the battery terminals remain substantially higher than the inverter terminals during the event, inspect the complete path: positive cable, negative cable, fuse, shunt, switch, busbar, lugs, crimps and connection torque. If both readings fall together, the battery, BMS, load current or system-level limit needs closer attention.

The official Victron Wiring Unlimited voltage-drop guidance recommends measuring the battery and inverter sides under load because the drop becomes larger as current increases. Its DC-wiring guidance also explains why voltage, current, conductor size and the complete installation must be considered together.

A Voltage-Drop Result Is Not a Universal Pass/Fail Number

The acceptable result depends on the battery, inverter, current, conductor, protection devices, installation conditions, local rules and the equipment manual. Do not copy a percentage from another system without identifying the voltage and the current path.

The most useful comparison is often not a single number. It is the change in the two readings as the load is increased:

• a small, stable difference points away from a large cable-path drop;
• a growing difference points toward resistance in the path; and
• an abrupt change, heat or intermittent behavior points toward a connection, fuse, switch, BMS or contactor problem.

3. Estimate Battery-Side Current Before Blaming the BMS

For an inverter supplying an AC load, a first screen is:

Battery-side current ≈ AC power ÷ (battery voltage × inverter efficiency)

If efficiency and the real operating voltage are unknown, use a conservative screen and label it as illustrative. For example, the ideal current at nominal voltage for a 2,000W load is approximately:

This is why the same inverter can be much harder to support from a 12V-class battery than from a 48V-class system. It is not proof that a 200A BMS, a battery label or a particular cell capacity can support the load.

Use AmpBird’s 5kW, 8kW and 10kW inverter battery-sizing guide for the separate power-versus-energy decision. A battery can have enough kWh for a long runtime and still fail the instantaneous power or current-path test.

4. Distinguish Inverter Low-Voltage Cut-Off from BMS Low-Cell Protection

These two events can look similar but occur at different measurement points.

Inverter low-voltage cut-off

The inverter monitors its DC input and may stop when its configured low-voltage threshold is reached. A high-resistance cable path can cause the inverter terminal voltage to cross that threshold even when the battery terminals remain higher.

Check:

• the exact inverter low-battery cut-off, restart and alarm settings;
• the loaded voltage at the inverter terminals, not only the battery app’s pack voltage;
• the inverter’s overload or low-voltage event history;
• whether the event occurs only during a high start-up demand; and
• whether the inverter manual requires a battery-voltage or BMS permission signal.

The Victron inverter-settings reference is a model-specific example of why the low-battery level must follow the battery manufacturer’s documentation. It is not a universal setting for AmpBird products or other inverter brands.

BMS low-cell or load-disconnect protection

A BMS may stop discharge when one cell reaches its low-voltage boundary, when a current limit is exceeded or when a temperature condition blocks operation. The total pack voltage may not appear extremely low because the weak or low cell is only one part of the series string.

Check the event record for:

• the lowest cell voltage and the spread between cells;
• discharge current at the moment of the event;
• charge and discharge temperature channels;
• overcurrent, short-circuit or contactor events;
• whether the BMS reports load-disconnect or discharge-not-allowed; and
• whether the event clears only after the documented recovery condition.

The official Victron lithium BMS selection guide shows model-specific examples where low cell voltage or temperature changes the load or charge permission. Use it as a control-boundary reference, not as proof that every BMS behaves the same way.

5. Check the Current Path for Resistance, Heat and Intermittent Connections

When a battery cuts out under load, inspect the path that carries the current—not just the battery label.

Relevant points include:

• battery positive and negative terminals;
• main fuse and fuse holder;
• DC disconnect or breaker;
• shunt and busbar connections;
• cable lugs and crimped joints;
• parallel-battery branch cables;
• inverter DC terminals; and
• any connector, contactor or service plug between the battery and inverter.

An apparently tight connection can still have a poor crimp, contamination, corrosion, damaged strands or a contact surface that heats under current. A high-resistance point can create both voltage drop and heat. Do not rely on a visual inspection alone if the symptom is intermittent.

For the detailed 48V protection boundary, use AmpBird’s 48V LiFePO4 wiring, fuse, cable and isolation guide. It explains why cable, fuse, disconnect, lugs and the BMS must be checked as one path. Its guidance should be adapted to the exact voltage and installation rather than copied as a universal chart.

6. Check Start-Up Surge and Inverter Overload Separately

Some loads fail at start-up even when their running wattage looks acceptable. Refrigerators, pumps, compressors, power tools and some heating or motor loads can draw a short starting current that changes the inverter and battery demand.

Record both:

| Load evidence | Why it matters |

|---|---|

| Running watts | Screens the continuous inverter, battery and thermal requirement |

| Start-up or locked-rotor demand | Screens the inverter surge capability and the battery-side transient current |

| Number of simultaneous starts | Determines whether several transient loads overlap |

| Power factor or motor behavior | Affects the inverter’s real current and overload behavior |

| Inverter overload event | Helps separate load demand from low-voltage or BMS causes |

Do not increase the BMS current setting just to make a motor start. First confirm the inverter’s surge specification, the battery’s documented discharge limit, the cable path, the fuse and the load’s actual starting behavior.

For a broader runtime reference, see AmpBird’s 16kWh LiFePO4 home-battery runtime guide. It is an energy-and-runtime boundary, not a substitute for appliance-specific start-up and surge analysis.

7. Check BMS Communication and Discharge Permission

Some inverter systems do more than measure DC voltage. They may require a BMS signal, a remote-enable state or a valid CAN/RS485 profile before allowing discharge. A communication cable can be physically connected while the protocol, pinout, termination, firmware or battery address is wrong.

A communication-related stop may show up as:

• the inverter reporting “battery not permitted” or an equivalent state;
• the BMS app showing normal cell voltage but discharge permission false;
• the inverter accepting charge but refusing discharge, or the reverse;
• a stop after a communication timeout rather than at a repeatable voltage; or
• multiple parallel batteries reporting inconsistent identity or state.

Use the JK BMS CAN/RS485 verification guide for the model-by-model checklist. Do not assume that a CAN port, RS485 port, RJ45 connector or Bluetooth app proves compatibility.

If the system is intentionally configured without communication, confirm the inverter’s voltage-based operating mode and the BMS’s independent load-disconnect behavior. The battery must still remain protected if the communication link is unplugged.

8. Check Temperature and Sensor Evidence

Temperature can change both the battery’s available performance and the BMS’s permission to charge or discharge. The exact limits are model-specific. A cold-temperature charging block is not the same event as a hot-discharge protection event, and a BMS-board reading is not necessarily the same as cell temperature.

When temperature is part of the investigation, record:

• cell or pack temperature channels;
• BMS-board temperature, if provided;
• ambient temperature and airflow;
• whether the event occurs during charge, discharge or both;
• sensor placement and attachment; and
• the exact BMS action: charge disconnect, load disconnect, current limit or alarm.

The exact BMS manual should define what each temperature channel measures; a sensor position or app label is not universal across models. AmpBird’s self-heating LiFePO4 guide covers the separate question of heating hardware and control. It does not supply a universal threshold for an unspecified battery.

9. If There Are Parallel Batteries, Test Each Branch

In a parallel bank, a total current reading can hide one weak, disconnected or high-resistance branch. One module may supply most of the load while another contributes little; a single branch BMS can also disconnect and change the remaining current suddenly.

For a parallel system, record:

1. pack voltage at the common bus;

2. current from each battery branch, measured with a suitable instrument;

3. branch cable length, fuse and connection condition;

4. each BMS’s cell, temperature, current and permission state; and

5. whether all branches see the same load and charge path.

Do not reconnect a branch solely because the total bank voltage looks normal. AmpBird’s parallel LiFePO4 home-battery guide explains why voltage/SOC matching, communication, cable symmetry, protection and commissioning must be checked together.

10. A Controlled Diagnostic Sequence

Use this sequence to avoid changing several variables at once:

Stage 1: Capture the first failure

Record the load, inverter output, battery app state, BMS event, voltage readings, temperature, current and time. Take a photograph of any visible heat or damaged connection only if it is safe to do so.

Stage 2: Remove the load and make the system safe

Turn off the load according to the equipment procedure. Isolate the system if there is heat, damage, smell, arcing or an unexplained fuse event. Do not keep resetting protection.

Stage 3: Classify the boundary

Use the event records to classify the first stop as inverter cut-off, BMS disconnect, path voltage drop, overload/surge, thermal or communication-related. If the evidence points to more than one, investigate the earliest event first.

Stage 4: Inspect and measure the current path

With the system in a safe state, check the fuse, disconnect, shunt, lugs, busbars, cable routing and inverter terminals. Under a controlled low-risk test, compare battery-terminal and inverter-terminal voltage. Stop if the path heats or the readings are unstable.

Stage 5: Apply one documented correction

Correct one cause at a time: repair a connection, replace a damaged protection device, reduce the load, correct the inverter profile, restore a valid communication setting or follow the battery’s documented recovery procedure. Do not raise protection limits as a first response.

Stage 6: Retest with a smaller load first

Use a controlled, known load. Record the same measurements again, then increase the load only if the equipment documentation permits it. A successful restart without a recorded cause is not proof that the system is fixed.

11. Go, Hold or Stop?

12. What the Result Means for a New Battery Inquiry

If a battery cuts out under load before purchase or during system review, send the supplier evidence rather than only saying “the battery is not strong enough.” A useful configuration brief includes:

• battery model, series count, Ah and BMS model;
• inverter brand, model, DC voltage range, continuous power and surge requirement;
• measured battery-terminal and inverter-terminal voltage under the same load;
• load type, running watts, start-up behavior and simultaneous loads;
• BMS cell-voltage, current and temperature event data;
• cable length, cable cross-section, fuse, disconnect, shunt and connection layout;
• charger and solar-controller model, profile and charge/discharge permission path;
• whether batteries are in parallel, and how each branch was measured; and
• the temperature and installation conditions when the failure occurred.

This evidence lets AmpBird decide whether the issue is a cell/BMS question, an inverter pairing question, a current-path issue or a complete-system design problem. Browse the AmpBird Home Battery Systems collection or DIY Battery Kits collection only after the voltage, power, current, protection and installation boundaries are clear.

Frequently Asked Questions

Why does a LiFePO4 battery shut down when I turn on an inverter?

The inverter may draw enough current to create voltage sag, trigger its low-voltage cut-off, exceed its surge capability or cause the BMS to disconnect. Measure battery-terminal and inverter-terminal voltage during the same start-up event and read both the inverter and BMS logs.

Why does the battery voltage recover after the inverter shuts down?

Removing the load removes the voltage drop caused by current through the battery and the DC path. A BMS disconnect may also stop current, allowing the measured voltage to recover. Recovery voltage alone does not prove that the battery, wiring or inverter is healthy.

Can a 200A BMS support a 10kW inverter?

The label alone cannot answer that. Check the actual battery voltage, inverter efficiency, lowest operating voltage, continuous and surge power, cell/current-path limits, protection devices and BMS behavior. A BMS rating is one limit in the complete system, not an automatic inverter certification.

How do I tell whether the inverter or BMS caused the shutdown?

Compare the inverter event code and DC terminal voltage with the BMS event log, cell voltages, current and temperature. If the inverter reports low input while the BMS remains enabled, the inverter or current path may be first. If the BMS reports load disconnect, investigate the cell, current or temperature condition.

Can a loose cable cause a LiFePO4 battery to shut down?

Yes. A high-resistance cable, lug, fuse holder, switch or shunt can create voltage drop and heat under load. Measure both ends of the path during a controlled load and stop if any connection heats or shows damage.

Is a low battery voltage alarm always a bad battery?

No. It may be caused by a low state of charge, a high start-up load, a small or damaged cable, a loose connection, a fuse or switch, an inverter threshold, a weak cell or a BMS event. The loaded two-point voltage measurement helps separate these causes.

Should I raise the inverter low-voltage cut-off to stop nuisance shutdowns?

Not as a first response. Find out whether the battery, cell, wiring, current, temperature or inverter setting caused the event, then follow the battery and inverter documentation. Raising a protection threshold can hide a real fault or deepen over-discharge.

Can cold temperature cause a LiFePO4 battery to cut out under load?

It can affect battery performance and BMS permissions, but the exact charge and discharge limits depend on the model. Record the temperature channel and the actual BMS event rather than copying a threshold from another battery.

Why does one battery in a parallel bank disconnect first?

One branch may have a different state of charge, cell condition, cable resistance, fuse, BMS setting or temperature. Measure each branch current and event state. Do not assume the remaining batteries can safely absorb the disconnected branch’s current.

What should I send AmpBird for a shutdown diagnosis?

Send the battery and BMS model, inverter model, load type and power, battery-side and inverter-side voltage under load, current, event logs, temperature, cable/fuse/disconnect details and parallel-bank information. This makes a configuration review possible without guessing from the battery label.

Final Recommendation

A LiFePO4 shutdown under load is a system event, not automatically a failed battery. First identify which device stopped, then compare the battery-terminal and inverter-terminal voltage during the same load. Read the BMS and inverter logs, calculate the current from real power and voltage, inspect the full current path, and check start-up, temperature and communication boundaries.

Do not bypass protection or change limits to make the symptom disappear. A safe diagnosis ends with a documented cause, a controlled correction and a smaller-load retest—or a clear decision to stop and obtain qualified technical help.
