LiFePO4 Battery Fuse vs DC Breaker: What Each Protects

A LiFePO4 battery fuse and a DC-rated breaker can both be part of a safe battery system, but they do not automatically perform the same job. A fuse is normally a one-time overcurrent protection device. A DC-rated breaker may combine overcurrent protection with a resettable trip and a service-isolation function. A simple switch or disconnect may isolate a circuit but provide no overcurrent protection at all. The BMS monitors and controls defined battery conditions, but it is not a substitute for protecting the cable and external current path.

The short answer is:

• use a fuse or a properly rated DC overcurrent device to protect the conductor and connected equipment from a fault;
• use a DC-rated breaker or switch-disconnector for routine isolation only when its datasheet says it is suitable for that function;
• do not assume an AC-only breaker can interrupt a LiFePO4 battery fault safely;
• check maximum DC voltage, continuous current, expected surge, interrupt rating, time-current behavior, polarity and installation conditions together; and
• never select a larger fuse or breaker simply to stop nuisance trips before finding the cause.

This guide answers one customer question: when should a LiFePO4 battery system use a fuse, a DC-rated breaker, a separate isolator or a combination of them? It gives a decision and verification workflow, not a universal AmpBird fuse size, breaker size, cable size or installation approval.

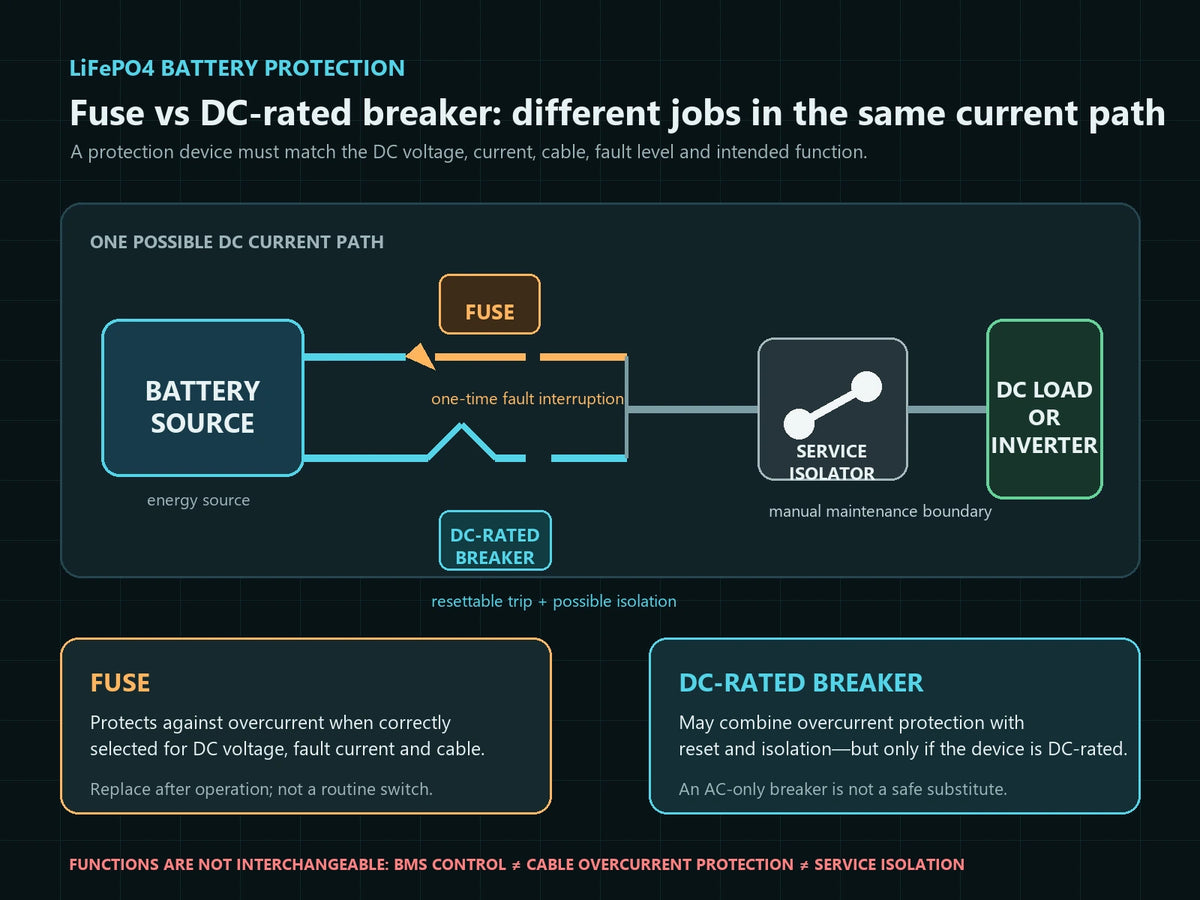

Fuse vs DC Breaker: The Quick Decision

Start with the function you need rather than the label on the device.

In many systems the practical answer is not “fuse or breaker.” It is a correctly selected primary fuse or breaker, plus a separate service-isolation function when the equipment and installation require one. The exact arrangement depends on the battery, inverter, charger, cable path, enclosure, expected fault current and local electrical requirements.

What a Fuse Actually Does

A fuse contains a calibrated element that opens when the current-time condition exceeds its design envelope. It is intended to interrupt abnormal current before the conductor, terminal, battery component or connected equipment is damaged. After it operates, the element must be replaced with the correct type and rating.

For a LiFePO4 installation, the fuse is not chosen only by reading the normal inverter current. At minimum, the selection must address:

• the highest voltage the fuse can see, not only the battery's nominal label;
• the expected continuous and temporary current in the protected branch;
• the cable, terminal, fuse holder and busbar limits;
• the available prospective short-circuit current;
• the fuse's DC interrupt or breaking rating;
• the fuse family, speed and time-current behavior;
• temperature, enclosure and installation derating; and
• the manufacturer's permitted orientation, torque and holder arrangement.

The Victron Wiring Unlimited DC-wiring guidance treats current rating, voltage rating, interrupt rating, speed and type as separate fuse-selection criteria. That is a useful design checklist, but it does not turn any Victron example into a universal AmpBird specification.

What a DC Breaker Actually Does

A DC breaker uses an internal mechanism designed to open a DC circuit when its trip condition is reached. Depending on the product, it may provide thermal protection, magnetic or instantaneous protection, a manual handle, a reset function and an isolation position. These features are product-specific; the word “breaker” alone is not enough evidence.

Before using a breaker in a battery path, verify:

• it is rated for the maximum DC voltage of the actual series configuration;
• its interrupting capacity is sufficient for the prospective fault current at that location;
• its continuous current and trip curve suit the expected load and surge;
• its polarity and terminal arrangement are correct for the DC application;
• its poles may be used in the required series or parallel arrangement, if applicable;
• its handle position genuinely provides the required isolation;
• it is approved for the enclosure, ambient temperature and conductor size; and
• the manual permits switching or resetting under the expected load condition.

An AC breaker may have a higher printed AC voltage and still be unsuitable for a battery DC fault. Direct current does not naturally pass through a current zero as AC does, so the device must be designed to extinguish the DC arc at the voltage and fault level involved. “It fits the DIN rail” is not an electrical rating.

A Breaker, a Disconnect and a BMS Are Not the Same Device

These terms are often mixed together in product listings and wiring discussions.

The AmpBird guide to choosing a BMS for a DIY LiFePO4 battery pack explains why cell monitoring, charge/discharge control and current-path design must be evaluated together. The BMS may disconnect a load or charger in response to a monitored condition, but the external protection device still has to be selected for the cable and fault path.

Map the Battery Current Path Before Choosing a Device

Do not start by asking “what amp fuse should I buy?” First draw the actual current path.

A common conceptual path is:

battery positive → primary overcurrent protection → positive bus → branch protection → inverter, charger or DC load

The negative side may contain a shunt or return bus, but the exact placement is system-specific. The AmpBird 48V wiring guide covers the broader relationship between cable size, fuses, isolation and inverter current. This article narrows the question to the different jobs performed by the protection devices themselves.

Why LiFePO4 Fault Protection Needs More Than a Nominal Current Label

Lithium batteries can deliver a large fault current for a short period. A BMS label such as “200A” may describe a particular continuous or peak operating limit, but it is not automatically the prospective short-circuit current of the battery bank and it is not a substitute for a cable-protection calculation.

Three current values are commonly confused:

1. Normal operating current: what the load or charger is expected to draw during ordinary operation.

2. Temporary surge current: what an inverter, motor, compressor or capacitor-input load may draw during startup.

3. Prospective fault current: what the battery and connected conductors could deliver into a short circuit at the device location.

A device can be acceptable for the first value and still be unsafe for the third. The interrupt rating is the device's ability to open the available fault current safely at the specified voltage. It is not the same as the normal current rating printed on the front.

The Victron Lithium NG installation guidance states that the cable, battery and system current boundaries all matter when selecting the fuse and that the battery positive should be fused. The Littelfuse technical application guide separately explains voltage rating and interrupting rating. Use those as principles, then apply the exact battery and equipment manuals for the system being designed.

How to Select a Fuse Without Guessing

Use this sequence for a main battery fuse or a branch fuse.

1. Identify the protected conductor

Write down the cable material, conductor size, length, insulation, routing, ambient temperature, bundling and terminal method. The fuse cannot be chosen in isolation from the wire it is intended to protect. A larger battery does not make a smaller cable safe.

2. Identify every normal and temporary load

List the inverter, charger, DC loads, motors and startup events on that branch. Use the equipment manual rather than converting the inverter's AC output to a guessed battery-side number. If the load has a surge, check its duration and the fuse's time-current curve.

3. Check the system voltage at its highest operating point

A 48V-class or 51.2V-class label is not the maximum voltage the fuse will see. Count the cells or modules, identify the permitted charge voltage and select a device whose DC voltage rating covers the actual maximum. Never use an AC-only rating as a shortcut.

4. Check the interrupt rating

Ask the battery or supplier for the available short-circuit or fault-current information where needed. The fuse's interrupt rating must be sufficient for the prospective fault current at its location. A compact automotive fuse with a low interrupt rating is not automatically suitable for a large lithium bank.

5. Check the upper and lower current boundaries

The device must carry expected normal current without nuisance operation, while remaining within the permitted rating of the cable, battery, busbar, terminal and connected equipment. A useful screening expression is:

protection-device current rating ≤ the applicable lowest protected-path limit

That expression is not a universal sizing formula. Temperature correction, installation standard, time-current behavior, equipment instructions and local code can change the final selection. The lower limit may be a cable ampacity, battery limit, inverter requirement or branch-component rating.

6. Check the holder and connection

A fuse is only as reliable as its holder, crimp, terminal, torque and enclosure. Heat at a holder can come from contact resistance rather than an overcurrent event. Verify the holder's continuous-current and voltage ratings, conductor entry, cover, clearance and service access.

How to Select a DC Breaker Without Treating It Like a Switch

Evaluate the breaker in two separate columns: protection and isolation.

Protection questions

• Is the device specifically rated for the maximum DC voltage?
• What is its interrupting capacity at that voltage?
• Is the trip curve compatible with the inverter or motor's startup behavior?
• Does the thermal rating change with ambient temperature or enclosure mounting?
• Is the terminal, busbar and conductor interface rated for the intended current?
• Does the manufacturer specify a maximum number of poles in series for DC use?

Isolation questions

• Does the open position provide the required isolation, or only a trip indication?
• Can it be operated safely under the expected load, or must the load be removed first?
• Is the handle position visible and lockable if service work requires it?
• Is it rated for the number of switching operations expected?
• Can a downstream circuit remain energized through a second source, charger, PV input or parallel battery?

A breaker can be the right choice when a system needs a resettable protection device and a service handle, but only the product documentation can establish that it performs both roles. A switch-disconnector can be an excellent isolation device and still require a separate fuse upstream.

Fuse, Breaker or Both? Practical Architecture Examples

The following are design patterns, not universal AmpBird wiring instructions.

For parallel home batteries, protection must be considered at the string and combined-bank levels. The AmpBird parallel-battery guide explains why cable symmetry, current sharing, BMS compatibility and isolation cannot be reduced to simply adding Ah labels together.

Does a DC Breaker Replace a Fuse?

Sometimes a properly rated DC breaker can serve as the overcurrent device instead of a fuse. That conclusion requires evidence from the breaker datasheet and the complete system design. Check all of the following before treating it as a replacement:

• DC voltage rating at the actual maximum system voltage;
• interrupting capacity at that voltage;
• trip curve and surge tolerance;
• continuous current after temperature and enclosure derating;
• cable and terminal protection;
• permitted polarity and pole configuration;
• isolation and load-breaking classification; and
• installation standard, local code and equipment manual.

If any one of these is unknown, the safe answer is not to assume equivalence. A breaker that is suitable for a low-voltage control panel may not be suitable on a high-energy LiFePO4 battery bank. The same front-panel ampere label can hide very different DC fault capabilities.

Does a Fuse Replace a Service Disconnect?

No. A fuse can open a circuit after a fault, but it is not a convenient or reliable daily service switch. Pulling a fuse under load can create its own hazard, and an intact fuse does not prove that every energy source has been isolated.

If maintenance requires a deliberate shutdown, use a device and procedure designed for isolation. Check for parallel batteries, solar input, chargers, inverter capacitors and any other source that can back-feed the circuit. The word “off” on one controller does not prove that the battery terminals or downstream bus are de-energized.

What to Do When a Fuse Blows or a Breaker Trips

Treat the event as evidence, not an invitation to install a larger device.

Record the event first

Write down the time, load, charging state, battery temperature, inverter or motor startup, BMS alarms, measured voltage and device condition. Photograph the fuse holder or breaker position before changing anything.

Separate a protection trip from a bad connection

Inspect for loose or discolored terminals, heat damage, corrosion, crushed cable, incorrect crimping, a damaged holder or an undersized conductor. A hot connection can create a voltage drop and may also damage the device without a clean overcurrent trip.

Compare the event with the current path

Ask whether the event occurred during:

• inverter startup or capacitor pre-charge;
• a motor or compressor start;
• a charger entering a new stage;
• a BMS low-voltage, high-voltage or temperature event;
• a parallel-bank connection or reconnection;
• a wiring change or firmware/configuration change; or
• a short circuit or visible insulation failure.

Do not bypass the device

Do not bridge a fuse, hold a breaker closed, bypass a BMS or repeatedly reset the device while the cause is unknown. If the protection device operates again, stop and follow the battery, inverter and BMS service instructions or obtain qualified electrical help.

A Buyer's Protection-Device Checklist

Before ordering a fuse, breaker, isolator or holder, prepare this record:

When the record is incomplete, the correct next step is to collect the missing evidence rather than infer a rating from a similar-looking product.

How This Connects to AmpBird Products and Configuration Help

AmpBird's battery components collection is the natural place to review protection, busbar, BMS and current-path components. For a DIY build, compare the protection path with the exact cell arrangement and enclosure in the DIY battery kits collection. For a finished or expandable storage system, start with the home battery systems collection.

Product availability and exact component ratings can change by model, warehouse and batch. A useful inquiry should include:

> Battery voltage and series/parallel arrangement; battery or cell model; inverter or charger model; continuous and startup current; cable size and length; expected environment; proposed fuse/breaker model; and whether the goal is fault protection, service isolation or both.

If you want AmpBird to review a configuration, send those details through the contact page. The right answer may be a fuse, a breaker, a separate isolator or a coordinated combination; it should not be chosen from a single ampere number.

Frequently Asked Questions

Can I use a normal AC circuit breaker on a LiFePO4 battery?

Do not assume so. A battery circuit needs a device rated for the actual DC voltage and prospective fault current. An AC-only breaker may not interrupt a DC arc safely even if the printed current looks appropriate.

Is a BMS enough protection for my battery cable?

Usually not. The BMS protects monitored battery conditions and can command a load or charge disconnect, but it does not automatically protect every external cable, busbar, branch or terminal against every short circuit. External overcurrent protection remains a separate design task.

Is a fuse safer than a breaker?

Neither is automatically safer. A fuse may offer a high interrupt rating and fast fault clearing, while a suitable DC breaker may add reset and isolation. The safer choice is the device whose voltage, current, interrupt, time-current and installation ratings match the actual system.

Do I need both a fuse and a breaker?

You may need both functions, but not necessarily two devices in every installation. A fuse can provide primary fault protection, while a separate DC isolator or approved breaker provides service isolation. Follow the battery and equipment manuals and local requirements.

Where should the main battery fuse or breaker go?

It is normally placed as close as practical to the energy source on the positive conductor so the unprotected conductor is minimized. The exact distance, enclosure and installation rule depend on the system and applicable code. Do not copy a distance from another project without checking the current installation requirements.

Does a 200A breaker protect a 200A cable?

Not automatically. The current rating must be interpreted with cable ampacity, ambient temperature, enclosure, duty cycle, trip curve, terminals and the equipment manual. A 200A label does not prove the same continuous or fault performance in every installation.

What is an interrupt rating?

It is the maximum fault current the device is designed to interrupt safely at a specified voltage and under specified test conditions. It is different from the normal current rating. Lithium battery systems make this distinction especially important because prospective short-circuit current can be much higher than normal load current.

Can I reset a breaker after the BMS disconnects the battery?

Not before finding out why the BMS acted. Record the alarm, cell or sensor values, current, temperature, charger/load state and wiring condition. A reset may hide the first trigger and does not prove the battery is safe to operate.

Is a battery disconnect the same as a fuse?

No. A disconnect is intended to isolate a circuit for operation or service. A fuse is intended to interrupt abnormal current. Some breakers combine both functions, but a plain switch or isolator does not automatically provide overcurrent protection.

Does a 48V or 51.2V battery need a special fuse?

It needs a fuse or other protection device whose DC voltage rating covers the system's maximum operating voltage and whose interrupt rating covers the prospective fault current. The nominal label alone is not enough to select the device.

What should I send when asking for fuse or breaker advice?

Send the battery model and topology, maximum charge voltage, BMS limits, inverter or charger model, continuous and startup current, cable size and length, proposed device model, environment and whether you need fault protection, service isolation or both. Include photos of the terminals and current path if the configuration already exists.

Can AmpBird confirm a universal fuse size for my system?

No responsible answer should be universal. The correct device depends on the exact battery, cable, equipment, fault level, environment, local requirements and manufacturer instructions. AmpBird can help review a defined configuration when those inputs are available.

Final Checklist Before You Buy

• [ ] The battery topology and maximum DC voltage are known.
• [ ] Continuous, surge and prospective fault currents are separated.
• [ ] The protected conductor, terminal and holder limits are documented.
• [ ] The fuse or breaker is specifically DC-rated.
• [ ] The interrupt rating is sufficient for the fault level at its location.
• [ ] The trip curve or time-current behavior suits the load.
• [ ] The intended function—fault protection, isolation or both—is explicit.
• [ ] BMS actions are not being treated as a replacement for external OCPD.
• [ ] Parallel strings and possible back-feed paths are included.
• [ ] The installation follows the exact manuals and applicable local requirements.
• [ ] The original cause will be investigated after a trip rather than hidden by a larger rating.

The professional answer to “fuse or breaker?” is therefore a current-path review. Choose the device by its protection and isolation functions, verify the DC ratings and fault capability, and keep the exact battery and equipment evidence with the project record.
