Why Is My LiFePO4 Battery Charging Slowly? Charger, BMS and Cable Checks

A LiFePO4 battery that charges slowly is showing a symptom, not a complete diagnosis. The lower current may be caused by the charger or solar source, a configured current limit, a BMS charge-permission boundary, low or high temperature, voltage drop in the current path, normal end-of-charge taper or a cell that reaches its limit before the rest of the pack.

The useful first question is not “what setting should I increase?” It is:

1. what current is the source actually producing;

2. what current reaches the battery terminals;

3. is the BMS allowing charging at that moment; and

4. is the battery in a part of the charge cycle where current should naturally be falling?

The short answer is:

• compare the charger’s measured DC output with the current measured at the battery, not only the AC input or an app estimate;
• record battery voltage, individual cell voltages, temperature, SOC estimate and charge permission at the same time;
• check the charger profile, output limit, PV conditions, generator or grid input and current-sharing settings;
• inspect fuses, breakers, cables, lugs, connectors and heat for voltage drop or a restricted path;
• treat a BMS charge limit, high cell, low-temperature boundary or communication fault as a protection event, not a setting to bypass; and
• do not raise the current or replace a fuse with a larger one until the limiting boundary is identified.

This guide answers one customer question: why can a LiFePO4 battery charge more slowly than expected, and how should an owner find the limiting boundary? It is a measurement and troubleshooting workflow. It does not publish a universal charge current, charger setting, temperature limit, SOC percentage or recovery procedure for every battery model.

Quick Answer: Find the First Limiting Boundary

Use the symptom to decide what to measure next.

The table is a triage map, not a substitute for the exact battery, charger, BMS or inverter manual. Similar symptoms can have different causes on different systems.

What Does “Charging Slowly” Mean?

Define the expected value before troubleshooting it. A product label, charger label, inverter display and battery-monitor app may each show a different quantity.

Separate power, current and energy

• Charger power: the power the charger is converting or receiving at a particular point.
• Battery-side charge current: the current entering the battery at its actual voltage.
• Battery energy: the amount of usable energy added over time.
• Charge rate: a current relative to a battery capacity or a manufacturer-defined limit.

For a DC charger, an illustrative relationship is:

battery-side current ≈ charger output power ÷ battery voltage

Real systems include conversion losses, current limits, measurement tolerance and changing battery voltage. For an AC inverter/charger, do not treat the AC input current as the battery charge current. For solar, a large PV nameplate does not prove that the array is delivering that power at the present irradiance, temperature, MPPT voltage and load priority.

Compare like with like

Write down the expected current at a defined battery voltage and charge stage. Then compare it with a measurement taken at the same point and time. A display that reports charger output current cannot be compared directly with a shunt that reports net battery current if a DC load is running between the two measurement points.

The AmpBird inverter-and-battery sizing guide explains why power and battery capacity are separate checks. This troubleshooting guide goes one step earlier: it identifies which part of the charging system is limiting the actual current.

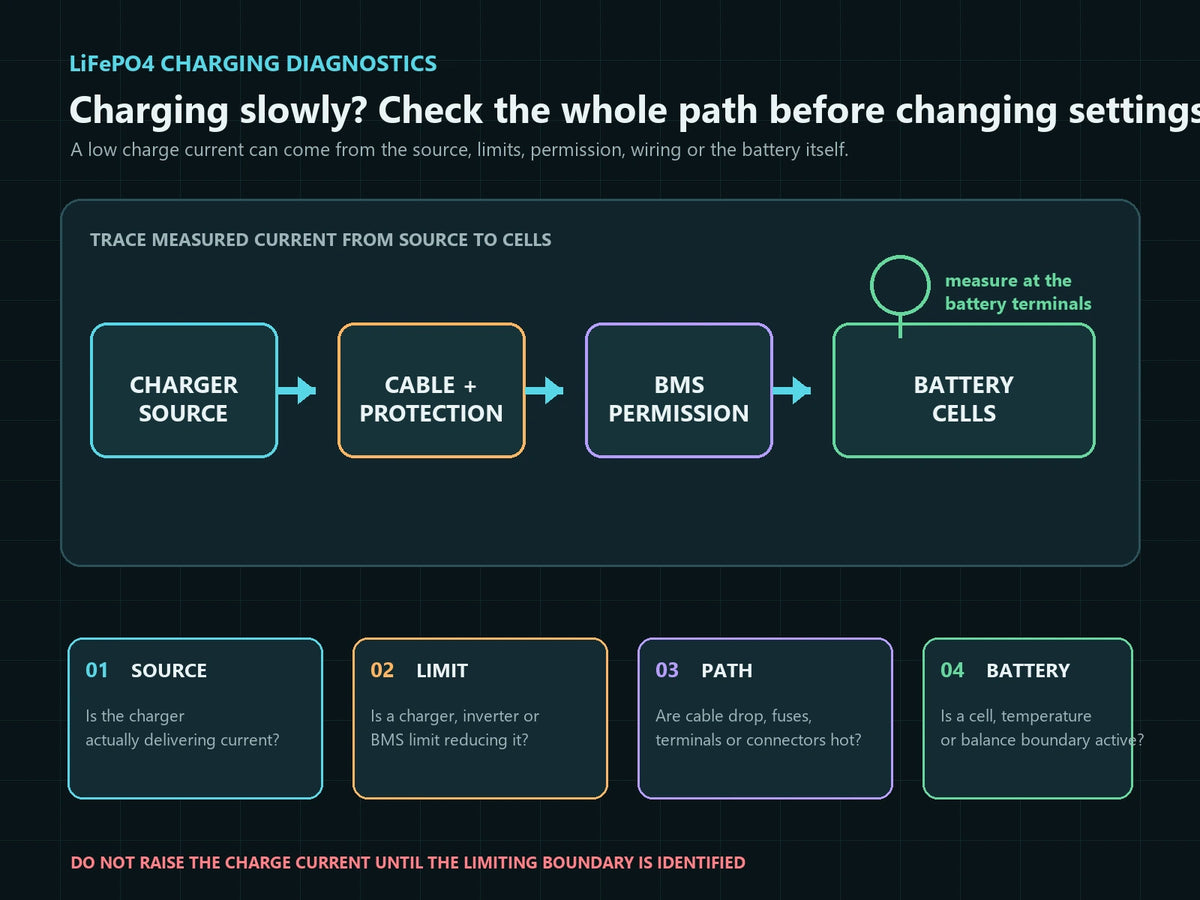

Measure the Charging Path in Four Places

Make the measurements at the same moment. Record voltage and current together rather than collecting isolated screenshots.

If the system has a shunt, check what it includes. A shunt on the negative battery terminal may report net current after a DC load has consumed part of the charger output. The AmpBird BMS selection guide explains why the measurement and control boundary matters when interpreting charge permission and current.

Safety before measuring

Use a meter, clamp or test point rated for the voltage and expected current. Do not loosen a high-current terminal to insert a meter. Do not put a meter in series with a battery current path unless the instrument and procedure are specifically designed for it. Keep insulated tools, covers and protective equipment appropriate to the installation, and stop if a terminal, cable or enclosure is hot, damaged or discolored.

Check the Charger and Energy Source First

If the source is not producing the current, the battery cannot receive it. Confirm the source under the same conditions in which the “slow” symptom occurs.

Charger output limit and operating mode

Check the charger’s selected output-current limit, battery profile, input-power limit, current-sharing setting and remote-control state. Some systems reduce output when another load is running, when the AC source is limited, when an alternator is protected or when a second charger is coordinating through a control network.

Do not copy a setting from a different battery. The correct charge voltage, current and permission logic must come from the exact battery, BMS and charger documents.

Solar-specific boundaries

For solar charging, record PV voltage and current as well as controller output. A controller may produce low battery current because of:

• low irradiance, shading, snow, dirt or a poor panel orientation;
• PV voltage outside the controller’s operating window;
• array current or voltage clipping;
• the battery already near its charge-voltage boundary;
• the controller prioritizing a load, export or another operating mode; or
• a cable, connector, fuse or breaker problem on the PV or battery side.

The AmpBird 16kWh solar charging-time guide covers the difference between a theoretical array calculation and the energy actually available to charge a battery. It should not be used to infer a universal charging time for a different system.

DC-DC, alternator or generator-specific boundaries

Alternator and generator systems may intentionally limit charge current to protect the source, control temperature or maintain other loads. A DC-DC charger may also have an enable signal, input-voltage threshold or output limit. A generator-backed charger may be constrained by generator load, power-sharing or fuel-saving logic.

If the charger is configured to limit current, that is not automatically a battery fault. Record the intended limit and compare it with the battery’s permitted range before changing it.

Check Whether the BMS Is Allowing Charge

A battery can appear connected while the BMS is restricting or disabling charging. Depending on the product, the BMS may act on cell overvoltage, cell undervoltage recovery, high or low temperature, overcurrent, sensor fault, communication loss, contactor state or another configuration boundary.

Record the following at the moment current falls:

• charge permission or charge-disconnect status, if the system exposes it;
• highest and lowest cell voltage;
• cell-voltage spread;
• battery and sensor temperatures;
• charge current and direction;
• pack voltage at the battery terminals;
• alarm name, code and first timestamp;
• BMS, charger and inverter communication status; and
• whether the current returns after the source or load changes.

The Victron Lithium Smart troubleshooting manual gives a manufacturer-specific example of a BMS disabling a charger when cell imbalance or a cell-voltage boundary is present. Its codes, voltages and procedures are Victron-specific; use the same reasoning pattern with the exact BMS manual for the battery being tested.

Cell imbalance can look like a weak charger

When one cell reaches its upper boundary before the others, the BMS may reduce or stop charging even though the pack voltage or SOC display does not look full. A charger that repeatedly starts and stops may be responding to that protection logic rather than failing.

Do not force a higher charge voltage or bypass charge permission to “push through” the imbalance. Preserve the cell readings, charger stage and alarm history. A cell that remains abnormal after the exact manufacturer procedure may require service or supplier review rather than more current.

Communication loss can change the permitted current

Some integrated systems rely on CAN, RS485, enable wires or a BMS contact to decide whether charging is allowed and at what limit. If the data link is missing, has the wrong protocol, has an address or termination problem or reports stale values, the charger may fall back to a conservative state or stop.

The AmpBird JK BMS communication guide covers model-by-model CAN/RS485 verification. A communication screen that shows “connected” does not prove that the charger is receiving the correct charge permission or current limit.

Check Temperature Before Changing the Charge Setting

LiFePO4 charging is temperature-dependent. The BMS or charger may restrict charge when the battery is too cold or too hot, and a sensor may be reading the wrong location or have a connection problem. A battery in a cold enclosure may not be at the same temperature as the room or the charger.

Record:

• ambient temperature near the battery;
• each available battery or cell-zone sensor value;
• the sensor location and attachment;
• whether the restriction is charge-only or also affects discharge;
• heater status, if present; and
• the time required for the battery to enter an allowed charging state.

The AmpBird self-heating battery guide explains why low-temperature protection, heating hardware and control logic must be separated. Do not assume that adding a heater, moving a sensor or increasing charge current is acceptable without the exact battery and BMS instructions.

Check the Cable, Fuse and Connection Path

If the charger output is normal but battery-terminal current is low, inspect the path between them. A cable or connection with excessive resistance can produce heat and voltage drop, causing a charger, BMS or inverter to reach a limit before the battery receives the expected current.

Measure voltage under the actual charging current across:

• charger positive to battery positive;
• charger negative to battery negative;
• each fuse, breaker or disconnect connection where test points are safe;
• suspicious lugs, busbars or distribution blocks; and
• any shunt or current-sensing connection.

Do not use an unloaded continuity test as proof that a high-current path is healthy. Inspect for loose torque, incorrect crimp, oxidation, damaged insulation, a warm fuse holder, undersized cable, a connector that is not fully seated or a return path that is not included in the shunt boundary.

The AmpBird 48V wiring guide explains the relationship between cable size, fuse, isolation and inverter current. This article adds the diagnostic boundary: measure voltage drop and temperature while charging, not only the cable label.

Check the Charge Stage Before Calling It a Fault

Charge current is not expected to remain at the charger’s maximum for the entire cycle. Depending on the charger and battery, the current can be high during a constant-current portion and then taper as the battery approaches its voltage or control boundary.

Compare low-current behavior at two different states:

“The battery is at 100%” on a display is not enough evidence to decide whether low current is normal. The charge stage and the source of the SOC estimate matter.

A Controlled Troubleshooting Sequence

Use one change at a time and keep the record.

Step 1: Freeze the configuration

Do not change charge voltage, current limit, BMS parameters or wiring while collecting the first baseline. Note the battery model, series/parallel topology, charger model, firmware or protocol, ambient temperature and load state.

Step 2: Record source and battery values together

Capture source voltage/current, battery-terminal voltage/current, highest/lowest cell, temperature, charge stage and BMS permission. If the system has multiple chargers, record each one separately.

Step 3: Check for a normal taper

Repeat the measurement at a known lower SOC or under the manufacturer’s defined test condition, only if the system can be operated safely. If current is high earlier and tapers near the charge boundary, the behavior may be expected. If it is low throughout, continue the investigation.

Step 4: Check path loss under load

Measure voltage drop and temperature across the current path while charge current is flowing. Stop if a connection is heating, discolored or mechanically unsafe.

Step 5: Check BMS and temperature evidence

Read alarms and permissions before resetting anything. Compare sensors with the exact BMS manual. Do not bypass a BMS or force a charger to remain on.

Step 6: Verify one controlled source

If the system has multiple charging sources, test one permitted source at a time. Use a known-good, correctly configured charger only when the battery manufacturer allows that test. A different charger is not automatically a safe diagnostic tool.

Step 7: Escalate with evidence

If the source, path and settings are within their documented boundaries but the battery still accepts little current, send the time-stamped record to the battery, BMS, charger or system supplier. Include cell data, temperature, current, voltage, alarm history and photos of the current path.

Common Slow-Charging Patterns

What to Send When Requesting a Charging Review

For a useful configuration review, provide:

• exact battery, cell, kit or finished-pack model;
• series/parallel arrangement and nominal/maximum charge voltage;
• BMS model, charge limit and permission interface;
• charger, MPPT, DC-DC or inverter/charger model;
• source voltage and current at the charger output;
• current and voltage measured at the battery terminals;
• highest/lowest cell voltage and cell spread;
• battery and ambient temperature;
• cable size, length, fuses, breakers, connectors and shunt boundary;
• SOC estimate, charge stage and alarm history; and
• what changed immediately before the slow-charging behavior began.

For product and configuration paths, review the battery components collection, the DIY battery kits collection or the home battery systems collection only after the voltage, current and control boundaries are known. If you want AmpBird to review the evidence, use the contact page.

Frequently Asked Questions

Why is my LiFePO4 battery charging slowly even with a large charger?

A large charger does not force the battery to accept its full output. The actual limit may be a charger setting, source limit, BMS permission, high cell, temperature boundary, cable drop, current-sharing rule or normal charge taper. Measure at the charger output and battery terminals at the same time.

Is a low charge current always a bad battery?

No. Low current can be normal near the charge-voltage boundary or when the source is weak. It becomes more concerning when the battery is well below its charge boundary, the source is proven capable, charge permission is active and the current path has no abnormal drop or heat.

Can a BMS limit the charging current?

Some BMS and integrated systems can disable charging, send a permission signal, command a charger or enforce a configured limit. The exact behavior is model-specific. Read the charge-permission and fault state instead of assuming every BMS acts the same way.

Why does the charger keep turning on and off?

Possible causes include a cell reaching its high-voltage boundary, temperature protection, an unstable source, a communication state change, a loose connection or a charger control loop. Save the first alarm and cell readings before resetting the system.

Should I increase the charge voltage to make the battery charge faster?

Not without the exact battery and charger documentation. Raising voltage can create cell overvoltage, BMS trips or damage. Find the actual limiting boundary first and stay within the manufacturer’s permitted settings.

Can cold weather make LiFePO4 charging slow?

Yes. A BMS or charger may restrict charging at low temperature, and a self-heating battery may need time and energy to warm the cells. Check the sensor value, sensor location, heater state and charge permission rather than relying on room temperature.

Why does the solar controller show power but the battery receives little current?

The controller may be serving a load, operating near the charge boundary, limited by PV voltage/current, affected by shading or losing power in the battery-side path. Compare PV input, controller output and battery-terminal current under the same conditions.

Can a bad fuse or cable make charging slow?

Yes. A damaged, undersized, loose or overheated connection can create voltage drop and trigger a charger or BMS limit. Inspect and measure the path under real charging current. Do not replace a fuse with a larger one as a diagnostic shortcut.

Why does the app say the battery is full when charging current is low?

Low current near full may be normal, but the SOC estimate can also be unsynchronized or based on a different shunt boundary. Compare charge stage, battery voltage, cell values, charge history and independent measurements.

Should I try another charger?

Only if the battery manufacturer permits the test and the replacement charger matches the battery voltage, chemistry, current, protection and connector requirements. A different charger is not automatically safe because its plug fits.

Can a battery monitor show a lower current than the charger?

Yes. The charger display may show source output while the monitor shows net current after DC loads or another branch. Confirm where each instrument sits in the current path and compare readings at the same time.

What is the safest next step if charging is slow and a terminal is hot?

Stop the charge if safe to do so, isolate the system according to its procedure and do not continue increasing current. A hot terminal, fuse holder or connector needs inspection before further operation.

Final Checklist

• [ ] The expected current is defined at a specific voltage and charge stage.
• [ ] Charger/source output and battery-terminal current are measured separately.
• [ ] AC input current is not being confused with DC battery current.
• [ ] Charger limits, profiles, source power and current-sharing settings are recorded.
• [ ] BMS charge permission, alarms, cell spread and temperature are captured.
• [ ] Cable, fuse, breaker, shunt, connector and terminal voltage drop are checked under current.
• [ ] Normal charge taper is separated from a low-current fault.
• [ ] The exact battery and charger manuals are used for settings and temperature boundaries.
• [ ] No BMS bypass, forced charger or larger fuse is used to hide the symptom.
• [ ] The evidence package is ready before asking the supplier for a configuration review.

The professional answer to “why is my LiFePO4 battery charging slowly?” is a path measurement. Find where the current is reduced, record the battery’s protection state and change only one documented variable at a time.

Technical References

• Victron Lithium Smart troubleshooting and support — manufacturer-specific examples of BMS charger-disconnect behavior, cell imbalance, temperature and communication troubleshooting.
• Victron Lithium Smart system design and BMS selection guide — examples of BMS actions, charger/load coordination and battery-monitor boundaries.
• Victron Wiring Unlimited: DC wiring — general DC cable, fuse and voltage-drop principles.

These references illustrate design principles. Their voltages, thresholds, settings and procedures are not universal AmpBird specifications.
