DIY Battery Box vs Pre-Built Battery Pack: Pros, Cons & Cost Breakdown
One of the first decisions in any home storage project: build it yourself from a DIY battery box kit, or buy a pre-built battery pack? Both approaches have merit, and the right choice depends on your budget, technical comfort, and project goals.
What's a DIY Battery Box Kit?
A DIY kit typically includes the battery enclosure, bus bars, BMS, cables, breaker, and fuse — everything except the cells. You source cells separately and assemble the pack yourself. Popular options include EEL Battery's full range of 12V, 24V, and 48V DIY boxes with JK or Seplos BMS.
What's a Pre-Built Battery Pack?
A pre-built pack arrives fully assembled with cells already installed, BMS configured, and all connections made. Examples include BASENGREEN BR-RM LV (5-6.4 kWh), EEL 51.2V Server Rack (16 kWh), and EEL Powerwall (16 kWh). Connect to your inverter and start using immediately.
Cost Breakdown: 16 kWh Build
| Component | DIY Kit + Cells | Pre-Built Pack |
|---|---|---|
| 16× 314Ah Grade A cells | $704-864 | Included |
| BMS (JK 200A) | $80-120 | Included |
| Battery Box | $180-280 | Included |
| Bus bars, cables, fuse | $50-80 | Included |
| Assembly labor | Your time (4-8 hrs) | Factory labor (included) |
| Total | $1,014-1,344 | $2,500-4,000 |
DIY saves $1,200-2,700 — that's 50-65% less than a pre-built system.

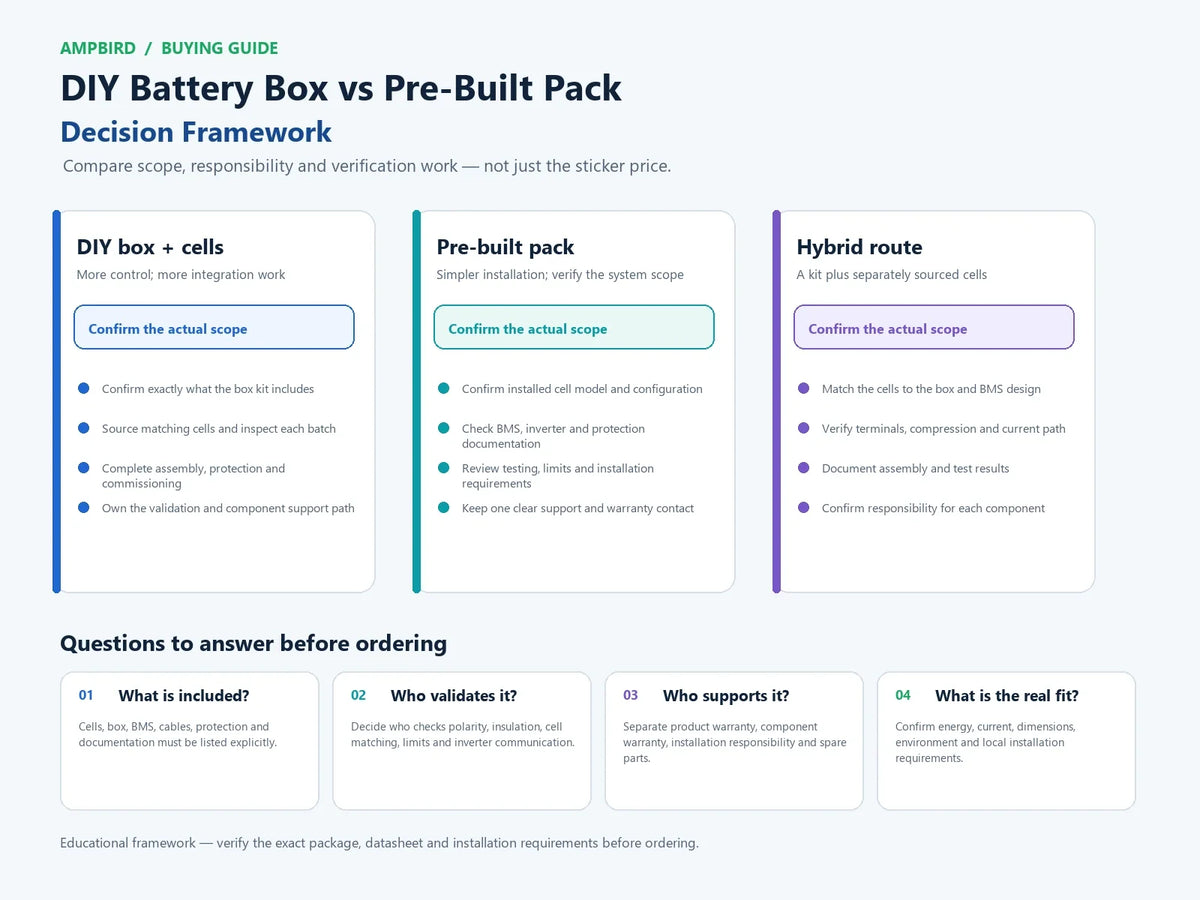

Beyond Cost: Other Differences
Customization: DIY lets you choose every component. Want a 300A BMS? A specific cell brand? A touchscreen display? With DIY, you decide. Pre-built systems lock you into the manufacturer's choices.
Repairability: DIY builds are inherently serviceable — you built it, you can fix it. A failed BMS or degraded cell can be individually replaced for $50-100. Pre-built systems often require replacing the entire unit if any component fails.
Warranty: Pre-built systems come with a system-level warranty (typically 5-10 years). DIY builds have component-level warranties (cells: 3-5 years, BMS: 1-2 years, box: 1 year). The system warranty is simpler but covers less total time than individual component warranties.
Time to operation: Pre-built works out of the box. DIY requires 4-8 hours of careful assembly plus time to source and ship cells separately.
Who Should Go DIY?
You have basic hand tool skills, want to save 50-65%, value repairability, and enjoy understanding how your system works. You're comfortable following assembly guides and using a multimeter.
Who Should Buy Pre-Built?
You want plug-and-play simplicity, prefer a single warranty point of contact, don't have time for assembly, or are installing in a location where professional certification is required.
The Hybrid Approach
Some builders take a middle path: buy a DIY battery box kit (which comes with BMS, cables, and enclosure) and source cells separately. This gives you the cost savings of DIY with the convenience of a pre-configured kit, and lets you choose your preferred cell brand and capacity.
