EVE MB56 628Ah LiFePO4 Cell Explained: Specifications, Applications & Limitations

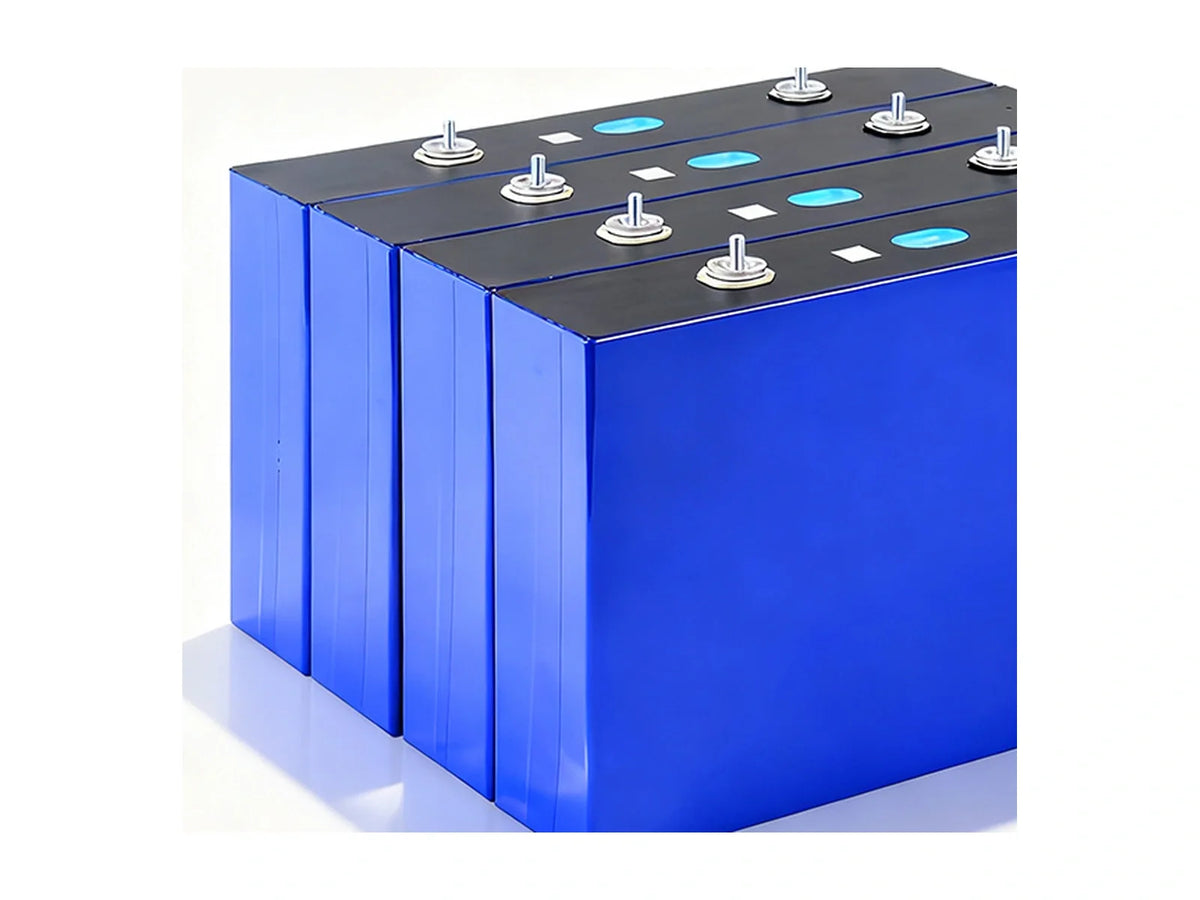

The EVE MB56 is a large-format 3.2V 628Ah prismatic LiFePO4 cell developed primarily for high-capacity energy storage systems.

With approximately 2.01kWh of nominal energy in a single cell, the MB56 offers more than twice the capacity of a conventional 280Ah LiFePO4 cell. Sixteen MB56 cells connected in series can create a nominal 51.2V, 628Ah battery containing approximately 32.15kWh of energy.

Those numbers make the MB56 attractive to buyers planning large off-grid systems, commercial battery cabinets, microgrids, renewable-energy projects, and other installations where substantial capacity is required.

However, the MB56 should not be treated simply as a larger replacement for a 280Ah or 314Ah DIY battery cell.

Its physical size, weight, current requirements, compression design, enclosure compatibility, handling difficulty, and original system-level positioning are significantly different. For many residential DIY projects, a 280Ah or 314Ah cell may still be easier, safer, and more economical to integrate.

This guide explains what the EVE MB56 is, why the energy-storage industry is moving toward larger cells, where the 628Ah format offers meaningful advantages, and when a smaller LiFePO4 cell remains the better choice.

Quick Answer: Is the EVE MB56 Suitable for Home Energy Storage?

The EVE MB56 can technically be used to build a large residential or off-grid battery, but it was developed primarily around commercial, industrial, and grid-scale energy-storage requirements.

It may be suitable for:

• Large off-grid homes with substantial daily energy consumption
• Farms, workshops, and remote properties
• Commercial and industrial energy storage
• Microgrids and renewable-energy projects
• Large battery cabinets and floor-standing systems
• Installations requiring approximately 30kWh or more in one battery string

It may be less suitable for:

• First-time DIY battery builders
• Small residential backup systems
• Wall-mounted battery enclosures
• Standard battery boxes designed for 280Ah or 314Ah cells
• Installations with limited floor space or weight capacity
• Projects that are easier to expand using several smaller independent battery packs

Quick verdict: The MB56 is an important large-capacity energy-storage cell, but it is not automatically the best choice for an ordinary home battery. It makes the most sense when the project genuinely benefits from a very large single-cell capacity and has been engineered around its dimensions, weight, protection, and thermal requirements.

What Is the EVE MB56?

The MB56, also promoted by EVE Energy as “Mr. Big,” is a large prismatic lithium iron phosphate battery cell with a nominal capacity of 628Ah.

Unlike common 280Ah and 314Ah prismatic cells widely used in residential DIY batteries, the MB56 was developed as part of a larger system-level strategy for simplifying high-capacity energy storage.

The basic principle is straightforward: when each cell stores more energy, a large energy-storage system can achieve the required capacity using fewer cells and fewer electrical connections.

Fewer cells may also mean fewer:

• Busbars
• Cell-monitoring points
• Voltage-sensing connections
• Mechanical assembly steps
• Potential connection faults
• Components requiring inspection and maintenance

This simplification becomes particularly valuable in multi-megawatt-hour systems containing hundreds or thousands of cells. The benefits are less dramatic in a small residential battery containing only 16 cells, but the MB56 can still provide substantial capacity in one series string.

EVE MB56 Key Specifications

Published specifications can vary between product pages, datasheet revisions, production generations, and testing conditions. Before designing a battery around the MB56, obtain and follow the documentation for the exact cells being supplied.

How Much Energy Can 16 EVE MB56 Cells Store?

A typical 48V-class LiFePO4 battery uses 16 cells connected in series.

Using the MB56:

• Nominal voltage: 16 × 3.2V = 51.2V
• Nominal capacity: 628Ah
• Nominal energy: 51.2V × 628Ah = approximately 32.15kWh

This is roughly twice the capacity of a 16S battery built with 314Ah cells.

The actual usable energy will be lower than the nominal figure because a properly configured battery normally operates within controlled state-of-charge and voltage limits. Inverter losses, BMS settings, temperature, battery age, and system reserve settings also affect the energy available to loads.

Why the Energy-Storage Industry Is Moving Toward Larger Cells

The development of 500Ah, 600Ah, and larger-format cells is primarily driven by the economics and engineering requirements of large energy-storage systems.

A commercial battery plant may contain enough cells, busbars, monitoring circuits, cables, modules, and mechanical connections to create substantial manufacturing and maintenance complexity.

Increasing the capacity of each cell allows system designers to reach the same total energy using fewer cells.

For example, an energy-storage system requiring a fixed amount of energy may need considerably fewer 628Ah cells than 280Ah cells. This can reduce the number of:

• Cell-to-cell connections
• Data-collection points
• Busbars and fasteners
• Assembly operations
• Inspection points
• Potential high-resistance connections
• Components requiring future maintenance

The objective is not merely to advertise a larger ampere-hour number. It is to simplify the complete energy-storage architecture and improve system-level economics.

This distinction matters. A technology developed to reduce complexity across a 5MWh container does not necessarily create the same economic benefit in a single 16-cell home battery.

EVE MB56 Advantages

1. Very High Energy per Cell

At approximately 2.01kWh per cell, the MB56 can create a battery exceeding 32kWh with only 16 series-connected cells.

This can be useful when the project requires a large amount of energy but the system designer wants to avoid connecting several lower-capacity strings in parallel.

2. Fewer Cells for Large ESS Projects

In commercial and grid-scale systems, higher-capacity cells can reduce the total number of cells and electrical connections required to reach a target energy capacity.

Fewer components may simplify manufacturing, monitoring, inspection, and maintenance.

3. LiFePO4 Chemistry

The MB56 uses lithium iron phosphate chemistry, which is widely selected for stationary energy-storage systems because of its stable chemistry, long-life potential, and suitability for repeated cycling.

However, LiFePO4 chemistry does not remove the need for correctly engineered protection, temperature monitoring, fusing, insulation, enclosure design, and installation practices.

4. Large Capacity Without Increasing Series Cell Count

A 16S MB56 battery remains a nominal 51.2V system. Its higher capacity comes from greater ampere-hours rather than adding more cells in series.

This can allow the battery to remain within the voltage range supported by many 48V-class inverters, provided that the BMS, communication protocol, current limits, and inverter settings are compatible.

5. Potentially Simpler High-Capacity Architecture

One 32kWh battery string may appear simpler than two separate 16kWh strings. It can reduce the number of complete BMS units, battery disconnects, communication interfaces, and external battery-to-busbar connections.

Whether this is actually better depends on the installation. Multiple smaller batteries may provide more redundancy and easier handling, while one larger battery may reduce system-component count.

EVE MB56 Limitations

1. Substantial Weight

At approximately 11.4kg per cell, a set of 16 MB56 cells weighs about 182kg before any other components are added.

Once the following are included, the completed battery may weigh well above 200kg:

• Steel enclosure
• Compression structure
• Busbars
• BMS
• Display
• Circuit breaker or fuse
• Cables and connectors
• Insulation materials
• Wheels or mounting base

This is not a battery that should be casually lifted, carried downstairs, or installed on an ordinary wall bracket.

Transport, floor loading, access routes, installation equipment, and future servicing must be considered before purchase.

2. Larger Enclosure Requirements

Most DIY battery boxes currently used for 280Ah, 304Ah, 314Ah, or 330Ah cells will not accept the MB56.

A dedicated enclosure must account for:

• Exact cell dimensions
• Terminal orientation
• Busbar geometry
• Cell insulation
• Required compression
• Cooling and temperature monitoring
• Service access
• Structural strength

Do not order the cells first and assume a suitable box can be found later.

3. More Difficult Handling

Each cell is large and heavy. Accidental terminal contact, dropped tools, incorrect lifting, or mechanical damage can have more serious consequences when working with cells of this energy capacity.

Professional handling procedures, insulated tools, terminal protection, suitable lifting equipment, and a controlled assembly area are strongly recommended.

4. Higher Initial Investment

A 32kWh battery may provide attractive cost per kilowatt-hour, but the total initial cost will still be substantially higher than that of a 14kWh or 16kWh battery.

The project may also require:

• A stronger enclosure
• Higher-capacity protection devices
• More substantial cables and busbars
• Professional transport and installation
• A higher-power inverter or multiple inverters
• Additional solar generation to recharge the battery effectively

5. One Large Battery Creates a Larger Single Point of Failure

A single 32kWh battery may be simpler, but it also concentrates a substantial amount of capacity behind one BMS, one main protection system, and one enclosure.

Two independent 16kWh batteries may offer:

• System redundancy
• Easier transport
• Incremental expansion
• Simpler maintenance
• The ability to isolate one pack while the other remains available

The best architecture depends on whether the project prioritizes simplicity, redundancy, installation flexibility, or minimum component count.

EVE MB56 vs EVE MB31

The EVE MB31 314Ah cell is a more conventional option for 16kWh-class DIY and residential energy-storage batteries. Two MB31 cells provide approximately the same nominal capacity as one 628Ah MB56 cell, but the mechanical and system architectures are different.

For most ordinary residential projects, the MB31 offers a more flexible starting point. For projects that already require approximately 30kWh or more, the MB56 may reduce the number of separate battery packs required.

One 32kWh Battery or Two 16kWh Batteries?

This is one of the most important decisions when evaluating the MB56.

Advantages of One 32kWh MB56 Battery

• One matched 16-cell series string
• One primary BMS
• Fewer battery-level parallel connections
• Potentially simpler communication configuration
• Large capacity available from the beginning
• Fewer complete enclosures and external disconnects

Advantages of Two 16kWh Batteries

• Easier transportation and installation
• Greater redundancy
• Ability to purchase and expand in stages
• Easier removal of one pack for maintenance
• Broader availability of compatible cells and enclosures
• Lower initial investment when only one pack is purchased first

Neither configuration is universally superior.

A remote property with very high daily consumption may benefit from one large system designed around MB56 cells. A typical home seeking backup power and solar self-consumption may benefit more from one 16kWh battery initially, with the option to add another matched battery later.

Who Should Consider the EVE MB56?

The MB56 is worth serious consideration when:

• The required battery capacity is approximately 30kWh or greater.
• The project is commercial, industrial, agricultural, or large off-grid.
• A dedicated MB56-compatible enclosure is available.
• The installation location can support the completed weight.
• Professional handling and installation equipment are available.
• The inverter and BMS have been selected for the complete system.
• The buyer values fewer cells and fewer system connections.
• The battery design has been reviewed as a complete engineered system.

Potential applications include:

• Farm and agricultural energy storage
• Large workshops
• Commercial solar installations
• Remote homes with high daily consumption
• Microgrids
• Telecommunications and infrastructure backup
• Small commercial facilities
• Renewable-energy buffering

Who Should Stay with 280Ah or 314Ah Cells?

A smaller-format cell may be the better choice when:

• The project requires only 10–20kWh of storage.
• The buyer is building a LiFePO4 battery for the first time.
• A proven 280–334Ah DIY battery box is already available.
• The system may be expanded gradually.
• The installation area has restricted access.
• Individual battery packs must remain movable.
• Redundancy is more important than reducing component count.
• The inverter cannot effectively use or recharge a 32kWh battery.

Higher capacity is valuable only when the system can use it.

A 32kWh battery connected to a small solar array may take several days to recharge. Similarly, installing a very large battery behind a low-power inverter may add cost without significantly increasing the amount of power available at one time.

BMS Considerations for a 628Ah Battery

The BMS must be selected according to more than the 628Ah capacity printed on the cell.

Important factors include:

• 16S LiFePO4 compatibility
• Continuous charge and discharge current
• Peak current requirements
• Contactor-based or MOSFET-based architecture
• Temperature-sensor quantity and placement
• Active-balancing requirements
• Inverter communication protocol
• Pre-charge control
• External circuit breaker or fuse coordination
• Low-temperature charging protection

A large ampere-hour rating does not automatically require extremely high operating current. For example, a home inverter may only draw a fraction of the cell’s potential current capability.

However, the battery must still be designed for the maximum current that the inverter, charger, and connected loads can create.

The BMS should never be expected to compensate for poorly matched cells, incorrect busbars, loose terminals, insufficient cable size, or an unsuitable enclosure.

Mechanical Compression and Enclosure Design

Large prismatic LiFePO4 cells must be installed in accordance with the applicable manufacturer documentation.

The battery enclosure should provide:

• Controlled mechanical support
• Appropriate cell compression where required
• Electrical insulation between cells and the enclosure
• Terminal protection
• Secure busbar alignment
• Space for temperature sensors
• Protection from accidental tool contact
• A serviceable BMS and protection-device layout
• Structural support for transportation and operation

Too little mechanical support may allow unwanted cell movement or expansion. Excessive or uneven compression can also damage cells.

Do not copy compression values from another cell model simply because both cells use LiFePO4 chemistry. Follow the requirements for the exact MB56 generation and supplied cell.

Buying Considerations

The arrival of large-format cells creates new opportunities, but buyers should verify more than the capacity advertised by the seller.

Before ordering MB56 cells, confirm:

• The exact manufacturer and model
• Whether the cells are new and unused
• Production information and traceability
• The exact dimensions and terminal design
• Open-circuit voltage consistency
• Internal-resistance consistency
• Capacity-test information where available
• Cell matching across the complete set
• Packaging method for lithium battery transportation
• Warranty and damage-claim procedure
• Availability of a compatible battery box
• Availability of replacement cells in the future

The term “Grade A” should not be the only evidence used to judge cell quality. Identification, traceability, physical condition, test results, and supplier accountability provide more meaningful information.

Frequently Asked Questions

What is the nominal energy of one EVE MB56 cell?

At 3.2V and 628Ah, one cell contains approximately 2.01kWh of nominal energy.

How much energy do 16 MB56 cells provide?

A 16S configuration has a nominal voltage of 51.2V and nominal energy of approximately 32.15kWh. Actual usable energy depends on operating limits, inverter efficiency, BMS configuration, temperature, and system reserve settings.

Can the EVE MB56 be used for a home battery?

Yes, but it is best suited to large residential, off-grid, agricultural, or commercial systems. Its dimensions, weight, enclosure requirements, and handling difficulty make it less convenient for a conventional small DIY battery.

Will an MB56 fit a standard 280Ah or 314Ah battery box?

Generally, no. The MB56 is a different large-format cell and requires an enclosure specifically designed for its dimensions, terminals, weight, compression, busbars, and insulation.

Is one MB56 the same as two MB31 cells?

The nominal capacity is equivalent: one 628Ah MB56 has approximately the same ampere-hour capacity as two 314Ah MB31 cells connected in parallel. However, the physical design, internal construction, system integration, and mechanical requirements are not necessarily equivalent.

Is a 32kWh MB56 battery better than two 16kWh batteries?

It depends on the project. One large battery can reduce the number of complete battery systems and connections. Two smaller batteries may offer better redundancy, easier installation, and incremental expansion.

What size BMS is required for a 628Ah battery?

The required BMS current rating depends on inverter power, charging current, peak loads, and system design—not capacity alone. It should support 16S LiFePO4 operation, appropriate temperature monitoring, required communication, and coordinated overcurrent protection.

Is the MB56 suitable for a wall-mounted battery?

A complete 16-cell MB56 battery is generally too large and heavy for a conventional wall-mounted design. A floor-standing cabinet, reinforced enclosure, or fixed industrial installation is more appropriate.

Does the MB56 have a guaranteed number of cycles?

EVE has published long-cycle claims for the MB56 platform, but cycle figures must be interpreted according to the exact product generation and test conditions. Temperature, charge and discharge rate, voltage limits, compression, depth of discharge, and end-of-life criteria all affect cycle results.

Final Verdict

The EVE MB56 is not simply a larger DIY battery cell. It represents a broader industry move toward high-capacity cells and simplified energy-storage architectures.

Its 628Ah capacity allows a 16-cell battery to store approximately 32.15kWh of nominal energy, making it attractive for commercial storage, large off-grid systems, farms, workshops, microgrids, and high-consumption properties.

Its main advantages are:

• High energy per cell
• Fewer cells for large-capacity systems
• Potential reduction in system connections and monitoring points
• Large battery capacity without increasing the series cell count

Its main limitations are:

• Very high completed-system weight
• Need for a dedicated enclosure
• More difficult transportation and assembly
• Higher initial investment
• Reduced modularity compared with multiple smaller batteries
• Limited suitability for standard DIY battery boxes

For an ordinary 10–20kWh home battery, 280Ah or 314Ah cells are often easier to source, install, maintain, and expand.

For a project that genuinely requires approximately 30kWh or more, the MB56 can offer a practical route to high capacity—provided that the entire battery system is engineered around the cell rather than treating it as a drop-in replacement.

Before purchasing EVE MB56 cells, confirm the required capacity, inverter model, maximum current, installation location, floor loading, enclosure design, BMS communication, shipping method, and future expansion strategy.

For assistance selecting compatible EVE cells, battery enclosures, BMS solutions, or complete high-capacity energy-storage configurations, contact AmpBird with your project voltage, capacity, inverter model, installation country, and expected daily energy consumption.
