How Should a Small Business Size a LiFePO4 Backup Battery Without Oversizing?

Quick Answer: Size the Backup around Critical Business Operations

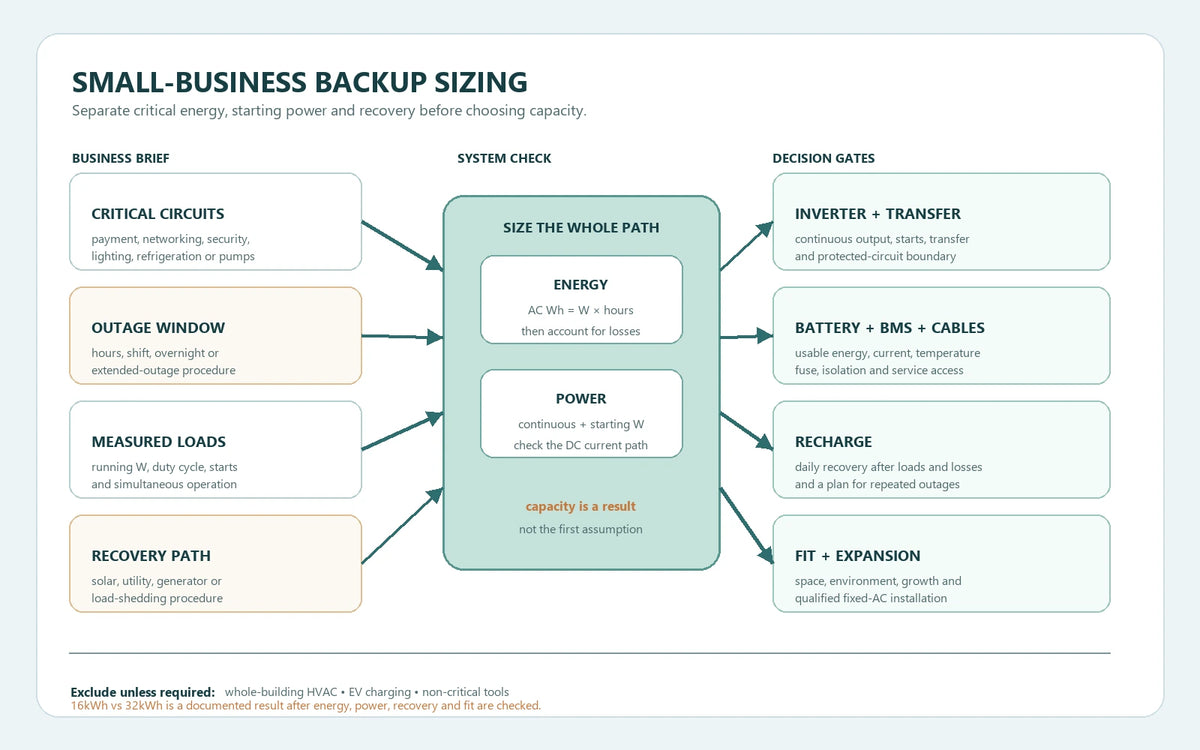

A small business should not size a LiFePO4 backup battery from the building's main-breaker rating or from every appliance that could be powered during an outage. Start with the operations that must remain available, define the required backup period, and then check energy, power, charging and installation as separate decisions.

Use this first-pass method:

Required nominal battery energy ≈ critical-load AC energy ÷ (inverter planning efficiency × permitted battery-use fraction)

For example, if a defined critical-load schedule consumes 7.2kWh of AC energy during the required backup period, an illustrative 90% inverter planning efficiency and 80% permitted battery-use fraction give:

7.2kWh ÷ (0.90 × 0.80) ≈ 10.0kWh nominal battery energy

That is an arithmetic example, not a universal small-business recommendation. The real brief must also check:

• the circuits that are genuinely business-critical;
• the continuous and starting power of motors, refrigeration or pumps;
• the inverter's continuous, peak and temperature-dependent output;
• battery, BMS, cable, fuse and isolation limits;
• whether solar, utility or generator charging can recover the energy;
• the required transfer behavior for computers, networking and payment equipment;
• the battery's temperature, moisture, ventilation and service environment; and
• fixed AC wiring, protection, earthing and local professional requirements.

If the business can temporarily stop non-essential loads, a smaller battery and a clearly defined critical-load panel may deliver more useful resilience than a larger battery connected to everything. The home battery storage sizing guide explains the general energy-accounting principle; this article applies it to business continuity and oversizing decisions.

1. Define What “Backup” Means for the Business

“Small business backup” can mean several different operating objectives:

• keep point-of-sale, internet and payment equipment online for a short interruption;
• keep refrigeration, security and communications available through a defined outage;
• finish a work shift while selected tools or production equipment remain available;
• protect data and provide an orderly shutdown rather than run the full premises;
• operate a remote office or service room until a generator or utility supply is restored; or
• continue selected operations during recurring grid constraints or scheduled outages.

These objectives produce different battery briefs. A shop that needs payment and refrigeration for four hours is not the same project as a workshop that wants to run compressors, welders or other high-power equipment for a full shift.

The technical report Battery Storage for Resilience treats critical load and anticipated outage duration as core sizing inputs, alongside the value of keeping those loads online. That is a useful discipline for a small business: decide what must continue before selecting storage.

Write the operating objective in one sentence

Before measuring the battery, complete this sentence:

“During an outage, this system must keep [specific circuits] running for [time or operating condition], while [specific loads] remain off or are supplied another way.”

Also record what happens if the outage lasts longer than the first target. A battery may cover the planned period, while a generator, utility restoration or a manual load-shedding procedure covers the extended case. Do not hide that second stage inside an unexplained capacity margin.

Separate continuity from full-building power

The backup output should normally feed selected circuits through equipment designed for that purpose. It should not silently become an assumption that the battery will energize the entire service entrance, every heating load, every workshop tool and every future appliance.

Business requirement	Usually belongs in the first sizing brief	Why it matters
Payment, point-of-sale and router	Yes, when sales continuity is required	Often low energy but sensitive to interruption and restart
Security, access control and monitoring	Yes, when the site must remain supervised	Standby consumption can run for many hours
Refrigeration or freezer equipment	Yes, when inventory protection is required	Average energy and compressor starting demand are separate checks
Essential lighting	Yes, but only the selected circuits	Lighting can be reduced by zone or operating schedule
Water pump or pressure system	Maybe	Starting power and duty cycle can dominate the inverter check
Large HVAC, electric heating or water heating	Usually a separate decision	These can consume more energy than the rest of the critical load
Welders, large compressors or machine tools	Only if explicitly required	Nameplate power alone does not prove battery or inverter suitability
EV charging or non-essential charging	Normally excluded	It can be scheduled when grid or solar power is available

The table is a planning framework, not an electrical design. The final circuit separation, transfer method, overcurrent protection, earthing and local compliance must be reviewed by a qualified professional.

2. Build a Critical-Load Register Before Choosing kWh

Use measured data where possible. A nameplate is a starting point, not a complete duty-cycle record. For each load, record the normal running watts, operating hours during the outage, standby watts, starting behavior, voltage and whether the circuit can be delayed or excluded.

Load or circuit	Running power	Hours in the backup window	Energy	Start or surge note	Criticality
Payment terminal, router and network switch	measured W	h	W × h	Usually low, but interruption may require ride-through	Tier A
LED lighting for the operating zone	measured W	h	W × h	Normally no motor start	Tier A or B
Security, alarm and monitoring	measured W	h	W × h	Standby energy can be continuous	Tier A
Refrigerator or freezer	average W	duty-cycle h	measured or estimated Wh	Compressor starts must be measured or documented	Tier A or B
Water pump	running W	duty-cycle h	W × h	Starting current and frequency matter	Tier B
Office equipment	measured W	h	W × h	Use a shutdown or sleep policy	Tier B
Tools, chargers or production equipment	measured W	h	W × h	Check simultaneous starts and schedule	Tier B or C

Calculate each row separately and add only the rows assigned to the defined backup output. If a refrigerator has an average consumption of 300W over a ten-hour period, that does not mean its compressor starts at 300W. Keep the average-energy calculation and the starting-power calculation in different columns.

Use three operating tiers

Tiering makes oversizing visible:

• Tier A — must remain online: payment, essential networking, security, control systems, selected lighting and inventory protection.
• Tier B — useful if energy and power allow: office outlets, selected tools, pumps or non-critical cooling.
• Tier C — excluded during an outage: electric heating, EV charging, large non-essential motors, high-power production equipment or loads that can wait.

The battery is sized first for Tier A. Tier B is tested as an operating option, not silently included in the base case. Tier C should have a clear manual or automatic exclusion method.

Record the actual operating pattern

A small business may have a high daytime load and a low overnight load. A single “daily average” can hide the period when the inverter is overloaded or the battery is drawn down fastest. Record at least:

• the first fifteen minutes after the outage;
• the busiest operating hour;
• the quietest overnight or closed period;
• any compressor, pump or motor restarts;
• scheduled battery charging;
• the time when staff can shed Tier B loads; and
• the condition that triggers generator or utility recovery.

This time profile is often more useful than adding a large capacity margin to an uncertain daily number.

3. Convert the Critical Loads into Battery Energy

For each selected circuit:

AC energy in watt-hours = average operating power in watts × operating hours

Then sum the rows:

Critical-load AC energy = sum of selected load energy

If the equipment data is uncertain, mark the row as an estimate and state what measurement would replace it. Do not present an estimated duty cycle as an AmpBird product specification or a runtime guarantee.

Illustrative small-business register

The following example represents a hypothetical retail or service room. The values are only for showing the calculation method:

Example load	Assumed average power	Backup hours	Arithmetic	AC energy
POS, router, payment and network equipment	120W	10h	120 × 10	1.20kWh
Essential LED lighting	300W	6h	300 × 6	1.80kWh
Security and monitoring	80W	10h	80 × 10	0.80kWh
Refrigeration average energy	400W	8h	400 × 8	3.20kWh
Label printer and small office equipment	50W	4h	50 × 4	0.20kWh
Illustrative total				7.20kWh

The refrigeration line still requires a separate compressor-start check. The total also assumes that the selected circuits are actually isolated from larger non-critical loads.

Add conversion and battery-use assumptions explicitly

Nominal battery energy is not the same as the energy delivered to AC loads. The design must account for:

• inverter and charger conversion losses;
• the battery-use fraction selected for the planning case;
• standby consumption from the inverter and controls;
• temperature-dependent behavior;
• the BMS's permitted operating boundary;
• the power level at which the system is expected to operate; and
• reserve policy for a longer outage or delayed recovery.

For the illustrative 7.20kWh AC total, using 90% planning efficiency and an 80% permitted battery-use fraction:

7.20kWh ÷ (0.90 × 0.80) ≈ 10.0kWh nominal

The example does not mean that a 10kWh product, a 16kWh product or any particular AmpBird system is automatically suitable. It only shows why the conversion assumptions must be visible. A real selection must use the exact battery, BMS, inverter, operating temperature and installation data.

The live 16kWh versus 32kWh home-battery comparison is useful for understanding capacity choices, but a small-business decision should still begin with the critical-load register rather than jump directly to one of those labels.

4. Check Power Separately from Energy

A battery can have enough kWh for a shift and still fail to start a compressor, pump or motor. Conversely, a large inverter can supply a short peak while the battery or BMS cannot provide the required DC current.

Check four power values:

1. Continuous AC load: the simultaneous running power of the selected circuits.

2. Starting or surge demand: the highest credible start or restart combination.

3. Battery-side current: the current required from the battery at the relevant voltage and efficiency.

4. Complete path limit: the lowest permitted limit among cells, busbars, BMS, fuse, breaker, cables, connectors, inverter and temperature conditions.

The LiFePO4 battery sizing guide for 5kW, 8kW and 10kW inverters covers the same power-versus-energy distinction from a general inverter perspective.

Use P = V × I as a screening calculation

For a 51.2V-class battery-side example, with an illustrative 95% conversion efficiency:

AC output example	Battery-side calculation	Approximate current
5kW	5,000 ÷ 0.95 ÷ 51.2	103A
8kW	8,000 ÷ 0.95 ÷ 51.2	165A
10kW	10,000 ÷ 0.95 ÷ 51.2	206A

These are rounded screening examples, not AmpBird BMS ratings, inverter recommendations or installation approvals. The actual minimum battery voltage, inverter efficiency, temperature, start duration and manufacturer limits may change the result.

Do not infer current capability from a battery's Ah label alone. A 16kWh battery with a lower permitted discharge current may not support the same load as another battery with a different BMS, cells, thermal condition and inverter path. The inverse is also true: a high-current BMS does not make every inverter, cable, fuse or AC circuit suitable.

Motor and compressor starts need evidence

For a pump, compressor, refrigeration unit or motor-driven machine, collect one or more of:

• a manufacturer start-current or locked-rotor specification;
• a power-quality logger or suitable measurement during a real start;
• a controlled test under the intended inverter;
• a soft-start or variable-speed controller specification; and
• the expected number of simultaneous starts.

If no evidence is available, label the start case as unresolved. Do not convert a nameplate running wattage into a universal surge number.

5. Keep Inverter, Transfer and Ride-Through Decisions Visible

Battery capacity does not determine how the business experiences an outage. Payment terminals, routers, computers and control equipment may need a defined transfer behavior, while motors may need a different starting strategy.

The U.S. Department of Energy describes a UPS as a system combining conversion, switching and energy storage to maintain load continuity when input power fails. That definition is helpful because it separates “battery energy” from the switching and power-conversion equipment around it. See the DOE UPS overview.

Before choosing an inverter or inverter/charger, record:

• whether the critical circuits are supplied from a dedicated backup output;
• expected transfer time and whether sensitive equipment tolerates it;
• continuous output at the actual ambient temperature;
• peak output duration and repeat behavior;
• AC input and generator limits;
• battery voltage range and minimum operating voltage;
• charger current and charging schedule;
• communication or control requirements with the BMS;
• neutral, earthing and transfer arrangement; and
• the service and isolation procedure.

As a technical example of why model-level checking matters, Victron's MultiPlus-II technical specifications list different battery-voltage ranges, continuous/peak output values, charge currents and temperature conditions across models. That page is not proof of an AmpBird compatibility claim; it is a reminder to use the exact inverter and battery documentation together.

The final fixed-AC design, transfer equipment, overcurrent protection and commissioning must be handled by an appropriately qualified installer under the rules that apply at the site.

6. Size the Recovery Path, Not Just the First Outage

A battery that covers one outage may still be poorly sized for repeated outages. Ask how the business will recover the energy:

• from solar during the next operating day;
• from utility power during a known charging window;
• from a generator through a compatible charger or inverter/charger;
• from a second controlled source; or
• by reducing Tier A and Tier B loads until service returns.

Use this screening equation:

Recoverable daily energy = usable PV or AC charging input − simultaneous load energy − charging and conversion losses

If the recovery path cannot replace the expected daily consumption, adding more battery only delays the low-state-of-charge event. The business may need a different operating schedule, more PV, an alternate charger, a generator procedure or lower critical-load energy.

Make the outage schedule operational

Event	Business action	Battery question
Utility fails	Critical circuits transfer or are isolated	Which loads actually remain online?
First high-load period	Staff postpone Tier B loads	Does the inverter handle the simultaneous start case?
Battery reaches the operating threshold	Start recovery or shed additional loads	Who makes the decision and what signal is used?
Generator or utility returns	Charger is enabled through the designed AC path	Are source, frequency, current and BMS permissions compatible?
Service restored	Record energy used, alarms and restart behavior	What evidence should change the next sizing review?

A generator must not be connected directly to a battery unless the equipment and design explicitly provide the required conversion and protection. In most systems it supplies a compatible AC charger or inverter/charger input, subject to the generator, charger, BMS and local electrical design.

The solar charging-time article for a 16kWh battery explains the energy-gap reasoning. The business version adds operating hours, critical-load priority and the cost of lost business if recovery is delayed.

7. Decide Whether the System Is Oversized

Oversizing is not simply “more kWh than the first arithmetic result.” A larger system can be justified by a documented expansion, longer outage objective, lower recovery resource or required reserve. It becomes difficult to defend when the extra capacity is compensating for missing load data or an unresolved inverter problem.

Signs the base case is probably oversized

• the calculation includes every circuit on the premises without a critical-load decision;
• electric heating, EV charging or large production tools are included because they are present, not because they must run;
• the design uses the service-entrance breaker as the battery power target;
• an arbitrary 50% or 100% margin hides unknown duty cycles;
• the battery is enlarged to compensate for an inverter that cannot start a motor;
• the capacity is selected before the backup duration is written down; or
• the system has no plan to recover after a cloudy day or repeated outage.

Signs a larger system may be justified

• the business has a measured Tier A energy requirement that exceeds the smaller option;
• a documented outage or recovery objective requires more usable energy;
• the site cannot reliably recharge before the next required operating period;
• a later expansion is specific, timed and included in the power/path review;
• the load profile has multiple verified starts that the inverter must support; or
• the selected product architecture is intentionally modular and the protection, communication and installation are designed for expansion.

The decision should show the baseline, the added requirement and the exact reason for the difference. “Bigger is safer” is not a sufficient engineering or purchasing explanation.

8. Match the Business Brief to an AmpBird Product Route

AmpBird's current pages provide several storage routes, but none of them is a universal small-business system approval. Use the business brief to determine which route deserves a quotation and exact-variant check.

51.2V-class DIY kit route

The AmpBird DIY battery kits collection is a starting point for a buyer who wants a kit-based project and can control the cell, enclosure, BMS and installation review. The current 51.2V 314Ah DIY LiFePO4 battery kit page identifies a specific 16S/51.2V-class kit and separates cells from kit hardware. The exact selected variant, cell identity, BMS configuration, inverter communication, charge settings, current path, dimensions and installation environment must be confirmed before ordering.

This route may suit a business that has a capable builder or installer and wants a documented, serviceable project. It is not automatically appropriate for a public-facing site, a code-sensitive installation or a business that cannot accept assembly responsibility.

Larger 32kWh-class battery-box route

The 32kWh 51.2V 628Ah DIY battery box is a larger-capacity route to inspect when the measured business brief needs more energy or a planned expansion. The product page itself does not replace a complete site design. Confirm the cell arrangement, BMS, charge and discharge limits, inverter path, protection, enclosure environment, handling and service access as one system.

Do not choose this route merely because the business has a large service entrance or because 32kWh sounds more resilient. If the critical-load register requires 10kWh nominal in the defined case, a 32kWh box still needs a clear operating reason and a compatible power/recovery plan.

Pre-assembled route

The pre-assembled 51.2V 330Ah 16.9kWh battery-pack listing is a different purchase route from a cell-and-box build. It may reduce assembly work, but the selected listing and documentation still need to be checked for exact nominal and usable energy, BMS protocol, charge settings, current limits, low-temperature behavior, physical installation and service responsibility.

The AmpBird home battery systems collection can provide broader context, but a small-business buyer should request a project-specific review rather than assume a residential listing is automatically a commercial installation.

9. Prepare an Inquiry-Ready Business Battery Brief

A useful request for quotation should let the supplier separate energy, power, recovery and installation questions. Send:

1. Business type, operating hours and whether the site is occupied overnight.

2. Site country/region and the intended installation environment.

3. The Tier A, Tier B and Tier C circuit list.

4. Measured or documented running watts and hours for each Tier A load.

5. Motor, compressor or pump starting evidence.

6. Required outage duration and the consequence of an extended outage.

7. Inverter or inverter/charger model, AC voltage, phase arrangement and transfer requirement.

8. Existing solar array, MPPT or charger information and the expected recovery window.

9. Generator or utility charging source, if any.

10. Preferred DIY or pre-assembled route and who will perform assembly or fixed installation.

11. Battery location, ambient temperature, moisture, ventilation, cable length and service access.

12. Expansion plan, if it is specific enough to affect the initial BMS, protection and enclosure choice.

If a quotation contains only voltage, Ah and a price, ask for the missing current limits, usable-energy assumptions, included hardware, cells, BMS, inverter communication, protection boundary, delivery scope and installation responsibilities. The AmpBird contact page is the appropriate route for a project-specific review.

10. Common Small-Business Backup Mistakes

Mistake 1: Sizing from the main breaker

The service rating describes the building's possible electrical supply, not the selected outage load. Use the critical-load register and the inverter's simultaneous-load requirement.

Mistake 2: Treating Ah as runtime

Ah without voltage, permitted use, conversion efficiency, current limit and load profile does not determine runtime. Normalize the energy in Wh or kWh first.

Mistake 3: Ignoring the first restart

A compressor or pump may start immediately after transfer, when other loads are also active. Model the restart combination instead of using only the average daily energy.

Mistake 4: Adding battery capacity to solve a power problem

More kWh does not automatically increase inverter surge output, BMS current or cable capacity. Fix the power path or change the load schedule.

Mistake 5: Forgetting standby energy

Monitoring, inverter search, networking and control equipment may run even when the business is closed. Include their real duty cycle in the register.

Mistake 6: Assuming a generator is a direct battery charger

The generator, AC input, charger or inverter/charger, BMS and transfer system must be designed together. Direct battery connection is not a generic procedure.

Mistake 7: Treating a product title as a system guarantee

“16kWh,” “32kWh,” “200A” or “compatible” in a product presentation does not answer the complete business question. Verify the selected variant and the exact installation boundary.

Mistake 8: Using the largest system to avoid collecting data

A larger box can increase cost, handling, protection and service requirements. Better measurements and a clear load-shedding procedure often create more practical value.

Frequently Asked Questions

How large should a LiFePO4 battery be for a small business?

There is no universal size. Calculate the energy of the selected critical circuits during the defined outage window, account for conversion and permitted battery use, then check continuous power, starting power, recovery and installation. A 16kWh or 32kWh label is a route to inspect, not an automatic answer.

Is a 16kWh battery enough to run a small shop?

It depends on the shop's critical-load energy, operating hours, inverter, starting loads, permitted battery-use fraction and recovery plan. It may be more than enough for payment, networking, lighting and selected refrigeration in one case, and insufficient for HVAC or production equipment in another.

Should I back up the whole building or only critical circuits?

For many small-business projects, start with selected critical circuits. Whole-building backup can be appropriate, but it must be justified by measured energy, power, wiring, protection, transfer and installation requirements rather than assumed from the service rating.

Can a LiFePO4 battery run a refrigerator or freezer during an outage?

It can be possible for a specific battery, inverter and appliance combination. Check average energy, compressor start, repeated restarts, minimum battery voltage, BMS current, inverter surge, cables and protection. Do not size from the refrigerator's running wattage alone.

How do I size the inverter for a small-business battery?

Add the simultaneous continuous load, then check the highest credible starting combination and the inverter's temperature-dependent and time-limited output. Confirm that the battery, BMS, fuse, cables and connectors can provide the required DC current. The battery's kWh capacity does not set inverter power by itself.

Does a bigger battery provide more backup power?

It provides more stored energy only if the complete system permits that energy to be delivered. It does not automatically increase AC output power, surge capability, BMS current or circuit capacity. Energy and power must be sized separately.

Can solar recharge a business backup battery during the same day?

It may, but calculate the expected PV recovery for the actual site, month, array, shade, MPPT and load schedule. If the business consumes more energy than the charging path can recover, a larger battery delays depletion rather than removing the deficit.

Can I use a generator with a LiFePO4 backup battery?

Usually the generator supplies a compatible charger or inverter/charger through a controlled AC path. Verify source voltage/frequency, input current, charger settings, BMS permissions, transfer behavior, grounding, start/stop and local installation requirements. Do not connect a generator directly to the battery as a generic shortcut.

Is a DIY battery kit suitable for a business?

It depends on the builder's capability, the installation environment, service responsibility, local requirements and the exact kit variant. A DIY kit can provide flexibility, but cells, BMS, protection, assembly, commissioning, documentation and support must be treated as one project.

Is a pre-assembled battery always better for a small business?

Not always. It may reduce assembly work, but the buyer still must verify usable energy, BMS and inverter communication, current limits, temperature behavior, installation and service. The best route is the one that matches the business brief and responsibility boundary.

How much reserve should a small business keep?

Choose the reserve from the consequence of lost operation, the outage history or planning scenario, the recovery time and the alternate source. State the reserve assumption explicitly instead of adding an unexplained percentage. A reserve cannot compensate for a daily energy deficit or an undersized inverter.

What information should I send AmpBird for a battery recommendation?

Send the site region, operating schedule, critical-load register, measured running and starting power, outage target, inverter/charger and solar details, generator or utility source, battery location, protection and installation boundary, expansion plan and preferred DIY or pre-assembled route. Use the AmpBird contact page for the inquiry.

A Practical Decision Rule

Choose the smallest system that satisfies the documented critical-load energy and power case with a stated reserve and a workable recovery path. Move to a larger capacity only when the measured load, outage objective, recharge limitation or documented expansion requires it.

For AmpBird, the next step is not to select a battery from an Ah number alone. Send the business brief so the cells or pack, BMS, inverter, charging sources, protection, enclosure and service boundary can be checked together. That process is more likely to produce a reliable quotation than a generic “how many kWh do I need?” request.

If you want AmpBird to review the project, use the AmpBird contact page and include the worksheet above. Education and verification come before a product recommendation; the final system still requires exact-variant documentation and qualified site installation.

Technical References

• Battery Storage for Resilience technical report
• U.S. Department of Energy: Uninterruptible Power Supplies
• Victron MultiPlus-II 230V technical specifications
