LiFePO4 Battery Charge Rate: How to Read C-Rate Before You Buy

Many LiFePO4 listings show a C-rate, a maximum charging current or both. Buyers then ask a reasonable question: How fast will this battery actually charge? The answer cannot be taken from one number in a product title. Charge speed is limited by the complete path from the charging source to the cells.

The cell datasheet defines one boundary. The battery's BMS, charger or inverter, temperature, state of charge, wiring and configured settings define others. A high-current label does not mean that every system should charge at that current, and a large solar array cannot force more power into a battery than the most restrictive part of the system allows.

This guide explains how to read charge rate and C-rate before buying LiFePO4 cells, a DIY kit or a complete battery. The calculations are planning examples only; use the current manufacturer document and the exact battery variant for a real design.

Quick Answer

Use this sequence:

1. Convert C-rate to current: charge current in amps ≈ C-rate × rated capacity in Ah.

2. Convert current to approximate DC power: power ≈ battery voltage × current.

3. Compare the result with every system boundary: cell, BMS, charger/MPPT, inverter, cables, fuses, temperature and settings.

4. Check the charging window and energy gap: the required current depends on how much energy must be replaced and how much time is available.

5. Expect the final part of charging to change: voltage and state-of-charge control can reduce current near the upper limit.

For illustration, a 314Ah cell at 0.5C corresponds to approximately 157A under the conditions where that C-rate is defined. In a nominal 51.2V 16S arrangement, that is about 8.0kW of ideal DC power before losses and system limits. It is not a universal recommendation for an AmpBird battery, a BMS or an inverter.

What Does C-Rate Mean?

C-rate expresses current relative to a battery's rated capacity. A rate of 1C means a current numerically similar to the rated Ah value; 0.5C is half that value; 0.2C is one-fifth. The simple relationship is:

Current (A) ≈ C-rate × rated capacity (Ah)

The word “approximately” matters. A datasheet may define the rate using a particular test temperature, state of charge, voltage window, charge method or duration. Some documents use a multiplier notation rather than the letter C. Read the definition in the current manufacturer document before comparing two products.

Also separate charge C-rate from discharge C-rate. A cell may have different permitted charge and discharge limits. A battery designed for a high inverter load is not automatically designed to accept the same current from a charger.

A 314Ah Example: From C-Rate to Amps and kW

The table below uses a 314Ah value only to show the arithmetic. It does not state the permitted charge current of any particular cell or AmpBird product.

| Illustrative rate | Calculation | Approximate current |

|---|---:|---:|

| 0.1C | 0.1 × 314Ah | 31.4A |

| 0.2C | 0.2 × 314Ah | 62.8A |

| 0.5C | 0.5 × 314Ah | 157A |

| 1.0C | 1.0 × 314Ah | 314A |

If the same current is considered in a nominal 51.2V 16S LiFePO4 configuration, the idealized DC power is:

Power (kW) ≈ 51.2V × current (A) ÷ 1,000

That produces approximately 1.61kW at 0.1C, 3.22kW at 0.2C and 8.04kW at 0.5C. These are mathematical conversions, not a statement that the cells, BMS, inverter, charger, cables or battery enclosure are rated for those values.

The calculation is still useful. It shows why a charge current that looks modest at cell level can become several kilowatts in a 48V-class system, and why the current path must be checked before a buyer selects a charger or solar controller.

Charge Rate Is Not the Same as Charging Time

Charge rate describes a current relative to capacity. Charging time depends on the energy gap, effective charging power and charging behavior.

A simplified estimate is:

Theoretical time (hours) ≈ energy to replace (kWh) ÷ effective battery charging power (kW)

For example, if a system needs to replace 8kWh and the battery receives an illustrative average of 4kW, the linear estimate is 2 hours. The result may be longer because:

• solar output changes during the day;
• household loads consume part of the available generation;
• conversion and cable losses reduce power reaching the battery;
• the battery or BMS limits current;
• the charger or inverter has its own output limit;
• temperature protection reduces or stops charging; and
• current may taper near the upper voltage or state-of-charge limit.

The solar recharge-time guide covers the energy-gap and charging-window question. This article focuses on the current boundary behind the charging-power number.

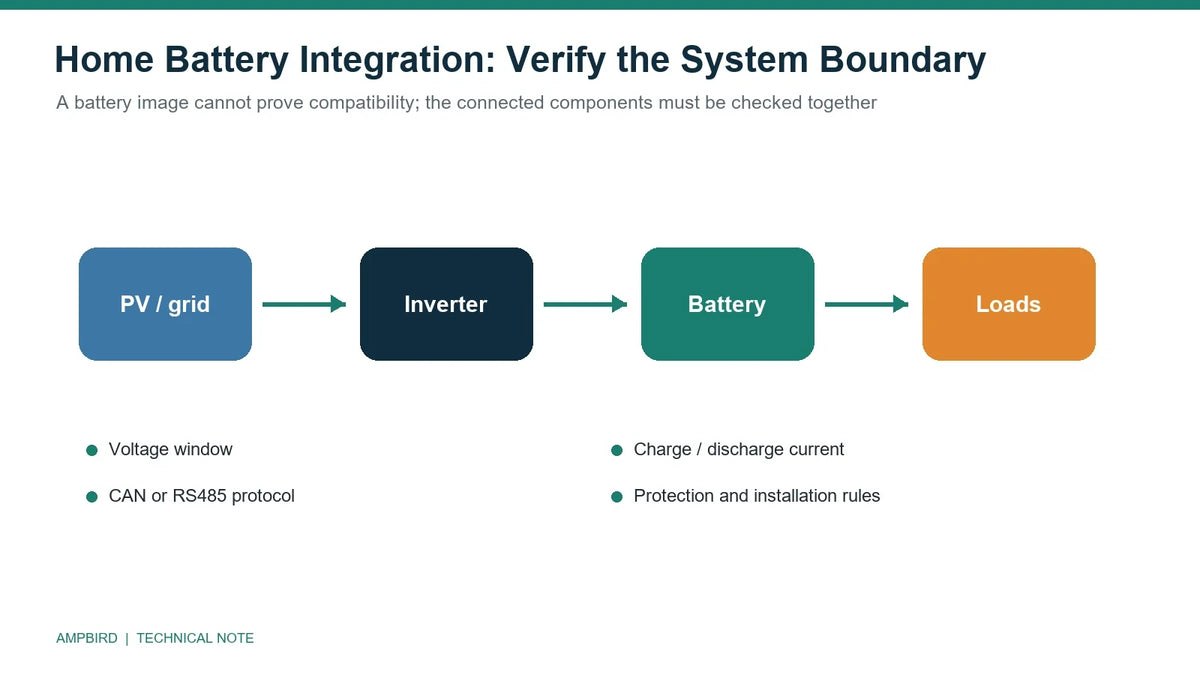

The Lowest Limit Controls the Real Charge Rate

The practical battery charge rate is not necessarily the largest number printed on a cell datasheet. Think of the system as a chain:

PV, grid charger or alternator → charger/MPPT/inverter → cables and protection → BMS → cells

The usable charging current is constrained by the lowest applicable limit in that chain, after the settings and operating conditions are considered.

| Boundary | Question to verify |

|---|---|

| Cell | What charge current is permitted for the exact model, temperature and voltage window? |

| Battery configuration | Are the cells in the intended series/parallel arrangement, and does the rating change with configuration? |

| BMS | What continuous charge current, temperature cutoff and balancing behavior apply to this variant? |

| Charger, MPPT or inverter | What charging power and battery-side current can the exact model deliver? |

| Cables, busbars and fuses | Can the complete current path carry the intended current with acceptable voltage drop and protection? |

| Temperature | Does the system reduce or block charging at low or high temperature? |

| Settings and communication | Are charge voltage, current, protocol and control settings correct for the battery? |

| State of charge | Does the system taper current near the upper voltage or charge limit? |

If any one of these is unknown, the correct answer is not “use the maximum C-rate.” The correct answer is to obtain the missing model-specific information.

How to Choose a Charge Rate for Solar Storage

For a home or off-grid battery, start with the energy that must be replaced rather than the battery's nameplate capacity.

Step 1: Measure the daily energy gap

Estimate how many kWh the battery normally supplies and how much of that energy solar is expected to replace. A battery that is used only from late afternoon to early morning may need far less daily charging energy than its full nominal capacity.

Step 2: Identify the useful charging window

The available window may be the period when solar output is high enough after daytime household loads are supplied. It is not automatically the total number of daylight hours.

Step 3: Estimate the effective charging power

Divide the energy gap by the useful window, then add a realistic allowance for losses and variable generation. This gives a planning target for battery-side power, not a command to charge at that power in every condition.

Step 4: Convert power to current

For a nominal 51.2V battery, an illustrative 4kW battery-side target would be:

4,000W ÷ 51.2V ≈ 78A

The current changes as battery voltage changes, so use the exact operating range for final design. The nominal-voltage calculation is a first check, not a protection-setting instruction.

Step 5: Compare the target with the exact limits

Check the cell charge limit, BMS rating, charger/MPPT/inverter battery-side output, cable and protection design, temperature range and communication settings. If the source can provide more power than the battery can accept, the control system must limit the charge current.

Step 6: Check recovery after poor weather

An off-grid system may need to recover energy after several low-production days. That can change the required charging window, solar-array size, generator strategy or battery reserve. Do not solve a seasonal energy problem only by choosing a higher C-rate.

Why a Bigger Solar Array Does Not Automatically Mean Faster Charging

Solar-panel nameplate power is not the same as power delivered to the battery. The actual path includes irradiance, temperature, orientation, MPPT conversion, inverter limits, daytime loads and battery acceptance.

If the array can produce more power than the charger or battery can accept, the extra potential is curtailed or used by other loads. If the array is too small or the charging window is short, a battery with a high theoretical C-rate may still charge slowly because not enough source energy is available.

Use the home-battery solar-sizing guide to estimate daily generation. Then use the charge-rate calculation to check whether the charger and battery can accept the required instantaneous power.

Cell Charge Rate Versus Pack and BMS Charge Rate

The cell's C-rate is only one input to a finished battery. A 16S1P pack built from cells in series keeps the same Ah rating as one cell, while voltage increases. A parallel arrangement changes the pack capacity and current path. The BMS must be suitable for the resulting pack and its charge source.

The BMS may also limit current for reasons that are not visible in the cell's headline specification:

• a temperature sensor detects a prohibited charging condition;
• one cell reaches a voltage limit before the others;
• the BMS has a lower hardware or configured charge-current boundary;
• balancing or protection logic is active; or
• communication with the inverter or charger is missing or reports a restricted state.

That is why a “high-current BMS” does not automatically make a high-rate charging system. The cell, BMS, charger, wiring and control profile must be treated as one design.

Charge Rate in Different AmpBird Buying Paths

The right verification questions depend on what you are buying.

| Buying path | Charge-rate questions to settle |

|---|---|

| Loose LiFePO4 cells | Exact cell model, charge test conditions, permitted charge current, temperature limits, series/parallel configuration and enclosure/current-path design |

| DIY battery kit | Which hardware is included, which cell variant is intended, BMS charge limit, charger/inverter settings, protection and commissioning responsibility |

| Pre-assembled home battery | Battery-level continuous charge limit, communication protocol, charge settings, temperature behavior, installation requirements and exact inverter compatibility |

| RV, marine or off-grid project | Alternator/charger/MPPT output, cable length and protection, low-temperature operation, daily energy gap and recovery strategy |

AmpBird's LiFePO4 cells collection, DIY battery kits collection and home battery systems collection represent different product scopes. Do not transfer a cell-level C-rate directly to a complete battery or assume that every kit variant has identical charging limits.

For example, the EVE MB31 314Ah product page helps identify a current cell product route, but the final charge-rate decision still requires the current manufacturer document and the exact supplied model/lot.

What to Ask Before Buying

Ask the supplier to answer these questions against the exact product and variant:

1. What is the exact manufacturer and model number?

2. Is the stated C-rate for charge, discharge or both?

3. Is it a continuous limit, a short-duration limit, a test condition or a typical value?

4. What capacity, voltage cutoffs, temperature and state of charge were used?

5. What charge current applies to the cell, complete battery and BMS?

6. What does the charger, MPPT or inverter deliver at the battery side?

7. What happens at low temperature, high temperature or near the upper charge limit?

8. Is communication required to permit the stated charge current?

9. Which cable, fuse, breaker and disconnect assumptions are included?

10. Which figures apply to the selected variant rather than a product family?

If the answer is only “1C maximum” without the conditions and product scope, the information is incomplete. Record the missing fields rather than turning a marketing headline into a design value.

Common Charge-Rate Mistakes

Mistake 1: Treating C-rate as a guaranteed charging speed

C-rate is a current relationship. It does not guarantee that the charger can provide that current or that the battery will accept it throughout the charge.

Mistake 2: Using the discharge rating as the charge rating

Charge and discharge can have different limits. Check the correct column and operating condition.

Mistake 3: Using the inverter's AC output rating

An inverter's AC output power describes the load side. It does not automatically define its battery charging power or battery-side current.

Mistake 4: Ignoring temperature

A charge limit that applies at a moderate test temperature may not apply when the cells are cold or hot. Confirm the control response, not only the normal-range number.

Mistake 5: Applying a cell rating to a complete battery

The BMS, wiring, protection, communication and configuration can impose lower limits.

Mistake 6: Sizing only for a perfect sunny day

Seasonal generation and the required recovery after poor weather can matter more than the maximum midday rate.

Mistake 7: Assuming a larger Ah battery must charge at a higher C-rate

A larger battery may need more kWh to refill, but the appropriate current depends on the energy gap, charging window and exact system limits. C-rate is not a substitute for system sizing.

A Practical Pre-Order Worksheet

Copy this table into your inquiry or design notes:

| Field | Value to record | Evidence needed |

|---|---|---|

| Cell or battery model | | Exact quotation and label |

| Rated capacity | | Current manufacturer datasheet |

| Charge C-rate | | Charge column and test conditions |

| Charge current | | Cell and battery/BMS values |

| Nominal and operating voltage | | Datasheet and inverter range |

| Required energy replacement | | Measured load and backup goal |

| Useful charging window | | Solar profile or charger schedule |

| Charger/MPPT/inverter output | | Exact model manual |

| Low-temperature behavior | | BMS, heater and installation information |

| Cable and protection boundary | | Current-path design |

| Communication requirement | | Protocol and supported profile |

| Unresolved item | | Written supplier or installer answer |

The goal is not to select the largest charge current. The goal is to select a rate that the source, battery and protection system can support under the conditions in which the project will operate.

Frequently Asked Questions

What is a good LiFePO4 battery charge rate?

There is no universal value. Start with the exact cell or battery datasheet, then compare the required energy and charging window with the BMS, charger, inverter, temperature and wiring limits. A rate that is suitable for one model or application may not be suitable for another.

How do I calculate LiFePO4 charging current from C-rate?

Multiply the stated C-rate by the rated capacity in Ah. For an illustrative 314Ah value, 0.5C is about 157A. Confirm that the rate is a charge rate and that the capacity and test conditions match the product you are buying.

How fast can a 314Ah LiFePO4 battery charge?

The capacity label alone cannot answer that. You need the exact cell or battery charge-current limit, BMS limit, charger or inverter output, temperature range, voltage window and charge-control settings.

Is 1C charging safe for LiFePO4?

Do not assume so. Whether 1C is allowed depends on the exact model and conditions. A seller's maximum value is not automatically the recommended continuous value for a complete battery system.

Does a 5kW inverter charge a battery at 5kW?

Not necessarily. The inverter may have a separate charging-power or battery-current limit, and the battery/BMS may impose a lower boundary. Check the exact inverter manual and battery configuration.

Does a bigger solar array charge a battery faster?

Only when the battery, charger and system can accept the additional power and the array has enough output during the useful charging window. Otherwise, the extra potential may be limited or used by daytime loads.

Why does charging slow down near full?

Charging controls may reduce current near the upper voltage or state-of-charge limit to keep the cells inside their permitted boundary. The final part of a charge therefore may take longer than a simple kWh-divided-by-kW estimate.

Does a high-current BMS allow high-rate charging?

No. The cell charge limit, BMS settings, charger, cables, protection, temperature and communication profile all still need to agree. The lowest applicable limit controls.

Should I choose a battery with a higher C-rate?

Only if the project genuinely needs the charging or discharging power and the complete system can support it. A higher headline rate can add cost or integration requirements without solving an energy-shortage problem.

What should I send AmpBird for a charge-rate recommendation?

Send the exact cell or battery model, daily energy gap, charging source, useful charging window, inverter/charger model, installation temperature and desired backup behavior. If the product is a DIY kit, include the intended cell configuration and BMS variant.

Final Recommendation

Read C-rate as a starting point for a current calculation, not as a promise of charging speed. Calculate the current, translate it into approximate battery-side power, then check the exact cell, BMS, charger, inverter, temperature, wiring, protection and control settings. Finally, confirm that the available solar or charging window can replace the energy you actually use.

If you are comparing loose cells, a DIY kit or a complete home battery, contact AmpBird with the worksheet above. A defined project brief makes it possible to discuss a realistic charge-rate boundary instead of repeating an unsupported maximum number.
