How to Read a LiFePO4 Cell Datasheet Before Ordering

A LiFePO4 cell datasheet is useful only when you read the number together with its definition and test condition. A capacity value without a discharge current, cutoff voltage and temperature does not tell you how much energy a finished battery will deliver. A cycle-life headline without depth of discharge and end-of-life criteria does not predict the life of your specific pack.

Before ordering cells, verify the exact model first. Then read the electrical values, test conditions, mechanical drawing, temperature limits, cycle-life method and traceability requirements as one connected set. This prevents a common buying mistake: comparing attractive numbers from different manufacturers as if they were measured under the same conditions.

This guide is for buyers, DIY builders and small integrators who need a practical way to review a cell datasheet. It does not replace the current manufacturer document, the exact purchase lot or a qualified design review.

Quick Answer: Read the Datasheet in This Order

Use this sequence before comparing price or capacity:

1. Identity: confirm manufacturer, model, revision, chemistry and intended application.

2. Nominal values: separate nominal voltage, rated capacity and nominal energy from operating limits.

3. Test conditions: record charge current, discharge current, voltage cutoffs, temperature, rest time and test method.

4. Current and C-rate: translate the stated rate into current only after confirming which capacity and test conditions it uses.

5. Physical fit: check dimensions, weight, terminal position, bolt pattern, venting and compression requirements.

6. Temperature: distinguish charge, discharge, storage and test-temperature limits.

7. Cycle life: record depth of discharge, rate, temperature, end-of-life definition and control method.

8. Evidence: request the applicable revision, batch traceability, test reports and transport or safety documents.

If any of these fields is missing, mark it as an open question rather than filling it with a generic value from another cell.

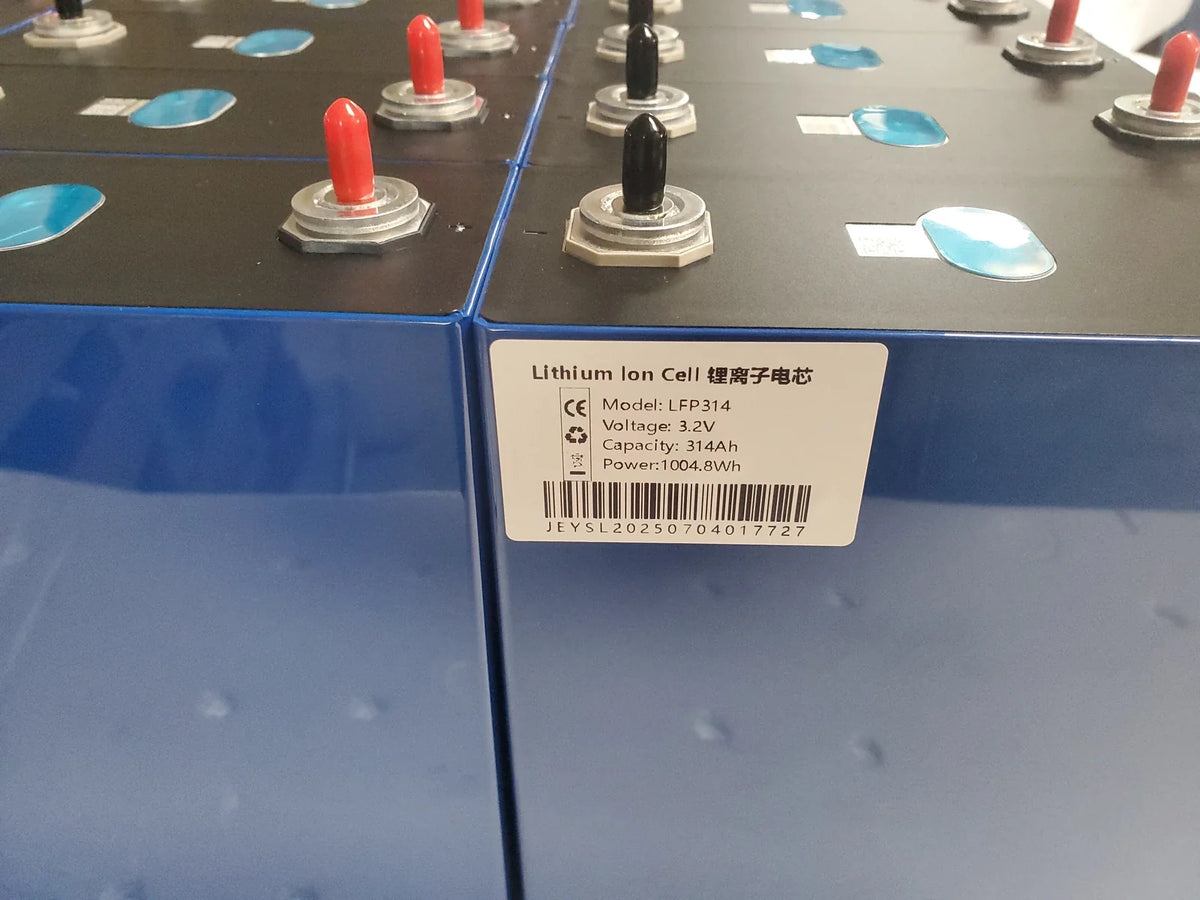

1. Confirm the Exact Cell Identity

Start at the top of the datasheet and compare it with the label, quotation and product page. Record:

• manufacturer and legal entity;
• exact model name and model suffix;
• datasheet revision and publication date;
• cell chemistry and form factor;
• nominal voltage;
• rated capacity;
• dimensions and weight; and
• intended application, such as energy storage, traction or another duty cycle.

“314Ah LiFePO4 cell” is not a complete identity. Different models can share a capacity class while using different dimensions, terminals, current limits, test conditions or production revisions. The model code should appear consistently on the datasheet, quotation, carton records and the physical cell label where applicable.

For example, the official EVE MB31 product page identifies the MB31 as a prismatic LFP cell and publishes model-level values including nominal capacity, nominal voltage, dimensions, weight and a stated charge/discharge multiplier. Those values are useful for understanding how a manufacturer structures a specification, but they should not be copied to another model or treated as a universal LiFePO4 rule. EVE MB31 manufacturer information

2. Separate Nominal Values From Operating Limits

Datasheets commonly place several different voltage and capacity concepts near each other. Keep them separate in your worksheet.

| Field | What it describes | What it does not prove |

|---|---|---|

| Nominal voltage | A reference value used to describe the cell and pack configuration | The highest charge voltage or the entire operating range |

| Rated capacity | Capacity measured under a stated test method | Usable energy in every installation |

| Nominal energy | A planning calculation such as nominal voltage × rated capacity | Guaranteed delivered energy at a chosen load |

| Charge voltage limit | A boundary for the specified charge method or operating condition | A recommendation to use the limit without the BMS and charger instructions |

| Discharge cutoff | A boundary used in a test or operating specification | The reserve level appropriate for every system |

| Maximum charge/discharge current | A limit under a defined condition | A safe current for every temperature, cable or pack design |

For a series pack, cell voltage adds while the Ah rating of a 16S1P string remains the Ah rating of one cell. That is a configuration calculation, not a replacement for the exact cell and BMS documentation. The battery pack’s usable energy also depends on reserve, voltage window, temperature, inverter efficiency and current demand.

3. Find the Test Conditions Behind the Capacity Number

Capacity is meaningful only with its test conditions. Look for:

• charge method and charge current;
• charge cutoff voltage;
• rest time before discharge;
• discharge current or C-rate;
• discharge cutoff voltage;
• ambient or cell temperature;
• humidity or conditioning requirements where stated;
• measurement accuracy or tolerance; and
• whether the value is typical, rated, minimum or guaranteed.

Two cells can both be called 314Ah while their published capacity figures were measured at different rates, cutoff voltages or temperatures. The numbers are not directly comparable until the conditions are normalized.

Do not turn a datasheet’s rated capacity into a promise that a finished pack will deliver that amount to an inverter. The pack may use a different current, a different cutoff, a reserve setting, a BMS limit and conversion losses.

4. Understand C-Rate Before Converting It to Amps

C-rate expresses current relative to a cell’s rated capacity. As a simple planning relationship:

Current in amps ≈ C-rate × rated capacity in Ah

For a 314Ah cell, 0.5C would be approximately 157A under the conditions where that rate is defined. This is an illustrative conversion, not a universal recommendation for a particular EVE, CATL, CALB or other cell model.

Before using the calculation, confirm:

• whether the datasheet uses C-rate or a multiplier notation such as 0.5P;
• whether the value applies to charge, discharge or both;
• continuous or short-duration duty;
• cell temperature and cooling conditions;
• the permitted voltage window;
• whether the value is a rated limit, typical performance or test condition; and
• the BMS, busbar, fuse, cable and inverter limits in the finished pack.

A cell current figure does not automatically become the allowable current for a 16S battery. The complete system must remain inside the most restrictive relevant boundary.

5. Check Internal Resistance Without Treating It as a Universal Pass/Fail Number

If the datasheet lists internal resistance, read the measurement method before comparing it. Record:

• the resistance type and measurement method;
• AC or DC measurement, if stated;
• test frequency or pulse duration;
• temperature and state of charge;
• rest time and conditioning;
• typical, maximum or guaranteed status; and
• measurement tolerance.

Internal-resistance values can change with temperature, state of charge, contact quality, instrument method and cell history. A resistance value printed in a seller listing is not enough to prove that a delivered batch matches the manufacturer’s test method.

For a shipment or matched set, use one consistent method across all cells and retain the raw readings. Investigate outliers rather than hiding them with an average. The Grade A LiFePO4 cell guide explains why traceability and test evidence matter more than a label alone.

6. Read the Mechanical Drawing, Not Only the Headline Dimensions

Before ordering a cell for a DIY enclosure, obtain the mechanical drawing and check:

• length, width and height tolerance;
• terminal height and center-to-center spacing;
• terminal thread, bolt size and tightening requirements;
• positive and negative terminal orientation;
• vent location and keep-clear area;
• label or QR-code position if it affects mounting;
• weight and support points;
• insulation and separator requirements; and
• compression direction and manufacturer guidance.

A cell described as “280Ah,” “314Ah” or “334Ah” is not automatically interchangeable with every enclosure marketed for the same capacity range. A few millimeters can affect busbar alignment, compression, lid clearance and the ability to route BMS cables safely.

The current AmpBird EVE MB31 314Ah LiFePO4 cell page is a product-level reference, not a substitute for the manufacturer’s current datasheet or the enclosure drawing. If the cell will be used in an AmpBird kit, confirm the exact cell and kit variant together before ordering.

7. Separate Charge, Discharge, Storage and Test Temperature

A datasheet may list several temperature ranges. Label each one:

• permitted charge temperature;
• permitted discharge temperature;
• storage temperature;
• test temperature;
• recommended conditioning or preheating range; and
• transport or packaging conditions, if separately stated.

Do not use the discharge range as permission to charge at the same temperature. Low-temperature charging may require a BMS cutoff, heating control or a warmer installation environment. The battery pack design must also consider sensor placement, heater power and inverter settings.

If a supplier provides a single broad “operating temperature” line, ask whether it combines charge and discharge or omits a separate charging boundary.

8. Interpret Cycle-Life Claims by Their Conditions

Cycle life is a test result, not a universal service-life promise. Record:

• charge and discharge rate;
• depth of discharge or voltage window;
• charge and discharge temperature;
• rest time and control method;
• end-of-life capacity or resistance criterion;
• whether the result is typical or guaranteed; and
• whether the test used a single cell, module or complete battery.

For example, a manufacturer may publish a high cycle count under a specific rate, temperature, depth-of-discharge window and end-of-life definition. That does not prove the same number under a different home-storage load profile, temperature, reserve or BMS configuration.

Use cycle life to compare like-for-like test conditions. Do not use it as the only reason to choose a cell or as a guarantee of years of service.

9. Check Safety, Transport and Traceability Documents

Before placing an order, ask which documents apply to the exact model and shipment:

• current technical datasheet and revision;
• safety or handling instructions;
• model and production-batch information;
• QR-code or serial-number traceability;
• capacity, matching or inspection records where offered;
• transport documents required for the route;
• relevant test or certification evidence; and
• packaging and storage instructions.

The document must apply to the exact cell model, not just to a manufacturer family or a different capacity. A certification logo in a marketing image is not a substitute for a document that identifies the product scope and validity.

10. Build a Datasheet Comparison Worksheet

Copy these fields into a comparison table before choosing between two cells:

| Verification field | Cell A | Cell B | Evidence or question |

|---|---|---|---|

| Manufacturer and model | | | Exact model and revision? |

| Chemistry and nominal voltage | | | Same chemistry and pack design? |

| Rated capacity | | | Same test current, cutoff and temperature? |

| Charge/discharge current | | | Continuous or pulse? Rated or typical? |

| Internal resistance | | | Same method and state of charge? |

| Dimensions and terminals | | | Fits the exact enclosure and busbars? |

| Charge temperature | | | Does winter operation require heating or cutoff? |

| Discharge temperature | | | Does it match the installation environment? |

| Cycle-life conditions | | | Same rate, DoD and end-of-life criterion? |

| Traceability | | | Batch, QR code and test records available? |

| Documents | | | Current revision and exact model? |

If a field is missing, write “not confirmed.” That is more useful than giving an apparently precise score based on assumptions.

Common Datasheet Reading Mistakes

Comparing Ah values without comparing test conditions

The same capacity label can represent different current, cutoff and temperature conditions.

Treating nominal voltage as a full operating range

Nominal voltage is a reference value. The BMS and inverter must be configured for the permitted range of the actual cell and pack.

Converting a C-rate into a BMS size automatically

The BMS must also match the inverter, cells, cables, protection, temperature and communication requirements.

Assuming dimensions are interchangeable

Terminal position, height, compression and service clearance can matter more than the printed Ah label.

Using a cycle-life number as a guarantee

Without the test conditions and end-of-life definition, the number is incomplete.

Treating “Grade A” as a complete specification

Grade terminology does not replace model identity, traceability, matching evidence or a current manufacturer document. See What Does Grade A LiFePO4 Battery Cell Really Mean?.

Assuming a cell datasheet proves a complete battery will work

It does not prove BMS communication, inverter compatibility, enclosure fit, protection selection or local installation compliance.

Frequently Asked Questions

What is the most important field in a LiFePO4 cell datasheet?

The exact model identity and the test conditions behind the capacity and current values are the best starting points. Without them, other numbers are difficult to compare reliably.

Is a higher Ah rating always better?

No. The cell must fit the enclosure, current path, BMS, inverter and project energy requirement. A larger label can be a poor choice if the test conditions, dimensions or traceability are unsuitable.

How do I compare two 314Ah cells?

Compare model identity, capacity test conditions, current, internal-resistance method, dimensions, terminals, temperature range, cycle-life conditions and batch evidence. Do not compare the Ah label alone.

Can I use a seller’s datasheet instead of the manufacturer’s datasheet?

Use the current manufacturer document whenever possible. If a seller provides a modified or translated document, ask for the manufacturer model, revision and supporting evidence for the exact lot.

Does a 3.2V cell datasheet mean a 51.2V battery is ready to build?

No. A 51.2V-class pack typically uses 16 cells in series, but the finished pack still requires cell matching, mechanical restraint, a suitable BMS, protection, wiring, commissioning and inverter verification.

Do cycle-life claims tell me how many years the battery will last?

Not by themselves. Service life depends on actual load, temperature, depth of discharge, charging behavior, storage and system controls. Use the published test conditions as a comparison boundary, not as a guaranteed calendar-life promise.

Final Step Before Ordering

Send the exact model, current datasheet revision, intended series/parallel configuration, enclosure or battery-box drawing, inverter model and required documents with your inquiry. If you are considering EVE MB31 cells, the AmpBird EVE MB31 product page is a starting point, but the final order should still identify the exact lot and evidence supplied.

For matched cells, a DIY kit or a complete home-storage configuration, use Contact AmpBird and include the worksheet fields above. A reliable purchase decision begins with a datasheet that can be traced to the exact product—not with the largest number in a product title.
