Can a LiFePO4 Battery Run a Heat Pump? Power, Cold Weather and Runtime Checks

An air-source heat pump can run from a LiFePO4 battery, but the answer is never determined by the battery’s kWh label alone. The system must carry the heat pump’s electrical input, tolerate its operating transitions, supply the controls and indoor fan, and preserve enough usable energy for the intended outage or off-grid period.

The most important distinction is between the heat pump compressor and everything that can be added to it:

• the compressor and fans may draw a variable electrical input as outdoor temperature and indoor demand change;
• a defrost cycle can temporarily change the operating mode and power profile;
• auxiliary or emergency electric-resistance heat can create a much larger load than the compressor; and
• the battery and inverter must still serve any refrigerator, pump, communication equipment or other protected loads at the same time.

The short answer is:

1. identify the exact heat-pump model and operating modes;

2. use the manufacturer’s electrical input and maximum-current data, not only the heating-capacity or efficiency label;

3. decide whether auxiliary heat, electric resistance, defrost accessories or backup heat are inside the battery-backed circuit;

4. check inverter continuous power, transient behavior, output configuration and transfer operation;

5. convert the worst simultaneous AC load into battery-side current at the lowest permitted battery voltage; and

6. estimate cold-weather energy with a duty cycle and reserve instead of dividing nominal kWh by one optimistic wattage.

This guide answers one customer question: can a LiFePO4 battery support a heat pump, and what evidence must be checked before choosing the battery and inverter? It is a planning and quotation framework. It does not approve a particular heat pump, inverter, battery, transfer switch, thermostat setting or electrical installation.

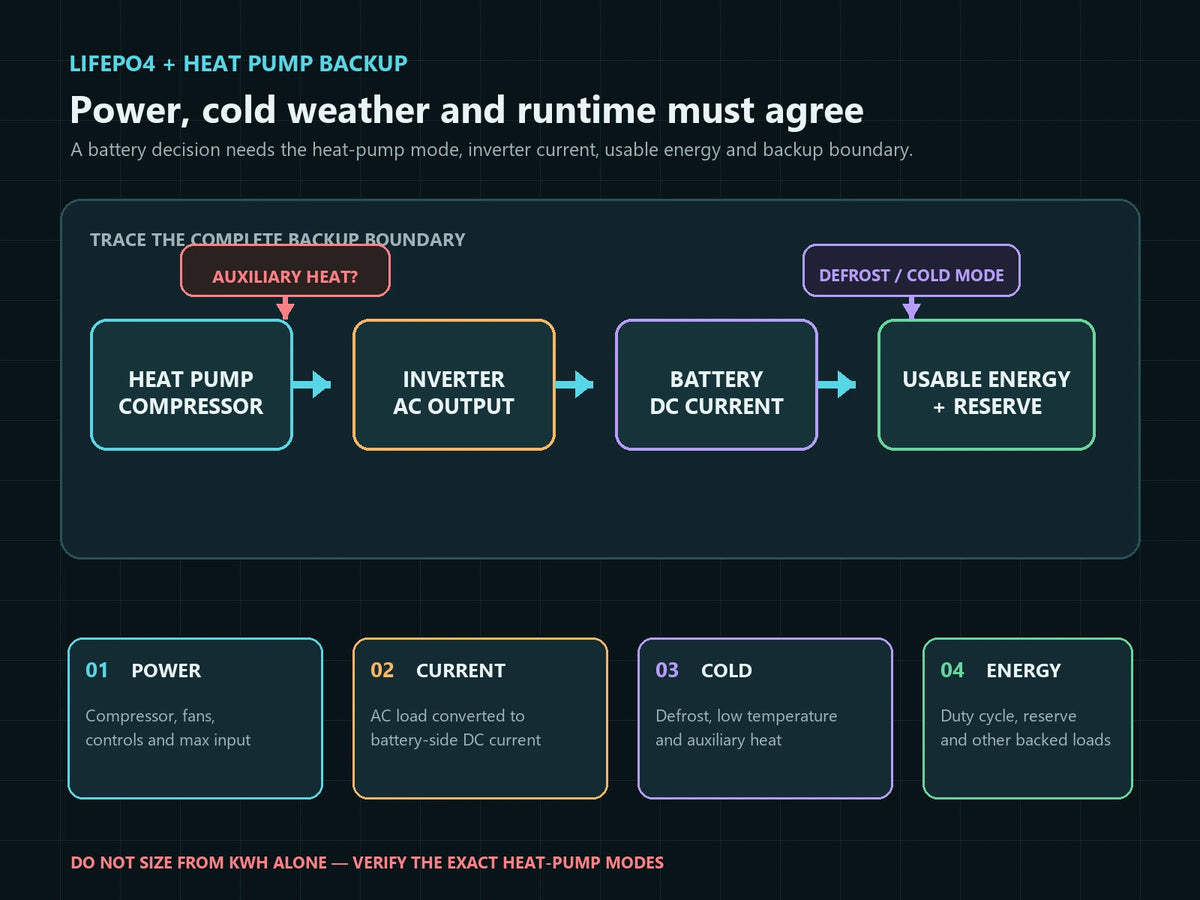

Quick Answer: Check Four Boundaries Together

A heat pump may be a good candidate for battery backup when the exact unit has a manageable electrical input, the inverter is approved for its electrical configuration, auxiliary heat is separated or controlled, and the battery has enough power and energy for the stated objective. It may be a poor candidate for a small battery when electric resistance backup is included or when the heat pump is expected to heat the whole building through a long cold-weather outage.

First Define Which Heat Pump You Mean

“Heat pump” can describe different electrical loads. Do not compare a small inverter-driven mini-split, a ducted central unit and a heat-pump water heater as if they have the same battery requirements.

Air-source space heat pumps

An air-source space heat pump transfers heat between outdoor air and indoor air. In heating mode, the outdoor unit extracts heat from outside and the indoor unit delivers it to the building. The electrical load includes the compressor, fans, controls and any supplemental or auxiliary heat.

The relevant question for a battery is not only how much heat the unit delivers. It is how much electrical power it draws in the exact operating mode that the battery must support.

Inverter-driven and fixed-speed compressors

An inverter-driven compressor can modulate speed and often reduces hard starting behavior compared with a fixed-speed compressor, but that does not remove the need to check the manufacturer’s current, maximum input, minimum circuit ampacity, overcurrent device and operating envelope. A variable-speed unit can still increase power when the outdoor temperature falls or the indoor demand rises.

A fixed-speed or older compressor may have a more obvious starting event. The nameplate, installation manual and inverter manufacturer’s load guidance are more reliable than a generic “heat pumps start softly” assumption.

Heat-pump water heaters are a different load

A heat-pump water heater has a tank, compressor and often an electric resistance element. Its recovery schedule, resistance mode and household hot-water pattern are different from a space-heating system. If the project is a heat-pump water heater, identify it separately in the quotation and include its resistance element as a separate possible load.

Read the Heat-Pump Electrical Data Correctly

Heat-pump brochures often emphasize heating capacity, COP, seasonal efficiency or output. Those are useful for thermal performance, but they do not replace the electrical input data needed for battery design.

Collect these fields from the exact model documentation:

• rated electrical input in heating mode;
• minimum, nominal and maximum input if provided;
• rated and maximum current;
• minimum circuit ampacity and maximum overcurrent protection;
• single-phase or three-phase configuration;
• supply voltage and frequency;
• compressor type and whether an inverter drive is used;
• indoor and outdoor fan power if separately listed;
• auxiliary, emergency or resistance-heat stages;
• defrost behavior and whether a separate heater is present;
• low-temperature operating range and published heating capacity at relevant conditions;
• control voltage and any required outdoor or indoor accessories;
• manufacturer requirements for generator, inverter or backup operation; and
• whether the unit has a special startup, transfer or phase requirement.

Do not use thermal capacity as electrical input

A heat pump can deliver more thermal energy than the electrical energy it consumes because it moves heat rather than creating all of it through resistance. A rating in Btu/h or kW of heat output is not the same as the electrical power that the inverter and battery must supply.

Use electrical input for the power calculation. Use thermal output and building heat loss for the comfort objective. Keep those two calculations separate.

Do not use the branch-breaker size as normal running power

The circuit breaker or maximum overcurrent protection is not automatically the heat pump’s continuous electrical draw. It is a protection value selected under the applicable electrical rules and manufacturer instructions. Use the manufacturer’s input and current data for the operating calculation, then have the installation designed and verified by the responsible electrical professional.

COP is not a fixed battery multiplier

COP changes with outdoor temperature, indoor conditions, operating mode, defrost and part-load behavior. It can help estimate thermal output from electrical input, but it is not a promise that a battery will see one constant wattage all winter.

The U.S. Department of Energy cold-climate heat-pump guidance explains why cold-climate performance must be evaluated under the intended conditions. Use the exact heat-pump performance tables for the selected model, not a generic COP copied from another unit.

Separate Compressor, Defrost and Auxiliary Heat

The biggest sizing mistake is treating every heating mode as the same load.

Compressor and fans

The compressor and fans are the core heat-pump load. Their electrical input can vary with:

• outdoor temperature;
• indoor setpoint and building heat loss;
• compressor speed or stage;
• airflow and filter condition;
• defrost control;
• voltage and phase quality; and
• other system controls.

An inverter-driven unit may ramp gradually, but the battery design still needs the unit’s maximum input and the inverter’s behavior under changing load.

Defrost

In heating mode, frost can accumulate on the outdoor coil in suitable temperature and humidity conditions. A defrost cycle temporarily changes how the system operates to remove the frost. During that period, the electrical input, indoor comfort and outdoor fan behavior can differ from normal heating.

Defrost is not automatically a fault. It is a design and operating mode that must be included in the backup expectation. The NREL cold-climate heat-pump report describes the refrigeration cycle, reversing valve and the way cold outdoor conditions affect available heating capacity.

Auxiliary or emergency electric heat

Some systems include electric resistance strips or another backup heat stage. Resistance heat converts electricity directly into heat, so its electrical power can be much higher than the compressor’s normal input. If it is enabled during a battery outage, the inverter and battery may see a step change that changes the entire design.

Ask these questions explicitly:

1. Is auxiliary or emergency heat installed?

2. What is its total electrical input?

3. Can the controls call for it automatically?

4. Does it operate during defrost or only below a switchover temperature?

5. Can it be placed outside the battery-backed circuit?

6. What happens if the battery inverter is in backup mode?

7. Does disabling it affect freeze protection, equipment protection or warranty conditions?

Do not bypass a heat-pump safety control or rewire the equipment based only on a battery-sizing article. The HVAC and electrical professionals responsible for the installation must approve the control boundary.

The official air-source heat-pump FAQ gives examples of defrost and auxiliary heat behavior, but its operating guidance is not a universal setting for every heat pump.

Calculate Heat-Pump Power at the AC Side First

Start with a load register. Put every load that can run at the same time on the backup circuit.

Use a simultaneous-load case, not only a daily average

For power, choose the credible combination that can occur at one time. For example, the heat pump may be heating while the refrigerator starts and a circulation pump runs. If auxiliary heat is excluded from the backed-up circuit by a documented control design, state that boundary instead of quietly ignoring it.

Do not add every nameplate maximum without reason either. A defensible design identifies which modes can overlap and which controls prevent overlap. The exact heat-pump and inverter documentation must decide the final case.

Illustrative AC-side screen

Assume, only for illustration:

• heat-pump compressor and fans: 3.2 kW in the selected cold-weather operating case;
• other protected loads running at the same time: 0.6 kW;
• auxiliary heat: excluded from the battery-backed output by an approved control boundary;
• design margin: handled by the exact inverter and installation design, not by a universal percentage.

The AC-side operating screen is 3.8 kW before checking the inverter’s continuous rating, transient behavior, phase and transfer requirements. This number is not a recommendation for a particular AmpBird system or heat pump.

Convert AC Power into Battery-Side Current

The battery sees DC current, not the heat pump’s AC label. A simple screening relationship is:

Illustrative current example

Suppose a heat-pump system and other protected loads require 3.8 kW AC, the inverter efficiency at that operating point is assumed to be 95%, and the battery is at 51.2 V for a screening calculation:

Battery current ≈ 3,800 W ÷ 0.95 ÷ 51.2 V ≈ 78 A

At a lower battery voltage, the current is higher. If the heat pump or another load increases, the current is higher. This is an illustrative calculation, not a product rating.

The AmpBird inverter-and-battery sizing guide explains why inverter output, battery-side current, BMS limits and battery capacity must be checked separately. A heat-pump design adds another variable: the electrical mode that produced the AC load.

Compare against the lowest system limit

The useful current limit is the lowest permitted value among:

• the battery cell and pack charge/discharge limits;
• the BMS continuous and transient discharge limit;
• the inverter DC input and output limit;
• cable, fuse, disconnect and busbar limits;
• the battery’s low-voltage behavior;
• parallel-bank communication and current-sharing limits; and
• any temperature or protection state active at the time.

A BMS label or battery Ah value alone does not prove that a heat pump can run.

Estimate Runtime with a Duty Cycle

Heat pumps cycle or modulate. Runtime should not be calculated by dividing battery kWh by one nameplate input unless the nameplate is explicitly the measured average for the intended condition.

Define usable energy

Start with the exact battery’s usable-energy definition. Depending on the product, usable energy may exclude a reserve, conversion losses, temperature restrictions, low-voltage cutoff, BMS protection margin or an owner-selected backup reserve.

Do not silently treat a nominal 16 kWh label as 16 kWh available at the AC output.

The AmpBird home-storage capacity guide separates nominal capacity, usable energy, load power and backup objectives. Use that distinction before adding a heat pump to the load register.

Use average electrical input, not thermal output

For a screening estimate:

Estimated runtime ≈ usable battery energy × system reserve factor ÷ average AC input and conversion demand

The average input must reflect the heat pump’s actual duty cycle, outdoor conditions, indoor setpoint, defrost and auxiliary heat behavior. A heat pump that draws 3.2 kW for part of an hour is not the same as a 3.2 kW continuous load for every hour.

Illustrative runtime screen

Assume, only for illustration:

• nominal battery label: 16 kWh;
• planning assumption for usable fraction: 80%;
• battery-to-AC conversion and operating factor: 90%;
• average heat-pump-and-protected-load demand: 1.5 kW;
• auxiliary heat excluded from the backed-up circuit.

The screening energy is:

16 kWh × 0.80 × 0.90 ÷ 1.5 kW ≈ 7.7 hours

This is not a promise that a 16 kWh battery will heat a home for 7.7 hours. A colder night, higher heat loss, longer duty cycle, defrost, other loads, a reserve policy or a different usable-energy definition can materially change the result. Use the exact heat-pump performance data and measured or modelled load profile for a quotation.

The AmpBird 16kWh runtime guide provides the broader runtime framework. Its examples do not substitute for a heat-pump load profile.

Cold Weather Can Change Both Power and Energy

Cold-weather heat-pump design has two separate questions:

1. can the system still deliver the required heat; and

2. how much electrical energy will it use while doing so?

Outdoor temperature can reduce available heat in the air and change compressor operation. The building may also have a larger heat demand at the same time. A battery that looks adequate in mild weather may be undersized for a long cold-weather outage.

Check the manufacturer’s low-temperature tables

Request the exact unit’s performance table at the outdoor temperatures relevant to the project. Look for:

• heating capacity;
• electrical input;
• COP or efficiency;
• compressor speed or stage;
• defrost assumptions;
• auxiliary-heat operation;
• minimum operating temperature; and
• control or switchover conditions.

Do not use a seasonal rating as if it were a guaranteed input at the coldest design condition.

Include the building, not only the machine

A heat pump’s electrical input is linked to the building’s heat demand. Insulation, air leakage, windows, indoor setpoint, room selection and backup-heating strategy change the duty cycle. If the goal is essential-room backup, define the rooms and circuits that are inside the objective. If the goal is whole-home comfort, size the energy objective around a realistic cold-weather load profile.

Auxiliary heat can dominate the battery design

If electric resistance heat comes on, the energy and power screen can change dramatically. A battery may support the compressor but not the compressor plus resistance stages. The quote must state whether auxiliary heat is:

• included in the backed-up load;
• locked out or controlled by a documented system strategy;
• supplied by grid or generator only;
• available only under specific temperature conditions; or
• unknown and therefore a hold point.

The AmpBird self-heating battery guide covers the separate problem of protecting the battery itself in low temperatures. A heat pump’s cold-weather load and a battery’s low-temperature charging boundary are related but not interchangeable.

Check the Inverter and Transfer Boundary

A heat pump is not only a battery load. It is an AC appliance with controls, a compressor, fans and a required supply configuration.

Confirm:

• inverter continuous AC output at the required ambient condition;
• transient or overload behavior;
• single-phase or three-phase output;
• voltage and frequency tolerance;
• neutral and grounding arrangement;
• transfer-switch behavior during an outage;
• whether the heat pump tolerates the transfer interruption;
• generator or grid interaction, if present;
• output waveform and power-quality requirements;
• whether the inverter can coordinate with a load-shed or auxiliary-heat control; and
• whether the manufacturer permits the unit to operate on the selected backup source.

Do not assume that a higher kW label solves every issue. A heat pump can trip because of phase configuration, control power, transfer behavior, low battery voltage, a protection state or a momentary operating event even when the simple arithmetic looks acceptable.

Check the Battery Current Path

Once the AC load is defined, verify the complete DC path:

• battery terminals;
• BMS and contactor state, if present;
• positive and negative cables;
• fuses and DC-rated disconnects;
• busbars and distribution blocks;
• shunt boundary;
• inverter DC input;
• parallel branches and current sharing; and
• temperature and service access.

The AmpBird 48V wiring guide explains why cable, fuse, isolation and inverter current must be designed as one path. For a heat pump, check that path under the real simultaneous load rather than only by reading a nominal cable or BMS label.

Voltage sag can look like an inverter problem

If a battery voltage falls under a high current, the inverter may reduce output or shut down. Possible causes include state of charge, temperature, cell or BMS behavior, cable drop, a loose connection, a high-resistance fuse holder or a battery that cannot share current correctly with a parallel unit.

Record battery voltage at the terminals and at the inverter during the heat-pump load. If the difference is significant, investigate the path before increasing battery size or changing protection.

Parallel batteries need evidence

Two batteries with the same nominal voltage are not automatically a safe heat-pump bank. Check model compatibility, BMS communication, charge/discharge limits, current sharing, cables, protection and commissioning. A heat pump’s changing demand can expose an imbalance that a steady small load does not reveal.

Choose the Backup Objective Before the Battery

There are at least four different projects that people call “run the heat pump from a battery.”

The same heat pump may be reasonable for one objective and unsuitable for another. Put the objective in the quote request.

A Practical Heat-Pump Battery Worksheet

Before selecting a battery or asking for a quotation, collect:

Heat-pump identity

• exact make and model;
• air-source, ground-source or heat-pump water-heater type;
• single-phase or three-phase;
• supply voltage and frequency;
• compressor type;
• rated and maximum electrical input;
• minimum circuit ampacity and maximum overcurrent protection;
• auxiliary or emergency heat stages;
• defrost method and controls;
• low-temperature performance table; and
• HVAC installer notes about backup-source operation.

Building and operation

• climate and lowest design outdoor temperature;
• rooms or circuits to be backed up;
• normal and backup indoor setpoints;
• insulation and major heat-loss concerns;
• expected outage duration;
• whether the unit may cycle or modulate;
• other simultaneous loads;
• generator or grid availability; and
• whether auxiliary heat is allowed on battery.

Battery and inverter

• battery model, nominal voltage and usable-energy definition;
• series/parallel arrangement;
• BMS continuous and transient discharge limits;
• lowest permitted operating voltage;
• inverter model and continuous/transient AC output;
• phase, neutral and transfer requirements;
• DC cable lengths and protection;
• communication and load-shed interfaces; and
• whether the selected equipment is approved for the intended installation.

For an initial system conversation, review the AmpBird home battery systems collection, DIY battery kits collection and battery components collection only after the heat-pump data is available. If the configuration is incomplete, use the AmpBird contact page and send the worksheet rather than requesting a battery from the heat-pump brand name alone.

Go, Hold or Stop Before Ordering

Common Mistakes

Mistake 1: Choosing from the heat-pump heating capacity

Thermal output in kW or Btu/h is not the battery’s electrical input. Use the exact input and current data.

Mistake 2: Ignoring auxiliary heat

The compressor may fit the inverter while resistance heat trips it. Identify every heat stage.

Mistake 3: Using the breaker size as the running load

Protection ratings and operating input are different fields. Use each for its proper purpose.

Mistake 4: Dividing nominal kWh by one mild-weather wattage

Cold weather, defrost, indoor heat loss, other loads and reserve can reduce runtime.

Mistake 5: Assuming an inverter-driven compressor has no transient risk

Variable speed can improve behavior, but exact maximum input, control and inverter compatibility still need verification.

Mistake 6: Backing up the heat pump without backing up its controls

The indoor unit, thermostat, outdoor unit, communication wiring and transfer boundary must be part of the system design.

Mistake 7: Adding battery capacity instead of solving current-path limits

A larger kWh number does not repair an undersized cable, weak connection, incompatible BMS or incorrect phase configuration.

Mistake 8: Treating the battery’s low-temperature limit as the heat pump’s limit

The heat pump may operate in cold weather while the battery’s charging behavior is restricted. Keep the HVAC operating envelope and battery charging envelope separate.

Frequently Asked Questions

Can a LiFePO4 battery run a heat pump during a power outage?

It can if the exact heat pump, inverter, transfer equipment, battery current path and backup objective are compatible. The critical checks are electrical input, maximum operating mode, auxiliary heat, cold-weather duty cycle and the other loads on the same output.

How much battery do I need to run a heat pump?

There is no universal number. First define the heat pump’s average electrical input in the intended weather, the maximum simultaneous power, the outage duration, the usable battery energy and the reserve. Then include other backed-up loads and conversion losses.

Can a 16 kWh LiFePO4 battery run a heat pump?

Possibly, but the answer depends on the heat pump’s power, duty cycle, auxiliary heat, other loads and the battery’s usable-energy definition. A 16 kWh label does not prove either inverter compatibility or a full-night runtime.

Does a heat pump need a large inverter surge rating?

Some fixed-speed systems can have a substantial starting event, while inverter-driven systems may modulate differently. Use the exact equipment documentation and inverter manufacturer guidance. Do not infer the required surge capability from the heat-pump thermal capacity alone.

Can I run the heat pump but disable auxiliary heat?

Only when the exact HVAC and electrical control design permits it. Disabling a heat stage may change comfort, freeze protection, defrost behavior or warranty conditions. Have the responsible HVAC professional define and verify the control boundary.

Does cold weather make a heat pump use more battery energy?

It can. Available outdoor heat, building demand, compressor operation, defrost and auxiliary heat may all change. Use the exact manufacturer performance table and a weather-appropriate duty-cycle estimate.

Is a heat pump easier to run than electric resistance heat?

A heat pump can use less electrical energy for the same thermal service than resistance heat under suitable conditions, but its compressor, fans, controls and cold-weather modes still need a power and compatibility check. It is not automatically an easy battery load.

Can a solar battery run a heat pump at night?

It can if the battery has enough usable energy, the inverter can supply the simultaneous power and the backup plan accounts for the heat pump’s night-time duty cycle and other loads. Solar production does not directly prove overnight heat-pump runtime.

Does the heat-pump breaker tell me what battery size to buy?

No. The breaker is a protection value, not a complete operating profile. Collect the exact electrical input, maximum current, mode data and auxiliary-heat information.

Can two smaller LiFePO4 batteries run a heat pump instead of one larger battery?

Possibly, but only after checking BMS compatibility, communication, current sharing, parallel protection, cables, inverter limits and commissioning. Do not assume that equal nominal voltage means the bank is approved.

Should the heat pump be the only load on the backup inverter?

Not necessarily. Some systems can serve other essential loads, but the combined continuous and transient load must be checked. A refrigerator, pump or resistance load can change the inverter and battery current case.

What should I send AmpBird for a heat-pump battery recommendation?

Send the heat-pump model and manual data, electrical input and maximum current, auxiliary-heat stages, outdoor design temperature, backup objective, outage duration, other loads, inverter model, battery voltage and usable-energy definition. A photo of the nameplate can help, but it does not replace the installation manual.

Final Checklist

• [ ] The exact heat-pump model and supply configuration are recorded.
• [ ] Electrical input and maximum current are separated from heating capacity and breaker size.
• [ ] Compressor, fans, controls, defrost and auxiliary heat are listed separately.
• [ ] The intended cold-weather operating condition is defined.
• [ ] Auxiliary heat is either included, excluded by an approved control boundary or marked unresolved.
• [ ] Simultaneous AC power and battery-side current are calculated separately.
• [ ] Inverter continuous, transient, phase, transfer and power-quality requirements are checked.
• [ ] Battery BMS, lowest voltage, cable, fuse, disconnect and parallel-bank limits are checked.
• [ ] Usable energy, duty cycle, reserve, defrost and other loads are included in the runtime estimate.
• [ ] The system stops at a documented Hold or Stop condition when key data is missing.

A LiFePO4 battery can support a heat pump, but the professional answer is a system boundary: exact electrical input, cold-weather mode, auxiliary heat, inverter power, battery current and usable energy must all agree. When those facts are incomplete, the correct next step is to collect them—not to choose a battery from the heat-pump brand or kWh label alone.

Technical References

• U.S. Department of Energy: Cold Climate Air-Source Heat Pumps — cold-climate performance context and the distinction between heat delivered and electrical operation.
• NREL: Cold Climate Air-Source Heat Pump — refrigeration cycle, inverter-driven compressors, defrost and cold-temperature performance.
• U.S. Department of Energy / Building Science Education: Air-Source Heat Pump FAQ — examples of defrost, auxiliary heating and cold-climate operating questions.
• Victron Wiring Unlimited: DC wiring — general DC current-path, voltage-drop and protection principles.

The references provide general or manufacturer/program-specific principles. Their ratings, thresholds, procedures and examples are not universal AmpBird specifications.
