Can a LiFePO4 Battery Run an Electric Water Heater? Power, kWh and Load-Shed Checks

An electric water heater can be connected to a battery-backed system, but it is often a much larger power decision than the tank size suggests. A conventional storage heater may draw several kilowatts while an element is energized, even though the thermostat later turns that element off. A tankless electric heater can be a very different and much more demanding load.

The answer therefore cannot come from the battery’s kWh label alone. Before choosing a LiFePO4 battery or inverter, identify the heater’s electrical input, voltage, phase, element arrangement and control behavior. Then decide whether hot-water recovery is allowed during an outage or whether the heater will be shed while the stored hot water is reserved for essential use.

This guide answers one practical customer question: can a LiFePO4 battery support an electric water heater, and what evidence is needed before making that decision? It focuses on conventional electric-resistance storage tanks. Heat-pump water heaters, gas heaters and tankless electric heaters need a separate load review.

The short answer is:

1. identify whether the heater is a storage tank, heat-pump water heater or tankless unit;

2. read the nameplate and manual for actual input watts, voltage, phase and element configuration;

3. separate instantaneous element power from daily energy and thermostat duty cycle;

4. check the inverter’s continuous output, transfer configuration and any other simultaneous loads;

5. convert the AC load into battery-side current at the lowest permitted battery voltage;

6. estimate usable energy with a reserve instead of dividing nominal kWh by the element rating; and

7. define a load-shed or recovery policy before ordering the system.

This is a planning framework, not an approval for a particular water heater, inverter, battery, transfer switch, plumbing arrangement or electrical installation. Follow the exact product manuals, local requirements and the instructions of the qualified professionals responsible for the system.

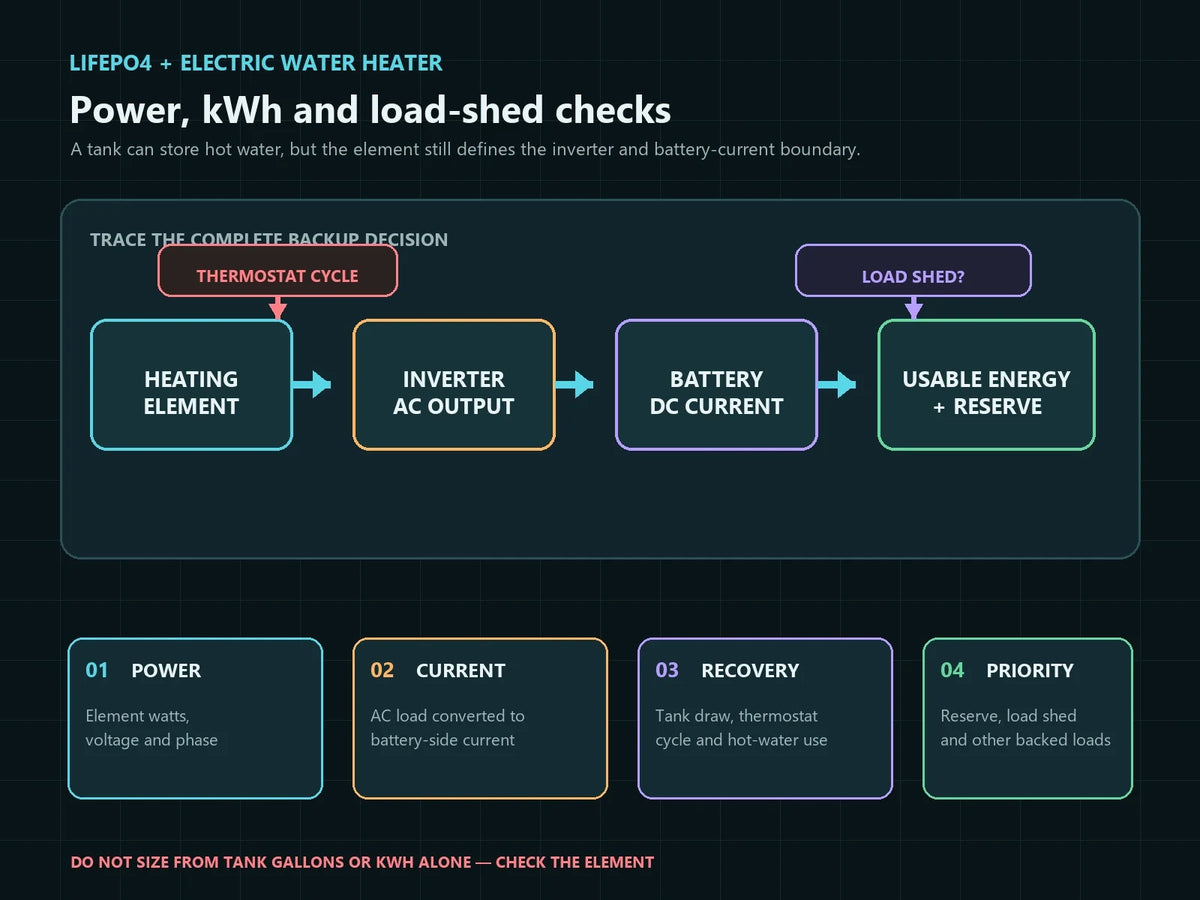

Quick Answer: Power, Energy and Recovery Are Different Questions

A conventional tank can be a reasonable occasional backup load when the inverter is large enough, the circuit is compatible and the system intentionally gives the heater priority only when energy is available. It may be a poor candidate for a small backup inverter when the heater is expected to recover continuously alongside HVAC, refrigeration, pumps or other essential loads.

First Define Which Electric Water Heater You Mean

The phrase electric water heater covers several different electrical behaviors. Treating them as one category leads to bad battery recommendations.

Conventional electric-resistance storage tank

A resistance storage tank heats and stores potable water at a thermostatically controlled temperature. One or more resistance elements turn on to add heat to the tank. The element may be energized for a recovery cycle and then turn off while the tank supplies hot water.

The battery sees the element’s electrical input when it is energized. The tank provides thermal storage, so the element does not necessarily run continuously during normal household use. That does not make the element a small load: the inverter and battery must still support the instantaneous electrical power whenever the thermostat calls for heat.

The U.S. Department of Energy describes storage water heaters as units that heat and store water at a thermostatically controlled temperature. The exact electrical input and operating limits remain product-specific, so the model nameplate and manual take priority over a generic tank assumption.

Tankless electric water heater

An electric tankless heater has little or no stored hot-water energy and uses an electrical heating assembly while water is flowing. Its input can be much higher than a storage tank’s element, and several outlets may create a simultaneous demand.

Do not apply a storage-tank runtime calculation to a tankless unit. The correct screen is the maximum electrical input at the intended flow and temperature rise, plus any other protected loads. If the product is tankless, keep it outside the storage-tank article’s simple duty-cycle examples.

Heat-pump water heater

A heat-pump water heater moves heat from surrounding air into a tank and may also contain electric-resistance elements. ENERGY STAR describes operating modes such as heat-pump-only, hybrid and resistance-only; a high-demand or backup mode can therefore change the electrical load.

That is a different design problem from a conventional resistance tank. Identify the compressor, fan, controls and possible resistance stages separately. The heat-pump battery guide covers the space-heating case; the same discipline applies here, but the water-heater operating modes and tank-recovery objective must be documented.

Gas or indirect water heater with electrical accessories

A gas or indirect heater may still have a control board, ignition system, pump or recirculation pump. It is not a resistance-heating load, but it may still need backup power. Record the actual electrical input rather than assuming that the fuel source makes the unit irrelevant to the battery design.

Read the Nameplate Before Thinking About Battery kWh

Collect the exact fields from the heater label, installation manual and, when available, a measurement at the circuit:

• rated voltage and frequency;
• single-phase or multi-phase configuration;
• rated input in watts or amps;
• total element input and each element’s input if listed;
• one-element or two-element arrangement;
• whether the elements are staged or can operate simultaneously;
• thermostat and high-limit control arrangement;
• rated storage volume and first-hour or recovery information if provided;
• required overcurrent protection and conductor information;
• control-board, pump or recirculation loads;
• manufacturer instructions for generator, inverter or backup operation; and
• whether the heater is intended to be disconnected or controlled by an energy-management system.

Watts are the load screen; tank gallons are the energy context

Tank volume helps describe how much water is stored. It does not replace the electrical input rating. A larger tank may store more hot water, but it may also have a different element arrangement, longer recovery time or different operating pattern.

Start with the electrical input in watts. Use tank volume and temperature data later to understand stored thermal energy and recovery, not to guess the inverter size.

Do not use the breaker label as normal operating power

The branch-circuit breaker or maximum overcurrent protection is not automatically the heater’s continuous input. Protection values, conductor requirements and operating current answer related but different questions.

Use the heater’s actual input data for the load register. Have the responsible electrical professional verify circuit protection, transfer equipment, conductor sizing and the allowed backup configuration.

Check whether the label describes total input or one element

Some documentation lists an element rating, while another field describes total heater input or a selected operating mode. Do not add two element ratings unless the product documentation confirms that they can be energized together.

If the control sequence is unknown, mark the simultaneous-load case as Hold. The conservative answer is not to invent a control sequence; it is to obtain the exact manual or measure the operating behavior under a safe, approved test plan.

Separate Element Power from Daily Energy

Power is the rate at which the heater draws electricity. Energy is the amount consumed over time. A water heater can have a high power requirement but a lower daily energy consumption because the element cycles.

The basic electrical relationship

At the AC side:

The element rating is a power requirement even when the thermostat usually cycles it. The energized hours depend on how much hot water leaves the tank, the incoming-water temperature, the setpoint, standby losses and the element’s ability to replace that heat.

A physics screen for stored hot-water energy

For an initial estimate, the heat required to raise water can be approximated from the water mass and temperature rise. In SI units:

Energy in kWh ≈ water mass in kg × 4.186 kJ/kg°C × temperature rise in °C ÷ 3,600.

For U.S. gallons, a useful approximation is:

Energy in kWh ≈ gallons × temperature rise in °F × 0.00244.

For example, 50 gallons with a 70°F temperature rise would represent roughly 8.5 kWh of ideal thermal energy before tank, piping, mixing, standby and conversion losses. This is not a battery-sizing result. It only shows why tank volume, temperature and usage matter, and why a real recovery calculation needs more than the tank label.

Do not use the approximation to promise a runtime or a safe outlet temperature. Water temperature, scald protection, mixing valves, relief devices and the manufacturer’s controls must remain within the approved installation design.

Thermostat cycling changes energy, not the instantaneous element rating

If an element is energized for 30 minutes, its instantaneous power is still the full element input during that period. The cycle reduces energy consumed over the period; it does not reduce the inverter’s required output while the element is on.

This distinction is the centre of the battery decision:

• inverter sizing follows the simultaneous AC power case;
• battery current follows the AC power converted through the inverter;
• battery capacity follows the energy used across the intended outage; and
• hot-water availability follows the tank’s stored heat and the household draw pattern.

Work Through a Representative Power and Current Example

The following numbers are illustrative only. They are not an AmpBird product rating, a universal water-heater value or a recommendation.

Assume:

• a conventional resistance storage tank;
• one 4.5 kW element energized;
• inverter efficiency of 95% for the calculation;
• a 51.2 V battery operating point for the illustration; and
• no other AC loads, which is intentionally optimistic.

The approximate battery-side current is:

Battery current ≈ 4,500 W ÷ (51.2 V × 0.95) ≈ 92.5 A.

In a real system, the current screen must use the lowest permitted battery voltage, the actual inverter efficiency at the load, any other simultaneous loads and the manufacturer’s BMS and protection limits. At a lower voltage or with other loads, the required current increases.

Why this matters for a low-voltage battery system

A heater that appears to be “only a few kilowatts” at the AC output can become a high DC-current event at a 48 V-class battery. That current travels through the battery terminals, busbars, disconnects, fuses, cables and inverter input. Voltage drop or a BMS limit can interrupt the load even when the nominal kWh appears sufficient.

The AmpBird inverter-and-battery sizing guide explains why output power, battery-side current, BMS limits and capacity must be checked as separate design boundaries.

Add simultaneous loads honestly

If a refrigerator, well pump, circulation pump, network device or HVAC load can operate while the water-heater element is on, include it in the AC load register. If a documented control system sheds the heater before other essential loads are affected, record that control boundary and confirm that the inverter and transfer equipment support the sequence.

Do not add every nameplate maximum without considering whether the loads can overlap. Do not remove loads simply because the average daily energy looks small. The correct calculation describes a credible simultaneous case and the controls that prevent or allow overlap.

Storage tank and tankless cases must stay separate

For a storage tank, the element is often a cycling load with thermal storage behind it. For a tankless heater, the high electrical input can persist while water is flowing, and there is little stored heat to carry the load after the circuit is shed.

If the product documentation does not make the operating mode clear, stop the sizing process at Hold rather than borrowing a value from another heater.

Estimate Runtime with Usable Energy and a Recovery Policy

The AmpBird home-storage capacity guide separates nominal capacity, usable energy, load power and the backup objective. The same separation is essential for a water heater.

A continuous-element screen

For an illustrative 16 kWh nominal battery:

• planning usable fraction: 80%;
• reserve factor for the load: 90%;
• energy available to the load for this screen: 16 × 0.80 × 0.90 = 11.52 kWh;
• continuous 4.5 kW element runtime: 11.52 ÷ 4.5 ≈ 2.56 hours.

That is an intentionally simple continuous-element screen. It is not a promise that a 16 kWh battery will provide 2.56 hours of hot water. The actual result changes with inverter losses, battery temperature, BMS limits, voltage, other loads, the thermostat cycle, tank standby loss and the household’s hot-water use.

The AmpBird 16 kWh home-runtime guide provides the broader runtime logic. Its whole-home examples should not be copied into a water-heater quote without adding the heater’s power and operating policy.

A duty-cycle screen

If the same 4.5 kW element is energized for an average of 25% of a planning period, its average element power would be 1.125 kW before conversion losses. Dividing 11.52 kWh by 1.125 kW gives about 10.2 equivalent hours.

That number still does not mean the heater can be left on for 10.2 hours with no consequence. It is an energy screen. During each energized cycle, the inverter must still carry the full element power, and the tank may run out of stored hot water before the next recovery cycle completes.

Make the backup objective explicit

Choose one objective before selecting a battery:

The owner should decide whether the system is buying uninterrupted heating, a reserve of hot water, or both. Those are different services and can require different hardware and controls.

Decide When Load Shedding Is the Professional Answer

Load shedding is not a sign that the battery system failed. It is often the correct way to preserve essential services when one appliance has a high intermittent power demand.

Water heater first-out is often easy to understand

During an outage, a household may prefer to keep refrigeration, communications, medical equipment, lighting, pumps or selected HVAC loads operating. A resistance water heater can be placed outside the priority circuit or controlled as a lower-priority load, allowing the tank’s stored hot water to serve short-term needs.

This policy must be implemented by approved transfer equipment, controls and wiring. Do not manually defeat a thermostat, high-limit device, temperature-and-pressure relief device or other safety control.

Use a clear state machine

A useful control policy can have four states:

The thresholds are system-specific. A blog cannot safely choose a universal state-of-charge percentage or a universal delay. Use the inverter, energy-management and water-heater documentation together.

Stored hot water is a thermal reserve, not a free battery

When the element is shed, the tank can still supply hot water that was heated earlier. That reserve decreases through usage and standby loss. The household may need to reduce hot-water demand, avoid long recovery cycles and understand that the tank will not remain at its normal temperature indefinitely.

If the project depends on a large hot-water reserve, the plumbing and temperature-safety design must be reviewed separately. The battery article should not encourage raising a tank temperature beyond the manufacturer’s approved range.

Check the Inverter and Transfer Boundary

The water heater is an AC load. The backup system must deliver the correct output configuration, not merely enough aggregate watts on a brochure.

Verify:

• output voltage and frequency;
• single-phase or split-phase requirements;
• whether the heater uses a two-pole circuit or another arrangement;
• neutral and grounding requirements;
• continuous output at the expected ambient temperature;
• overload and recovery behavior when the element switches on;
• transfer time and whether the heater controls tolerate the transition;
• generator or inverter compatibility requirements in the heater manual;
• ability to shed and restore the circuit without rapid cycling; and
• whether other loads can start while the element is energized.

Do not assume that a heater will work because its wattage is below the inverter’s headline rating. Phase, waveform, transfer, protection, control power and the actual output boundary all matter.

Startup is not always the hard part

A resistance element does not have the same compressor starting profile as an air conditioner or heat pump. However, the heater can still create a sudden step load when a thermostat closes. That step can interact with an already-loaded inverter and cause an overload or battery-current event.

The correct question is not whether the heater has motor surge. It is whether the full AC output and DC current path can accept the element’s step while all priority loads remain within their limits.

Do not create an unsafe backfeed or bypass

A transfer switch, interlock, load controller or energy-management device must be installed and configured according to the equipment instructions and applicable local requirements. Never connect a portable inverter directly into a building circuit or bypass required protective equipment.

Check the Battery Current Path

Once the AC load is known, inspect every current-carrying boundary:

• battery continuous discharge limit;
• inverter low-voltage cutoff and current limit;
• BMS discharge limit and temperature derating;
• minimum battery voltage under load;
• number and arrangement of parallel batteries;
• busbar, disconnect and fuse ratings;
• cable ampacity, length and voltage drop;
• terminal and lug requirements; and
• whether a battery heater or other auxiliary load shares the current path.

The AmpBird 48V LiFePO4 wiring, fuse and cable-sizing guide explains why battery current, cable, protection and isolation must be designed as one path. A water-heater load makes that path visible because the element can draw high current for a defined recovery period.

Use the lowest permitted battery voltage

For a first screen:

DC current ≈ AC water-heater watts ÷ (lowest battery voltage × inverter efficiency).

Use the lowest operating voltage allowed by the battery and inverter documentation, not a nominal voltage printed in a product title. Add other simultaneous DC-equivalent loads and any efficiency or control consumption required by the system design.

Voltage drop is part of the result

A current calculation can look acceptable at the battery terminals while the inverter input falls below its operating boundary because of cable, fuse, disconnect, busbar or connection losses. The current path must be checked at the actual length, temperature and installation arrangement.

If the battery or inverter trips when the heater turns on, adding nominal kWh does not automatically solve the problem. The diagnosis may be current, voltage drop, protection, control coordination or inverter headroom.

Build a Water-Heater Backup Worksheet

Use the worksheet below before asking for a battery recommendation or comparing product categories.

Heater identity

• manufacturer and exact model;
• conventional resistance tank, heat-pump water heater, tankless or other;
• storage volume, if applicable;
• rated voltage, phase and frequency;
• total rated input;
• each element rating and whether elements can overlap;
• thermostat and control sequence;
• required breaker or overcurrent protection;
• recirculation pump or other connected loads; and
• manual section covering inverter, generator or emergency operation.

Water-use and recovery objective

• number of occupants and peak hot-water periods;
• expected hot-water use during an outage;
• incoming-water temperature range;
• desired tank temperature and approved safety controls;
• whether a mixing valve is installed or planned;
• acceptable recovery delay;
• desired outage duration;
• whether hot-water recovery is essential or optional; and
• which loads have priority over the heater.

Inverter and battery

• inverter model and continuous output;
• output voltage, phase and neutral configuration;
• transfer and overload behavior;
• lowest permitted battery voltage;
• battery continuous current and BMS limits;
• low-temperature charge and discharge boundaries;
• parallel-battery arrangement;
• cable, fuse, disconnect and busbar data;
• other loads that can run during recovery; and
• approved method for shedding and restoring the heater.

For an initial system conversation, review the AmpBird home battery systems collection, DIY battery kits collection and battery components collection only after the worksheet is complete. If the heater data is incomplete, use the AmpBird contact page and send the model documentation instead of requesting a battery from tank size alone.

Go, Hold or Stop Before Ordering

This table is intentionally evidence-based. A “Hold” is better than a confident battery size based on incomplete information.

Common Mistakes

Mistake 1: Choosing from tank gallons alone

Tank volume describes stored water, not the element’s instantaneous electrical input. Read the nameplate and manual first.

Mistake 2: Dividing battery kWh by element kW and calling it runtime

That is only a continuous-element screen. It ignores reserve, inverter losses, other loads, temperature, thermostat cycling and the household’s actual hot-water demand.

Mistake 3: Treating thermostat cycling as a smaller inverter load

Cycling reduces average energy. It does not reduce the element’s input while energized.

Mistake 4: Assuming a two-element heater always draws both elements

Some controls stage or interlock elements; others may permit different behavior. Verify the exact product.

Mistake 5: Using a standard tank calculation for a tankless heater

Tankless units do not provide the same stored-energy buffer and may have a much higher continuous input.

Mistake 6: Ignoring hot-water use after the element is shed

Stored hot water is finite. A load-shed plan needs a user-facing expectation for showers, fixtures, recovery and outage duration.

Mistake 7: Adding capacity without checking current

More kWh does not automatically increase inverter output, BMS current, cable ampacity or transfer capability.

Mistake 8: Raising water temperature as an unreviewed battery strategy

Temperature, mixing valves, relief devices, scald prevention and local requirements must be reviewed by the appropriate professional. A battery article is not permission to alter those settings.

Mistake 9: Treating a heat-pump water heater as a resistance tank

A heat-pump water heater can have compressor, fan and resistance modes. Record the actual mode boundaries and possible auxiliary element input.

Mistake 10: Leaving control coordination until the end

If the heater must be shed at low battery state, that logic is part of the backup design, not an optional afterthought.

Frequently Asked Questions

Can a LiFePO4 battery run a conventional electric water heater?

Yes, it can be possible when the inverter output, battery current path, voltage and transfer arrangement support the heater’s actual electrical input. The battery must also have enough usable energy for the intended recovery policy. A kWh label alone is not enough.

What size battery do I need for an electric water heater?

There is no responsible universal size. Start with the heater’s element watts, required voltage and phase, recovery schedule, outage duration, other loads, permitted usable energy and reserve. Then check inverter output and battery-side current separately.

Can a 16 kWh LiFePO4 battery run a 4.5 kW water-heater element?

It may be able to support the element for an illustrative period, but the answer depends on usable energy, reserve, inverter efficiency, battery current, other loads and the control policy. A continuous-element screen using assumed values is not a product guarantee.

Does a water heater need a large inverter?

The inverter must support the actual simultaneous AC load and the heater’s voltage, phase, neutral and transfer requirements. It also needs enough headroom for other loads that can operate at the same time. Use the exact system data instead of a generic wattage rule.

Is a storage tank easier to back up than a tankless electric heater?

Often, a storage tank offers thermal storage and may allow the element to be shed temporarily. A tankless heater can present a higher sustained electrical load while water is flowing. The exact product data still controls the decision.

Can I turn off the water heater during a power outage?

A deliberate load-shed design can place the heater outside the priority backup circuit or control it through approved equipment. Do not manually bypass thermostats, high-limit devices, relief devices or required transfer protection.

Will the thermostat reduce the battery power requirement?

No. The thermostat can reduce how long the element is energized, which affects energy consumption. The inverter and battery current path still need to support the full element input whenever the thermostat turns it on.

Can I run the water heater with a refrigerator and pump?

Only if the inverter, transfer arrangement and battery current path support the credible simultaneous load. Include starting behavior, control delays and any documented load-shed priority.

How do I calculate water-heater battery current?

Use an initial screen of AC heater watts divided by the lowest permitted battery voltage and inverter efficiency. Add simultaneous loads and then compare the result with the inverter, BMS, cable and protection limits.

Can I use a heat-pump water heater in the same way?

Not without a separate review. It may have heat-pump, hybrid and resistance modes, and high demand can change which components operate. Record the compressor, fan, controls and resistance stage separately.

Does a bigger tank always reduce battery use?

No. A larger tank may store more hot water, but the heater’s input, standby loss, setpoint, incoming-water temperature and usage pattern still determine energy use. Tank size is context, not a substitute for electrical data.

What should I send AmpBird for a battery recommendation?

Send the exact model and nameplate, installation manual pages showing input and controls, voltage and phase, element arrangement, expected outage objective, other backed-up loads and any existing inverter or battery data. That evidence supports a useful review.

Final Checklist

Before treating an electric water heater as a battery-backed load, confirm:

• The appliance type is identified correctly.
• Storage, heat-pump and tankless cases are not mixed together.
• Actual input watts, voltage, phase and frequency are documented.
• Element arrangement and simultaneous operation are known.
• Thermostat cycling is treated as an energy factor, not an inverter-size shortcut.
• The AC simultaneous-load case includes other protected loads.
• Battery current is calculated at the lowest permitted voltage.
• Inverter continuous output, transfer behavior and phase are checked.
• BMS, cable, fuse, disconnect, busbar and voltage-drop limits are checked.
• Usable energy, reserve and the intended outage duration are documented.
• A clear water-heater load-shed or recovery policy exists.
• No safety control, transfer device or local requirement is bypassed.

A LiFePO4 battery can support an electric water heater, but the professional answer is conditional: the element power, current path, usable energy and control policy must agree. When the data is incomplete, the correct next step is to collect the nameplate and manual—not to choose a battery from the tank volume or a generic runtime formula.

Technical References

• U.S. Department of Energy: Consumer Water Heaters — definitions that distinguish storage, instantaneous and heat-pump water-heater types, including thermostatically controlled storage units.
• ENERGY STAR: How It Works — Heat Pump Water Heaters — operating-mode context for heat-pump water heaters and their possible resistance-heating mode.
• ENERGY STAR: Heat Pump Water Heater Installation Best Practices — official guidance on operating modes, stored hot water and the importance of following manufacturer instructions.
• Victron Wiring Unlimited: DC wiring — general DC current-path, voltage-drop and protection principles.

These references provide general product definitions, operating context and wiring principles. They are not AmpBird product specifications, an electrical design approval or a substitute for the exact equipment manuals and local professional review.
