Can a LiFePO4 Battery Replace a UPS? Power, Transfer and BMS Checks

Short answer: a LiFePO4 battery by itself cannot replace a UPS. It is the energy-storage part of a backup system, not the complete system that detects an input failure, changes the power path, creates the required AC output and protects the load from an interruption.

A LiFePO4 battery can be used in a UPS-like backup design when the inverter or inverter/charger, transfer or ride-through function, battery voltage, current limits, BMS controls, charger profile and protected-load requirements are all compatible. The U.S. Department of Energy's UPS explanation describes a UPS as a combination of converters, switches and energy storage devices that maintains load power when the input fails. The battery is one part of that chain.

This guide answers one specific buying question: can a LiFePO4 battery replace a UPS? It keeps the battery, inverter/charger and transfer-system responsibilities separate so you can determine whether you need a short no-break bridge, a longer home backup system or both. It does not promise that any AmpBird battery is compatible with a particular UPS or inverter model without the exact manuals and electrical data.

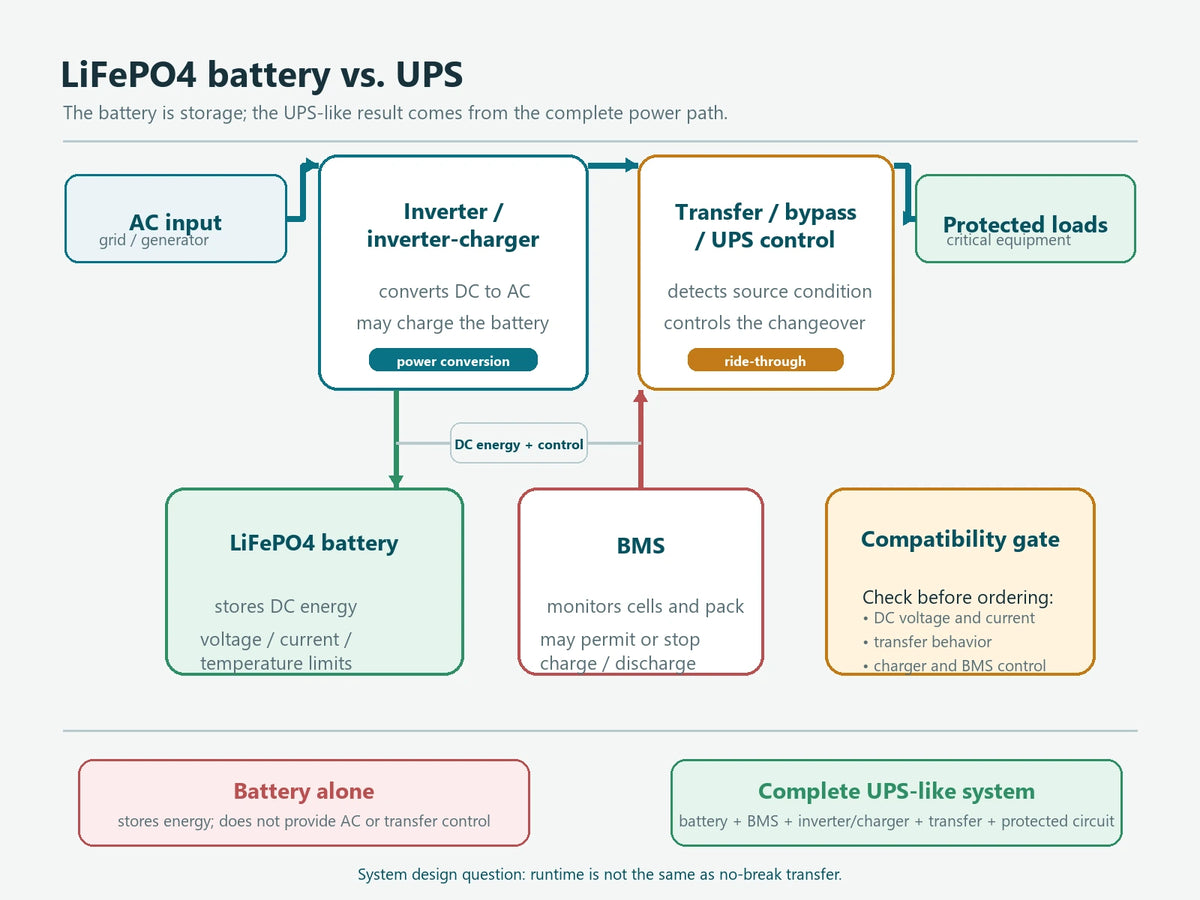

A battery and a UPS solve different parts of the problem

A battery stores DC energy. A UPS is a power system that uses storage together with power conversion, switching, control and protection. Even a large battery cannot maintain an AC load during an outage unless a suitable power-conversion and transfer path remains available.

The practical consequence is simple: replacing a UPS battery with a LiFePO4 battery may be possible in some systems, but replacing the entire UPS with a battery is not. Start with the load and the interruption requirement, then select the storage and conversion equipment around them.

First decide whether you need no-break power or longer backup

People often use “backup power” and “UPS” as if they mean the same thing. They do not always describe the same performance requirement.

• No-break or near-no-break operation: a server, network device, control computer or other sensitive load must keep operating while the source changes. Transfer or ride-through behavior is the central requirement.
• Short bridge time: the system only needs enough energy to ride through a brief event or shut equipment down cleanly. A conventional UPS may be the most direct solution.
• Longer outage backup: a home, cabin, workshop or small business needs hours of energy and may also need solar or generator recharge. A battery-plus-inverter system may be more appropriate, but it still needs a defined critical-load and transfer design.
• Both requirements: a larger battery can extend runtime, but it does not automatically provide the switching performance of an online UPS or a tested inverter/charger system.

Size the system around the consequence of an interruption. A refrigerator, pump or communications cabinet may tolerate a short transfer differently from a server, medical device or industrial controller. If the load manufacturer specifies a maximum interruption, use that value instead of assuming that every “backup inverter” is a UPS.

UPS topology changes the transfer question

UPS products are commonly grouped by how power flows through the unit. Eaton's UPS topology guide distinguishes standby, line-interactive and online or double-conversion designs. The names are useful for an initial comparison, but the exact transfer specification still belongs to the chosen model.

Even within one topology, transfer behavior can change with input quality, bypass mode, overload, generator operation, firmware and configuration. Eaton's UPS material explains why online double-conversion systems are used when zero transfer to battery is required, while line-interactive and standby units may have a specified transfer interval. Treat the model datasheet and installation manual as the authority.

Five compatibility checks before using LiFePO4 in a UPS-like system

1. Check the load's running power, surge and output requirements

Begin on the AC side. List the equipment that must remain online, its running watts or VA, its power factor if known, its motor or compressor starting demand and whether it uses a power-factor-corrected input. Include networking, control and monitoring equipment that must stay powered for the system to be useful.

Do not add only the nameplate watts and stop. A pump or compressor may have a short starting demand that determines the inverter size, while a sensitive electronic supply may care more about waveform and transfer behavior than its average wattage. AmpBird's inverter-sizing guide provides the related battery-side current and inverter-power context; it is not a substitute for the exact UPS or inverter manual.

Separate three numbers in your worksheet:

• Continuous output power: what the inverter can supply for the required duration.
• Short-duration surge: what it can supply while a motor or compressor starts, with the duration and recovery limits recorded.
• Protected-load power: the equipment that actually stays on the backup output, not every load in the building.

2. Check transfer, ride-through and bypass behavior

A battery does not determine how quickly the load changes from grid power to inverter power. The inverter or UPS control system does. Ask for the exact transfer time, test conditions, operating mode and whether the figure applies to the installed configuration.

As an example of why model-specific documentation matters, the Victron MultiPlus-II product information describes a UPS function and gives a less-than-20-millisecond transition claim for that product family when its inverter takes over. That is evidence about the specified Victron product, not a promise for every battery, inverter or DIY assembly.

Also check what happens when the input is poor rather than completely absent. Generator frequency, distorted voltage, bypass restrictions, overload and an unstable source can change whether the equipment stays synchronized, refuses the input or changes operating mode. A system that transfers acceptably on a clean grid may behave differently on a generator or a long cable.

3. Match battery voltage and calculate the DC current

The battery-side current can be much higher than the AC load current. A first-pass estimate is:

Battery current ≈ AC output power ÷ (battery voltage × conversion efficiency)

For a 1,000W load on a 51.2V nominal battery, the ideal arithmetic is about 19.5A before conversion losses. At an assumed 90% conversion efficiency, the estimate is about 21.7A. For 5,000W under the same illustrative assumptions, the estimate is about 108.5A. These are planning examples, not AmpBird product limits and not a substitute for the inverter's continuous, peak and low-voltage specifications.

Then compare the result with the lowest allowed limit in the system: cell, pack, BMS, fuse, cable, connector, disconnect, inverter and thermal environment. AmpBird's 48V LiFePO4 wiring guide covers the related cable, fuse, isolation and current-path checks.

4. Verify BMS control and charger coordination

The BMS may need to signal “charge allowed,” “discharge allowed,” “load disconnect” or “charge disconnect,” depending on the battery and system. A UPS can continue applying charge current or can shut down unexpectedly if it does not understand the battery's control state.

Victron's VE.Bus BMS documentation is a useful example: it describes an integrated BMS that can disable inverter operation or charging in response to cell voltage and temperature conditions, and can use separate disconnect outputs for other loads or chargers. The specific communication path, connector, firmware and signal logic are product-specific. The general lesson is that a BMS is part of the control system, not a universal adapter.

Check these failure states before purchase:

• What happens to the AC output when the BMS opens the discharge path?
• What stops the UPS charger if the BMS blocks charging for high cell voltage or low temperature?
• Does the UPS require a lead-acid voltage window, a temperature sensor, a CAN/RS485 protocol or a proprietary battery interface?
• Can the system restart after a low-voltage shutdown without repeatedly forcing the BMS to trip?
• Will the warranty or installation approval require the original battery type or battery-monitoring method?

5. Check recharge, temperature and the next outage

Backup is not complete when the load survives the first outage. Record how the battery will recharge, how long recharge takes, which source supplies it and what happens if another outage occurs before it is full.

A larger battery may extend runtime while also increasing recharge time. A solar-assisted system depends on usable PV power, the charging window and the battery's permitted charge current. AmpBird's home-battery solar-panel sizing guide and solar charging-time guide provide the upstream energy and recharge context.

Temperature must also be part of the design. The battery, BMS, inverter charger and installation location may each impose different limits. A BMS shutdown can protect the pack, but it can also remove the backup source at the exact moment the load needs it. The better design prevents the out-of-range condition instead of relying on repeated protective trips.

Can an AmpBird LiFePO4 battery be used as UPS storage?

It can be considered as the storage component of a backup design only after the complete system is matched. That means comparing the exact battery and BMS documentation with the UPS or inverter/charger input range, charge settings, current limits, communication method, protection hardware and installation requirements.

A 51.2V-class AmpBird DIY battery kit may be relevant to a 48V-class inverter system, but the voltage label alone does not prove compatibility. The AmpBird 51.2V DIY battery-kit product page should be checked together with the exact kit configuration, BMS, inverter/charger manual, protection plan and local installation requirements. Do not treat a product page as a universal UPS certification or as a promise that the kit will drop into an existing UPS.

For a complete system review, compare the AmpBird home battery systems and DIY battery kits categories only after defining the load and inverter requirements. If you are unsure which information is missing, send the exact model numbers and load list through the AmpBird contact page rather than selecting a battery from nominal voltage alone.

Estimate runtime without confusing it with UPS performance

Runtime and transfer are different questions. A battery can provide many hours of energy while the inverter still has an unsuitable transfer behavior. Conversely, an online UPS can provide excellent ride-through but only a short runtime if its battery energy is small.

A useful first-pass estimate is:

Approximate runtime in hours ≈ usable battery energy in kWh × allowed discharge fraction × conversion efficiency ÷ load in kW

Use the battery maker's usable-energy definition and the inverter's efficiency curve where available. The following is only an arithmetic illustration using an assumed 5kWh energy store, 90% conversion efficiency and no temperature or power-limit derating:

Real runtime can be shorter because of reserve settings, low-voltage cut-off, BMS limits, temperature, inverter self-consumption, surge events, battery age and the difference between rated and usable energy. For a home system, AmpBird's home storage-sizing guide is the better starting point for daily energy and backup-capacity planning.

When a conventional UPS is still the better choice

A LiFePO4 battery system is not automatically an upgrade over a purpose-built UPS. A conventional UPS may remain the better choice when:

• The load has a strict no-break or very short interruption requirement.
• The UPS has already been tested with the load, bypass and shutdown behavior.
• The application needs a built-in alarm, monitoring, automatic shutdown or compliance feature.
• The required runtime is short and the simplicity of one engineered appliance is more valuable than long-duration storage.
• The replacement battery must satisfy a manufacturer-approved form factor, voltage window or warranty procedure.

A larger LiFePO4 system becomes more attractive when the goal is longer backup, solar recharge, generator integration, modular capacity or support for a defined set of home or small-business critical loads. In that case, design it as a complete energy system—not as a battery substitution made by connector matching.

Pre-purchase checklist for a LiFePO4 UPS application

1. Write down every protected load, its running watts or VA, power factor and starting demand.
2. State the consequence of interruption and the maximum acceptable transfer or ride-through time.
3. Identify the exact UPS, inverter or inverter/charger model, firmware and operating topology.
4. Confirm the battery voltage range, maximum charge voltage, continuous current, peak current and low-temperature charging rule.
5. Map the BMS signals or communication protocol for charge permission, discharge permission, alarms and shutdown recovery.
6. Calculate battery-side current at both continuous and surge power; size fuses, conductors, connectors and disconnects to the lowest applicable limit.
7. Check the output waveform, neutral/ground arrangement, bypass behavior and compatibility with power-factor-corrected loads.
8. Calculate runtime using usable energy, efficiency, reserve and temperature assumptions rather than nominal kWh alone.
9. Plan recharge from grid, solar, generator or another source and check the next-outage scenario.
10. Confirm local electrical, fire, ventilation, mounting and inspection requirements before installation.

Documents to collect before requesting a system recommendation

• UPS or inverter/charger model number, datasheet and installation manual.
• Battery model, cell configuration, BMS model and communication or remote-control manual.
• AC load list with running watts, starting demand and required backup duration.
• Expected grid, generator and solar input conditions.
• Planned fuse, cable, disconnect and enclosure arrangement.
• Country or region, installation location and any required electrical approvals.

Common mistakes when treating a battery as a UPS

Assuming a battery creates AC power

The battery supplies DC energy. It needs an inverter or inverter/charger with the correct output, protection and control behavior before it can supply AC equipment.

Choosing by nominal voltage only

A “48V” or “51.2V” label does not answer the charge-window, low-voltage, current, BMS, surge or communication questions. Use the exact electrical data for the chosen battery and inverter.

Using a larger battery to solve a transfer-time problem

More kWh extends runtime. It does not make a standby inverter behave like an online double-conversion UPS or change the transfer control.

Relying on the BMS as the entire safety design

The BMS is one protection and control layer. Fuses, disconnects, conductors, enclosure, charger settings, thermal management and commissioning still matter.

Ignoring recharge after the first outage

A system that survives one outage but cannot recharge before the next one is not sized for the operating scenario. Include the energy source, charge window and recovery time in the design.

Frequently asked questions

Can a LiFePO4 battery replace a UPS?

Not by itself. A LiFePO4 battery can replace or extend the storage portion of a compatible backup system, but the inverter or inverter/charger, transfer behavior, charger, BMS controls and protection must still be designed and verified.

Can I connect a LiFePO4 battery directly to an AC load?

No. A battery supplies DC. The load needs a suitable inverter or UPS power stage that matches the battery voltage, output power, waveform and protection requirements.

Does a bigger LiFePO4 battery make a UPS transfer faster?

No. Transfer or ride-through is controlled by the UPS or inverter topology and its configuration. A larger battery can provide longer runtime after the system has transferred to battery power.

Can I put a 48V-class LiFePO4 battery into any 48V UPS?

No. Verify the actual DC input range, charge voltage, maximum current, low-voltage cut-off, battery-monitoring method, BMS requirements and manufacturer approval. Nominal voltage alone is not enough.

Does every LiFePO4 BMS communicate with a UPS?

No. Some systems use communication protocols, some use remote enable or disconnect signals and some do not coordinate with the battery at all. The exact BMS and UPS manuals must describe a compatible control path.

Can the UPS charger charge a LiFePO4 battery?

Only when its charge voltage, current, stages, temperature behavior and BMS coordination are suitable for the exact battery. A charger designed for lead-acid chemistry should not be assumed to be compatible.

Is pure sine-wave output required?

It depends on the load and the inverter or UPS specification. Sensitive electronics, motors and power-factor-corrected supplies can have different waveform and compatibility requirements. Check the load manufacturer and the UPS datasheet instead of using a universal rule.

How much battery energy do I need for a UPS application?

Estimate from the protected load in kW, required hours, usable energy, conversion efficiency, reserve, temperature and current limits. Then check whether the inverter can supply the load's continuous and starting demand.

Can an AmpBird 51.2V DIY kit be used as a UPS battery?

It may be relevant to a compatible 48V-class inverter system, but the exact kit, BMS, charger and inverter must be checked together. The product page does not by itself certify compatibility with every UPS.

Should I choose a UPS or a home battery system?

Choose around the main requirement. A purpose-built UPS is often the direct path for strict no-break operation and short runtime. A home battery system may be more suitable for longer backup and solar or generator recharge, provided its transfer and control design matches the loads.

Final decision rule

If the question is “can this battery power my equipment during an outage?”, the answer may be yes after the inverter, energy and current checks. If the question is “will my equipment see no interruption when the grid fails?”, the answer depends on the UPS topology, transfer behavior and tested system configuration—not on the LiFePO4 chemistry alone.

Before ordering, prepare the exact UPS or inverter model, battery voltage and BMS details, protected-load list, surge requirement, backup duration and recharge source. AmpBird can then help you separate a battery-sizing question from an inverter-compatibility or UPS-performance question instead of making a risky assumption from a nominal voltage label.

Technical references

• U.S. Department of Energy: Uninterruptible Power Supplies
• Eaton: Choosing the optimal UPS topology
• Victron Energy: MultiPlus-II UPS function
• Victron Energy: VE.Bus BMS and battery-control functions
