High-Voltage vs Low-Voltage Home ESS: Which System Architecture Suits You Best?
When planning a home energy storage system, the choice between high-voltage (HV) and low-voltage (LV) architecture affects everything from efficiency to installation cost. Here's how to decide which is right for your project.
In this article
When planning a home energy storage system, the choice between high-voltage (HV) and low-voltage (LV) architecture affects everything from efficiency to installation cost. Here's how to decide which is right for your project.

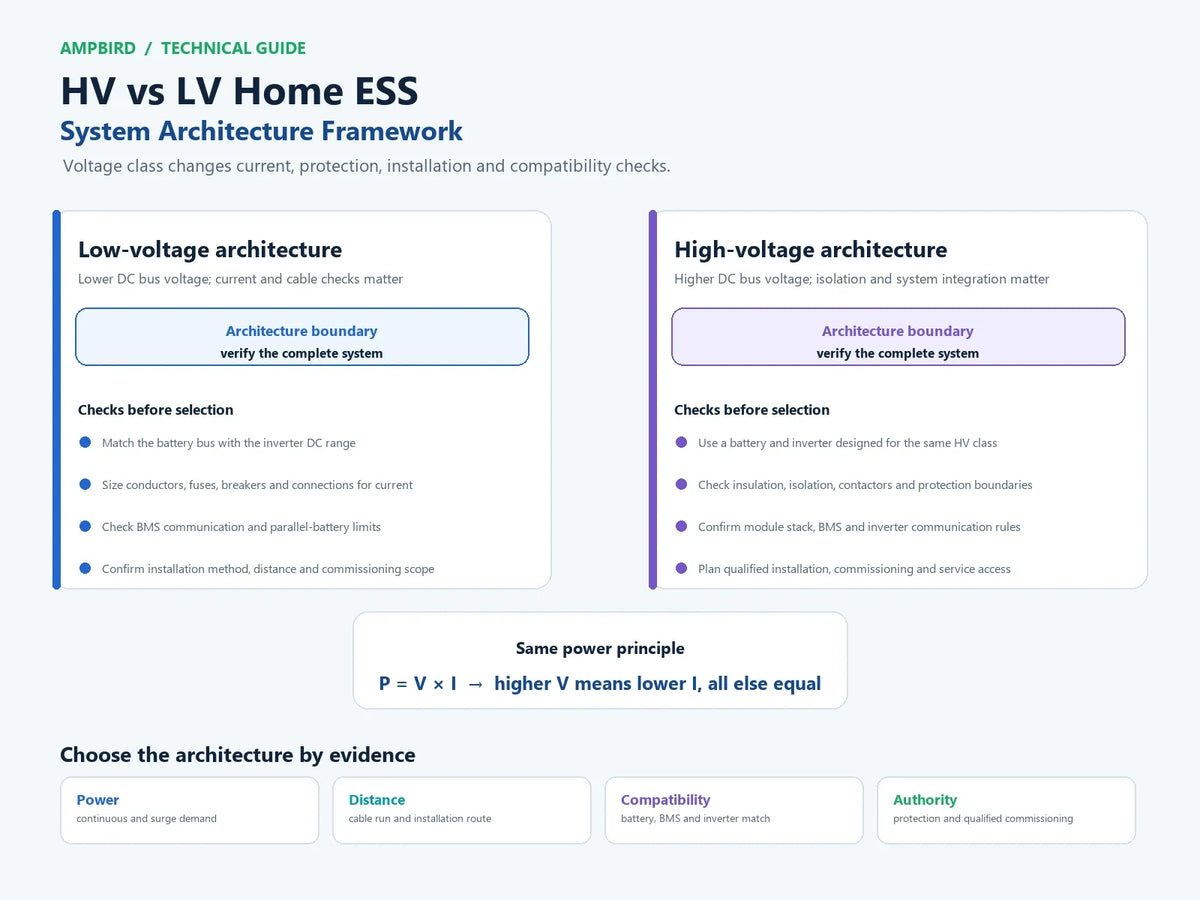

What's the Difference?
Low-voltage systems operate at 48-51.2V (typical 16S LiFePO4 configuration). This has been the residential storage standard for over a decade.
High-voltage systems operate at 200-500V, typically using 100-150 cell series configurations. HV systems are paired with compatible high-voltage hybrid inverters.
Efficiency Comparison
HV systems have a clear efficiency advantage. At higher voltage, the same power flows at lower current, reducing I²R (resistive) losses in cables, connections, and internal components.
| Metric | LV (48V) | HV (200-500V) |
|---|---|---|
| Round-trip Efficiency | 90-95% | 96-98% |
| Cable Loss (at 5kW) | 2-5% | <1% |
| Inverter Efficiency | 93-96% | 96-98% |
| Annual Energy Saved | Baseline | 200-400 kWh more |
Over a 10-year system life, the efficiency difference translates to 2,000-4,000 kWh of additional energy retained — worth $400-1,200 at typical electricity rates.
Wiring and Installation
| Factor | LV System | HV System |
|---|---|---|
| Cable Size (5kW) | 70-95 mm² | 6-10 mm² |
| Cable Cost | High | Low |
| Cable Weight | Heavy | Light |
| Connection Points | Large lugs | Standard terminals |
| Voltage Drop | Significant at distance | Minimal |
HV systems use dramatically thinner cables, reducing material costs and making installation physically easier. For systems where the battery and inverter are more than 5 meters apart, HV's advantage is substantial.
Product Examples
LV Systems: BASENGREEN BR-RM LV (5-6.4 kWh), BR-OW LV (11.77-16 kWh), BR-PC LV (15-30 kWh). EEL Server Rack, Powerwall, and Vertical batteries. Available as both DIY kits and pre-built packs.
HV Systems: BASENGREEN BR-HV Series (20-40 kWh). Designed as complete systems with matched HV hybrid inverters. Professional installation recommended.
When to Choose LV
- Systems under 15 kWh capacity
- DIY installations (HV requires professional installation)
- Budget-conscious projects
- When using standard 48V inverters (Victron, Growatt, Deye)
- When battery and inverter are co-located (short cable runs)
When to Choose HV
- Systems over 20 kWh capacity
- New construction where HV infrastructure can be planned from the start
- When battery and inverter are far apart
- Projects where maximum efficiency is a priority
- Professional installations with certified electricians
The Verdict
For most residential builds under 15 kWh, LV remains the practical choice due to lower cost, DIY compatibility, and wider inverter selection. For larger systems (20+ kWh), HV's efficiency and wiring advantages make it the better architecture — particularly in new construction projects.
