How Do You Size a LiFePO4 Battery for a Workshop with Solar?

Quick Answer: Size the Workshop System from Energy, Power and Recovery

A LiFePO4 battery for a workshop should not be selected from the largest tool nameplate or an Ah number alone. Start with four separate questions:

1. How much battery-side energy will the selected workshop circuits use between charging opportunities?

2. What continuous and starting power must the inverter and battery current path deliver?

3. How much energy can the solar array, MPPT controller, utility charger or generator recover during the actual work schedule?

4. Does the battery, BMS, inverter, protection equipment and enclosure fit the workshop's location and electrical boundary?

The first-pass capacity calculation is:

Nominal battery Ah ≈ battery-side daily Wh ÷ (nominal battery voltage × permitted usable-energy fraction)

For an illustrative 2,282Wh battery-side daily load, a 51.2V nominal system and an 80% planning fraction:

2,282Wh ÷ (51.2V × 0.80) ≈ 56Ah

That result is only an energy estimate. It does not prove that a 56Ah battery can start a compressor, support a 2kW tool load, accept the available solar current or fit the installation. The battery must also pass the power, BMS, temperature, wiring, protection and charging checks.

For example, a simultaneous illustrative AC load of 2,100W would be approximately:

• 182A from a 12.8V battery using a simplified 90% inverter-efficiency assumption; or
• 46A from a 51.2V battery using the same simplified assumption.

The arithmetic explains why higher-voltage architectures can reduce DC current for high-power workshop loads. It does not make 48V or 51.2V the universal answer. The selected inverter, battery or cells, BMS, charger, cable path, disconnects and local installation requirements still control the design.

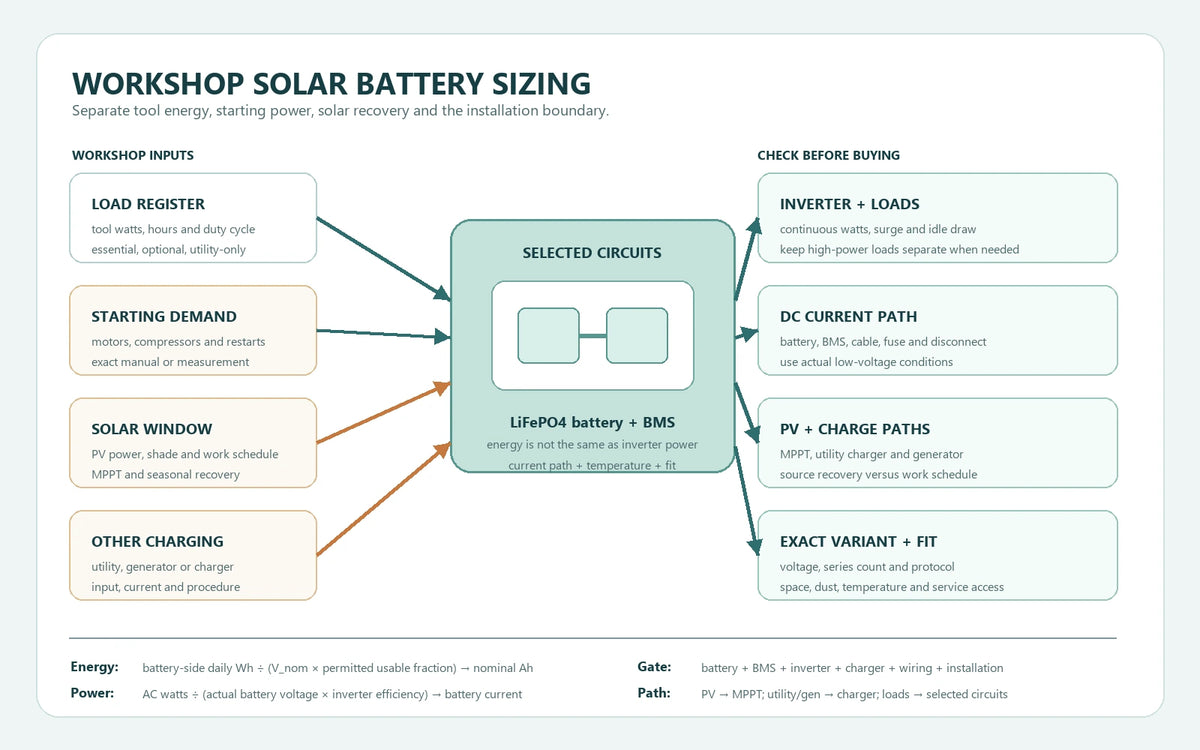

This guide owns the workshop question: how to coordinate intermittent tools, motor or compressor starting demand, daytime solar and selected backup circuits. The existing home battery storage sizing guide remains the broader reference for whole-home energy planning.

1. Define What “Workshop Backup” Actually Includes

“Workshop battery” can mean a small solar system for lights and electronics, a selected-circuit backup system for a detached garage, or an inverter intended to run power tools and motors. Those are materially different designs.

Before choosing a battery, write down the electrical boundary:

Possible boundary	Typical loads	Design question
Essential workshop circuits	Lighting, network equipment, alarm, small controls and battery chargers	How much energy is needed during an outage or after the sun sets?
Selected tool circuits	Bench tools, dust extraction, small compressor or occasional power tools	Can the inverter handle the highest simultaneous run and start demand?
Whole workshop	All circuits, including heating, welding, large compressors or EV charging	Is a battery inverter really the correct supply, or should high-power loads remain on utility power?
Solar self-consumption	Daytime tools, lighting and charging equipment	Can the system use PV directly while the work is taking place?
Detached-building backup	Sub-board circuits, transfer equipment and long cable runs	What fixed wiring, earthing, isolation and local-code work is required?

Many workshops do not need every circuit to be battery-backed. A practical design may keep a welder, large air compressor, resistance heater or EV charger on a suitable utility circuit while the battery supports selected loads. That is not a failure of the battery; it is a way to keep the stored-energy and inverter requirements proportional to the real job.

For fixed grid-connected work, the final transfer arrangement, protective devices, earthing and local compliance must be designed and installed by a qualified professional. A blog calculation cannot approve a workshop's fixed wiring.

2. Build a Workshop Load Register from Real Use

The load register is the most valuable part of the sizing exercise. Record the tool or circuit, its operating mode, the time it actually runs and whether its input is direct DC or AC through an inverter.

Record these fields for each load:

• rated and measured running watts;
• standby or idle watts;
• expected hours per day and days per week;
• duty cycle for motors, compressors and extraction equipment;
• starting or inrush information from the exact manual, nameplate or measurement;
• whether the load is essential, optional or deferrable;
• whether several loads can operate at the same time;
• whether the load is supplied from a direct DC circuit, inverter output or utility-only circuit; and
• the source of every number, such as a product manual, meter reading or nameplate.

Do not multiply every nameplate wattage by a full day. A 1,500W compressor that runs for twelve minutes in an hour does not use the same energy as a 1,500W heater running continuously, although both may affect inverter sizing differently at startup.

Useful workshop load categories

Category	Examples	What to measure or verify
Low-power continuous	Network gear, monitoring, alarm, control electronics	Standby watts and hours the inverter remains enabled
Lighting	LED task lighting and general lighting	Actual circuit wattage and the hours used during a session
Charging equipment	Tool-battery chargers, laptop or camera chargers	Input watts, simultaneous chargers and charging schedule
Motor loads	Compressor, dust extractor, pump, fan or small machine	Running watts, starting behavior, duty cycle and restart frequency
High-power intermittent	Welding equipment, large saws, heaters or EV charging	Whether the battery system is intended to supply it at all; exact peak and duration

Illustrative workshop load register

The following is a calculation example, not an AmpBird product rating or a promise of runtime. The 90% inverter-efficiency assumption is simplified so that the method is easy to follow. Use the selected inverter's documented efficiency and measured standby draw in a real design.

Load	Illustrative input	Use per day	Load-side energy	Battery-side planning energy
LED task lighting	60W direct DC	4h	240Wh	240Wh
Tool-battery chargers	300W AC	2h	600Wh	≈667Wh at 90% conversion
Dust extractor	900W AC	0.5h	450Wh	≈500Wh at 90% conversion
Small compressor	1,200W AC average run input	0.4h	480Wh	≈533Wh at 90% conversion
Network and monitoring	25W AC	8h	200Wh	≈222Wh at 90% conversion
Inverter standby	15W battery-side draw	8h	—	120Wh
Illustrative total				≈2,282Wh battery-side energy

The compressor's 1,200W figure is an average running input for the example. It is not its starting requirement. Starting demand must be checked separately in the inverter and motor-load section below.

3. Convert the Load Register into Battery-Side Energy

Battery capacity is measured on the battery side, while many workshop tools are specified on the AC output side of an inverter. Convert the numbers before comparing them with a battery's nominal kWh or Ah label.

For an AC load, a simplified conversion is:

Battery-side Wh ≈ AC load Wh ÷ inverter efficiency

For a direct DC load, include the distribution or converter losses that apply to the actual system. If a 12V device is supplied from a 24V or 51.2V bank through a DC-DC converter, the converter efficiency and standby draw belong in the load register.

Then calculate a capacity planning figure:

Required nominal kWh ≈ battery-side energy between charging opportunities ÷ permitted usable-energy fraction

The permitted usable-energy fraction is not a universal number. It depends on the battery manufacturer's operating guidance, BMS behavior, reserve policy, temperature, discharge power and the owner's desired margin. If you use an illustrative 80% fraction, label it as an assumption rather than an AmpBird specification.

Battery capacity is not the same as inverter power

A battery can have enough nominal kWh for a day's energy but still be unable to supply the inverter's current. Conversely, a battery can support a short tool peak but not store enough energy for a long outage.

Keep these questions separate:

Check	Question	Failure mode if skipped
Energy	How many battery-side Wh are needed until the next charge window?	The battery reaches its permitted reserve too early
Continuous power	What is the highest simultaneous running load?	Inverter overload or nuisance shutdown during normal work
Starting power	What happens when a motor, compressor or tool starts or restarts?	Inverter fails to start the load even when the running watts look acceptable
DC current	What current reaches the battery at the lowest operating voltage?	Voltage drop, BMS current limiting or protection trips
Recovery	How much energy can PV, AC charging or a generator put back?	The battery does not recover before the next work period

For a broader explanation of nominal versus usable energy and household demand, see How Many kWh of LiFePO4 Battery Storage Do You Need for Your Home?. The workshop load pattern is different, but the distinction between the label and usable energy is the same.

4. Check Tool Running Power and Motor Starting Demand Separately

Workshop tools make inverter sizing more difficult because power can change abruptly. A motor or compressor may have a modest running wattage but a higher starting or restart requirement. Some electronic tools have power-factor or waveform requirements that cannot be inferred from a simple watt number.

Use the exact equipment documentation or a suitable measurement. Do not insert a universal “three times the wattage” rule into every workshop design.

Load type	Why it needs a separate check	Evidence to request
Compressor or pump	Motor start, pressure restart and repeated cycling can be harder than a single steady run	Exact start data, measured current or inverter compatibility guidance
Dust extractor or fan	Motor demand changes with the load and may overlap with a tool	Running and start behavior plus the planned simultaneous circuit list
Power saw or router	Short peaks can occur while another load is already operating	Tool manual, measured input and the intended operating sequence
Welding equipment	Input power, duty cycle and supply requirements can be substantial and model-specific	Exact welder manual and a decision on whether it remains utility-only
Resistance heater or EV charger	Long-duration high power can dominate both inverter and battery energy	Continuous input, duration and whether direct utility supply is more suitable

For a simplified inverter-current estimate:

Battery current ≈ AC watts ÷ (actual battery voltage × inverter efficiency)

Use the lowest relevant battery voltage, not only the nominal label. A 2,100W simultaneous load with a simplified 90% efficiency assumption is approximately 182A at 12.8V or 46A at 51.2V. Those are arithmetic examples; the exact inverter, battery, BMS, cable and protection path must be checked at the actual operating conditions.

An inverter's advertised peak rating is not a blanket guarantee for every motor. Check the duration of the peak, the battery-side current, thermal derating, minimum DC voltage and the manufacturer's permitted load type.

5. Choose the Workshop Battery Voltage after the Load Check

The correct order is load register → power/current check → voltage architecture. Do not choose 12V, 24V or 48V simply because a particular label appears familiar.

When 12V may be practical

12V can be straightforward when most loads are 12V DC, the inverter is modest, cable runs are short and the expected peak current is manageable. It can avoid unnecessary DC-DC conversion for compatible low-voltage controls and lighting.

When 24V or 48V-class architecture deserves consideration

A higher-voltage house bank can reduce current for the same power. That may make cable routing, voltage drop and protection selection easier, especially where the workshop uses a larger inverter or has longer DC conductors. It also changes the charger, inverter, BMS, service procedure and direct-load interfaces.

The 12V/24V/48V decision table

Question	What the answer may suggest	What must still be verified
Are nearly all loads low-power and 12V DC?	A 12V design may reduce conversion complexity	Peak current, cable length, BMS limit and future inverter plans
Is the inverter power or DC run length increasing?	24V or 48V-class architecture may reduce current	Exact inverter input range, battery series count and downstream converters
Does the selected product page describe a 51.2V/16S system?	It may suit a specific 48V-class solar-storage path	Exact cell range, BMS, inverter protocol, charger settings and enclosure dimensions
Are existing workshop circuits fixed at 12V or 24V?	Keep a clearly defined low-voltage distribution boundary	DC-DC converter rating, protection and isolation between voltage domains

The 12V vs 24V LiFePO4 comparison for RVs, boats and off-grid cabins explains the broader mobile-voltage trade-off. A fixed workshop may have different wiring and code requirements, so use it as background rather than as a preselected system answer.

When a 48V or 51.2V path is under consideration, the 48V LiFePO4 wiring, fuse and isolation guide is the relevant next check. It does not replace the exact battery and inverter installation manuals.

6. Match Solar Production to the Workshop Schedule

Solar array size and battery size solve different problems. PV determines how quickly energy can be recovered; the battery determines how much energy can be shifted to a later time and how much power can be delivered when PV is insufficient.

A simplified daily PV recovery estimate is:

Recovered PV Wh ≈ array nameplate W × equivalent sun hours × overall derating factor

The derating factor represents the real losses and conditions in the selected installation. It is not a fixed AmpBird value. Account for season, orientation, shade, temperature, wiring, controller conversion, battery charge limits and simultaneous workshop loads.

Daytime-work scenario

If the workshop operates mainly during the solar window, the system may use PV directly for some loads while the battery handles short changes in demand. This can reduce the required battery energy, but only if the inverter and solar controller are designed to coordinate the load and the PV source.

Evening or outage scenario

If the workshop operates after sunset or the primary reason is outage backup, the battery must carry the selected loads until the next reliable charging opportunity. A larger array may refill the battery on a good day, but it cannot guarantee winter recovery if the available solar resource is inadequate.

Use How to Size Solar Panels for a Home Battery System for the solar-to-storage calculation framework, then adapt the load profile to the workshop's actual working hours. How Long Does Solar Take to Charge a 16kWh Battery? explains why a nameplate array size is not the same as a guaranteed daily charging time.

7. Design Every Charging Path, Not Only the PV Input

A workshop system may have several charging sources:

• PV array → MPPT charge controller → battery;
• utility AC → charger or inverter/charger → battery;
• generator AC → charger or inverter/charger → battery; and
• an optional secondary DC source where the system documentation permits it.

Each path needs its own voltage, current, temperature and protection check. The total charging current must not exceed the limits of the battery, BMS, conductors, protection devices or charge equipment. The limiting component is not always the charger nameplate.

The official Victron SmartSolar MPPT configuration guidance warns that incorrect settings can damage batteries and that settings should follow the battery manufacturer's guidance. The exact charge profile, low-temperature behavior and communications method for another system must be taken from its own documentation.

For an AC charger or inverter/charger, verify:

1. AC input voltage and frequency;

2. maximum AC input current and upstream protection;

3. battery-side charge current at the selected voltage;

4. charge-voltage profile for the exact LiFePO4 battery or cells;

5. communication or enable requirements, if any;

6. behavior when the workshop load is running at the same time; and

7. whether the unit is approved and configured for the local fixed-wiring arrangement.

The Victron MultiPlus-II 230V technical specification page is a useful example of why inverter output, charger input, charge current, temperature and protection are separate specification fields. It is not an AmpBird product specification or a recommendation to use that model.

8. Apply the Minimum-of-Limits Rule to the DC Path

The usable design current is constrained by the complete path:

Battery current capability, BMS limit, inverter limit, charger limit, fuse or breaker, disconnect, cable ampacity, terminals, temperature and installation conditions

Do not select a fuse from the battery's Ah label. Do not select a cable from the inverter's marketing power alone. Use the exact current, length, routing, ambient temperature, termination and protection requirements for the installation.

For a workshop, also consider:

• whether dust, moisture, vibration or accidental impact can reach the battery enclosure;
• whether the positive and negative conductors have a clear protected route;
• whether the disconnect is accessible without reaching across live terminals;
• whether the enclosure leaves room for service and torque checks;
• whether multiple battery modules have matched documentation and a controlled current-sharing path; and
• whether the inverter can be safely isolated before servicing tools or the battery system.

The AmpBird guide to building a 48V LiFePO4 battery pack provides a broader construction workflow. A workshop installation still needs the exact component documentation and a professional review where fixed AC wiring is involved.

9. Check Temperature, Dust, Space and Payload Before Ordering

Workshop conditions are often less controlled than a utility room. A battery may be exposed to cold starts, high summer temperatures, sawdust, metal dust, humidity, vibration or limited access. Treat the installation space as an engineering input, not an afterthought.

Measure and record:

• clear internal width, height and depth;
• door, cover and terminal clearance;
• cable-entry direction and minimum bend space;
• floor or wall mounting surface and restraint method;
• service access to the BMS, disconnects and terminals;
• expected minimum and maximum cell or battery temperature;
• moisture, dust and impact exposure;
• total battery, enclosure, inverter and cable mass; and
• distance to PV, utility sub-board and selected loads.

Do not infer an installation rating from a product photograph. Confirm the exact product documentation for environmental limits and whether a separate enclosure or protective location is required. A product page's dimension may describe the battery box only, not the complete service clearance or cabling space.

If the workshop is unheated in winter, separate low-temperature charge protection from self-heating. A BMS cutoff, an integrated heater and an external heater-control output are different functions. The selected battery and charger documents must explain how they work together.

10. Identify the AmpBird Product Path Only after the Brief Is Complete

AmpBird currently offers several routes that may be relevant to a workshop project, but they represent different levels of assembly and responsibility. The right route depends on the voltage, energy, current, cell choice, enclosure and installation plan.

DIY kit route

The AmpBird DIY battery kits collection is a starting point for projects where the buyer wants a documented kit path and is prepared to verify the exact included hardware and separate cell requirement. The current 51.2V 314Ah DIY LiFePO4 battery kit page identifies a specific 16S/51.2V-class variant, but the exact page and order configuration control.

Do not treat a kit title as proof that every cell, charger, inverter, cable, protection device or installation service is included. Confirm the packing list, compatible cell range, BMS communication, inverter model, enclosure dimensions, temperature behavior and what remains the buyer's responsibility.

Larger battery-box route

For a workshop with a larger energy target, the 32kWh 51.2V DIY battery box product page is an exact product route to inspect. The article does not turn the product title into a universal workshop recommendation. Check cell availability, series/parallel arrangement, BMS and inverter limits, physical installation, protection and local electrical design before comparing it with a smaller system.

Pre-assembled route

The pre-assembled 51.2V 330Ah 16.9kWh LiFePO4 battery pack is a different buying path from a cell-and-box project. A pre-assembled product may reduce assembly work, but it still requires exact inverter communication, charging settings, current-path, environmental and installation verification.

The AmpBird home battery systems collection provides the broader system category. Product pages and current order documentation control the exact contents, compatibility and availability. Do not select a product solely because its nominal kWh appears to match the result of an illustrative worksheet.

11. Use a Workshop Sizing Worksheet before Comparing Prices

A supplier can give a more useful answer when the inquiry includes the system boundary and the evidence behind the load estimate. Use the following worksheet:

Field	Information to provide
Workshop boundary	Selected circuits or whole workshop; fixed building or mobile setup; utility supply available or not
Loads	Tool and circuit name, running watts, standby watts, hours, duty cycle and simultaneous-use combinations
Starting demand	Motor/compressor/tool model, measured start data or manufacturer documentation
Energy target	Hours of backup required, reserve policy and next reliable charging opportunity
System voltage	Preferred 12V, 24V or 48V-class voltage and the reason for that preference
Inverter	AC output voltage, continuous power, surge duration, idle draw, input-voltage range and communication needs
Solar	Panel power and arrangement, shade, MPPT model, cable run and expected work window
Other charging	Utility or generator source, charger/inverter-charger model, current limit and operating procedure
Installation	Dimensions, temperature, dust/moisture exposure, mounting, cable route, service access and payload
Purchase route	Cells only, DIY kit, BMS/components, pre-assembled battery or a complete system review

This worksheet is more useful than asking for “the biggest battery for my workshop.” It allows the battery, BMS, inverter, charger, solar controller, protection and enclosure to be checked as one system.

12. Practical Decision Examples without Pretending They Are Universal

Example A: lights, electronics and tool-battery charging

If the workshop mostly needs lighting, monitoring and tool-battery charging, the energy requirement may be more important than a motor start. A modest selected-circuit system can be evaluated from the measured daily Wh, inverter standby draw and the desired outage duration. Solar can be scheduled to refill the bank during the day.

Example B: a compressor plus dust extraction

If the workshop must run a compressor and dust extractor, calculate the highest simultaneous running load and check each motor's start or restart behavior. The battery may have enough kWh while the inverter or BMS current limit is still too small. A higher-voltage architecture may reduce DC current, but it does not remove the start-power check.

Example C: welding or large heating loads

If the main purpose is welding, large heating or EV charging, begin by checking whether battery backup is the right supply at all. These loads can dominate continuous power, peak power and stored energy. Keeping them on utility power while the battery supports selected circuits may produce a more honest and serviceable design.

Example D: daytime solar workshop

If most work happens while the array is producing, compare direct daytime PV contribution with the battery's role in handling clouds, short peaks and late-day work. Oversizing the battery without enough recovery can create an expensive system that still arrives at the next morning undercharged.

Frequently Asked Questions

How many kWh does a workshop battery need?

There is no universal workshop size. Convert the selected circuits into battery-side Wh for the time between charging opportunities, divide by a permitted usable-energy fraction and then check inverter power, starting demand, charging recovery, BMS current and installation limits. Tool type and schedule matter as much as daily hours.

Is a 100Ah LiFePO4 battery enough for a workshop?

It may support a light selected-circuit load, but the Ah label alone cannot answer the question. At 12.8V, 100Ah is approximately 1.28kWh nominal before the permitted usable fraction and system losses. At 51.2V, the same Ah label represents a different nominal energy. Check the actual voltage architecture, load register and current path.

Can a LiFePO4 battery run an air compressor?

It can be possible for a particular battery, inverter and compressor combination, but running watts are not enough evidence. Verify the compressor's starting and restart behavior, inverter surge capability, minimum DC voltage, battery/BMS current limit and the complete protected cable path.

Can a workshop battery run a welder?

Do not assume it can. Welding equipment varies in input power, duty cycle, supply voltage and power quality requirements. Use the exact welder documentation and decide whether it belongs on a utility-only circuit or a specifically engineered battery-backed output.

Should I use 12V, 24V or 48V for workshop solar storage?

Use the load and current calculation first. 12V may be convenient for small direct-DC systems; 24V or 48V-class systems may reduce current for higher-power inverters or longer runs. The final choice depends on the exact battery, cells, BMS, inverter, charger, converters, wiring and service requirements.

Does a larger solar array mean I need a larger battery?

Not automatically. PV array size affects recovery power, while the battery affects stored energy and power delivery. A daytime workshop may use PV directly and need less stored energy; an evening or outage use case may need more battery energy even with the same array. Check MPPT, battery charge-current and seasonal limits.

Can solar power the tools while charging the battery?

A correctly designed system may serve loads and charge the battery in the same solar window, but the available PV power, inverter operating mode, MPPT output, battery charge limit and simultaneous-load behavior must be checked. Nameplate PV watts do not guarantee that all tool power will be available at every moment.

Do I need an inverter/charger for a workshop battery?

Only if the system needs the functions that an inverter/charger provides, such as AC charging, transfer or coordinated utility/generator operation. A separate inverter and charger may be suitable in another architecture. Compare the exact input, output, charge-current, control and installation requirements.

Can I install the battery in a dusty garage?

Do not infer suitability from a product photo or nominal battery rating. Check the exact battery and enclosure documentation for environmental limits, then provide a protected, restrained and serviceable location with correct cable routing and isolation. Dust and moisture can change the installation decision.

Is a 51.2V DIY kit automatically compatible with my inverter?

No. Confirm the exact kit configuration, BMS model, CAN or RS485 protocol, cable or pinout, inverter model, firmware or profile requirements and charge/discharge limits. A nominal voltage match is only the first compatibility check.

Are cells included in every AmpBird DIY battery kit?

Do not assume that from the product title. Current AmpBird kit pages may identify the enclosure, BMS, display, busbars and related hardware separately from the cells. Read the exact variant's contents and confirm what is included before ordering.

What should I send AmpBird for a workshop battery recommendation?

Send the selected-circuit list, measured or documented watts, daily hours, motor start data, required backup time, system voltage, inverter model, solar and MPPT details, utility or generator charger, installation dimensions, temperature and environmental conditions, and whether you want cells, a DIY kit, components or a pre-assembled system. Use the AmpBird contact page for the project inquiry.

Start with the Workshop Loads, Then Choose the Battery Path

The useful question is not “what is the biggest LiFePO4 battery I can put in my workshop?” It is:

Which circuits must run, when must they run, what happens at tool startup and how will the battery recover before the next work period?

Build the load register, convert AC energy to the battery side, separate running power from starting power, select the voltage architecture, size the PV and charging paths, and verify the complete current and installation boundary. Only then compare an AmpBird cell project, DIY kit, pre-assembled pack or larger battery-box route.

If you want AmpBird to review the configuration, send the worksheet through the AmpBird contact page. The purpose is to check the selected battery, BMS, inverter, charger, PV and protection path for the actual workshop—not to promise a generic capacity or universal tool compatibility.

Technical References

• Victron SmartSolar MPPT configuration and settings
• Victron MultiPlus-II 230V technical specifications
• Victron MultiPlus-II 230V installation guidance

These official references explain general MPPT settings, AC charger/inverter specification fields and installation considerations. They do not replace the selected battery, cells, BMS, inverter, charger, workshop wiring or local professional review.
